AXAP54L-ANXMBK (2020)
Toyota Rav4
Production
Jun 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2006- )

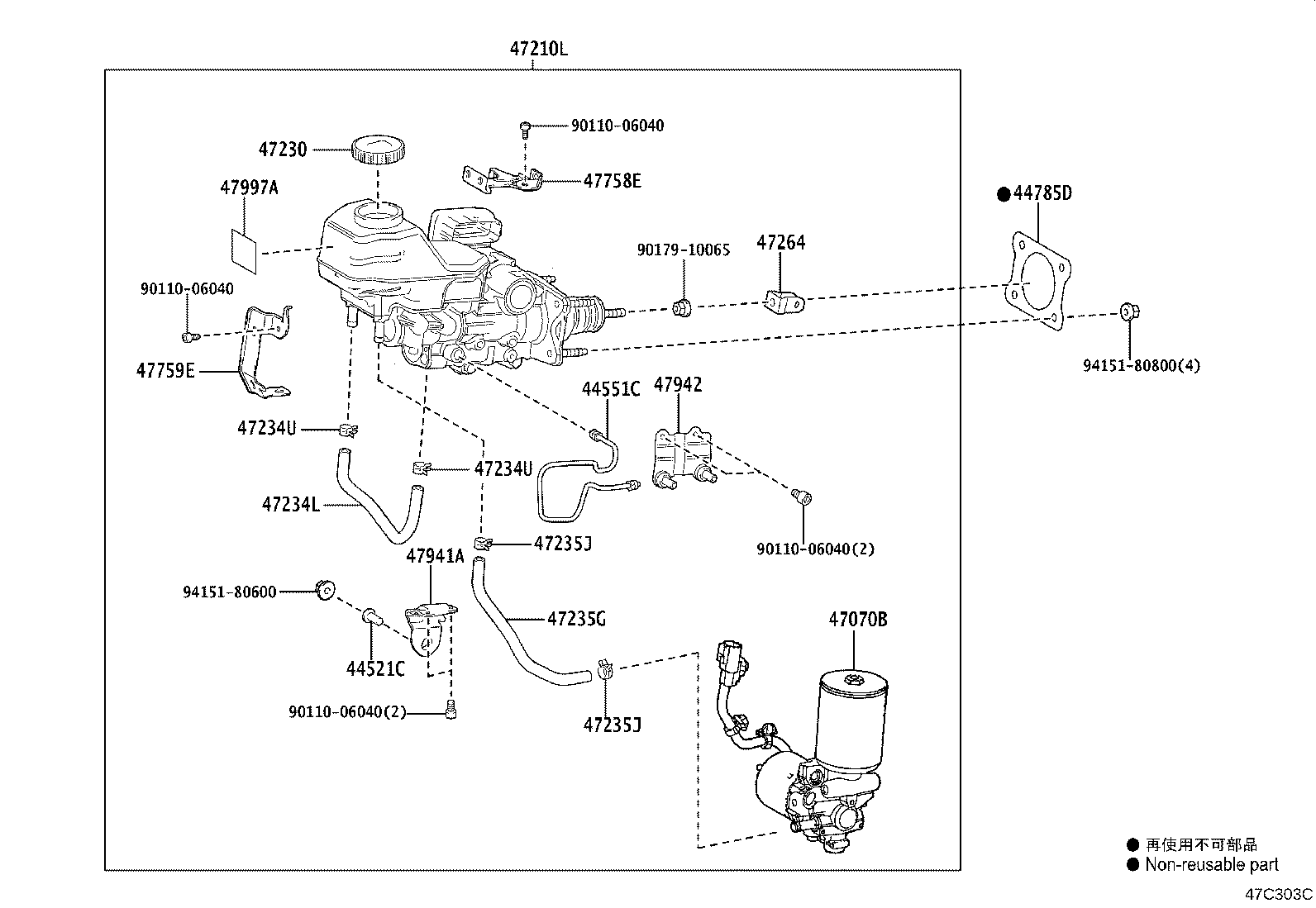

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44521C - COLLAR, BRAKE ACTUATOR CASE | ||||
| 44521-47010 |
AXAP54 |
1 | ||
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-48080 |
AXAP54 |
1 | ||
| 44785D - GASKET, BRAKE MASTER CYLINDER | ||||
| 44785-12040 |
AXAP54 |
1 | ||
| 47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR | ||||
| 47070-48100 |
AXAP54 |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-42240 |
AXAP54 *614 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
AXAP54 |
1 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-42040 |
AXAP54 |
1 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96137-41501 |
AXAP54 |
2 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96137-41501 |
AXAP54 |
2 | ||
| 47235G - HOSE, RESERVOIR, NO.2 | ||||
| 47235-42040 |
AXAP54 |
1 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
AXAP54 |
2 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
AXAP54 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12060 |
AXAP54 |
1 | ||
| 47758E - BRACKET, WIRE CLAMP, NO.1 | ||||
| 47758-42010 |
AXAP54 |
1 | ||
| 47759E - BRACKET, WIRE CLAMP, NO.2 | ||||
| 47759-42020 |
AXAP54 |
1 | ||
| 47941A - BRACKET, BRAKE POWER SUPPLY, NO.1 | ||||
| 47941-48010 |
AXAP54 |
1 | ||
| 47942 - BRACKET, BRAKE POWER SUPPLY, NO.2 | ||||
| 47942-48010 |
AXAP54 |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-76010 |
AXAP54 |
1 | ||
| Common parts | ||||
| 90110-06040 | ||||
| 90179-10065 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
