AXAP54L-ANXMBA (2020)
Toyota Rav4
Production
Jun 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

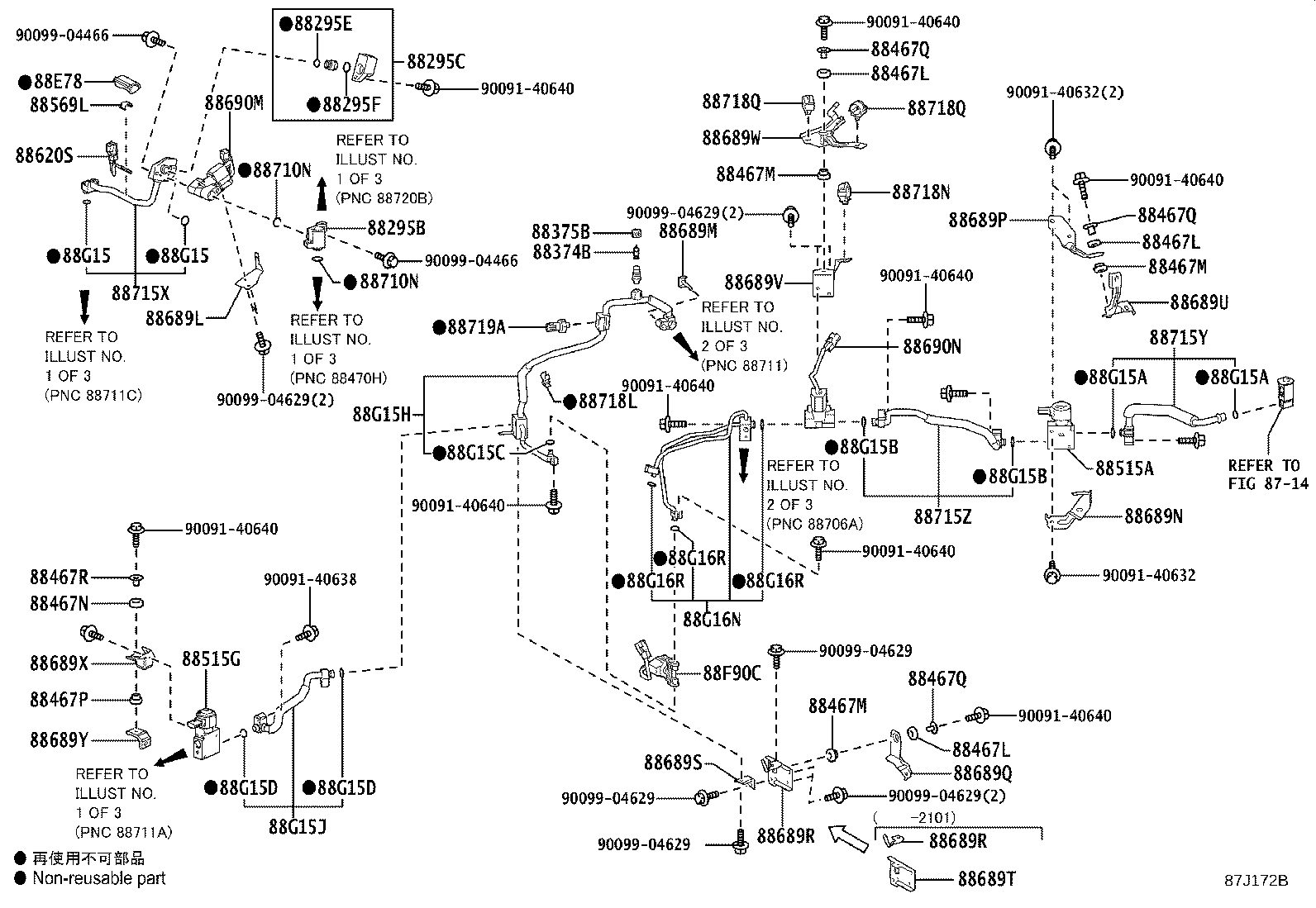

ILLUST NO. 1 OF 3(2006- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88295D - TUBE, VALVE TO CONNECTOR, NO.4 | ||||
| 88295-42040 |
AXAP54 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-74010 |
AXAP54 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30310 |
AXAP54 |
1 | ||
| 88470H - ACCUMULATOR ASSY | ||||
| 88470-42100 |
AXAP54 |
1 | ||
| 884A0 - CONDENSER ASSY, COOLER | ||||
| 884A0-42050 |
AXAP54 |
1 | ||
| 88503B - REGULATOR SUB-ASSY, PRESSURE | ||||
| 88503-42010 |
AXAP54 |
1 | ||
| 88569P - CLAMP, COOLER, NO.4 | ||||
| 88569-47020 |
AXAP54 |
1 | ||
| 88620T - THERMISTOR ASSY, AIR CONDITIONER NO.4 | ||||
| 88620-42080 |
AXAP54 |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-42720 |
AXAP54 |
1 | ||
| 88689F - BRACKET, COOLER, NO.2 | ||||
| 88688-42730 |
AXAP54 |
1 | ||
| 88689G - BRACKET, COOLER, NO.3 | ||||
| 88688-42740 |
AXAP54 |
1 | ||
| 88689H - BRACKET, COOLER, NO.4 | ||||
| 88688-42750 |
AXAP54 |
1 | ||
| 88689J - BRACKET, COOLER, NO.5 | ||||
| 88688-42760 |
AXAP54 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-42260 |
AXAP54 |
1 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
AXAP54 ID=10.8,OD=15.6 |
2 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
AXAP54 ID=10.8,OD=15.6 |
2 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-42750 |
AXAP54 |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14157 |
AXAP54 ID=13.4,OD=18.2 |
2 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14157 |
AXAP54 ID=13.4,OD=18.2 |
2 | ||
| 88705A - TUBE SUB-ASSY, DISCHARGE | ||||
| 88705-42140 |
AXAP54 |
1 | ||
| 88705E - RING, O, NO.1(FOR DISCHARGE TUBE) | ||||
| 90099-14155 |
AXAP54 |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-42070 |
AXAP54 |
1 | ||
| 88711C - HOSE, COOLER REFRIGERANT DISCHARGE, NO.3 | ||||
| 88711-42080 |
AXAP54 |
1 | ||
| 88711K - RING, O, NO.2(FOR DISCHARGE HOSE) | ||||
| 90099-14155 |
AXAP54 |
2 | ||
| 88711K - RING, O, NO.2(FOR DISCHARGE HOSE) | ||||
| 90099-14155 |
AXAP54 |
2 | ||
| 88711L - RING, O, NO.3(FOR DISCHARGE HOSE) | ||||
| 90099-14155 |
AXAP54 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-42200 |
AXAP54 |
1 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 90099-14157 |
AXAP54 |
2 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 90099-14157 |
AXAP54 |
2 | ||
| 88717U - TUBE, SUCTION, NO.1 | ||||
| 88717-42180 |
AXAP54 |
1 | ||
| 88717Y - RING, O, NO.1(FOR SUCTION TUBE) | ||||
| 90099-14121 |
AXAP54 ID=13.4,OD=18.2 |
2 | ||
| 88717Y - RING, O, NO.1(FOR SUCTION TUBE) | ||||
| 90099-14121 |
AXAP54 ID=13.4,OD=18.2 |
2 | ||
| 88720B - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-42040 |
AXAP54 |
1 | ||
| 88720C - RING, O, NO.1(HOSE & ACCESSORY ASSY, AIR CONDITIONER) | ||||
| 90099-14157 |
AXAP54 ID=13.4,OD=18.2 |
1 | ||
| 88720D - RING, O, NO.2(HOSE & ACCESSORY ASSY, AIR CONDITIONER) | ||||
| 90099-14155 |
AXAP54 |
1 | ||
| 90099-14157 |
AXAP54 ID=13.4,OD=18.2 |
1 | ||
| 88720D - RING, O, NO.2(HOSE & ACCESSORY ASSY, AIR CONDITIONER) | ||||
| 90099-14155 |
AXAP54 |
1 | ||
| 90099-14157 |
AXAP54 ID=13.4,OD=18.2 |
1 | ||
| 88E78A - PACKING, COOLER, NO.3 | ||||
| 88578-47060 |
AXAP54 |
1 | ||
| Common parts | ||||
| 90091-40640 | None epc.PartDetail.None | |||
| 90105-06347 | None epc.PartDetail.None | |||
| 90105-06348 | None epc.PartDetail.None | |||
| 90105-06349 | None epc.PartDetail.None | |||
| 90119-06A17 | None epc.PartDetail.None | |||
| 90119-08D22 | None epc.PartDetail.None | |||
| 90178-06026 | None epc.PartDetail.None | |||
| 90178-06027 | None epc.PartDetail.None | |||
| 91671-80612 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

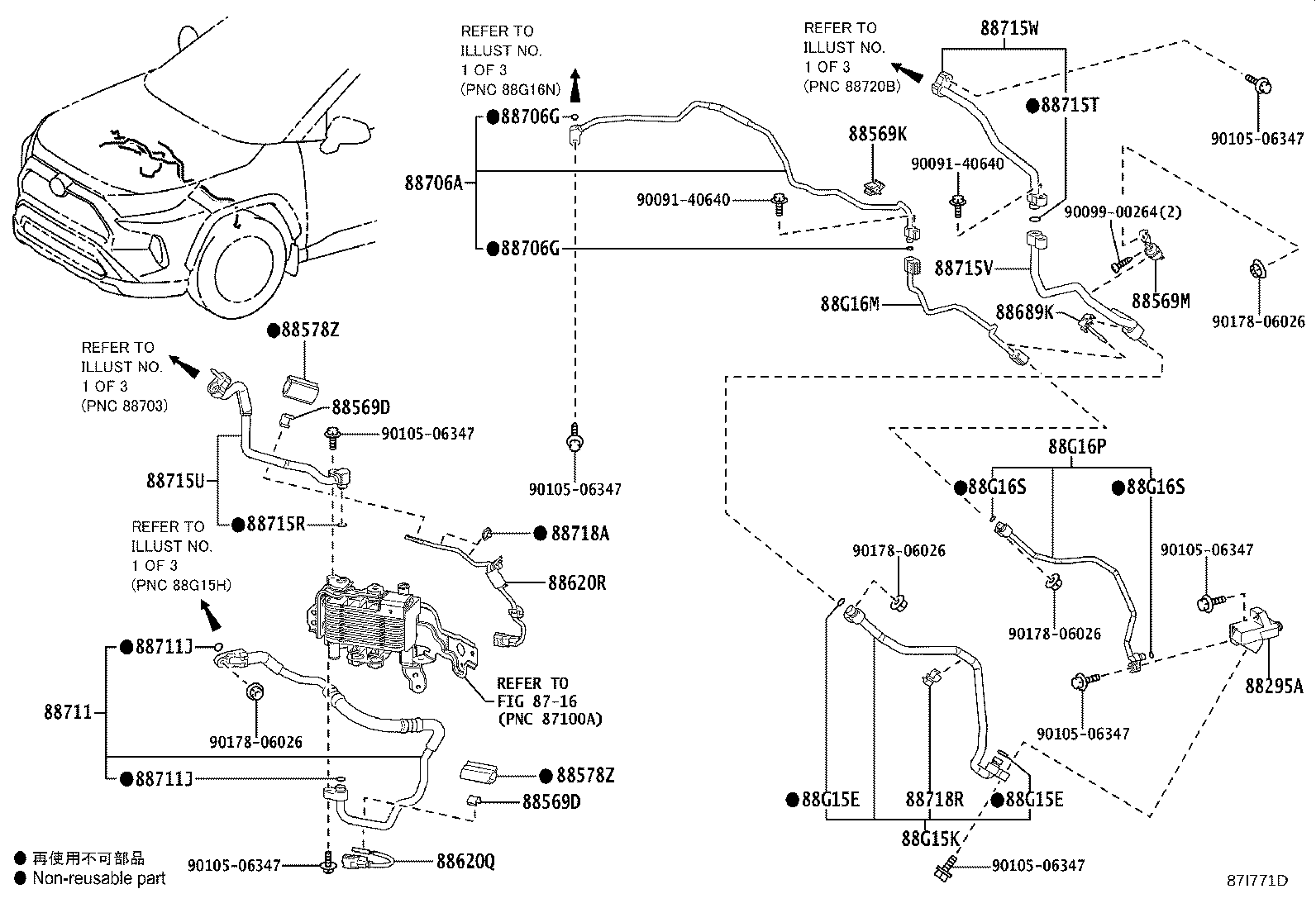

ILLUST NO. 2 OF 3(2006- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88295A - TUBE, VALVE TO CONNECTOR | ||||
| 88295-42010 |
AXAP54 |
1 | ||
| 88569D - CLAMP, COOLER, NO.1 | ||||
| 88569-74090 |
AXAP54 |
2 | ||
| 88569D - CLAMP, COOLER, NO.1 | ||||
| 88569-74090 |
AXAP54 |
2 | ||
| 88569K - CLAMP, COOLER, NO.2 | ||||
| 88718-50330 |
AXAP54 |
1 | ||
| 88569M - CLAMP, PIPING, NO.1 | ||||
| 88718-42160 |
AXAP54 |
1 | ||
| 88578Z - PACKING, COOLER, NO.1 | ||||
| 88578-47070 |
AXAP54 |
2 | ||
| 88578Z - PACKING, COOLER, NO.1 | ||||
| 88578-47070 |
AXAP54 |
2 | ||
| 88620Q - THERMISTOR ASSY, AIR CONDITIONER NO.1 | ||||
| 88620-42030 |
AXAP54 |
1 | ||
| 88620R - THERMISTOR ASSY, AIR CONDITIONER NO.2 | ||||
| 88620-42020 |
AXAP54 |
1 | ||
| 88689K - BRACKET, COOLER, NO.6 | ||||
| 88688-42780 |
AXAP54 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-42840 |
AXAP54 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
AXAP54 ID=6.7,OD=10.3 |
2 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
AXAP54 ID=6.7,OD=10.3 |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-42090 |
AXAP54 |
1 | ||
| 88711J - RING, O, NO.1(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
AXAP54 ID=10.8,OD=15.6 |
2 | ||
| 88711J - RING, O, NO.1(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
AXAP54 ID=10.8,OD=15.6 |
2 | ||
| 88715R - RING, O(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
AXAP54 ID=10.8,OD=15.6 |
1 | ||
| 88715T - RING, O, NO.3(FOR DISCHARGE TUBE) | ||||
| 90099-14155 |
AXAP54 |
1 | ||
| 88715U - TUBE, DISCHARGE, NO.1 | ||||
| 88715-42400 |
AXAP54 |
1 | ||
| 88715V - TUBE, DISCHARGE, NO.2 | ||||
| 88715-42310 |
AXAP54 |
1 | ||
| 88715W - TUBE, DISCHARGE, NO.3 | ||||
| 88715-42320 |
AXAP54 |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-42150 |
AXAP54 |
2 | ||
| 88718R - CLAMP, PIPING | ||||
| 88718-2J230 |
AXAP54 |
1 | ||
| 88G15E - RING, O, NO.9(FOR DISCHARGE TUBE) | ||||
| 90099-14155 |
AXAP54 |
2 | ||
| 88G15E - RING, O, NO.9(FOR DISCHARGE TUBE) | ||||
| 90099-14155 |
AXAP54 |
2 | ||
| 88G15K - TUBE, DISCHARGE, NO.9 | ||||
| 88715-42300 |
AXAP54 |
1 | ||
| 88G16M - TUBE, LIQUID, NO.1 | ||||
| 88716-42A80 |
AXAP54 |
1 | ||
| 88G16P - TUBE, LIQUID, NO.3 | ||||
| 88716-42A30 |
AXAP54 |
1 | ||
| 88G16S - RING, O, NO.3(FOR LIQUID TUBE) | ||||
| 90099-14119 |
AXAP54 ID=6.7,OD=10.3 |
2 | ||
| 88G16S - RING, O, NO.3(FOR LIQUID TUBE) | ||||
| 90099-14119 |
AXAP54 ID=6.7,OD=10.3 |
2 | ||
| Common parts | ||||
| 90091-40640 | None epc.PartDetail.None | |||
| 90099-00264 | None epc.PartDetail.None | |||
| 90105-06347 | None epc.PartDetail.None | |||
| 90178-06026 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8716 | ||||

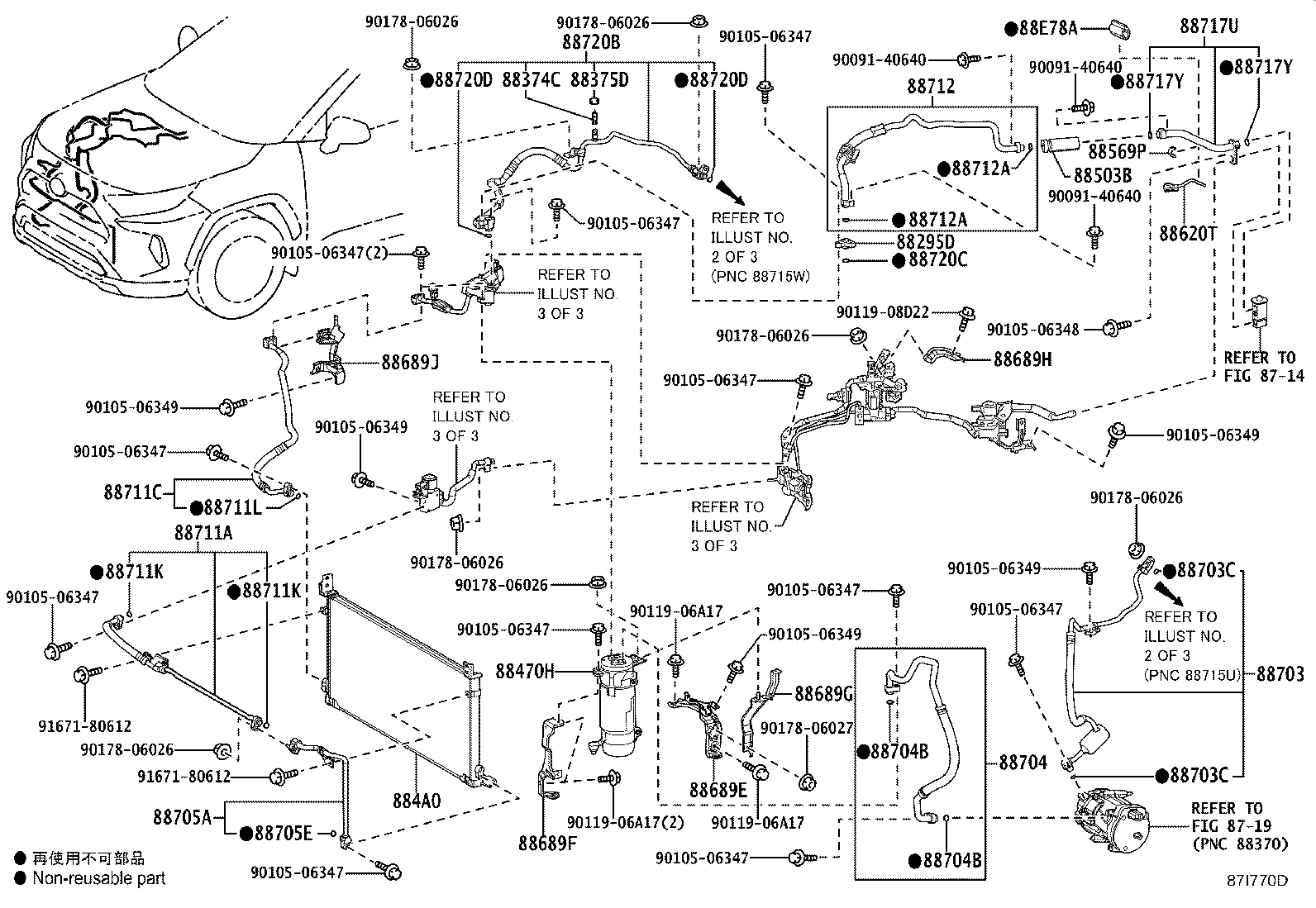

ILLUST NO. 3 OF 3(2006- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88295B - TUBE, VALVE TO CONNECTOR, NO.2 | ||||
| 88295-42020 |
AXAP54 |
1 | ||
| 88295C - TUBE, VALVE TO CONNECTOR, NO.3 | ||||
| 88295-42030 |
AXAP54 |
1 | ||
| 88295E - RING, O, NO.1(FOR TUBE, VALVE TO CONNECTOR) | ||||
| 90099-14157 |
AXAP54 ID=13.4,OD=18.2 |
1 | ||
| 88295F - RING, O, NO.2(FOR TUBE, VALVE TO CONNECTOR) | ||||
| 90099-14169 |
AXAP54 ID=17.2,OD=22.0 |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
AXAP54 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30320 |
AXAP54 |
1 | ||
| 88467L - CUSHION, COOLER, NO.1 | ||||
| 88467-47020 |
AXAP54 |
3 | ||
| 88467L - CUSHION, COOLER, NO.1 | ||||
| 88467-47020 |
AXAP54 |
3 | ||
| 88467L - CUSHION, COOLER, NO.1 | ||||
| 88467-47020 |
AXAP54 |
3 | ||
| 88467M - CUSHION, COOLER, NO.2 | ||||
| 88467-47030 |
AXAP54 |
3 | ||
| 88467M - CUSHION, COOLER, NO.2 | ||||
| 88467-47030 |
AXAP54 |
3 | ||
| 88467M - CUSHION, COOLER, NO.2 | ||||
| 88467-47030 |
AXAP54 |
3 | ||
| 88467N - CUSHION, COOLER, NO.3 | ||||
| 88467-47020 |
AXAP54 |
1 | ||
| 88467P - CUSHION, COOLER, NO.4 | ||||
| 88467-47030 |
AXAP54 |
1 | ||
| 88467Q - BUSH, NO.1 | ||||
| 88467-14050 |
AXAP54 |
3 | ||
| 88467Q - BUSH, NO.1 | ||||
| 88467-14050 |
AXAP54 |
3 | ||
| 88467Q - BUSH, NO.1 | ||||
| 88467-14050 |
AXAP54 |
3 | ||
| 88467R - BUSH, NO.2 | ||||
| 88467-14050 |
AXAP54 |
1 | ||
| 88515A - VALVE, COOLER EXPANSION | ||||
| 88515-42110 |
AXAP54 |
1 | ||
| 88515G - VALVE, COOLER EXPANSION, NO.2 | ||||
| 88515-42120 |
AXAP54 |
1 | ||
| 88569L - CLAMP, COOLER, NO.3 | ||||
| 88569-74090 |
AXAP54 |
1 | ||
| 88620S - THERMISTOR ASSY, AIR CONDITIONER NO.3 | ||||
| 88620-42040 |
AXAP54 |
1 | ||
| 88689L - BRACKET, COOLER, NO.7 | ||||
| 88688-42790 |
AXAP54 |
1 | ||
| 88689M - BRACKET, COOLER, NO.8 | ||||
| 88688-33240 |
AXAP54 |
1 | ||
| 88689N - BRACKET, COOLER, NO.9 | ||||
| 88688-42800 |
AXAP54 |
1 | ||
| 88689P - BRACKET, COOLER, NO.10 | ||||
| 88688-42810 |
AXAP54 |
1 | ||
| 88689Q - BRACKET, COOLER, NO.11 | ||||
| 88688-42820 |
AXAP54 |
1 | ||
| 88689R - BRACKET, COOLER, NO.12 | ||||
| 88688-42A50 |
AXAP54 |
1 | ||
| 88688-42830 |
AXAP54 |
1 | ||
| 88689R - BRACKET, COOLER, NO.12 | ||||
| 88688-42A50 |
AXAP54 |
1 | ||
| 88688-42830 |
AXAP54 |
1 | ||
| 88689S - BRACKET, COOLER, NO.13 | ||||
| 88688-42840 |
AXAP54 |
1 | ||
| 88689T - BRACKET, COOLER, NO.14 | ||||
| 88688-42850 |
AXAP54 |
1 | ||
| 88689U - BRACKET, COOLER, NO.15 | ||||
| 88688-42860 |
AXAP54 |
1 | ||
| 88689V - BRACKET, COOLER, NO.16 | ||||
| 88688-42870 |
AXAP54 |
1 | ||
| 88689W - BRACKET, COOLER, NO.17 | ||||
| 88688-42880 |
AXAP54 |
1 | ||
| 88689X - BRACKET, COOLER, NO.18 | ||||
| 88688-42A00 |
AXAP54 |
1 | ||
| 88689Y - BRACKET, COOLER, NO.19 | ||||
| 88688-42A10 |
AXAP54 |
1 | ||
| 88690M - VALVE ASSY, MAGNET, NO.1 | ||||
| 88690-42090 |
AXAP54 |
1 | ||
| 88690N - VALVE ASSY, MAGNET, NO.2 | ||||
| 88690-42100 |
AXAP54 |
1 | ||
| 88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14157 |
AXAP54 ID=13.4,OD=18.2 |
2 | ||
| 88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 90099-14157 |
AXAP54 ID=13.4,OD=18.2 |
2 | ||
| 88715X - TUBE, DISCHARGE, NO.4 | ||||
| 88715-42330 |
AXAP54 |
1 | ||
| 88715Y - TUBE, DISCHARGE, NO.5 | ||||
| 88715-42340 |
AXAP54 |
1 | ||
| 88715Z - TUBE, DISCHARGE, NO.6 | ||||
| 88715-42350 |
AXAP54 |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-2J230 |
AXAP54 |
1 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-42110 |
AXAP54 |
1 | ||
| 88718Q - CLAMP, PIPING | ||||
| 88718-42170 |
AXAP54 |
2 | ||
| 88718Q - CLAMP, PIPING | ||||
| 88718-42170 |
AXAP54 |
2 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
AXAP54 |
1 | ||
| 88E78 - PACKING, COOLER, NO.2 | ||||
| 88578-47070 |
AXAP54 |
1 | ||
| 88F90C - VALVE ASSY, MAGNET NO.3 | ||||
| 88690-42110 |
AXAP54 |
1 | ||
| 88G15 - RING, O, NO.4(FOR DISCHARGE TUBE) | ||||
| 90099-14155 |
AXAP54 |
1 | ||
| 90099-14157 |
AXAP54 ID=13.4,OD=18.2 |
1 | ||
| 88G15 - RING, O, NO.4(FOR DISCHARGE TUBE) | ||||
| 90099-14155 |
AXAP54 |
1 | ||
| 90099-14157 |
AXAP54 ID=13.4,OD=18.2 |
1 | ||
| 88G15A - RING, O, NO.5(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
AXAP54 ID=10.8,OD=15.6 |
2 | ||
| 88G15A - RING, O, NO.5(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
AXAP54 ID=10.8,OD=15.6 |
2 | ||
| 88G15B - RING, O, NO.6(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
AXAP54 ID=10.8,OD=15.6 |
2 | ||
| 88G15B - RING, O, NO.6(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
AXAP54 ID=10.8,OD=15.6 |
2 | ||
| 88G15C - RING, O, NO.7(FOR DISCHARGE TUBE) | ||||
| 90099-14119 |
AXAP54 ID=6.7,OD=10.3 |
1 | ||
| 88G15D - RING, O, NO.8(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
AXAP54 ID=10.8,OD=15.6 |
2 | ||
| 88G15D - RING, O, NO.8(FOR DISCHARGE TUBE) | ||||
| 90099-14120 |
AXAP54 ID=10.8,OD=15.6 |
2 | ||
| 88G15H - TUBE, DISCHARGE, NO.7 | ||||
| 88715-42360 |
AXAP54 |
1 | ||
| 88G15J - TUBE, DISCHARGE, NO.8 | ||||
| 88715-42390 |
AXAP54 |
1 | ||
| 88G16N - TUBE, LIQUID, NO.2 | ||||
| 88716-42A90 |
AXAP54 |
1 | ||
| 88G16R - RING, O, NO.2(FOR LIQUID TUBE) | ||||
| 90099-14155 |
AXAP54 |
1 | ||
| 90099-14158 |
AXAP54 ID=6.7,OD=10.3 |
2 | ||
| 88G16R - RING, O, NO.2(FOR LIQUID TUBE) | ||||
| 90099-14155 |
AXAP54 |
1 | ||
| 90099-14158 |
AXAP54 ID=6.7,OD=10.3 |
2 | ||
| 88G16R - RING, O, NO.2(FOR LIQUID TUBE) | ||||
| 90099-14155 |
AXAP54 |
1 | ||
| 90099-14158 |
AXAP54 ID=6.7,OD=10.3 |
2 | ||
| Common parts | ||||
| 90091-40632 | None epc.PartDetail.None | |||
| 90091-40638 | None epc.PartDetail.None | |||
| 90091-40640 | None epc.PartDetail.None | |||
| 90099-04466 | None epc.PartDetail.None | |||
| 90099-04629 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8714 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
