AXAP54L-ANXMBA (2020)
Toyota Rav4
Production
Jun 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2006- )

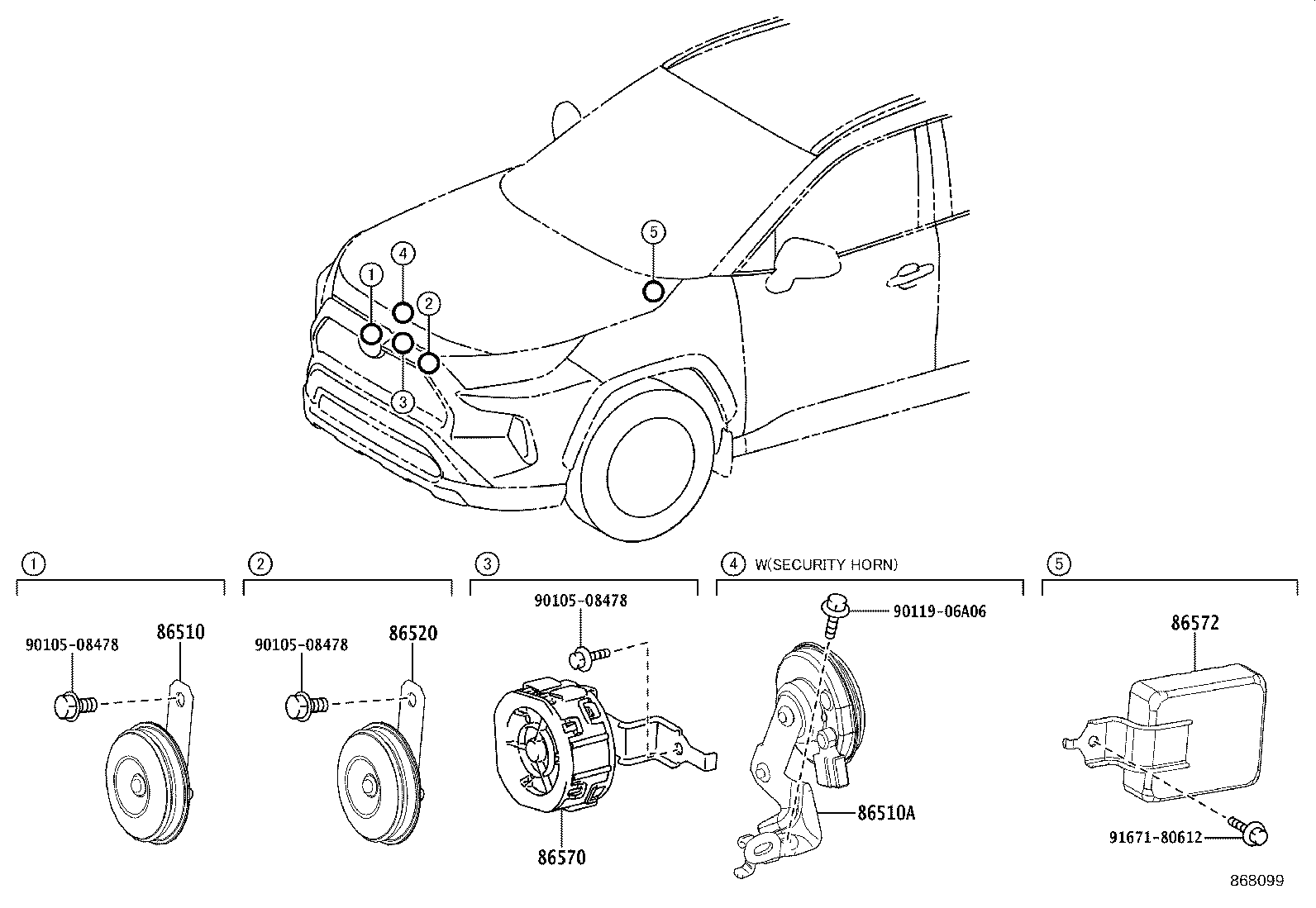

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-22270 |
AXAP54 |
1 | ||
| 86510-20280 |
AXAP54 |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86560-33060 |
AXAP54 ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN) |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-20300 |
AXAP54 |
1 | ||
| 86570 - SPEAKER ASSY, VEHICLE APPROACHING | ||||
| 86570-42030 |
AXAP54 |
1 | ||
| 86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER | ||||
| 86572-42060 |
AXAP54 |
1 | ||
| Common parts | ||||
| 90105-08478 | ||||
| 90119-06A06 | ||||
| 91671-80612 | ||||
