AXAP54L-ANXGBA (2020)

Toyota Rav4

Production Jun 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

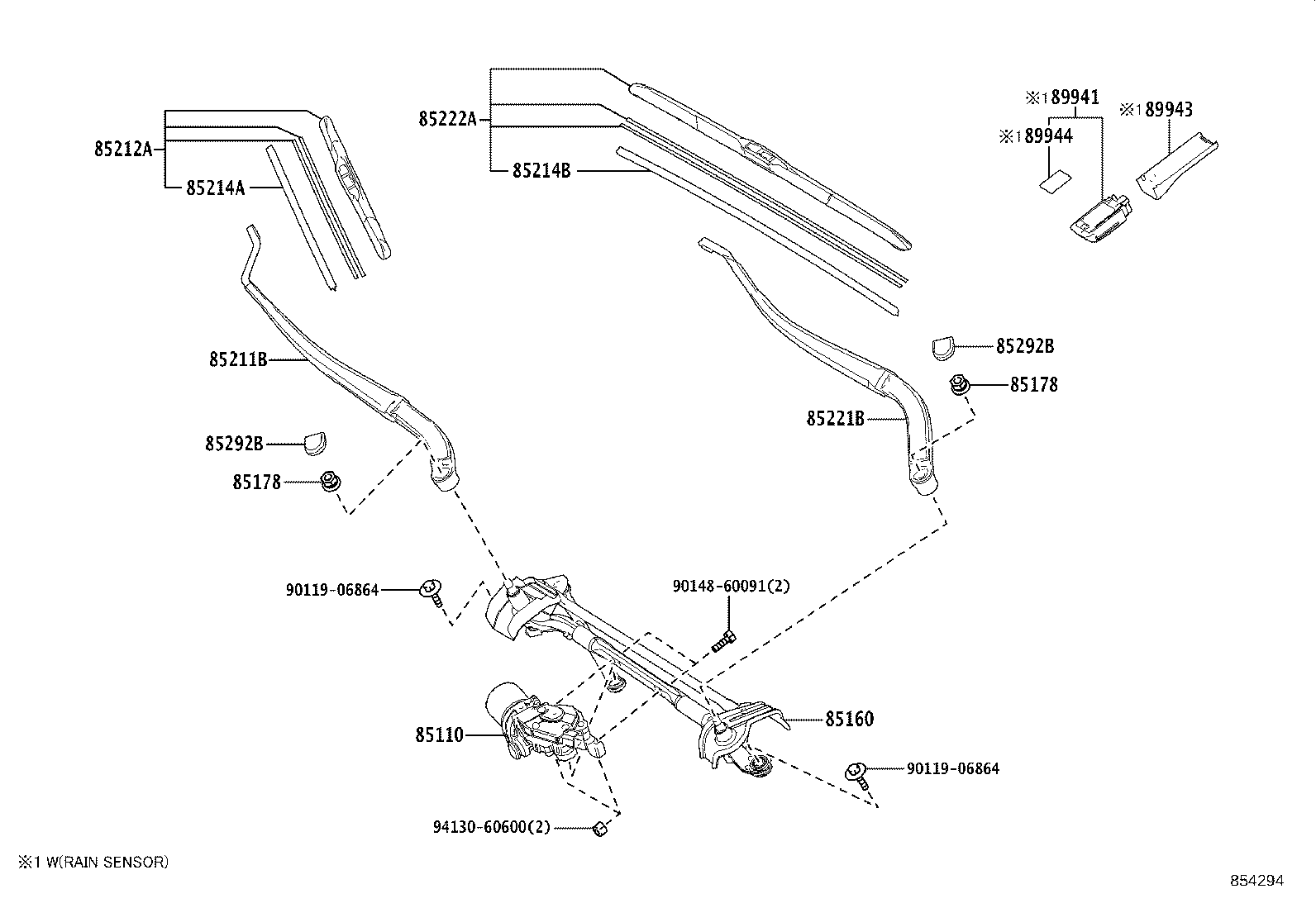

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 89941 89943 89944 9011906864 9011906864 9014860091 9413060600
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-42260

AXAP54

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-42240

AXAP54

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

AXAP54

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

AXAP54

 2
85211B - ARM, FRONT WIPER, RH
85211-42210

AXAP54

 1
85212A - BLADE, FR WIPER, RH
85212-42190

AXAP54

 1
85214A - RUBBER, WIPER, RH
85214-28090

AXAP54

 1
85214B - RUBBER, WIPER, LH
85214-52110

AXAP54

 1
85221B - ARM, FRONT WIPER, LH
85221-42210

AXAP54

 1
85222A - BLADE, FR WIPER, LH
85222-42180

AXAP54

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

AXAP54

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

AXAP54

 2
89941 - SENSOR, RAIN
89941-42020

AXAP54..USA

COLD AREA SPEC-WITH

 1
89943 - COVER, RAIN SENSOR
89943-42040

AXAP54..USA

COLD AREA SPEC-WITH

 1
89944 - TAPE, RAIN SENSOR
89944-42020

AXAP54..USA

COLD AREA SPEC-WITH

 1
Common parts
90119-06864
90148-60091
94130-60600
