AXAP54L-ANXGBA (2020)
Toyota Rav4
Production
Jun 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(2006- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-42D0020 |
AXAP54..XSE BLACK/RED,TRIM2# |
1 | ||
| 67610-42C50C7 |
AXAP54..SE BLACK/BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
AXAP54 |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-42C50C7 |
AXAP54..SE BLACK/BLACK,TRIM2# |
1 | ||
| 67620-42C70C7 |
AXAP54..XSE PHV PREMIUM PACKAGE(PANORAMIC *MR),BLACK/RED,TRIM2# |
1 | ||
| 67620-42D30C6 |
AXAP54..XSE BLACK/RED,TRIM2# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-42030 |
AXAP54 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-42030 |
AXAP54 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-42070 |
AXAP54 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-42070 |
AXAP54 |
1 | ||
| 74641C - COVER, FRONT DOOR ASSIST GRIP, RH | ||||
| 74641-42070C0 |
AXAP54 BLACK,TRIM2# |
1 | ||
| 74642A - COVER, FRONT DOOR ASSIST GRIP, LH | ||||
| 74642-42070C0 |
AXAP54 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90164-60021 | ||||
| 90189-06248 | ||||
| 90467-05172 | ||||
| Linked diagrams | ||||
| 8401 | ||||

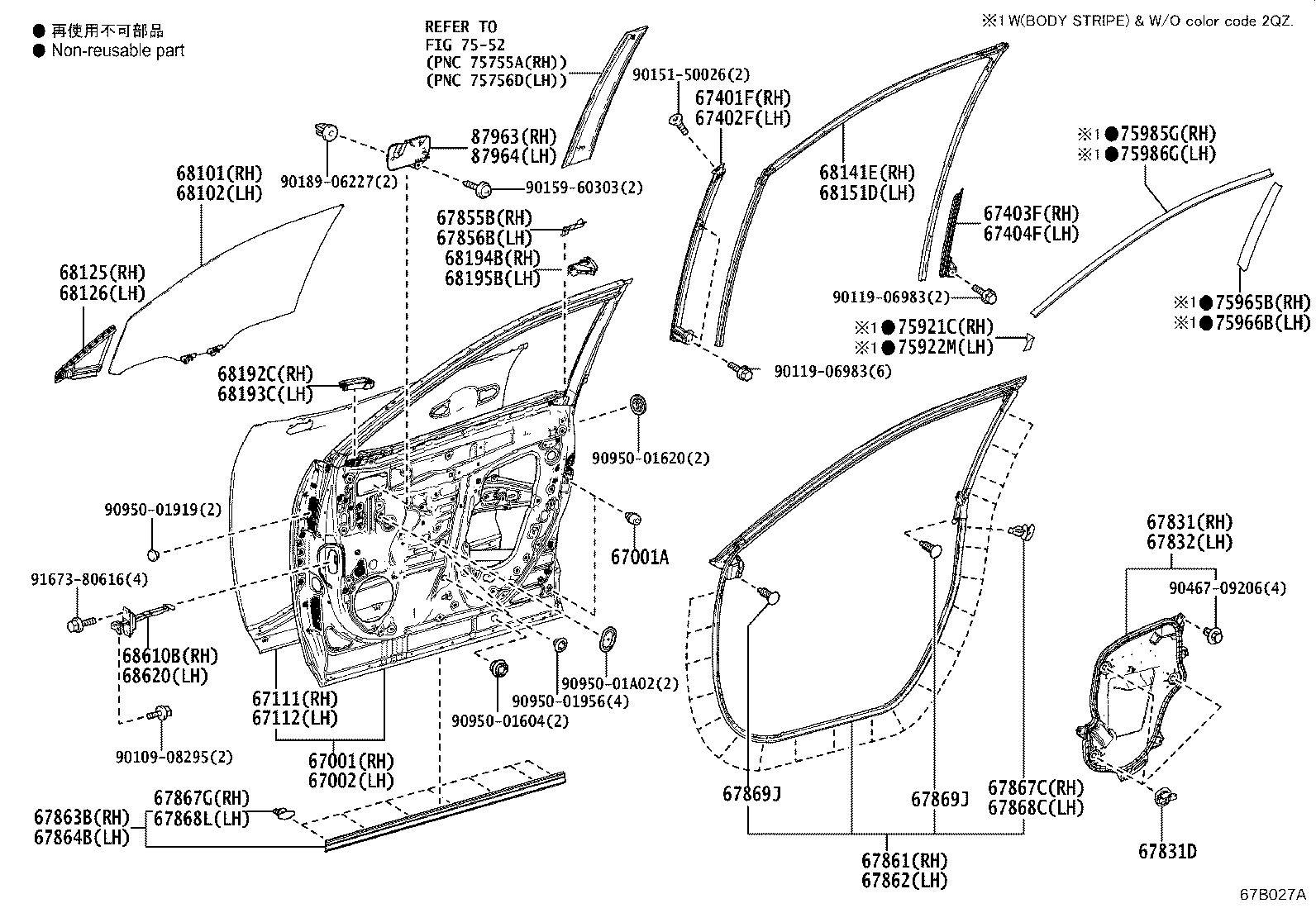

ILLUST NO. 1 OF 2(2006- )
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-42170 |
AXAP54 |
1 | ||
| 67001-42171 |
AXAP54 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09137 |
AXAP54 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-42191 |
AXAP54 |
1 | ||
| 67002-42190 |
AXAP54 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-42080 |
AXAP54 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-42080 |
AXAP54 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-42030 |
AXAP54 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-42030 |
AXAP54 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-42060 |
AXAP54 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-42060 |
AXAP54 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-42090 |
AXAP54 |
1 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 67869-47010 |
AXAP54 |
6 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-42040 |
AXAP54 |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-42030 |
AXAP54 |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-42030 |
AXAP54 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-42120 |
AXAP54 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-42120 |
AXAP54 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-42040 |
AXAP54 |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-42030 |
AXAP54 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AXAP54 |
21 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AXAP54 |
7 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AXAP54 |
21 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AXAP54 |
7 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-26050 |
AXAP54 |
4 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-26050 |
AXAP54 |
4 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-42390 |
AXAP54 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-42400 |
AXAP54 |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-42020 |
AXAP54 |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-42020 |
AXAP54 |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-42121 |
AXAP54 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-42121 |
AXAP54 |
1 | ||
| 68192C - SEAL, FRONT DOOR BELT, FRONT RH | ||||
| 68192-42010 |
AXAP54 |
1 | ||
| 68193C - SEAL, FRONT DOOR BELT, FRONT LH | ||||
| 68193-42010 |
AXAP54 |
1 | ||
| 68194B - SEAL, FRONT DOOR BELT, REAR RH | ||||
| 68194-42010 |
AXAP54 |
1 | ||
| 68195B - SEAL, FRONT DOOR BELT, REAR LH | ||||
| 68195-42010 |
AXAP54 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-42060 |
AXAP54 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-42060 |
AXAP54 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-42050 |
AXAP54..XSE |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-42050 |
AXAP54..XSE |
1 | ||
| 75965B - STRIPE, FRONT DOOR NO.4 RH | ||||
| 75965-42010 |
AXAP54..XSE |
1 | ||
| 75966B - STRIPE, FRONT DOOR NO.4 LH | ||||
| 75966-42010 |
AXAP54..XSE |
1 | ||
| 75985G - STRIPE, FRONT DOOR OUTSIDE, RH | ||||
| 75985-42050 |
AXAP54..XSE |
1 | ||
| 75986G - STRIPE, FRONT DOOR OUTSIDE, LH | ||||
| 75986-42030 |
AXAP54..XSE |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-42010 |
AXAP54 |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-42010 |
AXAP54 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90467-09206 | ||||
| 90950-01604 | ||||
| 90950-01620 | ||||
| 90950-01919 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7552 | ||||
