AXAP54L-ANXGBA (2020)

Toyota Rav4

Production Jun 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2006- )

Click highlighted areas on diagram

diagram 58460D 58460D 64714J 64730C 64730H 64730H 64730J 64730K 64730K 64740E 64740E 65351A 73708A 73708A 75210B 75210B 9011906840 9011906840 9015960618 9015960618 9018305094 9018305094 9356855014 9356855014
Part # Description Qty Price
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

AXAP54

 2
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

AXAP54

 2
64714J - COVER, DECK SIDE TRIM, RH
64714-42100C0

AXAP54

BLACK,TRIM2#

 1
64714-42110C0

AXAP54

AC INVERTER OUTPUT-120V 1500W,BLACK,TRIM2#

 1
64730C - BOARD, DECK TRIM SIDE, RH
90467-10161

AXAP54

 2
64730H - CLIP(FOR DECK TRIM SIDE PANEL)
90467-09242

AXAP54

 2
64730H - CLIP(FOR DECK TRIM SIDE PANEL)
90467-09242

AXAP54

 2
64730J - PANEL ASSY, DECK TRIM SIDE, RH
64730-42280C0

AXAP54

BLACK,TRIM2#

 1
64730K - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10161

AXAP54

 2
64730K - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10161

AXAP54

 2
64740E - PANEL ASSY, DECK TRIM SIDE, LH
64740-42240C0

AXAP54

BLACK,TRIM2#

 1
64740-42250C0

AXAP54..XSE..USA

AUDIO-6SPEAKER & 9INCH DISPLAY T2 & XM (USA),BLACK,TRIM2#

 1
64740E - PANEL ASSY, DECK TRIM SIDE, LH
64740-42240C0

AXAP54

BLACK,TRIM2#

 1
64740-42250C0

AXAP54..XSE..USA

AUDIO-6SPEAKER & 9INCH DISPLAY T2 & XM (USA),BLACK,TRIM2#

 1
65351A - COVER, BATTERY HOLE
65351-42020C0

AXAP54

BLACK,TRIM2#

 1
73708A - BRACKET SET, TETHER ANCHOR
73708-42060C1

AXAP54

BLACK,TRIM2#

 2
73708A - BRACKET SET, TETHER ANCHOR
73708-42060C1

AXAP54

BLACK,TRIM2#

 2
75210B - BOX ASSY, TOOL
75210-42010C0

AXAP54

BLACK,TRIM2#

 1
75210B - BOX ASSY, TOOL
75210-42010C0

AXAP54

BLACK,TRIM2#

 1
Common parts
90119-06840
90159-60618
90183-05094
93568-55014

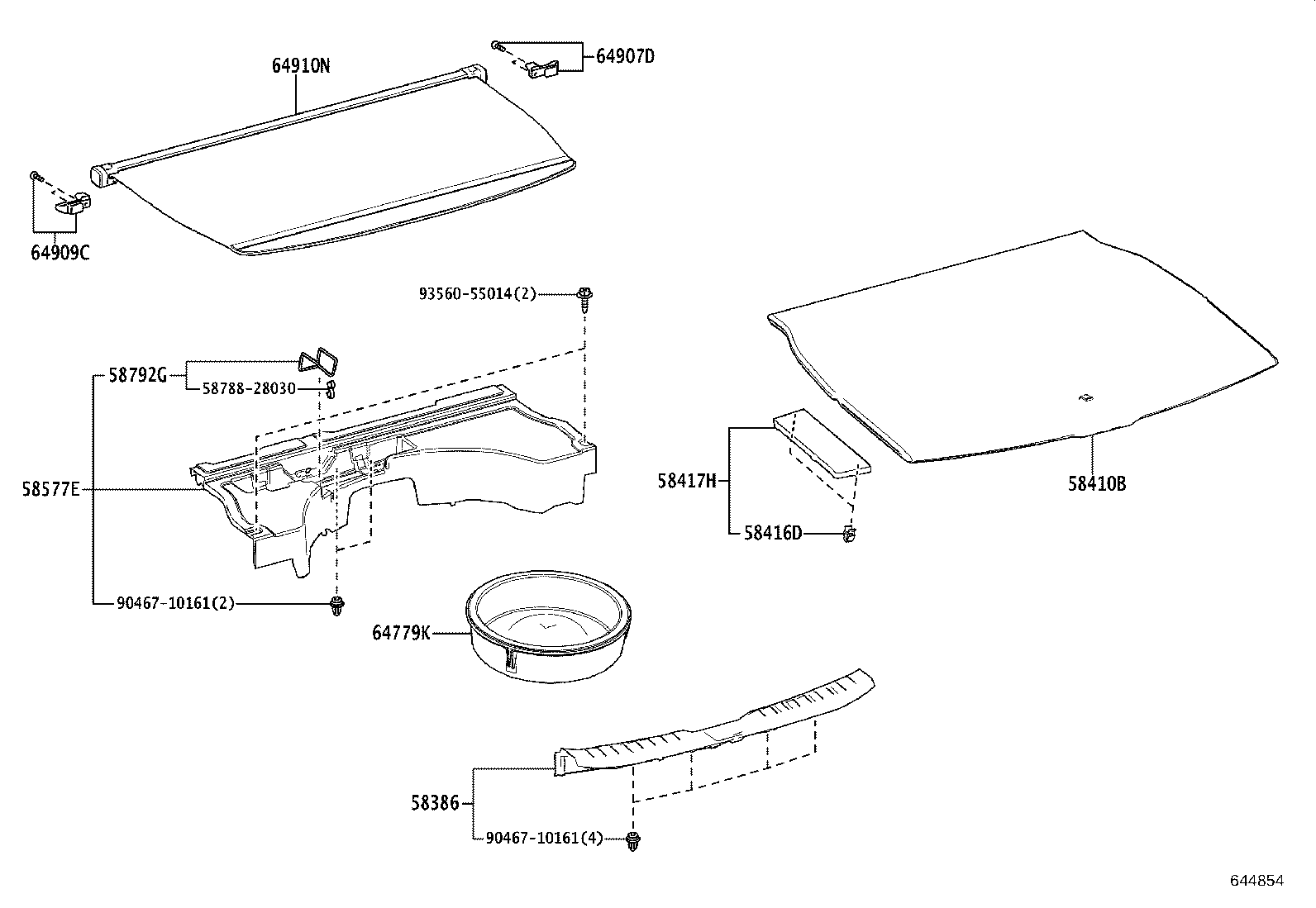

ILLUST NO. 2 OF 2(2006- )

Click highlighted areas on diagram

diagram 58386 58410B 58416D 58417H 58577E 5878828030 58792G 64779K 64907D 64909C 64910N 9046710161 9046710161 9356055014
Part # Description Qty Price
58386 - PLATE, REAR FLOOR FINISH
58387-42100C0

AXAP54

BLACK,TRIM2#

 1
58410B - BOARD ASSY, DECK
58410-42080C0

AXAP54

BLACK,TRIM2#

 1
58416D - CLIP, REAR FLOOR BOARD
90467-10201

AXAP54

 2
58417H - BOARD, REAR FLOOR, NO.3
58417-42080C0

AXAP54

BLACK,TRIM2#

 1
58577E - PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1
58577-42080C0

AXAP54

BLACK,TRIM2#

 1
58792G - SUPPORT, JACK CARRIER
58792-48020

AXAP54

 1
64779K - STOPPER, SPARE WHEEL COVER
64779-42060

AXAP54..XSE

 1
64779-42070

AXAP54..SE

 1
64907D - STOPPER SUB-ASSY, TONNEAU COVER, RH
64907-42030

AXAP54

TONEAU COVER-WITH

 1
64909C - STOPPER SUB-ASSY, TONNEAU COVER, LH
64909-42030

AXAP54

TONEAU COVER-WITH

 1
64910N - COVER ASSY, TONNEAU
64910-42060C0

AXAP54

TONEAU COVER-WITH,BLACK,TRIM2#

 1
Common parts
58788-28030
90467-10161
93560-55014
