ZVW41L-AXXEBK (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

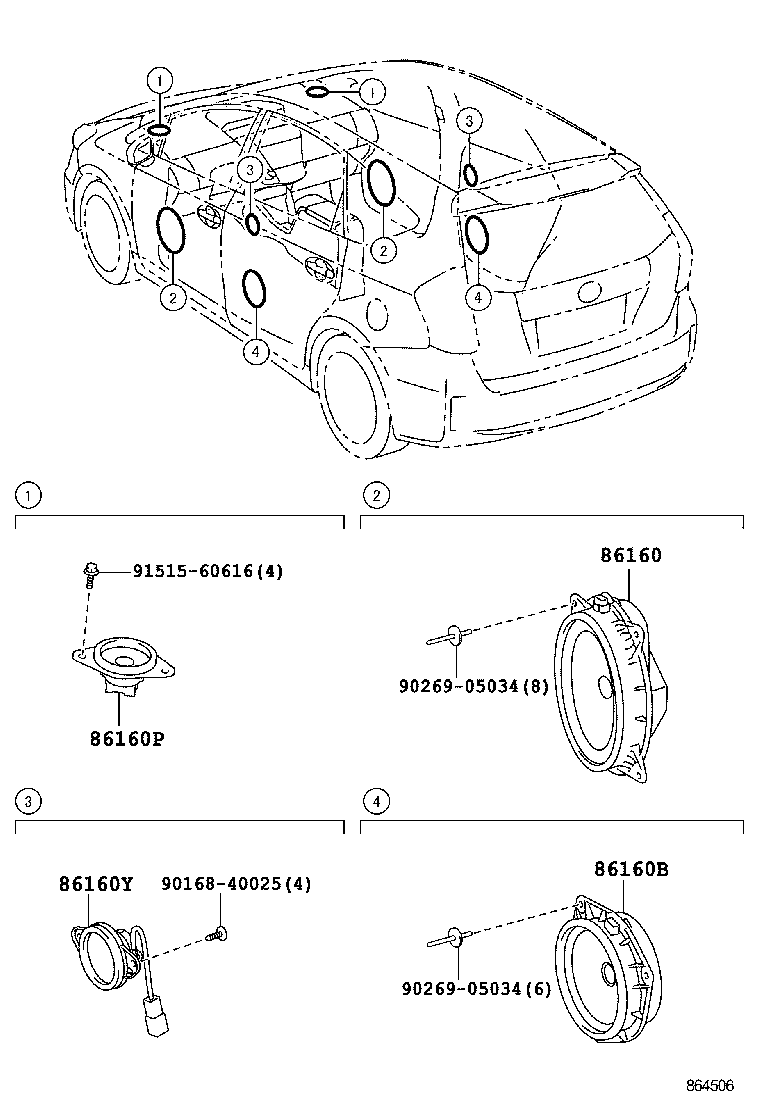

Click highlighted areas on diagram

diagram 86160 86160B 86160P 86160Y 9016840025 9026905034 9026905034 9151560616
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-58240

ZVW41

 2
86160-0WV50

ZVW41

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

 2
86160B - SPEAKER ASSY, REAR
86160-52330

ZVW41

 2
86160-0WV60

ZVW41

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-0WV70

ZVW41

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

 2
86160-47070

ZVW41

 2
86160Y - SPEAKER ASSY, REAR NO.2
86160-0WU30

ZVW41

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

 2
Common parts
90168-40025
90269-05034
91515-60616
