ZVW41L-AXXEBK (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1109- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67601 67601A 67601A 67601A 67602 67625 67626 67663D 67664C 68171B 68172A 7401 7401 9015960303 9018906018 9356855016 9356855018
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-47290E0

ZVW41

BLACK/GREGE,TRIM4#

 1
67610-47290B0

ZVW41

BLACK/GRAY,TRIM1#

 1
67610-47310B1

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/GRAY,TRIM1#

 1
67610-47290G0

ZVW41

BLACK/AQUA,TRIM6#

 1
67610-47410G0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS),BLACK/AQUA,TRIM6#

 1
67610-47540B0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/GRAY,TRIM1#

 1
67610-47310E0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/GREGE,TRIM4#

 1
67610-47410E1

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS),BLACK/GREGE,TRIM4#

 1
67610-47310G0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/AQUA,TRIM6#

 1
67610-47700G0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS),BLACK/AQUA,TRIM6#

 1
67610-47540E0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/GREGE,TRIM4#

 1
67610-47410B1

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS),BLACK/GRAY,TRIM1#

 1
67610-47700E0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS),BLACK/GREGE,TRIM4#

 1
67610-47540G0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/AQUA,TRIM6#

 1
67610-47710B0

ZVW41

BLACK/GRAY,TRIM1#

 1
67610-47710G0

ZVW41

BLACK/AQUA,TRIM6#

 1
67610-47710E0

ZVW41

BLACK/GREGE,TRIM4#

 1
67610-47700B0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS),BLACK/MEDIUM GRAY,TRIM1#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
90467-09206

ZVW41

 18
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
90467-09206

ZVW41

 18
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
90467-09206

ZVW41

 18
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-47410E1

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS),BLACK/GREGE,TRIM4#

 1
67620-47410B1

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS),BLACK/GRAY,TRIM1#

 1
67620-47290B1

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/GRAY,TRIM1#

 1
67620-47290E0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/GREGE,TRIM4#

 1
67620-47540E0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/GREGE,TRIM4#

 1
67620-47290G0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/AQUA,TRIM6#

 1
67620-47410G0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS),BLACK/AQUA,TRIM6#

 1
67620-47540G0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/AQUA,TRIM6#

 1
67620-47270G0

ZVW41

BLACK/AQUA,TRIM6#

 1
67620-47730E0

ZVW41

BLACK/GREGE,TRIM4#

 1
67620-47540B0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/GRAY,TRIM1#

 1
67620-47270B0

ZVW41

BLACK/GRAY,TRIM1#

 1
67620-47720E0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS),BLACK/GREGE,TRIM4#

 1
67620-47730G0

ZVW41

BLACK/AQUA,TRIM6#

 1
67620-47270E0

ZVW41

BLACK/GREGE,TRIM4#

 1
67620-47720B0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS),BLACK/MEDIUM GRAY,TRIM1#

 1
67620-47730B0

ZVW41

BLACK/GRAY,TRIM1#

 1
67620-47720G0

ZVW41

SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS),BLACK/AQUA,TRIM6#

 1
67625 - BRACKET, FRONT DOOR TRIM, RH
67625-47030

ZVW41

 1
67626 - BRACKET, FRONT DOOR TRIM, LH
67625-47030

ZVW41

 1
67663D - GARNISH, DOOR FRAME, RH
67663-48010

ZVW41

 1
67664C - GARNISH, DOOR FRAME, LH
67664-48010

ZVW41

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-47050

ZVW41

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-47050

ZVW41

 1
Common parts
90159-60303
90189-06018
93568-55016
93568-55018
Linked diagrams
7401

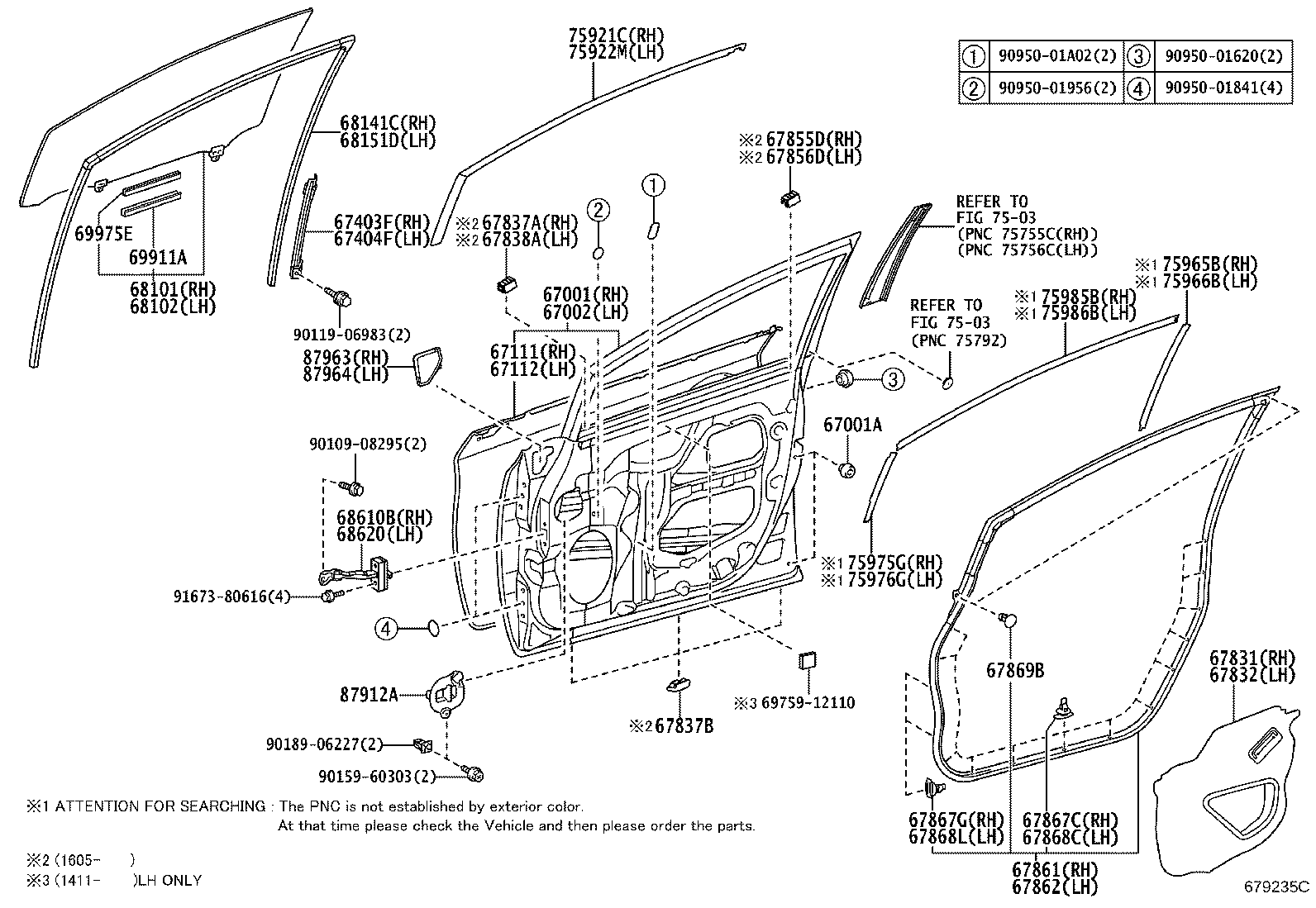

ILLUST NO. 1 OF 2(1109- )

Click highlighted areas on diagram

DOOR PANEL

diagram 67001 67001A 67002 67111 67112 67403F 67404F 67831 67832 67837A 67837B 67838A 67855D 67856D 67861 67862 67867C 67867G 67868C 67868L 67869B 68101 68102 68141C 68151D 68610B 68620 6975912110 69911A 69975E 7503 7503 75921C 75922M 75965B 75966B 75975G 75976G 75985B 75986B 87912A 87963 87964 9010908295 9011906983 9015960303 9018906227 9095001620 9095001841 9095001956 9095001A02 9167380616
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-47090

ZVW41..CND

 1
67001-47091

ZVW41

 1
67001-47092

ZVW41

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09138

ZVW41

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-47092

ZVW41

 1
67002-47090

ZVW41..CND

 1
67002-47091

ZVW41

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-47040

ZVW41

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-47040

ZVW41

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-47041

ZVW41

 1
67403-47040

ZVW41

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-47040

ZVW41

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-47110

ZVW41

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-47090

ZVW41

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-47040

ZVW41

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-47040

ZVW41

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

ZVW41

 13
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-52010

ZVW41

 2
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

ZVW41

 13
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-52010

ZVW41

 2
67869B - CLIP, FRONT DOOR WEATHERSTRIP
90467-06084

ZVW41

 4
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-47110

ZVW41

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-47110

ZVW41

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-47040

ZVW41

 1
68141-47041

ZVW41

 1
68151D - RUN, FRONT DOOR GLASS, LH
68151-47041

ZVW41

 1
68151-47040

ZVW41

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-47030

ZVW41

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-47030

ZVW41

 1
69911A - CHANNEL, FRONT DOOR GLASS, NO.1
69955-47010

ZVW41

 2
69975E - FILLER, FRONT DOOR GLASS CHANNEL, NO.1
69975-47010

ZVW41

 2
75921C - TAPE, BLACK OUT, NO.1 RH
75921-47030

ZVW41

 1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-47030

ZVW41

 1
75965B - STRIPE, FRONT DOOR NO.4 RH
75965-47020

ZVW41

REFER TO ILLUST.

 1
75966B - STRIPE, FRONT DOOR NO.4 LH
75966-47020

ZVW41

REFER TO ILLUST.

 1
75975G - STRIPE, FRONT DOOR, NO.2 RH
75975-47030

ZVW41

REFER TO ILLUST.

 1
75976G - STRIPE, FRONT DOOR, NO.2 LH
75976-47030

ZVW41

REFER TO ILLUST.

 1
75985B - STRIPE, FRONT DOOR, NO.3 RH
75985-47040

ZVW41

REFER TO ILLUST.

 1
75986B - STRIPE, FRONT DOOR, NO.3 LH
75986-47040

ZVW41

REFER TO ILLUST.

 1
87912A - PROTECTOR, OUTER MIRROR
87912-47040

ZVW41

LH

 1
87912-47030

ZVW41

RH

 1
87963 - COVER, OUTER MIRROR INSTALL HOLE, RH
87963-47020

ZVW41

 1
87964 - COVER, OUTER MIRROR INSTALL HOLE, LH
87964-47020

ZVW41

 1
Common parts
69759-12110
90109-08295
90119-06983
90159-60303
90189-06227
90950-01620
90950-01841
90950-01956
90950-01A02
91673-80616
Linked diagrams
7503
