ZVW41L-AXXEBK (2014)
Toyota Prius V
(1411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86804-47260 |
ZVW41..CND PANASONIC,ID=510058 |
1 | ||
| 86804-47260 |
ZVW41..CND PANASONIC,ID=510058,US GRADE2.5 |
1 | ||
| 86804-47040 |
ZVW41..CND DENSO,ID=E7035,AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 86804-47260 |
ZVW41..CND PANASONIC,ID=510058,AUDIO-*DA & 6SPEAKER & *BT |
1 | ||
| 86804-47241 |
ZVW41..CND PANASONIC,ID=510060,AUDIO-AVN & JBL & 8SPEAKER & *BT |
1 | ||
| 86804-47240 |
ZVW41..CND PANASONIC,ID=510060,AUDIO-AVN & JBL & 8SPEAKER & *BT |
1 | ||
| 86804-47260 |
ZVW41..CND PANASONIC,ID=510058,US GRADE2 |
1 | ||
| 86804-47261 |
ZVW41..CND PANASONIC,ID=510058,AUDIO-*DA & 6SPEAKER & *BT |
1 | ||
| 86804-47261 |
ZVW41..CND PANASONIC,ID=510058,US GRADE2 |
1 | ||
| 86804-47261 |
ZVW41..CND PANASONIC,ID=510058 |
1 | ||
| 86804-47300 |
ZVW41..CND PANASONIC,ID=510165,US GRADE2 |
1 | ||
| 86804-47261 |
ZVW41..CND PANASONIC,ID=510058,US GRADE2.5 |
1 | ||
| 86804-47320 |
ZVW41..CND PANASONIC,ID=510167,AUDIO-AVN & JBL & 8SPEAKER & *BT |
1 | ||
| 86804-47300 |
ZVW41..CND PANASONIC,ID=510165 |
1 | ||
| 86804-47300 |
ZVW41..CND PANASONIC,ID=510165,US GRADE2.5 |
1 | ||
| 86804-47300 |
ZVW41..CND PANASONIC,ID=510165,AUDIO-*DA & 6SPEAKER & *BT |
1 | ||
| 86120P - KNOB, NAVIGATION RECEIVER SWITCH | ||||
| 90010-24176 |
ZVW41 |
2 | ||
| 90010-24176 |
ZVW41..CND US GRADE2 |
2 | ||
| 90010-24176 |
ZVW41 AUDIO-*DA & 6SPEAKER & *BT |
2 | ||
| 90010-24176 |
ZVW41..CND US GRADE2.5 |
2 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-47040 |
ZVW41..CND PANASONIC,ID=57012,AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 86140-47010 |
ZVW41 PANASONIC,ID=57010 |
1 | ||
| 86140-47211 |
ZVW41 PANASONIC,ID=510056,AUDIO-*DA & 6SPEAKER & *BT |
1 | ||
| 86140-47450 |
ZVW41 PANASONIC,ID=510163,AUDIO-*DA & 6SPEAKER & *BT |
1 | ||
| 86140-47450 |
ZVW41 PANASONIC,ID=510163,US GRADE2.5 |
1 | ||
| 86140-47210 |
ZVW41 PANASONIC,ID=510056,AUDIO-*DA & 6SPEAKER & *BT |
1 | ||
| 86140-47450 |
ZVW41 PANASONIC,ID=510163,US GRADE2 |
1 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90010-24176 |
ZVW41 US GRADE2.5 |
2 | ||
| 90010-24176 |
ZVW41 AUDIO-*DA & 6SPEAKER & *BT |
2 | ||
| 90010-24150 |
ZVW41 |
2 | ||
| 90010-24176 |
ZVW41 US GRADE2 |
2 | ||
| 90010-24150 |
ZVW41 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
2 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-47120 |
ZVW41 |
1 | ||
| 86211-47080 |
ZVW41 |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-47120 |
ZVW41 |
1 | ||
| 86211-47080 |
ZVW41 |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-47080 |
ZVW41 |
1 | ||
| 86212-47120 |
ZVW41 |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-47080 |
ZVW41 |
1 | ||
| 86212-47120 |
ZVW41 |
1 | ||
| 86250E - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-52030 |
ZVW41 |
1 | ||
| 86250-52030 |
ZVW41 |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-35015 |
ZVW41 |
1 | ||
| 86271-35021 |
ZVW41 |
1 | ||
| 86271-35012 |
ZVW41 |
1 | ||
| 86271-35014 |
ZVW41 |
1 | ||
| 86271-35013 |
ZVW41 |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-47040 |
ZVW41 |
1 | ||
| 86730-47040 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 91515-60616 | ||||
| 93568-55014 | ||||

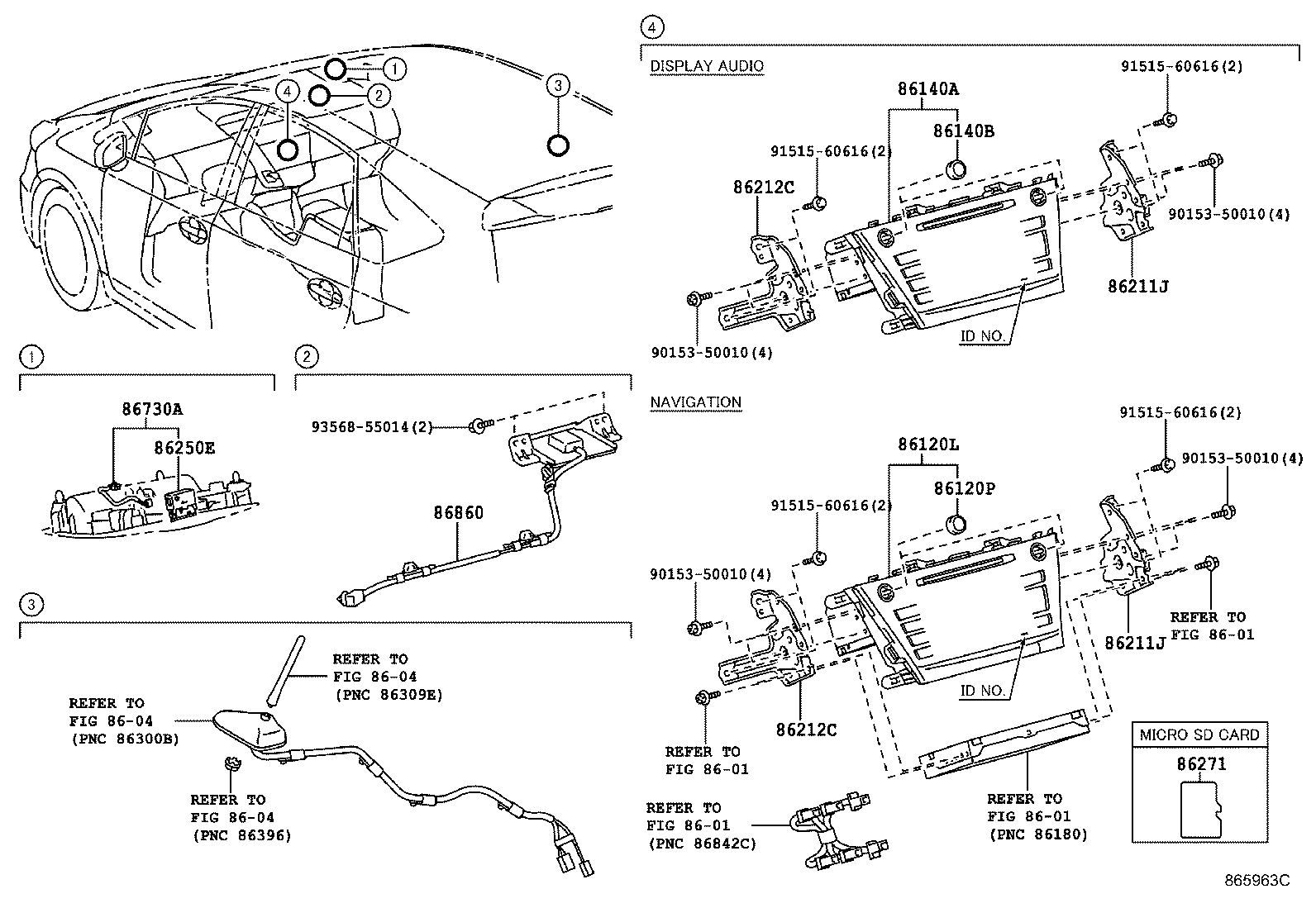

| Linked diagrams | ||||
| 8601 | ||||
| 8604 | ||||
