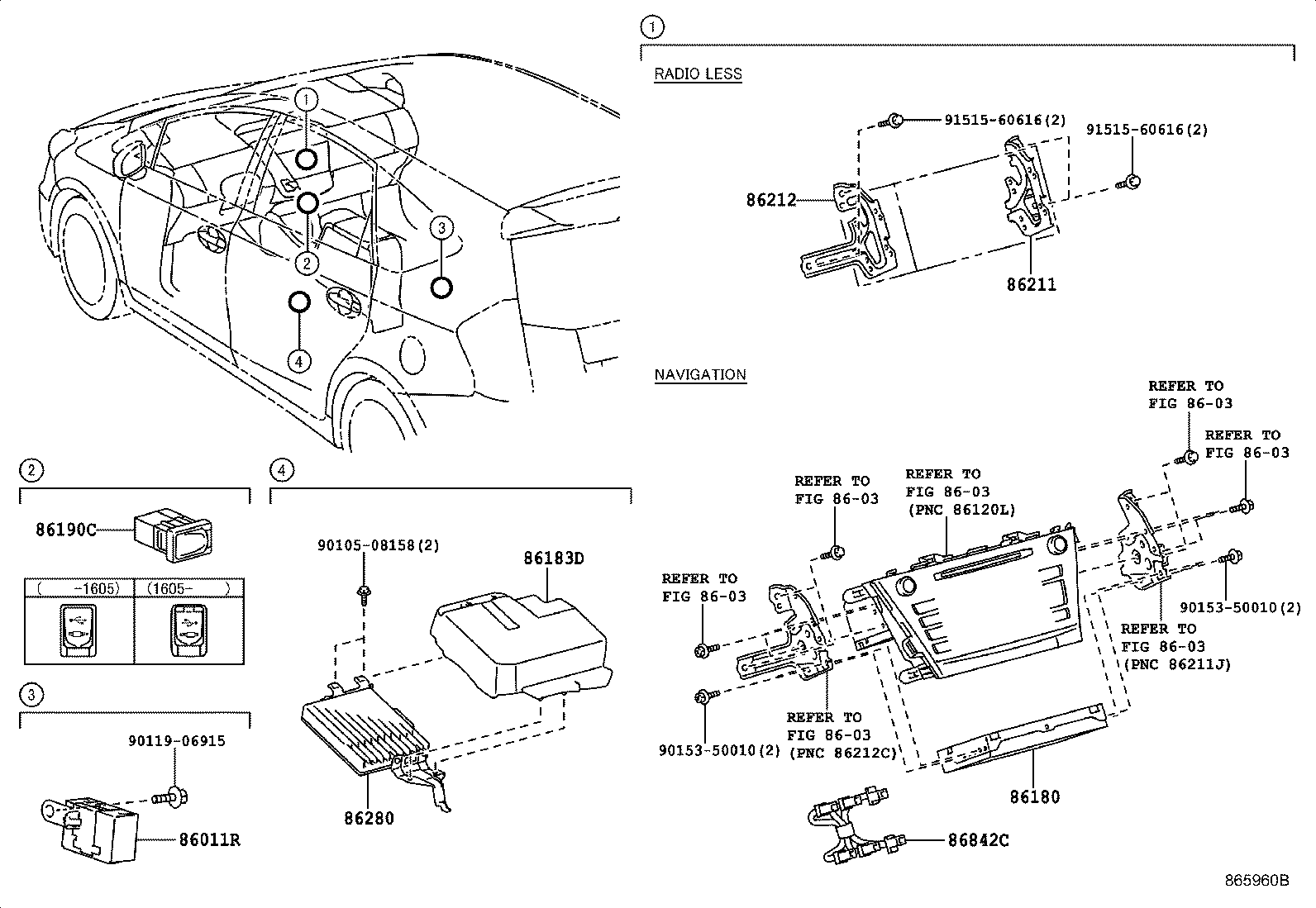

Toyota Prius v ZVW41 RADIO RECEIVER & AMPLIFIER & CONDENSER

Part #	Description	Period	Qty
86011R - CONDENSER, RADIO SETTING
90980-04204	ZVW41	11/2014 - 11/2018	1
90980-04204	ZVW41	09/2011 - 11/2014	1
86180 - TUNER ASSY, STEREO COMPONENT
86180-35060	ZVW41..CND PIONEER,AUDIO-DA & 6SPEAKER & BT	11/2014 - 11/2018	1
86180-35060	ZVW41..CND PIONEER	11/2014 - 11/2018	1
86183D - COVER, AUDIO AMPLIFIER
86183-47080	ZVW41 AUDIO-AVN & JBL & 8SPEAKER & *BT	11/2014 - 12/2017	1
86183-47080	ZVW41 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH	09/2011 - 11/2014	1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-48030	ZVW41	09/2011 - 11/2014	1
86190-42040	ZVW41	05/2016 - 11/2018	1
86190-48070	ZVW41	11/2014 - 05/2016	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0W831	ZVW41 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH	09/2011 - 10/2013	1
86280-47090	ZVW41 AUDIO-AVN & JBL & 8SPEAKER & *BT	11/2014 - 12/2017	1
86842C - WIRE, NAVIGATION
86842-35010	ZVW41	11/2014 - 11/2018	1
86842-35010	ZVW41 AUDIO-DA & 6SPEAKER & BT	11/2014 - 11/2018	1
Common parts
90105-08158
90119-06915
90153-50010
91515-60616
Linked diagrams
8603

ZVW41L-AXXEBK (2014)
