ZVW41L-AXXEBK (2014)
Toyota Prius V
Production
Nov 2014
-
Nov 2018
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1411- )

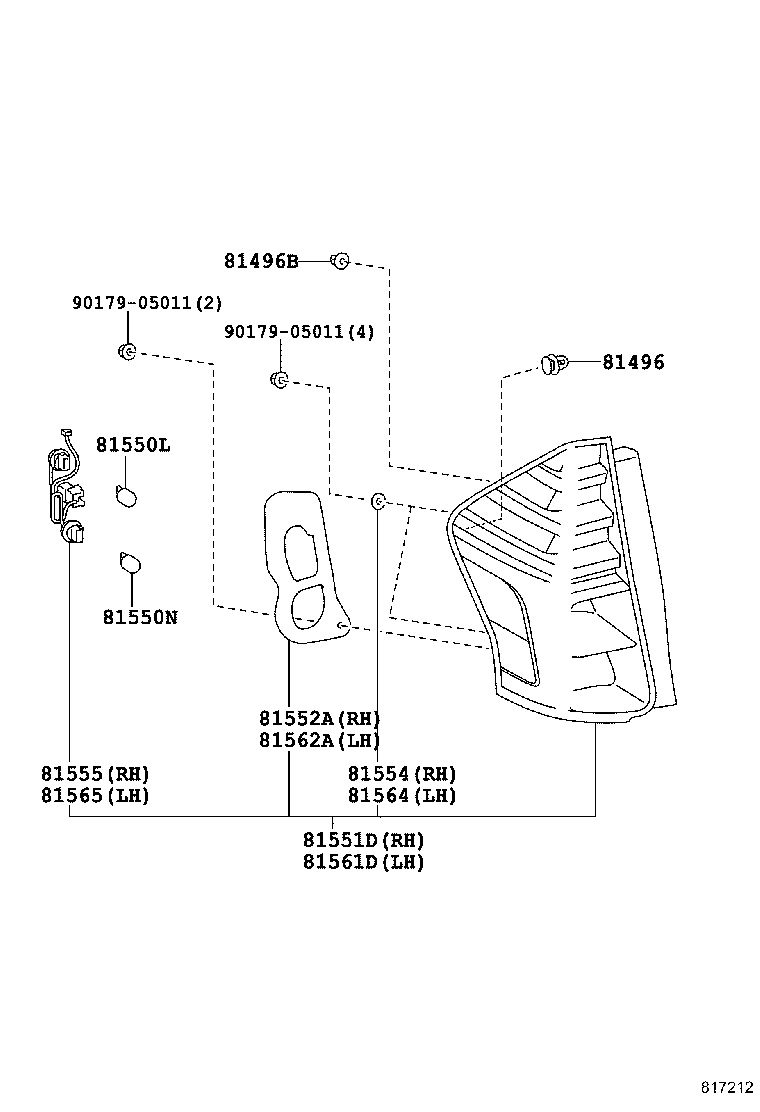

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-21010 |
ZVW41 |
2 | ||
| 81496-21010 |
ZVW41 |
2 | ||
| 81496B - GUIDE, REAR LAMP | ||||
| 81496-52020 |
ZVW41 |
2 | ||
| 81496-52020 |
ZVW41 |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
ZVW41 12V 21W,AMBER |
2 | ||
| 90981-15011 |
ZVW41 |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-13043 |
ZVW41 |
2 | ||
| 90981-13043 |
ZVW41 12V 21W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-47160 |
ZVW41 |
1 | ||
| 81551-47272 |
ZVW41 |
1 | ||
| 81551-47271 |
ZVW41 |
1 | ||
| 81551-47270 |
ZVW41 |
1 | ||
| 81552A - GASKET, REAR COMBINATION LAMP, RH | ||||
| 81552-47250 |
ZVW41 |
1 | ||
| 81552-47140 |
ZVW41 |
1 | ||
| 81552-47250 |
ZVW41 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-47110 |
ZVW41 |
2 | ||
| 81554-47110 |
ZVW41 |
2 | ||
| 81554-47110 |
ZVW41 |
2 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-47271 |
ZVW41 |
1 | ||
| 81555-47140 |
ZVW41 |
1 | ||
| 81555-47140 |
ZVW41 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-47271 |
ZVW41 |
1 | ||
| 81561-47272 |
ZVW41 |
1 | ||
| 81561-47270 |
ZVW41 |
1 | ||
| 81561-47160 |
ZVW41 |
1 | ||
| 81562A - GASKET, REAR COMBINATION LAMP, LH | ||||
| 81562-47140 |
ZVW41 |
1 | ||
| 81562-47250 |
ZVW41 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-47110 |
ZVW41 |
2 | ||
| 81554-47110 |
ZVW41 |
2 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-47140 |
ZVW41 |
1 | ||
| 81555-47140 |
ZVW41 |
1 | ||
| 81555-47271 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90179-05011 | ||||
