ZVW41L-AXXEBK (2014)
Toyota Prius V
Production
Nov 2014
-
Nov 2018
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1411- )

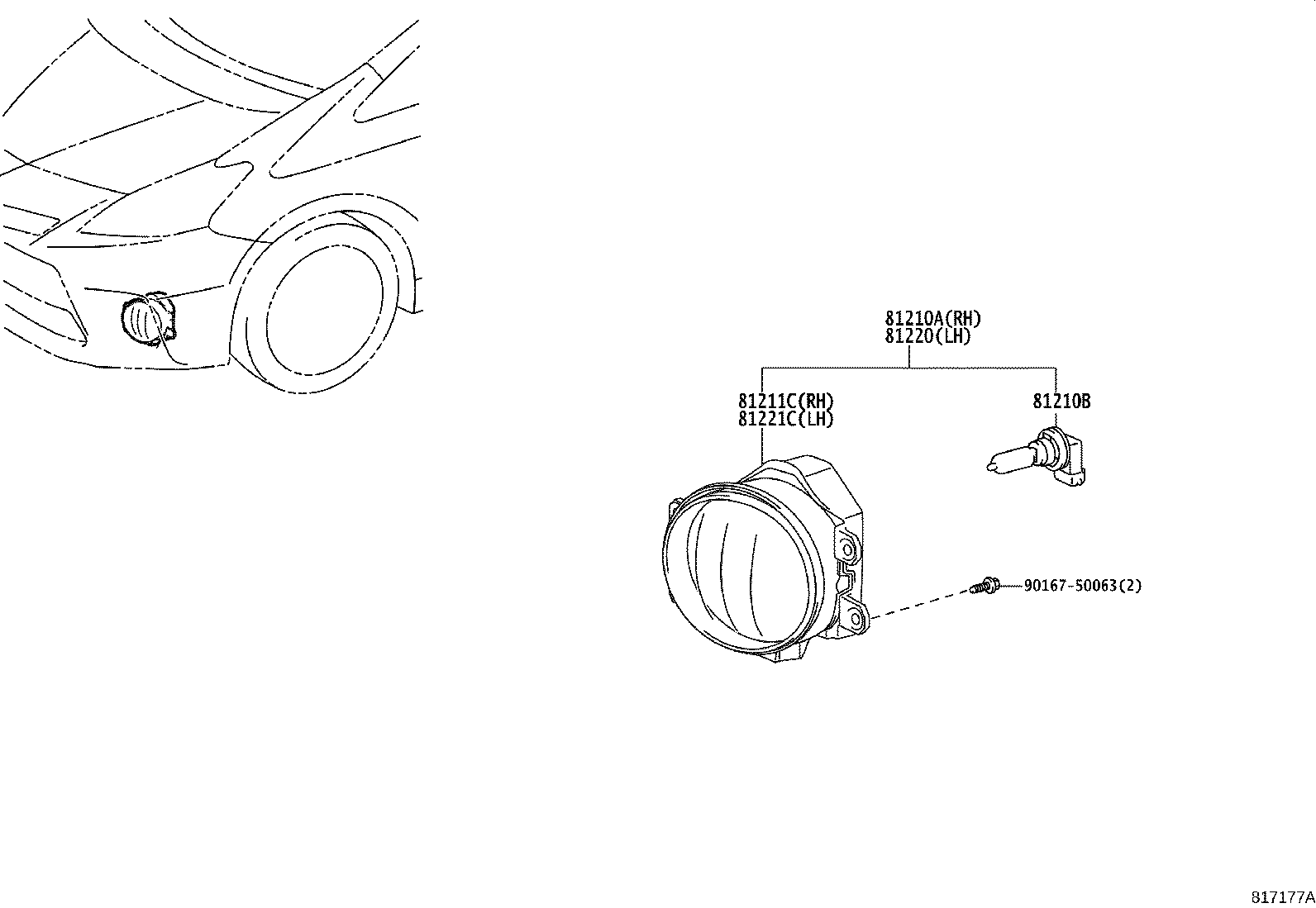

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-0W050 |
ZVW41 LX-TOURING PACKAGE |
1 | ||
| 81210-47010 |
ZVW41 US GRADE5 |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13075 |
ZVW41 12V 55W,HALOGEN,LX-TOURING PACKAGE,PHILIPS |
2 | ||
| 90981-13090 |
ZVW41 12V 19W,US GRADE5 |
2 | ||
| 90981-13081 |
ZVW41 12V 55W,HALOGEN,LX-TOURING PACKAGE,OSRAM |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-47010 |
ZVW41 US GRADE5 |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-0W040 |
ZVW41 LX-TOURING PACKAGE |
1 | ||
| 81220-47010 |
ZVW41 US GRADE5 |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-47010 |
ZVW41 US GRADE5 |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
