ZVW41L-AXXEBK (2014)
Toyota Prius V
(1109-1712)

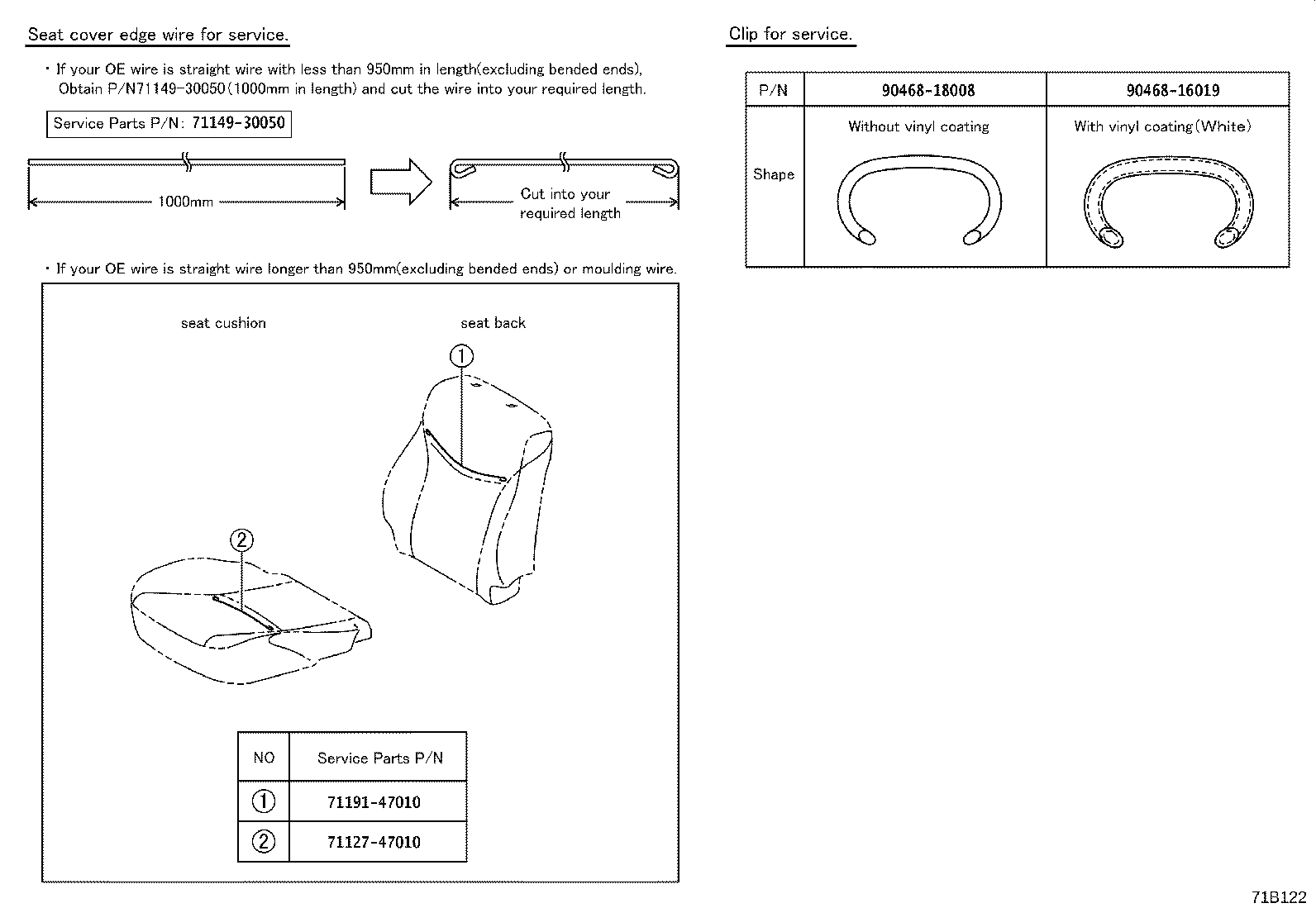

SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

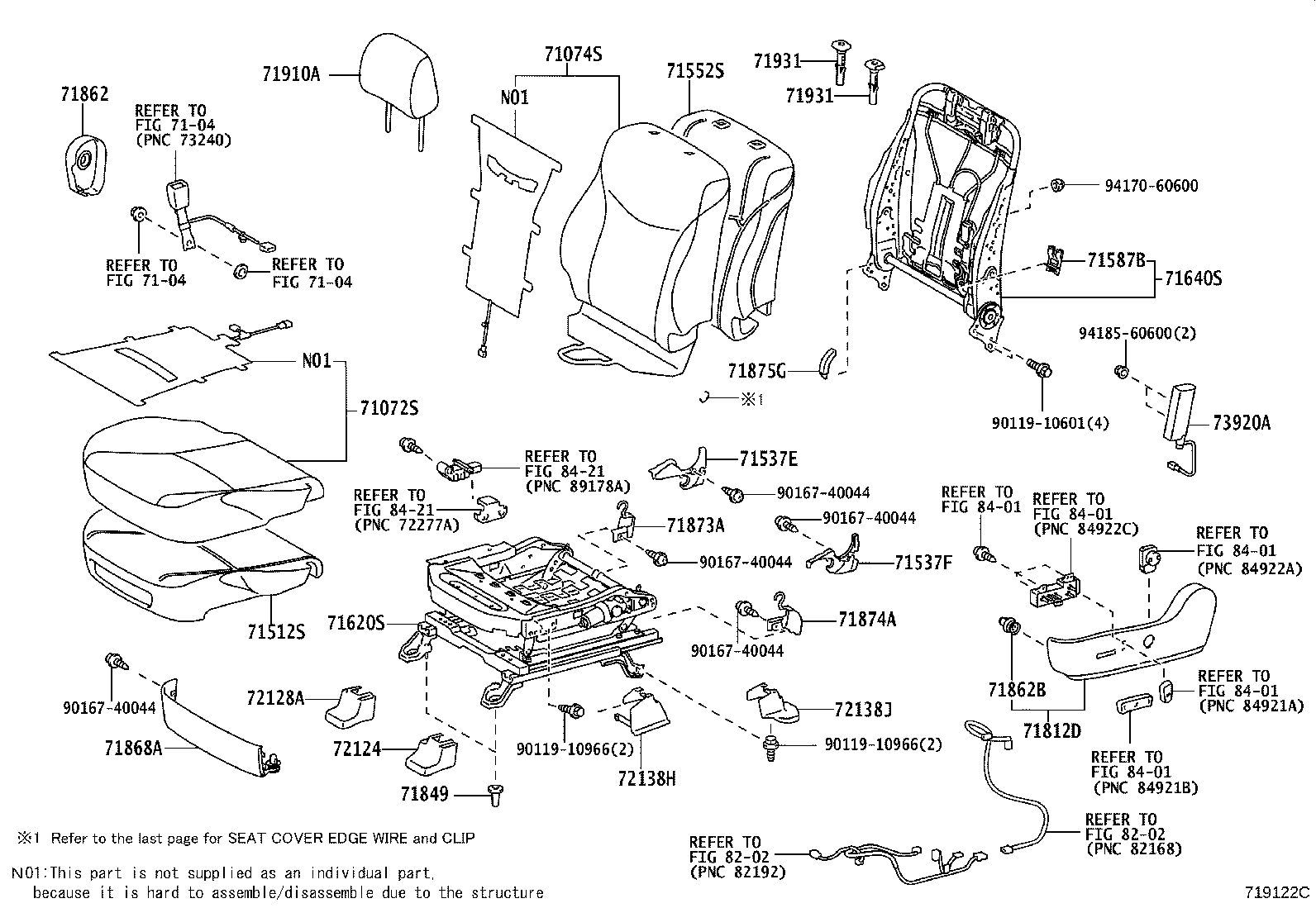

(1411- )
LH SEAT,POWER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-47310E4 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71072-47320G1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47320B1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71072-47310G3 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71072-47320E1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47340G3 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71072-47340B5 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY,TRIM1# |
1 | ||
| 71072-47320B1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71072-47310B5 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71072-47320E1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47340E4 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71072-47320G1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47690C2 |
ZVW41 BLACK,TRIM2# |
1 | ||
| 71072-47690B3 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71072-47700C2 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-47700B2 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-47700B2 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-47700E0 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47700C2 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-47700E0 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-47220B1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71074-47220E1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47210G3 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71074-47230E3 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71074-47220G1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47220G1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47220E1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47210B5 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71074-47230G2 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71074-47220B1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71074-47210E4 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71074-47230B4 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY,TRIM1# |
1 | ||
| 71074-47690C5 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-47680C3 |
ZVW41 BLACK,TRIM2# |
1 | ||
| 71074-47690B5 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1# |
1 | ||
| 71074-47680B3 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71074-47700B3 |
ZVW41 US GRADE2,GRAY,TRIM1# |
1 | ||
| 71074-47700C3 |
ZVW41 US GRADE2,BLACK,TRIM2# |
1 | ||
| 71074-47690B5 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1# |
1 | ||
| 71074-47690E3 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47690C5 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71074-47690E3 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-47130 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71512-47090 |
ZVW41 |
1 | ||
| 71512-47090 |
ZVW41 |
1 | ||
| 71512-47130 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 | ||||
| 71537-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71537-47010C0 |
ZVW41 BLACK,TRIM1#,2# |
1 | ||
| 71537-47020E0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71537-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71537-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71537-47020G0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71537-47020B1 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,DK.GRAY,TRIM1# |
1 | ||
| 71537-47010E0 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71537-47010E0 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2 | ||||
| 71538-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71538-47020G0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71538-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71538-52050E0 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71538-52050C0 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71538-47010C0 |
ZVW41 BLACK,TRIM1#,2# |
1 | ||
| 71538-52050E0 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71538-47020E0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71538-52050C0 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71538-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71538-47020B1 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,DK.GRAY,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-47130 |
ZVW41 |
1 | ||
| 71552-47200 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71552-47200 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71552-47130 |
ZVW41 |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ZVW41 |
2 | ||
| 71587-52030 |
ZVW41 |
2 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-47230 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71620-47230 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71620-47300 |
ZVW41 |
1 | ||
| 71620-47110 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY |
1 | ||
| 71620-47090 |
ZVW41 |
1 | ||
| 71620-47320 |
ZVW41 US GRADE2 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-47090 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY |
1 | ||
| 71640-47140 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71640-47090 |
ZVW41 US GRADE2 |
1 | ||
| 71640-47100 |
ZVW41 |
1 | ||
| 71640-47100 |
ZVW41 |
1 | ||
| 71640-47140 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-47090E0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71812-47070G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71812-47070C0 |
ZVW41 BLACK,TRIM1#,2# |
1 | ||
| 71812-47100C0 |
ZVW41 US GRADE2,BLACK,TRIM1#,2# |
1 | ||
| 71812-47120C0 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71812-47090G0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71812-47070E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71812-47090B1 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,DK.GRAY,TRIM1# |
1 | ||
| 71812-47120E0 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71812-47070B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71812-47120E0 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71812-47120C0 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
ZVW41 |
2 | ||
| 71848-47010 |
ZVW41 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47070G0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71862-76010C0 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71862-47040E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71862-47040C0 |
ZVW41 BLACK,TRIM1#,2# |
1 | ||
| 71862-47040G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71862-47040B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71862-47070E0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71862-76010E0 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71862-76010E0 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71862-47070B1 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,DK.GRAY,TRIM1# |
1 | ||
| 71862-76010C0 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-47020 |
ZVW41 |
1 | ||
| 71769-47020 |
ZVW41 |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-60050C0 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71868-60050C0 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71868-60050E7 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71868-60050E7 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-60030 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71873-47040 |
ZVW41 |
1 | ||
| 71873-47040 |
ZVW41 |
1 | ||
| 71873-60030 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
ZVW41 |
1 | ||
| 71874-47040 |
ZVW41 |
1 | ||
| 71874-60110 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71874-60110 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-47030C0 |
ZVW41 BLACK,TRIM1#,2# |
1 | ||
| 71875-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71875-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71875-47030B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71875-60210E4 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71875-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71875-60210E4 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
1 | ||
| 71875-60210C0 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71875-60210C0 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47170B1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-47170B1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-47170G1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47150E0 |
ZVW41 GREGE,TRIM4# |
2 | ||
| 71910-47170G1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47170E1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47150B0 |
ZVW41 DK.GRAY,TRIM1# |
2 | ||
| 71910-47330E2 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47170E1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47330C3 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47330C3 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47331E3 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47331E3 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47310B2 |
ZVW41 GRAY,TRIM1# |
2 | ||
| 71910-47330E2 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47150G0 |
ZVW41 AQUA,TRIM6# |
2 | ||
| 71910-47330B2 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-47331C4 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47331C4 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-47310C1 |
ZVW41 BLACK,TRIM2# |
2 | ||
| 71910-47330B2 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-47331B3 |
ZVW41 US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-47331B3 |
ZVW41 US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B2 |
ZVW41 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47020E0 |
ZVW41 W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020B2 |
ZVW41 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW41 W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020E0 |
ZVW41 W(LOCK),US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
2 | ||
| 71930-47020G0 |
ZVW41 W(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020E0 |
ZVW41 W(LOCK),US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
2 | ||
| 71931-47020E0 |
ZVW41 W/O(LOCK),US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
2 | ||
| 71930-47020C0 |
ZVW41 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020B0 |
ZVW41 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
ZVW41 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW41 W/O(LOCK),US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
2 | ||
| 71931-47020G0 |
ZVW41 W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020C4 |
ZVW41 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C4 |
ZVW41 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C0 |
ZVW41 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B2 |
ZVW41 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47020E0 |
ZVW41 W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020B2 |
ZVW41 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW41 W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020E0 |
ZVW41 W(LOCK),US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
2 | ||
| 71930-47020G0 |
ZVW41 W(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020E0 |
ZVW41 W(LOCK),US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
2 | ||
| 71931-47020E0 |
ZVW41 W/O(LOCK),US GRADE4&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
2 | ||
| 71930-47020C0 |
ZVW41 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020B0 |
ZVW41 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
ZVW41 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW41 W/O(LOCK),US GRADE5&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4# |
2 | ||
| 71931-47020G0 |
ZVW41 W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71930-47020C4 |
ZVW41 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C4 |
ZVW41 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C0 |
ZVW41 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-47020C0 |
ZVW41 BLACK,TRIM1#,2#,4# |
1 | ||
| 72124-47020C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-47010C0 |
ZVW41 BLACK,TRIM1#,2#,4# |
1 | ||
| 72128-47010C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-47050C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72158-47050C0 |
ZVW41 BLACK,TRIM1#,2#,4# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-47050C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72138-47050C0 |
ZVW41 BLACK,TRIM1#,2#,4# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-47061 |
ZVW41 |
1 | ||
| 73920-47060 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
(1712- )
SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71127-47010 | ||||
| 71149-30050 | ||||
| 71191-47010 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
