Toyota Prius v ZVW41 SIDE MEMBER

Part #	Description	Period	Qty
58742B - PROTECTOR, QUARTER PANEL, LH
58742-47020	ZVW41	11/2014 - 11/2018	1
58742-47020	ZVW41	09/2011 - 11/2014	1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-47070	ZVW41	09/2011 - 11/2014	1
61024-47100	ZVW41	11/2014 - 11/2018	1
61032C - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LH
61032-47010	ZVW41	11/2014 - 11/2018	1
61032-47010	ZVW41	09/2011 - 11/2014	1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-47040	ZVW41	11/2014 - 11/2018	1
61038-47040	ZVW41	09/2011 - 11/2014	1
61044C - EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH
61043-47010	ZVW41	09/2011 - 07/2014	1
61044-47020	ZVW41	11/2014 - 11/2018	1
61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH
61104-47060	ZVW41	11/2014 - 11/2018	1
61104-47040	ZVW41	09/2011 - 11/2014	1
61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61107-47030	ZVW41	11/2014 - 11/2018	1
61107-47030	ZVW41	09/2011 - 11/2014	1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-47070	ZVW41	11/2014 - 11/2018	1
61109-47040	ZVW41	09/2011 - 11/2014	1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-47040	ZVW41	09/2011 - 11/2014	1
61132-47040	ZVW41	11/2014 - 11/2018	1
61202 - RAIL SUB-ASSY, ROOF SIDE, LH
61202-47020	ZVW41	09/2011 - 11/2014	1
61202-47040	ZVW41	11/2014 - 11/2018	1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61204-47061	ZVW41	08/2015 - 11/2018	1
61204-47060	ZVW41	11/2014 - 07/2015	1
61204-47020	ZVW41	09/2011 - 02/2012	1
61218C - RAIL, ROOF SIDE, OUTER NO.4 LH
61218-47020	ZVW41	09/2011 - 11/2014	1
61218-47020	ZVW41	11/2014 - 11/2018	1
61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61304-47030	ZVW41	11/2014 - 11/2018	1
61304-47030	ZVW41	09/2011 - 11/2014	1
61312C - PANEL, REAR BODY FRONT OUTSIDE, LH
61312-47030	ZVW41	11/2014 - 11/2018	1
61312-47030	ZVW41	09/2011 - 11/2014	1
61366 - REINFORCE, BELT ANCHOR TO CENTER PILLER, NO.3 LH
61365-60040	ZVW41	11/2014 - 11/2018	1
61365-60040	ZVW41	09/2011 - 11/2014	1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-47040	ZVW41	09/2011 - 08/2014	1
61404-47060	ZVW41	11/2014 - 06/2018	1
61404-47061	ZVW41	07/2018 - 11/2018	1
61602C - PANEL SUB-ASSY, QUARTER, LH
61602-47130	ZVW41	11/2014 - 07/2018	1
61602-47131	ZVW41	08/2018 - 11/2018	1
61602-47130	ZVW41..CND	09/2011 - 11/2014	1
61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
61604-12610	ZVW41	09/2011 - 11/2014	1
61604-12610	ZVW41	11/2014 - 11/2018	1
61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH
61608-47070	ZVW41	09/2011 - 11/2014	1
61608-47070	ZVW41	11/2014 - 11/2018	1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-47060	ZVW41	11/2014 - 11/2018	1
61632-47060	ZVW41	09/2011 - 11/2014	1
61704H - PANEL SUB-ASSY, QUARTER, INNER LH
61704-47020	ZVW41	11/2014 - 11/2018	1
61704-47020	ZVW41	09/2011 - 11/2014	1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-47031	ZVW41	09/2011 - 11/2014	1
61712-47031	ZVW41	11/2014 - 06/2015	1
61712-47032	ZVW41	07/2015 - 11/2018	1
61732B - PANEL, ROOF SIDE, INNER LH
61732-47041	ZVW41	11/2014 - 08/2015	1
61732-47042	ZVW41	08/2015 - 11/2018	1
61732-47041	ZVW41	09/2011 - 11/2014	1
61738B - PANEL, ROOF SIDE, INNER LOWER LH
61738-47030	ZVW41	11/2014 - 11/2018	1
61738-47030	ZVW41	09/2011 - 11/2014	1
61824D - PLATE, NOISE CONTROL, NO.1
61824-12050	ZVW41	11/2014 - 11/2018	2
61824-12050	ZVW41	09/2011 - 11/2014	2
62151D - PAD, COWL SIDE SILENCER
62152-47010	ZVW41	11/2014 - 11/2018	2
62152-47010	ZVW41	09/2011 - 11/2014	2
62152B - PAD, COWL SIDE SILENCER, NO.2
62152-12050	ZVW41	09/2011 - 11/2014	2
62152-12050	ZVW41	11/2014 - 11/2018	2
62554B - PAD, PILLAR, NO.4
62554-12180	ZVW41	09/2011 - 11/2014	2
62554-12180	ZVW41	11/2014 - 11/2018	2
62624E - PAD, QUARTER WHEEL HOUSE, INNER REAR LH
62622-47020	ZVW41	11/2014 - 11/2018	1
62622-47020	ZVW41	09/2011 - 11/2014	1
65638 - LINER, REAR WHEEL HOUSE, LH
65638-47040	ZVW41	11/2014 - 11/2018	1
65638-47040	ZVW41	09/2011 - 11/2014	1
Common parts
90179-06308
90467-06206C0
90467-07201
91553-B0820
91641-80816
91673-80820

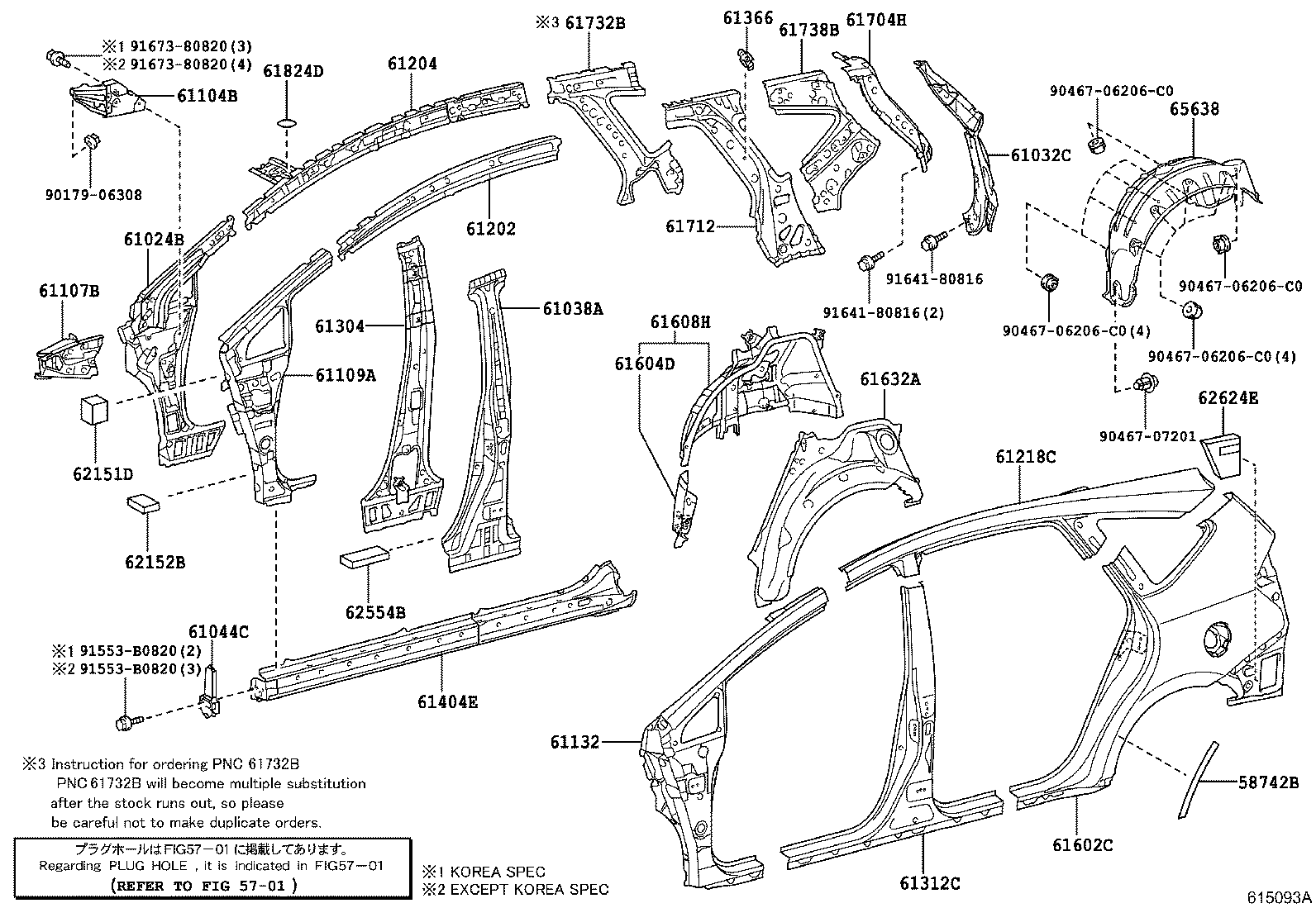

Linked diagrams
5701

ZVW41L-AXXEBK (2014)

ILLUST NO. 2 OF 2(1411- )
