ZVW41L-AXXEBK (2014)
Toyota Prius V

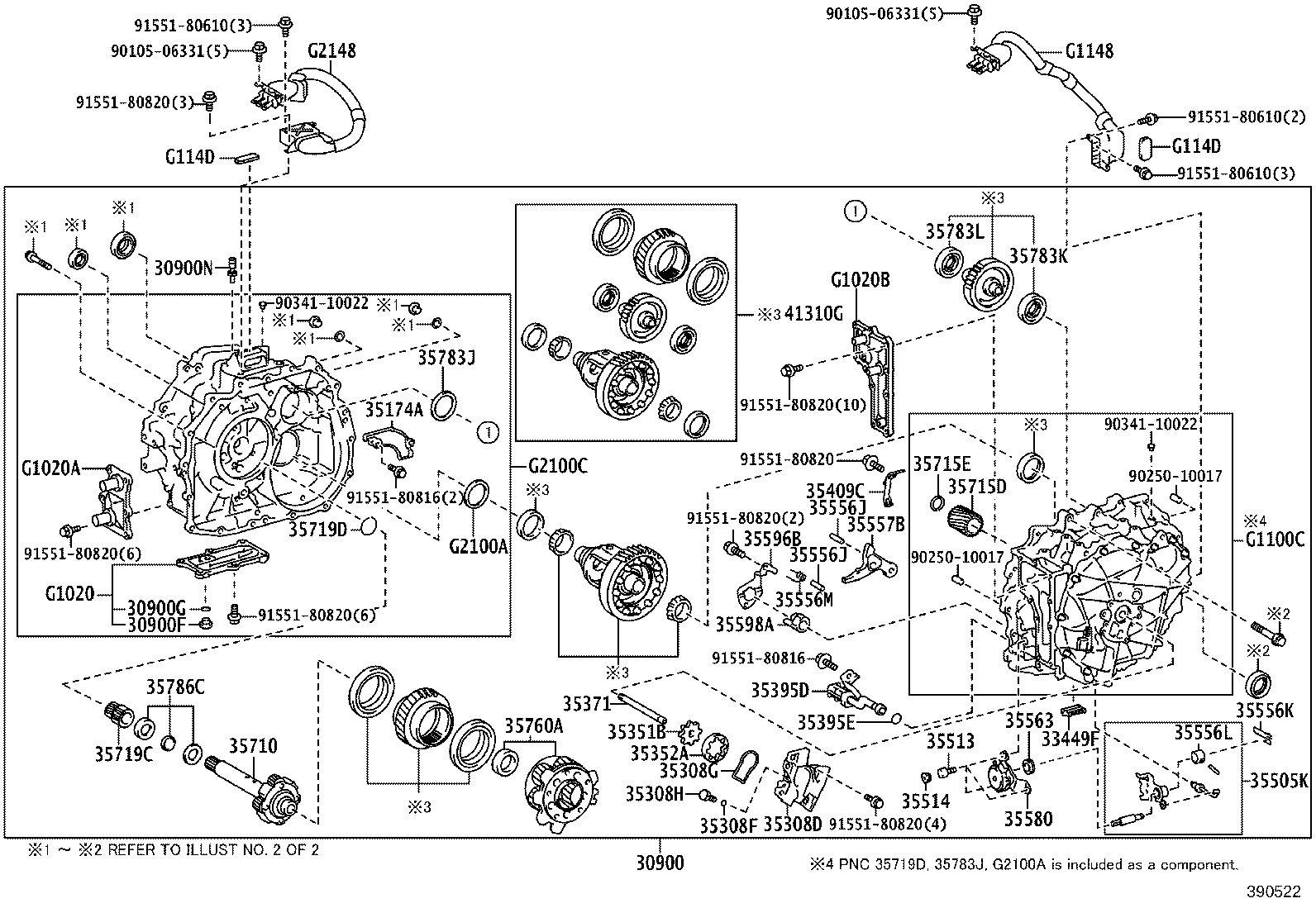

ILLUST NO. 1 OF 2(1703- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30900 - TRANSAXLE ASSY, HYBRID VEHICLE | ||||
| 30900-47130 |
ZVW41 |
1 | ||
| 30900-47073 |
ZVW41 |
1 | ||
| 30900-47071 |
ZVW41 |
1 | ||
| 30900F - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & C | ||||
| 90341-18016 |
ZVW41 |
1 | ||
| 90341-18016 |
ZVW41 |
1 | ||
| 30900G - GASKET, NO.2(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90430-18008 |
ZVW41 |
1 | ||
| 90430-18008 |
ZVW41 |
1 | ||
| 30900N - PLUG, BREATHER(FOR TRANSAXLE) | ||||
| 90930-03201 |
ZVW41 |
1 | ||
| 90930-03201 |
ZVW41 |
1 | ||
| 33449F - MAGNET, TRANSMISSION NO.1 | ||||
| 33449-12020 |
ZVW41 |
1 | ||
| 33449-12020 |
ZVW41 |
1 | ||
| 35174A - SEPARATOR, TRANSAXLE HOUSING OIL | ||||
| 35174-47010 |
ZVW41 |
1 | ||
| 35174-47010 |
ZVW41 |
1 | ||
| 35308D - COVER SUB-ASSY, TRANSMISSION OIL PUMP | ||||
| 35308-47040 |
ZVW41 |
1 | ||
| 35308-47040 |
ZVW41 |
1 | ||
| 35308F - RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90301-06196 |
ZVW41 |
1 | ||
| 90301-06196 |
ZVW41 |
1 | ||
| 35308G - RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90301-51005 |
ZVW41 |
1 | ||
| 90903-01009 |
ZVW41 |
1 | ||
| 35308H - PLUG (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90341-08001 |
ZVW41 |
1 | ||
| 90341-08001 |
ZVW41 |
1 | ||
| 35351B - ROTOR, TRANSAXLE OIL PUMP DRIVE | ||||
| 35351-47040 |
ZVW41 |
1 | ||
| 35351-47040 |
ZVW41 |
1 | ||
| 35352A - ROTOR, TRANSMISSION OIL PUMP DRIVEN | ||||
| 35352-47020 |
ZVW41 |
1 | ||
| 35352-47020 |
ZVW41 |
1 | ||
| 35371 - SHAFT, OIL PUMP DRIVE | ||||
| 35371-47040 |
ZVW41 |
1 | ||
| 35371-47040 |
ZVW41 |
1 | ||
| 35395D - STRAINER, TRANSMISSION OIL | ||||
| 35395-47040 |
ZVW41 |
1 | ||
| 35395-47040 |
ZVW41 |
1 | ||
| 35395E - RING, O(FOR TRANSAXLE OIL STRAINER) | ||||
| 90301-11019 |
ZVW41 |
1 | ||
| 90301-11019 |
ZVW41 |
1 | ||
| 35409C - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-75010 |
ZVW41 |
1 | ||
| 35409-75010 |
ZVW41 |
1 | ||
| 35505K - LEVER SUB-ASSY, PARKING LOCK, NO.1 | ||||
| 35505-79005 |
ZVW41 |
1 | ||
| 35505-79005 |
ZVW41 |
1 | ||
| 35513 - BOLT, SHIFT CONTROL ACTUATOR | ||||
| 35513-47010 |
ZVW41 |
3 | ||
| 35513-47010 |
ZVW41 |
3 | ||
| 35514 - CAP, SHIFT CONTROL ACTUATOR BOLT | ||||
| 35514-47010 |
ZVW41 |
3 | ||
| 35514-47010 |
ZVW41 |
3 | ||
| 35556J - SHAFT, PARKING LOCK PAWL | ||||
| 35556-48010 |
ZVW41 |
2 | ||
| 35556-48010 |
ZVW41 |
2 | ||
| 35556-48010 |
ZVW41 |
2 | ||
| 35556-48010 |
ZVW41 |
2 | ||
| 35556J - SHAFT, PARKING LOCK PAWL | ||||
| 35556-48010 |
ZVW41 |
2 | ||
| 35556-48010 |
ZVW41 |
2 | ||
| 35556-48010 |
ZVW41 |
2 | ||
| 35556-48010 |
ZVW41 |
2 | ||
| 35556K - SPRING, RETAINER | ||||
| 90524-09003 |
ZVW41 |
1 | ||
| 90524-09003 |
ZVW41 |
1 | ||
| 35556L - SPACER | ||||
| 90560-20006 |
ZVW41 |
1 | ||
| 90560-20006 |
ZVW41 |
1 | ||
| 35556M - SPRING, TORSION | ||||
| 90949-03134 |
ZVW41 |
1 | ||
| 90949-03134 |
ZVW41 |
1 | ||
| 35557B - PAWL, PARKING LOCK | ||||
| 35557-47030 |
ZVW41 |
1 | ||
| 35557-47030 |
ZVW41 |
1 | ||
| 35563 - SEAL, SHIFT CONTROL ACTUATOR | ||||
| 35563-75010 |
ZVW41 |
1 | ||
| 35563-75010 |
ZVW41 |
1 | ||
| 35580 - ACTUATOR ASSY, SHIFT CONTROL | ||||
| 35580-47030 |
ZVW41 |
1 | ||
| 35580-47030 |
ZVW41 |
1 | ||
| 35596B - PLATE, PAWL STOPPER | ||||
| 35596-48010 |
ZVW41 |
1 | ||
| 35596-48010 |
ZVW41 |
1 | ||
| 35598A - SLEEVE, PARKING LOCK | ||||
| 35598-47020 |
ZVW41 |
1 | ||
| 35598-47020 |
ZVW41 |
1 | ||
| 35710 - SHAFT ASSY, INPUT | ||||
| 35710-47041 |
ZVW41 |
1 | ||
| 35710-47041 |
ZVW41 |
1 | ||
| 35715D - GEAR, REAR PLANETARY SUN | ||||
| 35715-47010 |
ZVW41 |
1 | ||
| 35715-47010 |
ZVW41 |
1 | ||
| 35715E - RING, SHAFT SNAP(FOR REAR PLANETARY SUN GEAR) | ||||
| 90520-22026 |
ZVW41 |
1 | ||
| 90520-22026 |
ZVW41 |
1 | ||
| 35719C - GEAR, PLANETARY SUN | ||||
| 35719-47040 |
ZVW41 |
1 | ||
| 35719-47040 |
ZVW41 |
1 | ||
| 35719D - RING, SNAP(FOR PLANETARY SUN GEAR) | ||||
| 90520-31036 |
ZVW41 T=3.91 |
1 | ||
| 90520-31041 |
ZVW41 T=4.06 |
1 | ||
| 90520-31037 |
ZVW41 T=3.94 |
1 | ||
| 90520-31042 |
ZVW41 T=4.09 |
1 | ||
| 90520-31040 |
ZVW41 T=4.03 |
1 | ||
| 90520-31045 |
ZVW41 T=4.18 |
1 | ||
| 90520-31043 |
ZVW41 T=4.12 |
1 | ||
| 90520-31050 |
ZVW41 T=4.33 |
1 | ||
| 90520-31057 |
ZVW41 T=4.54 |
1 | ||
| 90520-31044 |
ZVW41 T=4.15 |
1 | ||
| 90520-31046 |
ZVW41 T=4.21 |
1 | ||
| 90520-31056 |
ZVW41 T=4.51 |
1 | ||
| 90520-31048 |
ZVW41 T=4.27 |
1 | ||
| 90520-31051 |
ZVW41 T=4.36 |
1 | ||
| 90520-31058 |
ZVW41 T=4.57 |
1 | ||
| 90520-31059 |
ZVW41 T=4.60 |
1 | ||
| 90520-31049 |
ZVW41 T=4.30 |
1 | ||
| 90520-31039 |
ZVW41 T=4.00 |
1 | ||
| 90520-31055 |
ZVW41 T=4.48 |
1 | ||
| 90520-31038 |
ZVW41 T=3.97 |
1 | ||
| 90520-31053 |
ZVW41 T=4.42 |
1 | ||
| 90520-31052 |
ZVW41 T=4.39 |
1 | ||
| 90520-31038 |
ZVW41 T=3.97 |
1 | ||
| 90520-31039 |
ZVW41 T=4.00 |
1 | ||
| 90520-31062 |
ZVW41 T=4.69 |
1 | ||
| 90520-31037 |
ZVW41 T=3.94 |
1 | ||
| 90520-31047 |
ZVW41 T=4.24 |
1 | ||
| 90520-31060 |
ZVW41 T=4.63 |
1 | ||
| 90520-31041 |
ZVW41 T=4.06 |
1 | ||
| 90520-31046 |
ZVW41 T=4.21 |
1 | ||
| 90520-31063 |
ZVW41 T=4.72 |
1 | ||
| 90520-31061 |
ZVW41 T=4.66 |
1 | ||
| 90520-31035 |
ZVW41 T=3.88 |
1 | ||
| 90520-31054 |
ZVW41 T=4.45 |
1 | ||
| 90520-31040 |
ZVW41 T=4.03 |
1 | ||
| 90520-31044 |
ZVW41 T=4.15 |
1 | ||
| 90520-31035 |
ZVW41 T=3.88 |
1 | ||
| 90520-31047 |
ZVW41 T=4.24 |
1 | ||
| 90520-31057 |
ZVW41 T=4.54 |
1 | ||
| 90520-31056 |
ZVW41 T=4.51 |
1 | ||
| 90520-31053 |
ZVW41 T=4.42 |
1 | ||
| 90520-31060 |
ZVW41 T=4.63 |
1 | ||
| 90520-31048 |
ZVW41 T=4.27 |
1 | ||
| 90520-31050 |
ZVW41 T=4.33 |
1 | ||
| 90520-31061 |
ZVW41 T=4.66 |
1 | ||
| 90520-31042 |
ZVW41 T=4.09 |
1 | ||
| 90520-31043 |
ZVW41 T=4.12 |
1 | ||
| 90520-31052 |
ZVW41 T=4.39 |
1 | ||
| 90520-31045 |
ZVW41 T=4.18 |
1 | ||
| 90520-31062 |
ZVW41 T=4.69 |
1 | ||
| 90520-31036 |
ZVW41 T=3.91 |
1 | ||
| 90520-31049 |
ZVW41 T=4.30 |
1 | ||
| 90520-31059 |
ZVW41 T=4.60 |
1 | ||
| 90520-31055 |
ZVW41 T=4.48 |
1 | ||
| 90520-31063 |
ZVW41 T=4.72 |
1 | ||
| 90520-31054 |
ZVW41 T=4.45 |
1 | ||
| 90520-31051 |
ZVW41 T=4.36 |
1 | ||
| 90520-31058 |
ZVW41 T=4.57 |
1 | ||
| 35760A - GEAR ASSY, REAR PLANETARY NO.1 | ||||
| 35760-47030 |
ZVW41 |
1 | ||
| 35760-47040 |
ZVW41 |
1 | ||
| 35760-47030 |
ZVW41 |
1 | ||
| 35783J - SHIM(FOR COUNTER DRIVEN GEAR) | ||||
| 90564-50281 |
ZVW41 T=2.00 |
1 | ||
| 90564-50282 |
ZVW41 T=2.05 |
1 | ||
| 90564-50284 |
ZVW41 T=2.15 |
1 | ||
| 90564-50283 |
ZVW41 T=2.10 |
1 | ||
| 90564-50289 |
ZVW41 T=2.40 |
1 | ||
| 90564-50287 |
ZVW41 T=2.30 |
1 | ||
| 90564-50292 |
ZVW41 T=2.55 |
1 | ||
| 90564-50282 |
ZVW41 T=2.05 |
1 | ||
| 90564-50288 |
ZVW41 T=2.35 |
1 | ||
| 90564-50285 |
ZVW41 T=2.20 |
1 | ||
| 90564-50286 |
ZVW41 T=2.25 |
1 | ||
| 90564-50290 |
ZVW41 T=2.45 |
1 | ||
| 90564-50288 |
ZVW41 T=2.35 |
1 | ||
| 90564-50286 |
ZVW41 T=2.25 |
1 | ||
| 90564-50281 |
ZVW41 T=2.00 |
1 | ||
| 90564-50285 |
ZVW41 T=2.20 |
1 | ||
| 90564-50290 |
ZVW41 T=2.45 |
1 | ||
| 90564-50292 |
ZVW41 T=2.55 |
1 | ||
| 90564-50283 |
ZVW41 T=2.10 |
1 | ||
| 90564-50293 |
ZVW41 T=2.60 |
1 | ||
| 90564-50293 |
ZVW41 T=2.60 |
1 | ||
| 90564-50287 |
ZVW41 T=2.30 |
1 | ||
| 90564-50291 |
ZVW41 T=2.50 |
1 | ||
| 90564-50284 |
ZVW41 T=2.15 |
1 | ||
| 90564-50289 |
ZVW41 T=2.40 |
1 | ||
| 90564-50291 |
ZVW41 T=2.50 |
1 | ||
| 35783K - BEARING, RADIAL BALL, NO.1(FOR COUNTER DRIVEN GEAR) | ||||
| 90363-30082 |
ZVW41 |
1 | ||
| 90363-30082 |
ZVW41 |
1 | ||
| 35783L - BEARING, RADIAL BALL, NO.2(FOR COUNTER DRIVEN GEAR) | ||||
| 90363-34005 |
ZVW41 |
1 | ||
| 90363-34005 |
ZVW41 |
1 | ||
| 35786C - RACE, THRUST BEARING, NO.1 | ||||
| 35786-49005 |
ZVW41 |
1 | ||
| 35786-49005 |
ZVW41 |
1 | ||
| 41310G - GEAR KIT, DIFFERENTIAL & COUNTER DRIVEN | ||||
| 41310-47902 |
ZVW41 |
1 | ||
| 41310-47906 |
ZVW41 |
1 | ||
| 41310-47902 |
ZVW41 |
1 | ||
| 41310-47904 |
ZVW41 |
1 | ||
| G1020 - COVER ASSY, MOTOR WATER JACKET, NO.1 | ||||
| G1020-47010 |
ZVW41 |
1 | ||
| G1020-47010 |
ZVW41 |
1 | ||
| G1020A - COVER ASSY, MOTOR WATER JACKET, NO.2 | ||||
| G1020-47020 |
ZVW41 |
1 | ||
| G1020-47020 |
ZVW41 |
1 | ||
| G1020B - COVER ASSY, MOTOR WATER JACKET, NO.3 | ||||
| G1020-47040 |
ZVW41 |
1 | ||
| G1020-47040 |
ZVW41 |
1 | ||
| G1100C - MOTOR ASSY, HYBRID VEHICLE | ||||
| G1100-47100 |
ZVW41 |
1 | ||
| G1100-49015 |
ZVW41 |
1 | ||
| G1100-47101 |
ZVW41 |
1 | ||
| G1148 - CABLE, MOTOR | ||||
| G1148-47042 |
ZVW41 |
1 | ||
| G1148-47080 |
ZVW41 |
1 | ||
| G114D - CAP, MOTOR CABLE TERMINAL | ||||
| G114D-47021 |
ZVW41 |
2 | ||
| G114D-47021 |
ZVW41 |
2 | ||
| G114D - CAP, MOTOR CABLE TERMINAL | ||||
| G114D-47021 |
ZVW41 |
2 | ||
| G114D-47021 |
ZVW41 |
2 | ||
| G2100A - SHIM(FOR DIFFERENTIAL CASE RH) | ||||
| 90564-64040 |
ZVW41 T=2.15 |
1 | ||
| 90564-64047 |
ZVW41 T=1.725 |
1 | ||
| 90564-64032 |
ZVW41 T=1.75 |
1 | ||
| 90564-64034 |
ZVW41 T=1.85 |
1 | ||
| 90564-64032 |
ZVW41 T=1.75 |
1 | ||
| 90564-64031 |
ZVW41 T=1.70 |
1 | ||
| 90564-64039 |
ZVW41 T=2.10 |
1 | ||
| 90564-64037 |
ZVW41 T=2.00 |
1 | ||
| 90564-64042 |
ZVW41 T=2.25 |
1 | ||
| 90564-64046 |
ZVW41 T=2.45 |
1 | ||
| 90564-64041 |
ZVW41 T=2.20 |
1 | ||
| 90564-64043 |
ZVW41 T=2.30 |
1 | ||
| 90564-64033 |
ZVW41 T=1.80 |
1 | ||
| 90564-64051 |
ZVW41 T=1.925 |
1 | ||
| 90564-64035 |
ZVW41 T=1.90 |
1 | ||
| 90564-64045 |
ZVW41 T=2.40 |
1 | ||
| 90564-64048 |
ZVW41 T=1.775 |
1 | ||
| 90564-64044 |
ZVW41 T=2.35 |
1 | ||
| 90564-64036 |
ZVW41 T=1.95 |
1 | ||
| 90564-64049 |
ZVW41 T=1.825 |
1 | ||
| 90564-64053 |
ZVW41 T=2.025 |
1 | ||
| 90564-64059 |
ZVW41 T=2.325 |
1 | ||
| 90564-64057 |
ZVW41 T=2.225 |
1 | ||
| 90564-64054 |
ZVW41 T=2.075 |
1 | ||
| 90564-64056 |
ZVW41 T=2.175 |
1 | ||
| 90564-64050 |
ZVW41 T=1.875 |
1 | ||
| 90564-64052 |
ZVW41 T=1.975 |
1 | ||
| 90564-64060 |
ZVW41 T=2.375 |
1 | ||
| 90564-64038 |
ZVW41 T=2.05 |
1 | ||
| 90564-64041 |
ZVW41 T=2.20 |
1 | ||
| 90564-64037 |
ZVW41 T=2.00 |
1 | ||
| 90564-64061 |
ZVW41 T=2.425 |
1 | ||
| 90564-64039 |
ZVW41 T=2.10 |
1 | ||
| 90564-64055 |
ZVW41 T=2.125 |
1 | ||
| 90564-64043 |
ZVW41 T=2.30 |
1 | ||
| 90564-64033 |
ZVW41 T=1.80 |
1 | ||
| 90564-64045 |
ZVW41 T=2.40 |
1 | ||
| 90564-64042 |
ZVW41 T=2.25 |
1 | ||
| 90564-64052 |
ZVW41 T=1.975 |
1 | ||
| 90564-64049 |
ZVW41 T=1.825 |
1 | ||
| 90564-64048 |
ZVW41 T=1.775 |
1 | ||
| 90564-64034 |
ZVW41 T=1.85 |
1 | ||
| 90564-64044 |
ZVW41 T=2.35 |
1 | ||
| 90564-64053 |
ZVW41 T=2.025 |
1 | ||
| 90564-64047 |
ZVW41 T=1.725 |
1 | ||
| 90564-64040 |
ZVW41 T=2.15 |
1 | ||
| 90564-64058 |
ZVW41 T=2.275 |
1 | ||
| 90564-64035 |
ZVW41 T=1.90 |
1 | ||
| 90564-64046 |
ZVW41 T=2.45 |
1 | ||
| 90564-64051 |
ZVW41 T=1.925 |
1 | ||
| 90564-64038 |
ZVW41 T=2.05 |
1 | ||
| 90564-64036 |
ZVW41 T=1.95 |
1 | ||
| 90564-64050 |
ZVW41 T=1.875 |
1 | ||
| 90564-64055 |
ZVW41 T=2.125 |
1 | ||
| 90564-64031 |
ZVW41 T=1.70 |
1 | ||
| 90564-64056 |
ZVW41 T=2.175 |
1 | ||
| 90564-64059 |
ZVW41 T=2.325 |
1 | ||
| 90564-64061 |
ZVW41 T=2.425 |
1 | ||
| 90564-64060 |
ZVW41 T=2.375 |
1 | ||
| 90564-64057 |
ZVW41 T=2.225 |
1 | ||
| 90564-64058 |
ZVW41 T=2.275 |
1 | ||
| 90564-64054 |
ZVW41 T=2.075 |
1 | ||
| G2100C - GENERATOR ASSY, HYBRID VEHICLE | ||||
| G2100-47091 |
ZVW41 |
1 | ||
| G2100-47090 |
ZVW41 |
1 | ||
| G2100-49005 |
ZVW41 |
1 | ||
| G2148 - CABLE, GENERATOR | ||||
| G2148-47042 |
ZVW41 |
1 | ||
| G2148-47041 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90105-06331 | ||||
| 90250-10017 | ||||
| 90341-10022 | ||||
| 91551-80610 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
