ZVW41L-AXXEBA (2011)
Toyota Prius V
Production
Sep 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(1109- )
Click highlighted areas on diagram

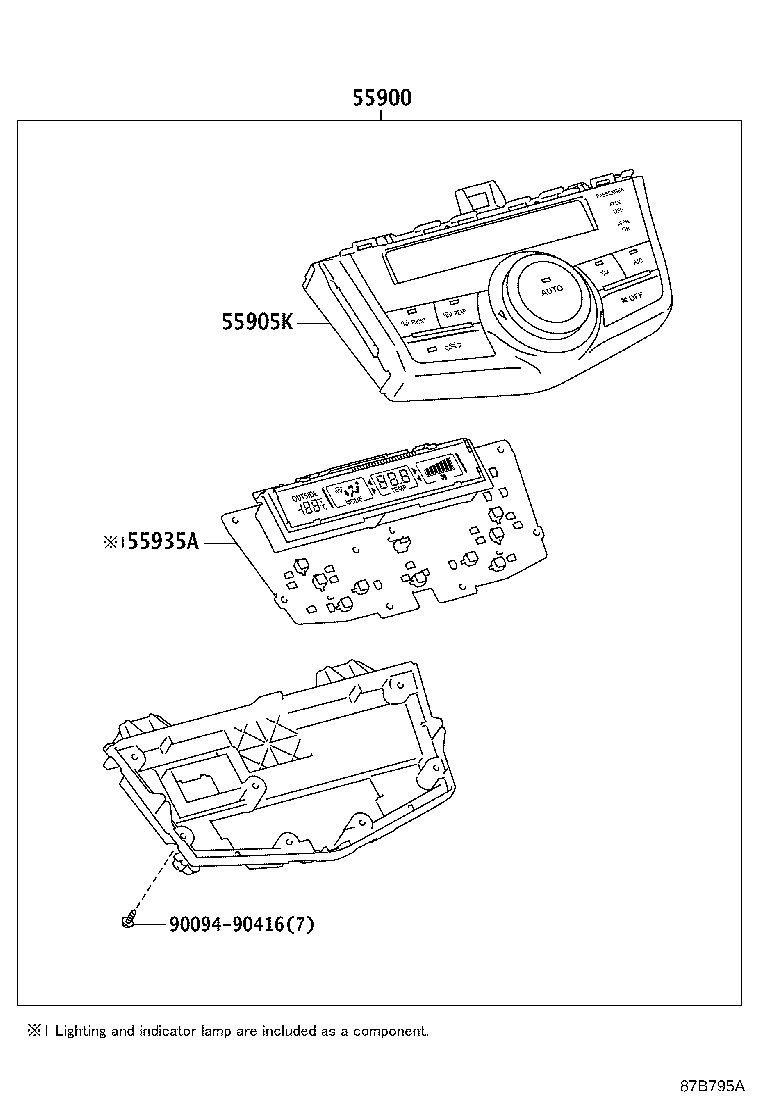

HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-47150 |
ZVW41 |
1 | ||
| 55900-47050 |
ZVW41 |
1 | ||
| 55905K - KNOB, HEATER CONTROL, NO.4 | ||||
| 55905-47130 |
ZVW41 |
1 | ||
| 55935A - CIRCUIT, CENTER CLUSTER MODULE | ||||
| 55935-47090 |
ZVW41 |
1 | ||
| 55935-47060 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
ILLUST NO. 2 OF 3(1109- )
Click highlighted areas on diagram

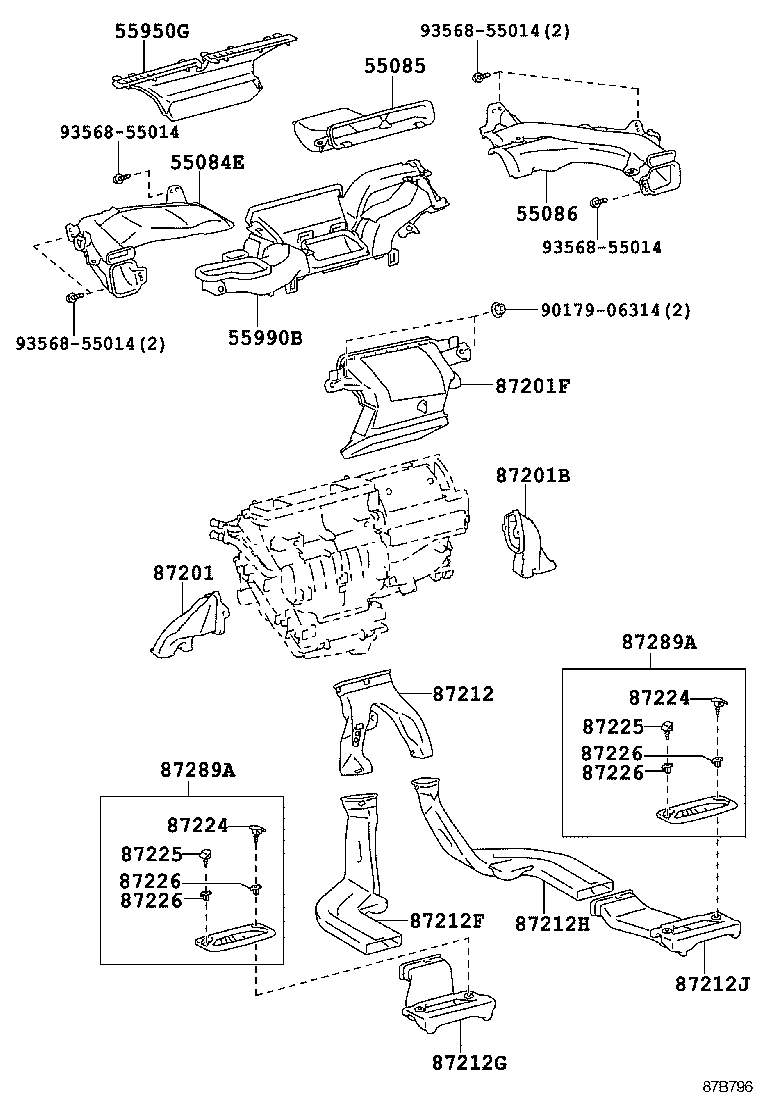

AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-47090 |
ZVW41 |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-47050 |
ZVW41 |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-47020 |
ZVW41 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-47050 |
ZVW41 |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-47080 |
ZVW41 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-12340 |
ZVW41 |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87211-12350 |
ZVW41 |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87220-47020 |
ZVW41 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-47030 |
ZVW41 |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87213-47040 |
ZVW41 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87276-47020 |
ZVW41 |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87213-47030 |
ZVW41 |
1 | ||
| 87212J - DUCT, AIR, REAR NO.5 | ||||
| 87275-47020 |
ZVW41 |
1 | ||
| 87224 - GUIDE, AIR DUCT, RH | ||||
| 87224-47010 |
ZVW41 |
2 | ||
| 87224 - GUIDE, AIR DUCT, RH | ||||
| 87224-47010 |
ZVW41 |
2 | ||
| 87225 - GUIDE, AIR DUCT, LH | ||||
| 87225-47010 |
ZVW41 |
2 | ||
| 87225 - GUIDE, AIR DUCT, LH | ||||
| 87225-47010 |
ZVW41 |
2 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-47010 |
ZVW41 |
4 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-47010 |
ZVW41 |
4 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-47010 |
ZVW41 |
4 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-47010 |
ZVW41 |
4 | ||
| 87289A - BEZEL, REAR HEATER REGISTER, NO.1 | ||||
| 87289-47010 |
ZVW41 |
2 | ||
| 87289A - BEZEL, REAR HEATER REGISTER, NO.1 | ||||
| 87289-47010 |
ZVW41 |
2 | ||
| Common parts | ||||
| 90179-06314 | ||||
| 93568-55014 | ||||
ILLUST NO. 3 OF 3(1109- )
Click highlighted areas on diagram

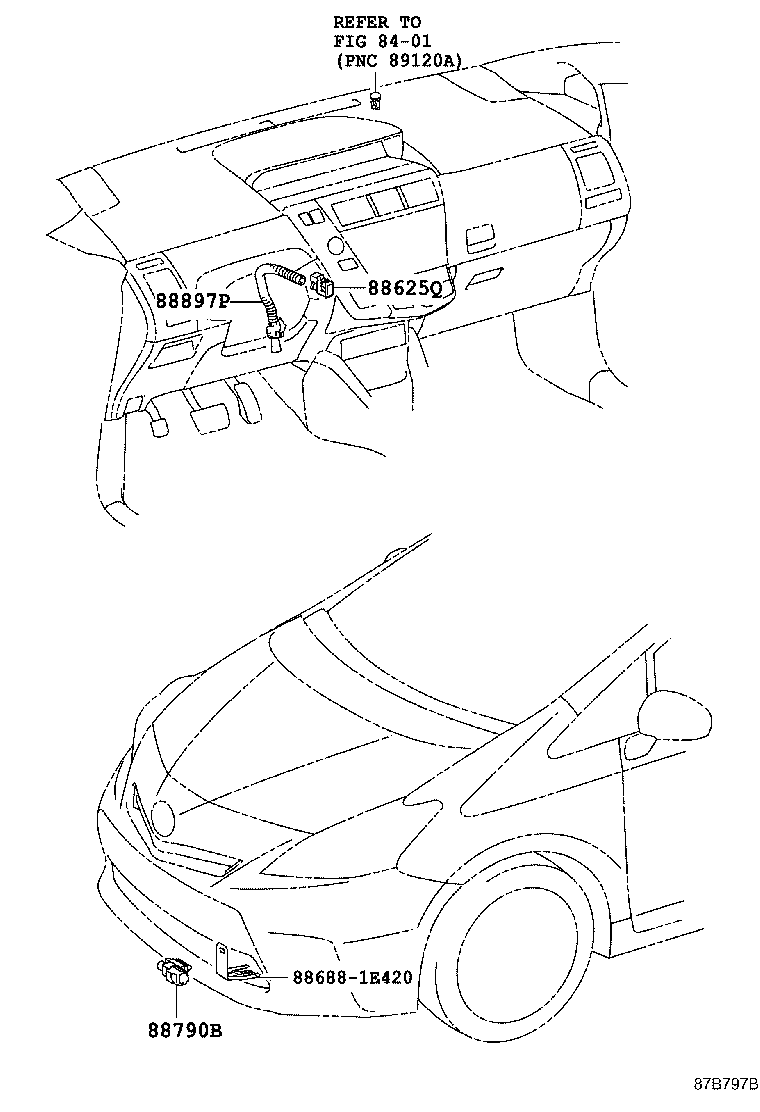

SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
ZVW41 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
ZVW41 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88505-47050 |
ZVW41 |
1 | ||
| Common parts | ||||
| 88688-1E420 | ||||
| Linked diagrams | ||||
| 8401 | ||||
