ZVW41L-AXXEBA (2011)
Toyota Prius V
Production
Sep 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1109- )

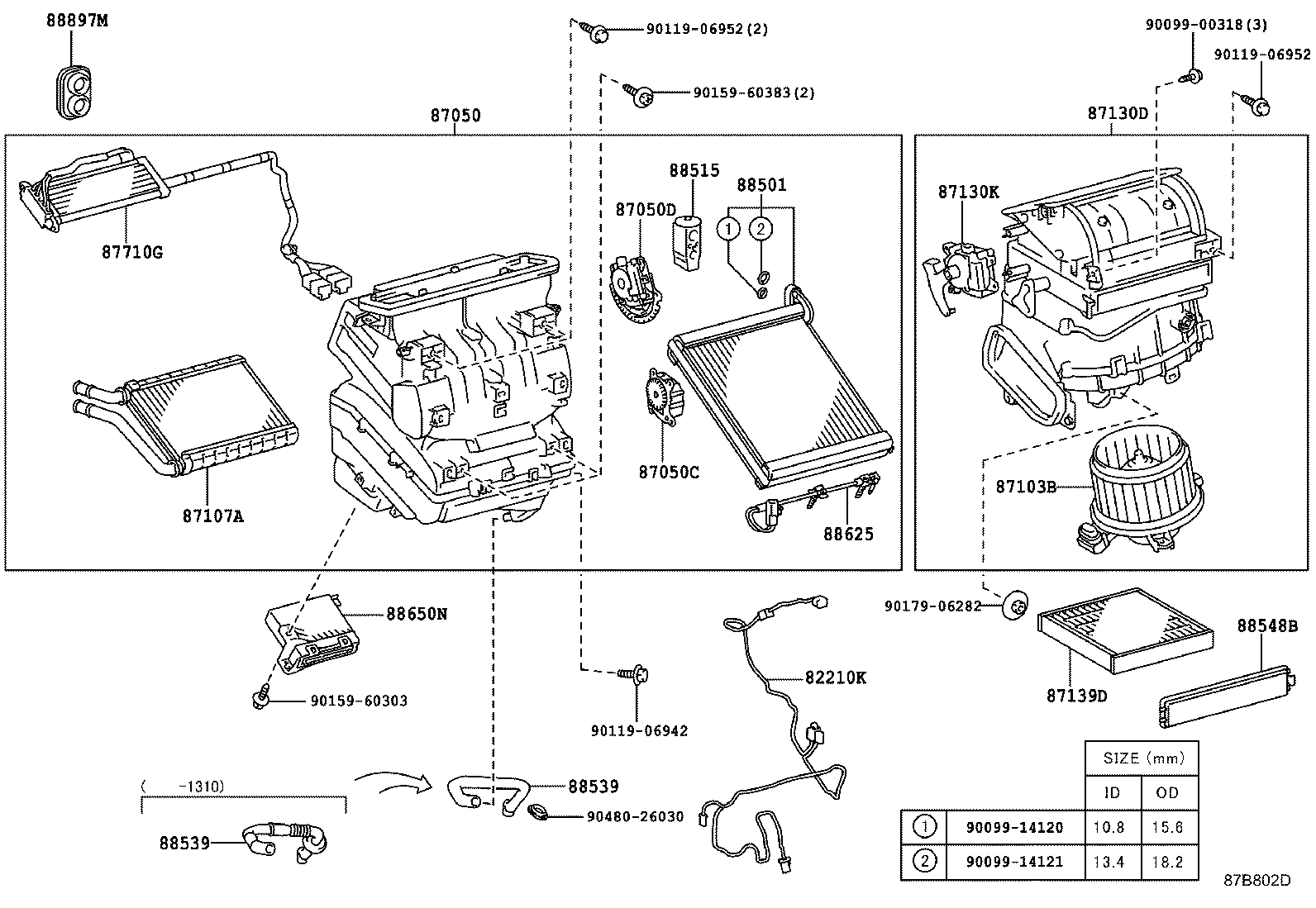

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-12010 |
ZVW41 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-47150 |
ZVW41 |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-12170 |
ZVW41 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-42100 |
ZVW41 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-12080 |
ZVW41 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
ZVW41 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-47140 |
ZVW41 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-47130 |
ZVW41 |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50060 |
ZVW41 DEODORANT FILTER |
1 | ||
| 87139-52040 |
ZVW41 POLLEN FILTER |
1 | ||
| 87139-50100 |
ZVW41 *DPF |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-12020 |
ZVW41 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-47051 |
ZVW41 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-47040 |
ZVW41 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12200 |
ZVW41 |
1 | ||
| 88539-12230 |
ZVW41 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12200 |
ZVW41 |
1 | ||
| 88539-12230 |
ZVW41 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42020 |
ZVW41 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-71010 |
ZVW41 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-47282 |
ZVW41 |
1 | ||
| 88650-47281 |
ZVW41 |
1 | ||
| 88650-47280 |
ZVW41 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-42010 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90480-26030 | ||||
