ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

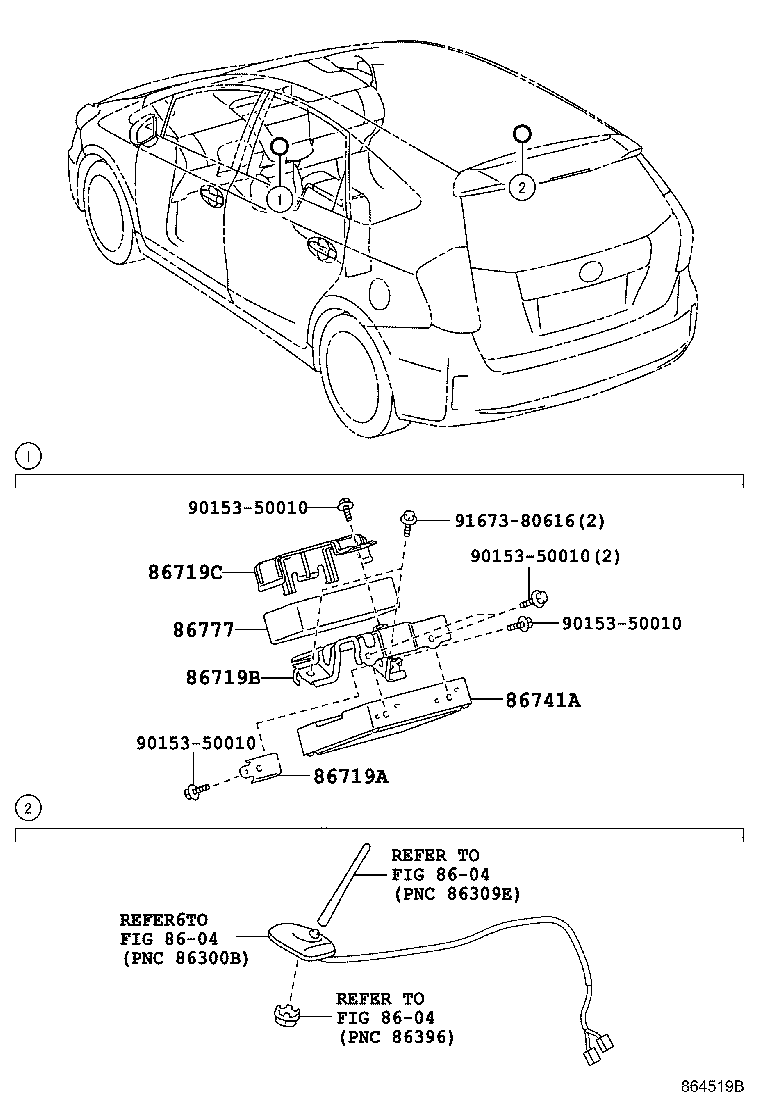

Click highlighted areas on diagram

diagram 8604 8604 8604 86719A 86719B 86719C 86741A 86777 9015350010 9015350010 9015350010 9015350010 9167380616
Part # Description Qty Price
86719A - BRACKET, TELEPHONE NO.1
86719-47110

ZVW41..USA

MAYDAY SYSTEM-WITH

 1
86719B - BRACKET, TELEPHONE NO.2
86719-47120

ZVW41..USA

MAYDAY SYSTEM-WITH

 1
86719C - BRACKET, TELEPHONE NO.3
86719-47130

ZVW41..USA

MAYDAY SYSTEM-WITH

 1
86741A - TRANSCEIVER, TELEMATICS
86741-53032

ZVW41..USA

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH

 1
86741-33040

ZVW41..USA

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH

 1
86777 - BATTERY, MAYDAY
86777-0W060

ZVW41..USA

MAYDAY SYSTEM-WITH

 1
86777-76020

ZVW41..USA

MAYDAY SYSTEM-WITH

 1
86777-76040

ZVW41..USA

MAYDAY SYSTEM-WITH

 1
Common parts
90153-50010
91673-80616
Linked diagrams
8604
