ZVW41L-AXXEBA (2011)
Toyota Prius V
Production
Sep 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1109-1411)

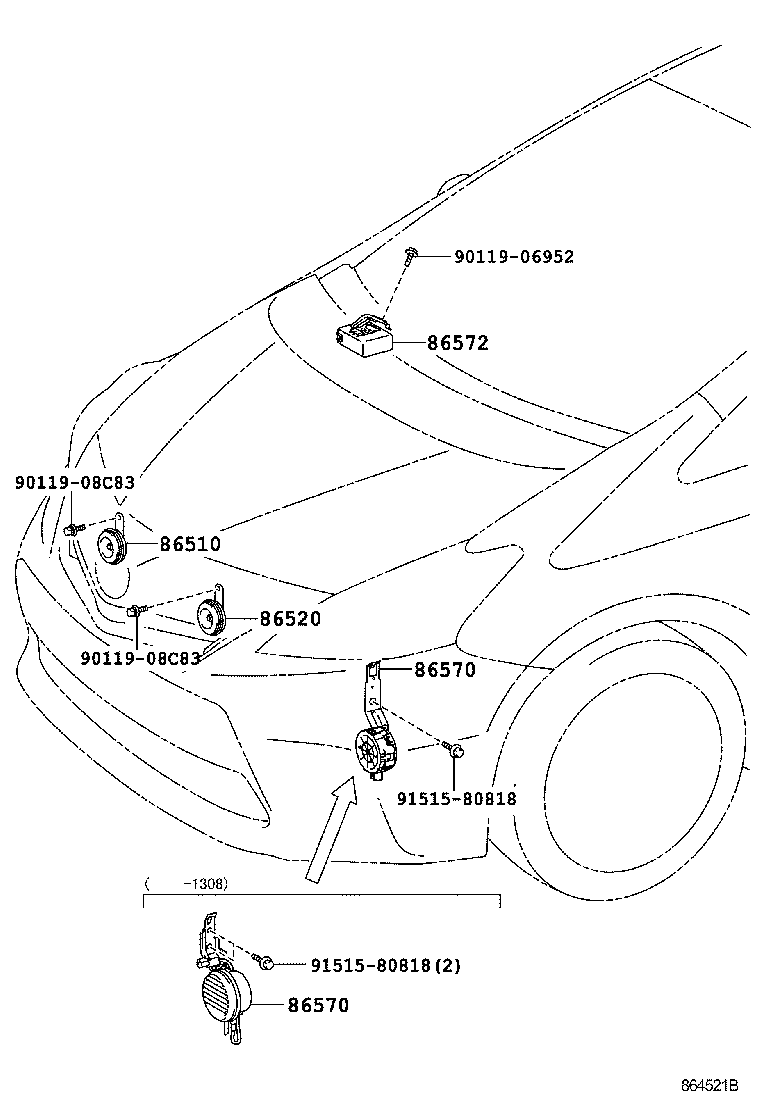

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-48070 |
ZVW41 |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-47010 |
ZVW41 |
1 | ||
| 86570 - SPEAKER ASSY, VEHICLE APPROACHING | ||||
| 86570-47030 |
ZVW41 |
1 | ||
| 86570-47020 |
ZVW41 |
1 | ||
| 86570 - SPEAKER ASSY, VEHICLE APPROACHING | ||||
| 86570-47030 |
ZVW41 |
1 | ||
| 86570-47020 |
ZVW41 |
1 | ||
| 86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER | ||||
| 86572-47030 |
ZVW41 |
1 | ||
| 86572-47090 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90119-08C83 | ||||
| 91515-80818 | ||||
