ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109-1411)

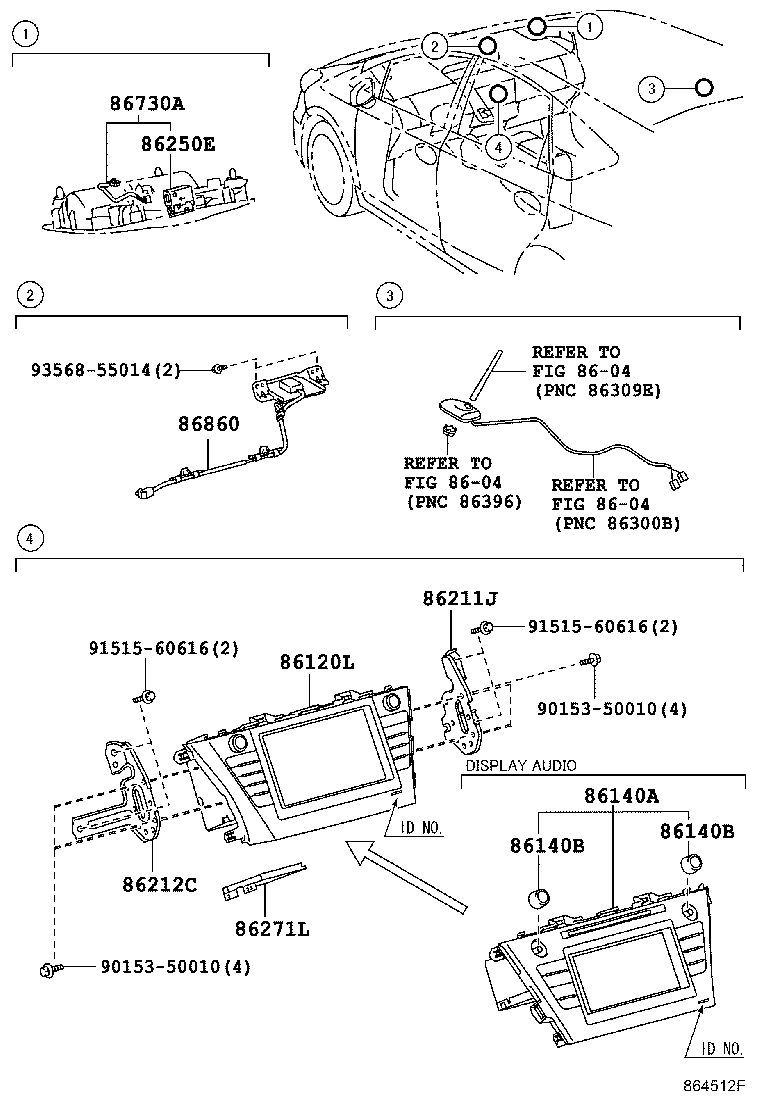

Click highlighted areas on diagram

diagram 8604 8604 8604 86120L 86140A 86140B 86140B 86211J 86212C 86250E 86271L 86730A 86860 9015350010 9015350010 9151560616 9151560616 9356855014
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86804-47030

ZVW41..USA

DENSO,ID=E7034,AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-47010

ZVW41

PANASONIC,ID=57010

 1
86140-47020

ZVW41..USA

PANASONIC,ID=57011,AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS)

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-24150

ZVW41

 2
90010-24150

ZVW41

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

 2
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-24150

ZVW41

 2
90010-24150

ZVW41

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

 2
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-47080

ZVW41

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-47080

ZVW41

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52030

ZVW41

 1
86271L - HARD DISC
86271-47152

ZVW41

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

 1
86271-47153

ZVW41

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

 1
86271-47154

ZVW41

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

 1
86271-47151

ZVW41

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-47040

ZVW41

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-47090

ZVW41..USA

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH

 1
Common parts
90153-50010
91515-60616
93568-55014
Linked diagrams
8604
