ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

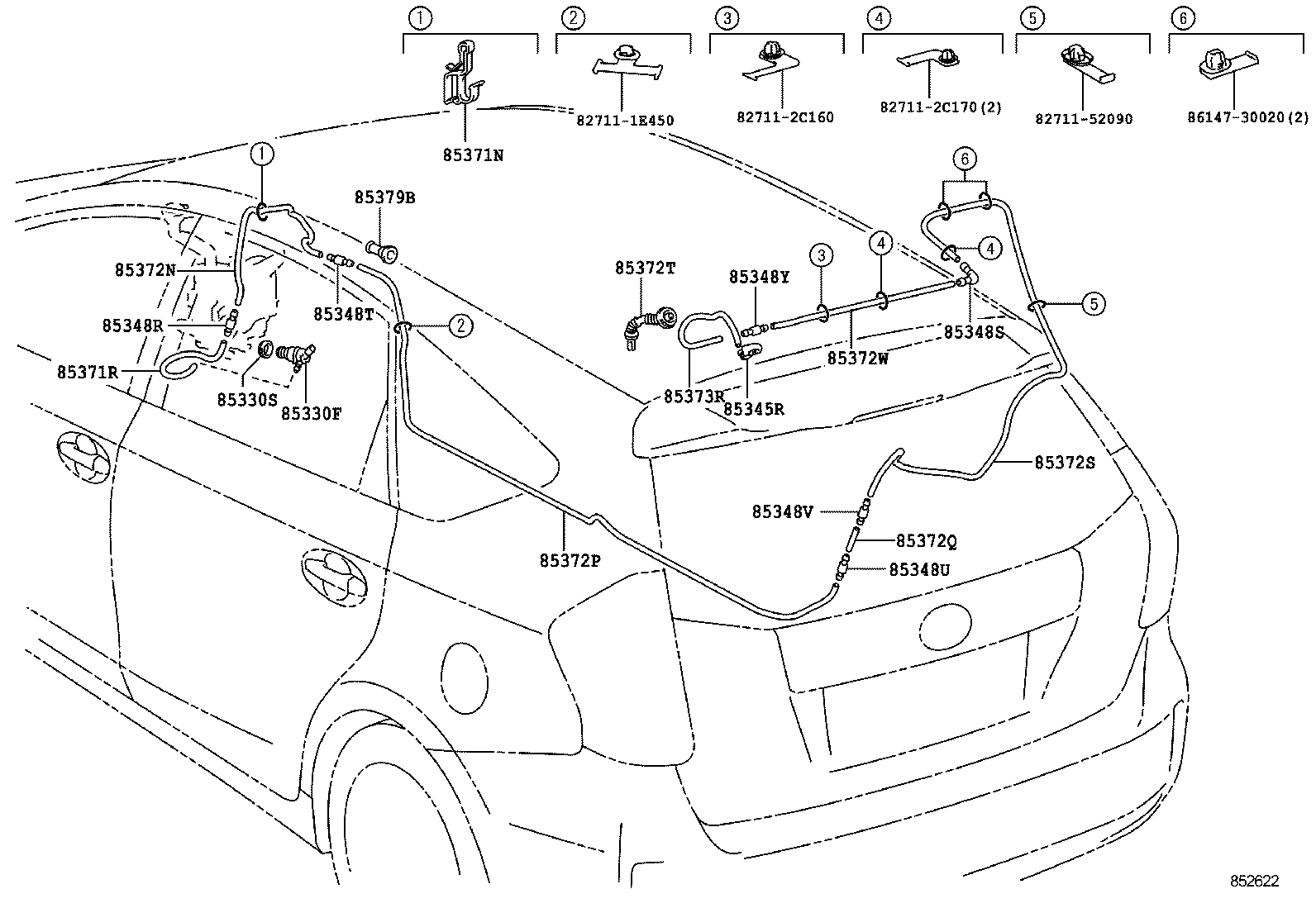

Click highlighted areas on diagram

diagram 827111E450 827112C160 827112C170 8271152090 85330F 85330S 85345R 85348R 85348S 85348T 85348U 85348V 85348Y 85371N 85371R 85372N 85372P 85372Q 85372S 85372T 85372W 85373R 85379B 8614730020
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60180

ZVW41

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

ZVW41

 1
85345R - NOZZLE, REAR WASHER
85391-47030

ZVW41

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ZVW41

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

ZVW41

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ZVW41

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

ZVW41

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

ZVW41

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

ZVW41

 1
85371N - CLAMP, REAR WASHER HOSE
53614-47030

ZVW41

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33299

ZVW41

*H,L=400,HEADLAMP-LED

 1
90099-62092

ZVW41

L=400

 1
90099-33299

ZVW41

*H,L=400

 1
90099-62092

ZVW41

L=400,HEADLAMP-LED

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

ZVW41

*H,L=720

 1
90099-62095

ZVW41

L=690

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33589

ZVW41

*H,L=2950

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

ZVW41

*H,L=40

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-33589

ZVW41

*H,L=1870

 1
85372T - GROMMET, WASHER
85373-44010

ZVW41

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90446-07001

ZVW41

*H,L=450

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

ZVW41

*H,L=290

 1
85379B - GROMMET, WASHER, A
85379-12850

ZVW41

 1
Common parts
82711-1E450
82711-2C160
82711-2C170
82711-52090
86147-30020
