ZVW41L-AXXEBA (2011)
Toyota Prius V
Production
Sep 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1109- )

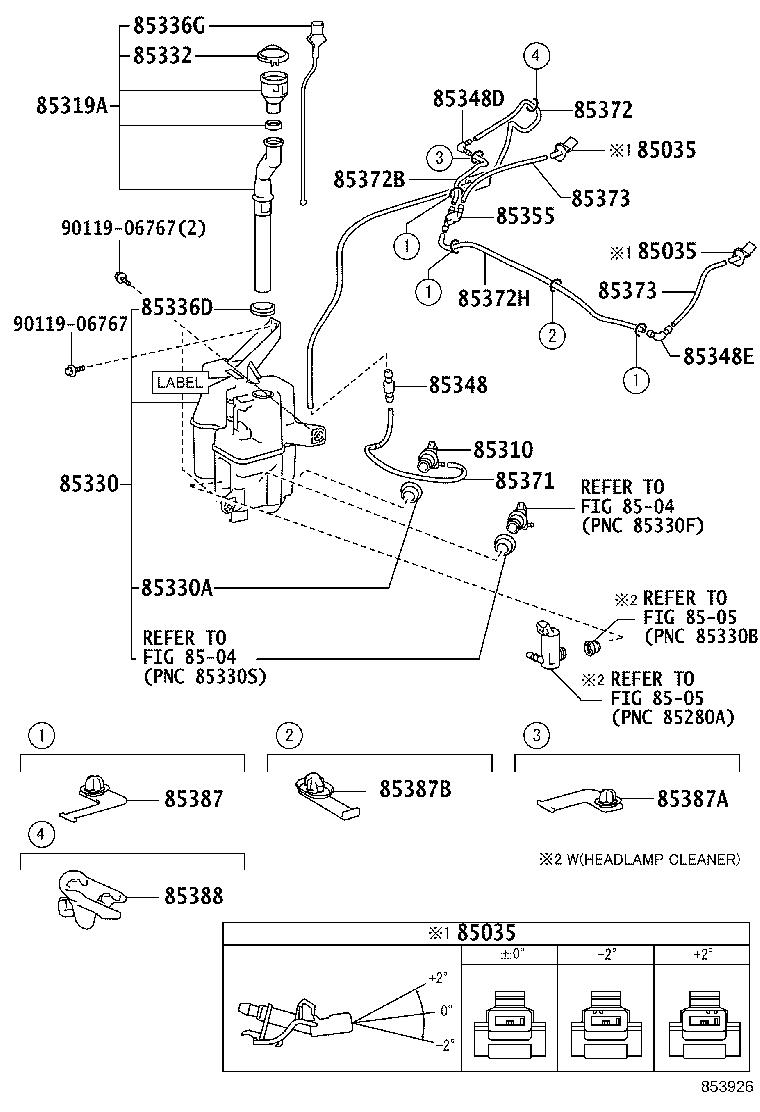

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
ZVW41 ANGLE 0 |
2 | ||
| 85381-12350 |
ZVW41 ANGLE +2 |
2 | ||
| 85381-12340 |
ZVW41 ANGLE -2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
ZVW41 ANGLE 0 |
2 | ||
| 85381-12350 |
ZVW41 ANGLE +2 |
2 | ||
| 85381-12340 |
ZVW41 ANGLE -2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
ZVW41 ANGLE 0 |
2 | ||
| 85381-12350 |
ZVW41 ANGLE +2 |
2 | ||
| 85381-12340 |
ZVW41 ANGLE -2 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-47010 |
ZVW41 HEADLAMP-LED |
1 | ||
| 85330-47010 |
ZVW41 |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-47120 |
ZVW41 |
1 | ||
| 85319-47121 |
ZVW41 HEADLAMP-LED |
1 | ||
| 85319-47120 |
ZVW41 HEADLAMP-LED |
1 | ||
| 85319-47121 |
ZVW41 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85355-47020 |
ZVW41 HEADLAMP-LED,LABEL=HLC-33093 |
1 | ||
| 85315-47140 |
ZVW41 |
1 | ||
| 85355-47021 |
ZVW41 HEADLAMP-LED |
1 | ||
| 85355-47021 |
ZVW41 HEADLAMP-LED,LABEL=HLC-33116 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
ZVW41 |
1 | ||
| 85336-60300 |
ZVW41 HEADLAMP-LED |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85386-60060 |
ZVW41 |
1 | ||
| 85316-47120 |
ZVW41 |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-30160 |
ZVW41 HEADLAMP-LED |
1 | ||
| 85336-30160 |
ZVW41 |
1 | ||
| 85336G - GAGE, WATER LEVEL | ||||
| 85318-47110 |
ZVW41 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ZVW41 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
ZVW41 |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
ZVW41 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ZVW41 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-62091 |
ZVW41 L=470 |
1 | ||
| 90099-33080 |
ZVW41 *H,L=470 |
1 | ||
| 90099-62091 |
ZVW41 L=470,HEADLAMP-LED |
1 | ||
| 90099-33080 |
ZVW41 *H,L=470,HEADLAMP-LED |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
ZVW41 *H,L=1360 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ZVW41 *H,L=300 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
ZVW41 *H,L=810 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZVW41 *H,L=250 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZVW41 *H,L=250 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-2C160 |
ZVW41 |
3 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 82711-2C170 |
ZVW41 |
1 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 82711-52090 |
ZVW41 |
1 | ||
| 85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER) | ||||
| 85387-47180 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8505 | ||||
