ZVW41L-AXXEBA (2011)
Toyota Prius V
Production
Sep 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1109- )

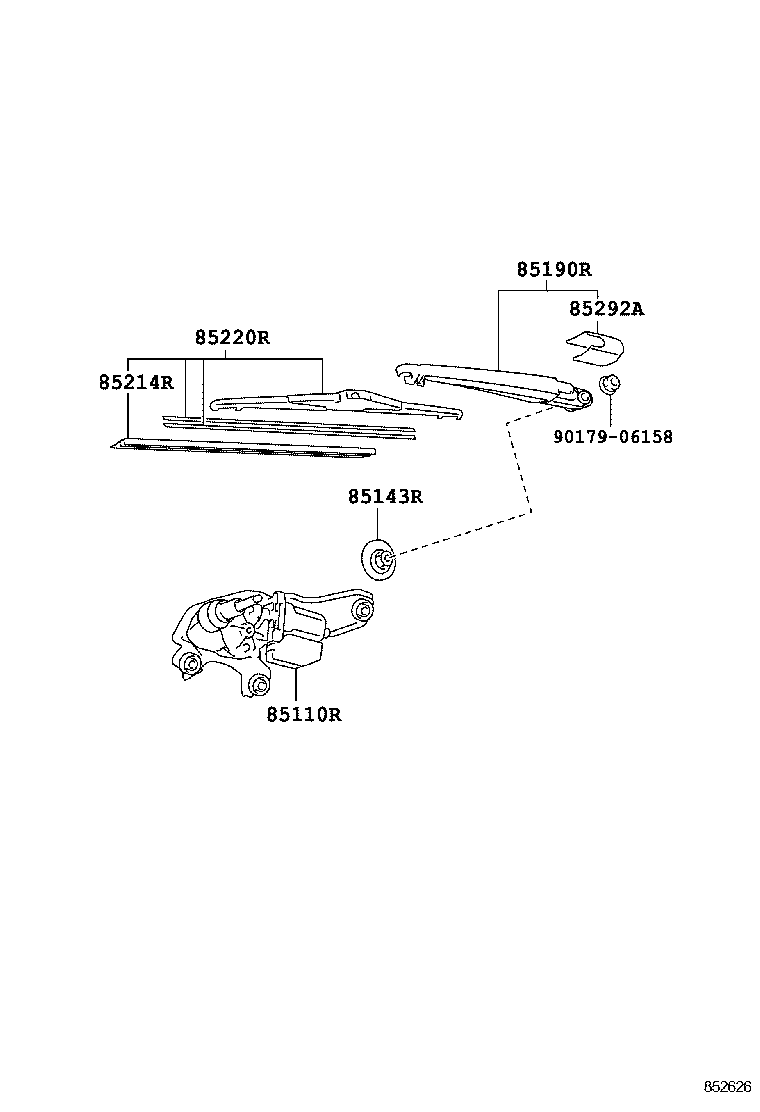

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-47080 |
ZVW41 |
1 | ||
| 85143R - GROMMET, REAR WIPER MOTOR | ||||
| 85143-72010 |
ZVW41 |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85241-42070 |
ZVW41 |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-12310 |
ZVW41 |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85242-12090 |
ZVW41 |
1 | ||
| 85292A - CAP, REAR WIPER ARM HEAD | ||||
| 85292-42020 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
