ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

Click highlighted areas on diagram

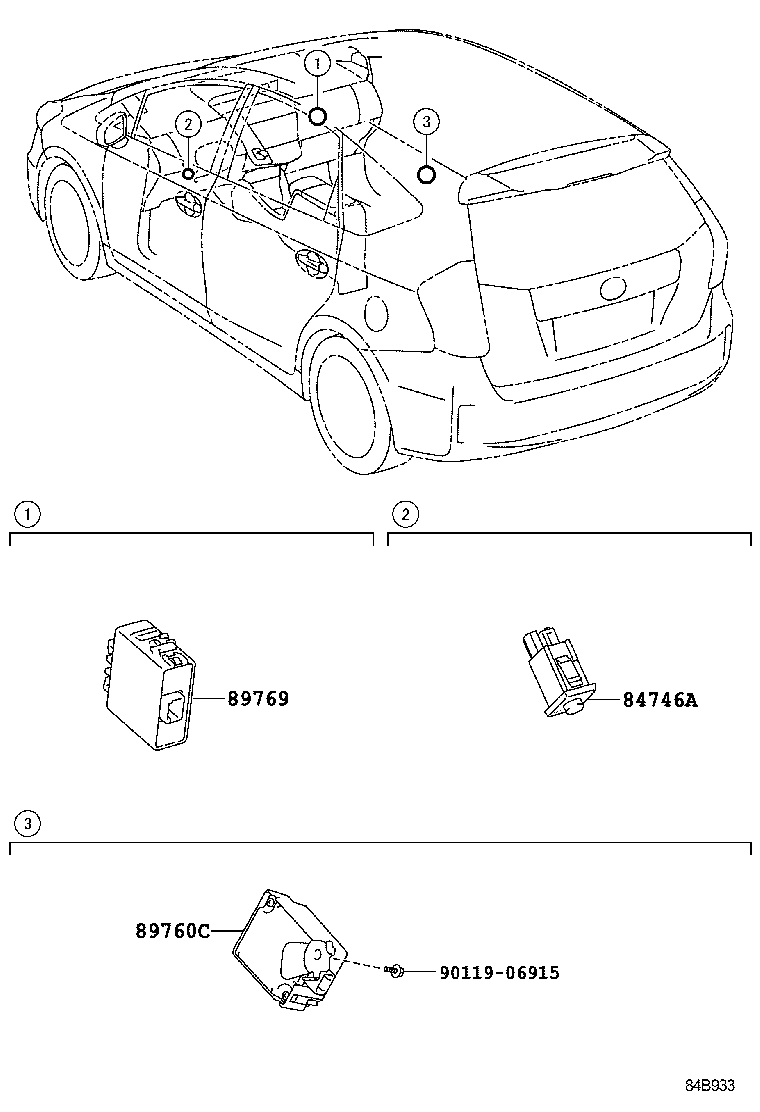

diagram 84746A 89760C 89769 9011906915
Part # Description Qty Price
84746A - SWITCH, TIRE PRESSURE WARNING, NO.1
84746-47010

ZVW41

 1
89760C - RECEIVER ASSY, TIRE PRESSURE MONITOR
89760-47040

ZVW41

 1
89769 - COMPUTER, TIRE PRESSURE MONITOR
89769-47040

ZVW41

 1
Common parts
90119-06915
