ZVW41L-AXXEBA (2011)
Toyota Prius V
Production
Sep 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1109- )

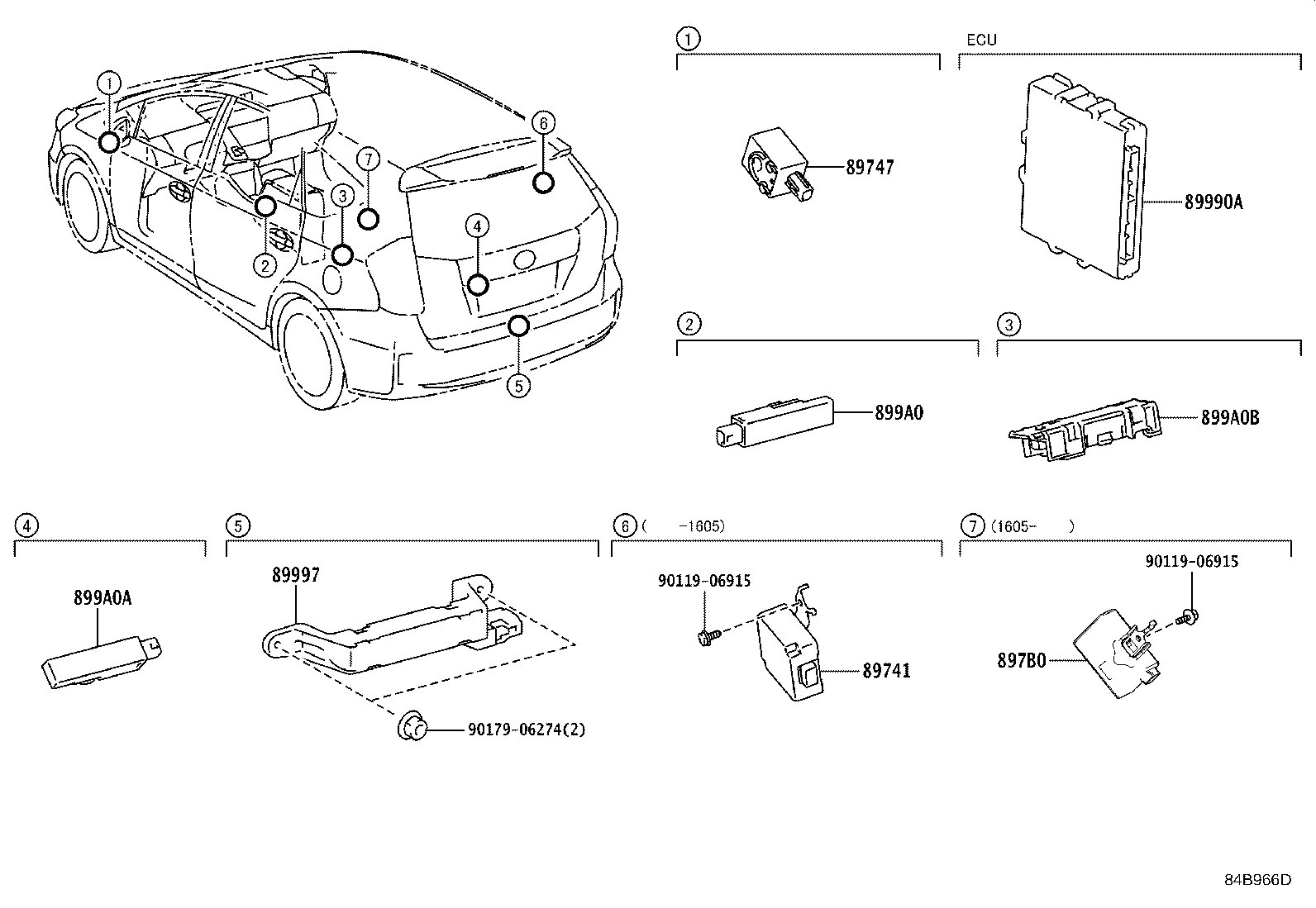

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-47080 |
ZVW41 |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-30040 |
ZVW41 |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-47120 |
ZVW41 LX-TOURING PACKAGE |
1 | ||
| 89990-47121 |
ZVW41 LUXURY PACKAGE |
1 | ||
| 89990-47111 |
ZVW41 |
1 | ||
| 89990-47110 |
ZVW41 |
1 | ||
| 89990-47120 |
ZVW41 LUXURY PACKAGE |
1 | ||
| 89990-47121 |
ZVW41 LX-TOURING PACKAGE |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-30070 |
ZVW41 LUXURY PACKAGE |
1 | ||
| 89997-30070 |
ZVW41 LX-TOURING PACKAGE |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-47010 |
ZVW41 |
1 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-47010 |
ZVW41 |
1 | ||
| 899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3 | ||||
| 899A0-47041 |
ZVW41 |
1 | ||
| 899A0-47042 |
ZVW41 |
1 | ||
| 899A0-47040 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
