ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

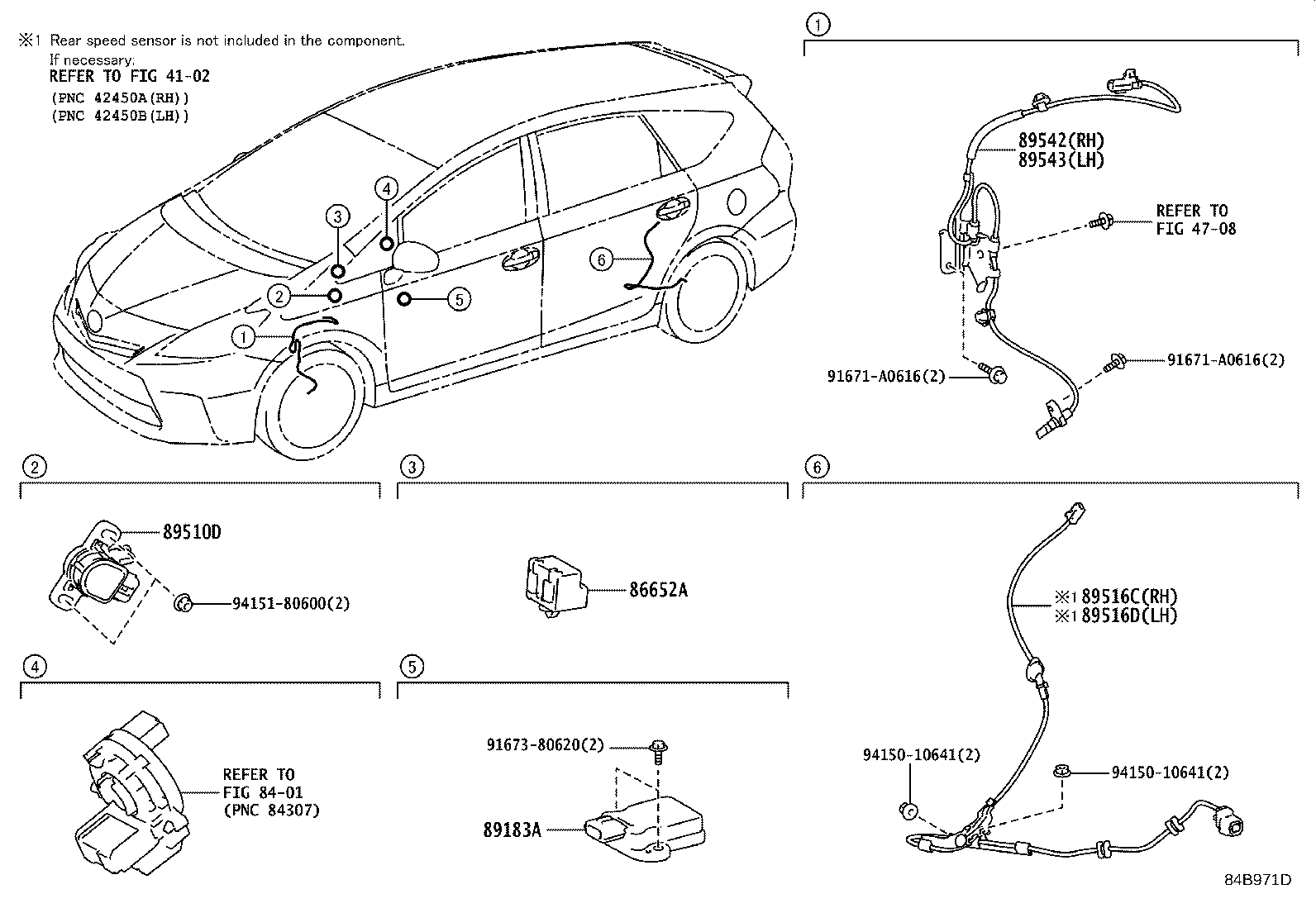

Click highlighted areas on diagram

diagram 4102 4708 8401 86652A 89183A 89510D 89516C 89516D 89542 89543 91671A0616 91671A0616 9167380620 9415010641 9415010641 9415180600
Part # Description Qty Price
86652A - BUZZER ASSY, SKID CONTROL
86652-50010

ZVW41

PRE-COLLISION SYSTEM-WITH

 1
89183A - SENSOR, YAWRATE
89183-48030

ZVW41

 1
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-47050

ZVW41

 1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-47090

ZVW41

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-47100

ZVW41

 1
89542 - SENSOR, SPEED, FRONT RH
89542-12080

ZVW41

 1
89543 - SENSOR, SPEED, FRONT LH
89543-12080

ZVW41

 1
Common parts
91671-A0616
91673-80620
94150-10641
94151-80600
Linked diagrams
4102
4708
8401
