ZVW41L-AXXEBA (2011)
Toyota Prius V
ILLUST NO. 6 OF 7(1109- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33211 |
ZVW41..USA LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 84140-33202 |
ZVW41..USA LX-TOURING PACKAGE&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 84140-33202 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-47151 |
ZVW41..USA |
1 | ||
| 84140-33202 |
ZVW41..USA LX-TOURING PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-76020 |
ZVW41..USA LX-TOURING PACKAGE |
1 | ||
| 84140-52220 |
ZVW41..USA |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-47080B0 |
ZVW41 ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84244-47090B0 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84244-47090B0 |
ZVW41 PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84244-47091B0 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84244-47090B0 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84244-47081B0 |
ZVW41 ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84244-47091B0 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-47070B0 |
ZVW41 ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247-47060B0 |
ZVW41 PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247-47060B0 |
ZVW41 LUXURY PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247-47060B0 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247-47060B0 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247-47060B0 |
ZVW41 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247-47061B0 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247-47071B0 |
ZVW41 ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247-47061B0 |
ZVW41 LX-TOURING PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247-47060B0 |
ZVW41 AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS),ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247-47061B0 |
ZVW41 LUXURY PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247-47060B0 |
ZVW41 LX-TOURING PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247-47061B0 |
ZVW41 AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS),ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84247-47061B0 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,ORNAMENT SILVER,TRIM1#,4#,6# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-47020 |
ZVW41 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-76010 |
ZVW41..USA |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

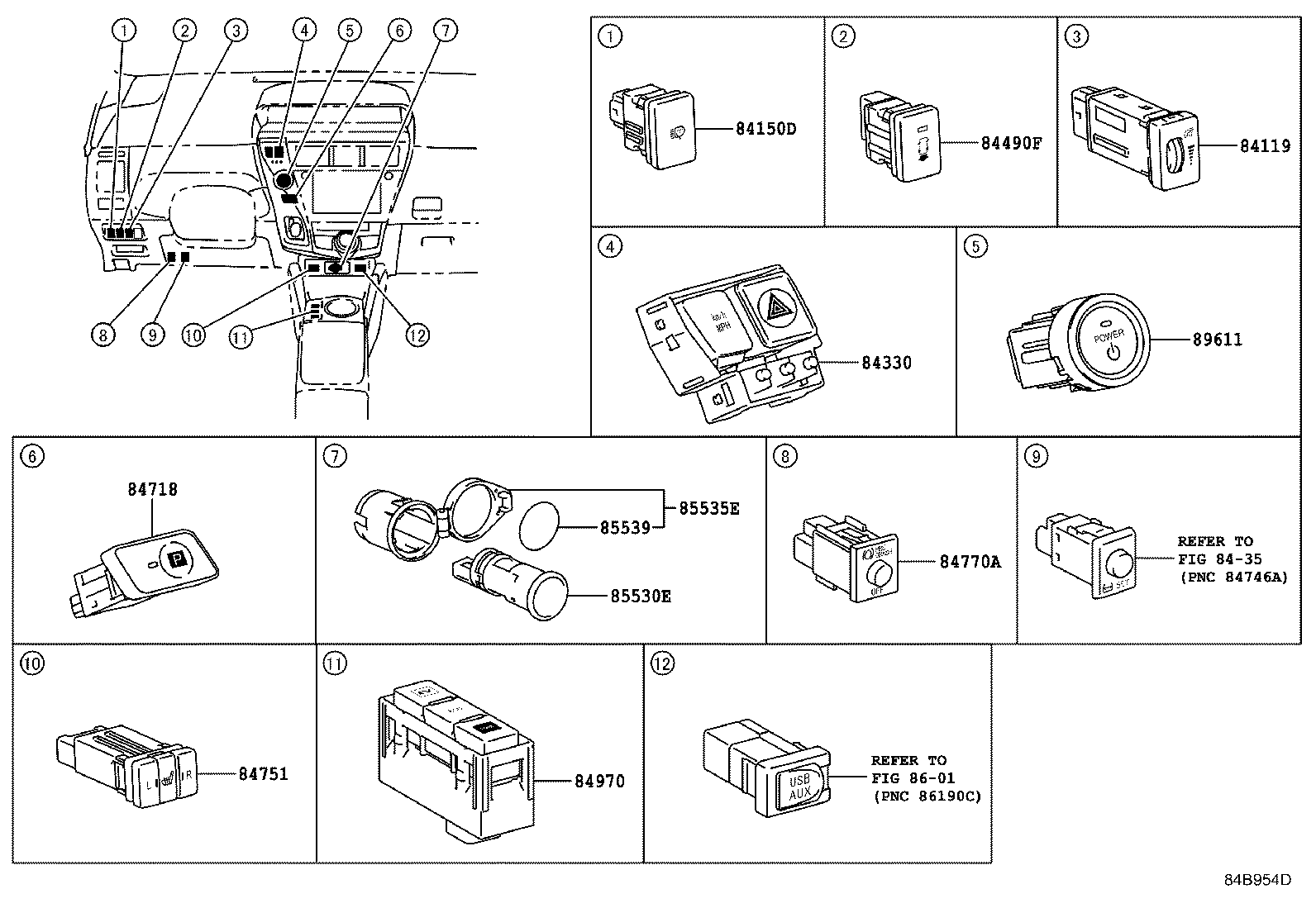

ILLUST NO. 5 OF 7(1109-1411)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-47030 |
ZVW41 |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-47010 |
ZVW41 HEADLAMP-LED |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84330-47070 |
ZVW41 |
1 | ||
| 84490F - SWITCH ASSY, PARKING ASSIST PRE SUPPORT | ||||
| 84490-28030 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 84490-28030 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 84718 - SWITCH, TRANSMISSION SHIFT MAIN | ||||
| 84718-47040 |
ZVW41 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-47030 |
ZVW41 SEAT COVER MATERIAL-LEATHER |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-48010 |
ZVW41 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-47020 |
ZVW41 |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
ZVW41 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-60100C0 |
ZVW41 BLACK |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
ZVW41 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-75043 |
ZVW41 |
1 | ||
| 89611-75042 |
ZVW41 |
1 | ||
| Linked diagrams | ||||
| 8435 | ||||
| 8601 | ||||

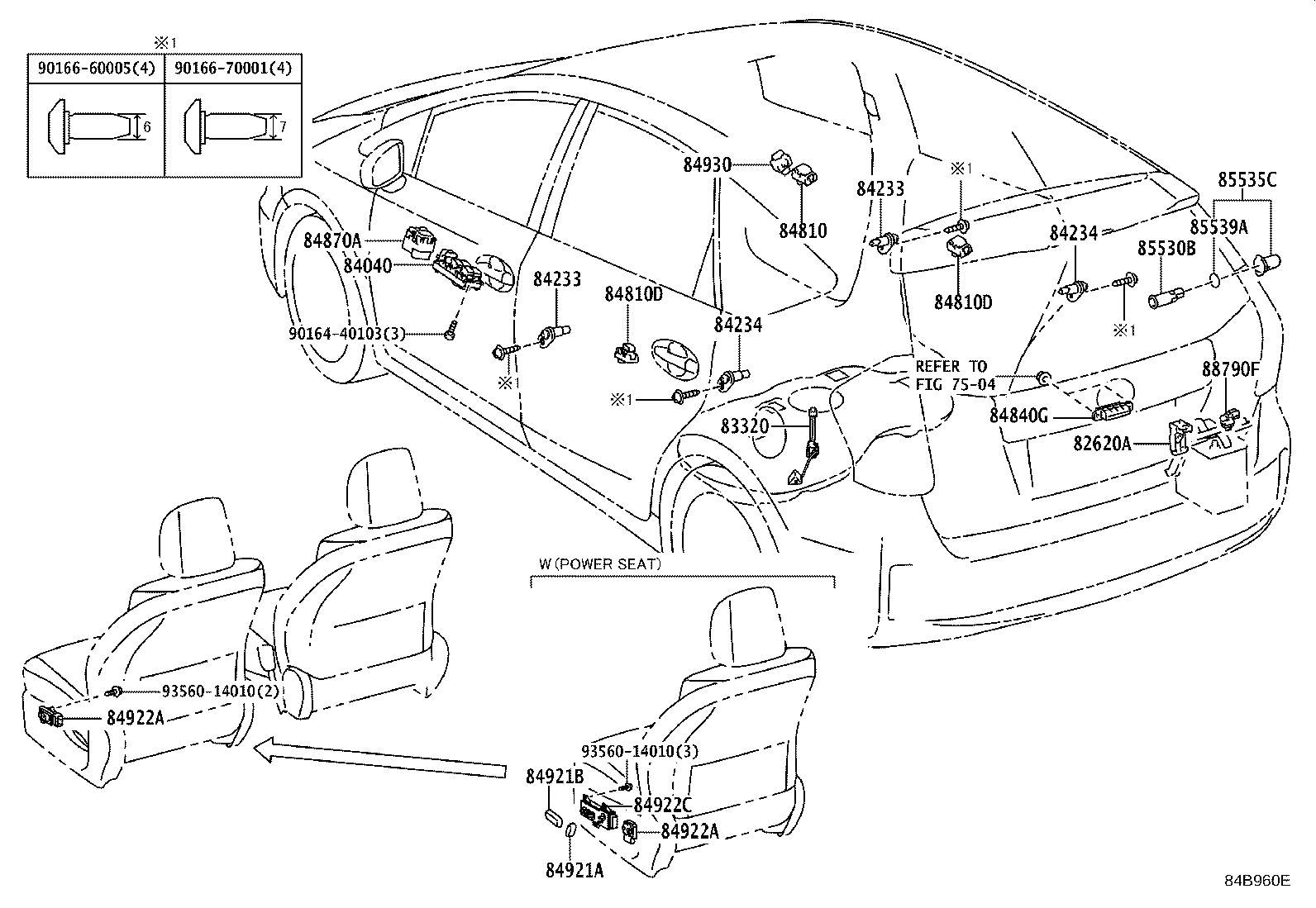

ILLUST NO. 7 OF 7(1109- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47070 |
ZVW41 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-47070 |
ZVW41 |
1 | ||
| 83320-47090 |
ZVW41 |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-60160 |
ZVW41 |
1 | ||
| 84040-33100 |
ZVW41 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW41 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW41 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW41 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW41 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
ZVW41 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ZVW41 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ZVW41 |
2 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
ZVW41 |
1 | ||
| 84840-28040 |
ZVW41 LUXURY PACKAGE |
1 | ||
| 84840-28040 |
ZVW41 LX-TOURING PACKAGE |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52030 |
ZVW41 |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60050B4 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 84920-60050B4 |
ZVW41 FRONT SEAT-DRIVER SEAT 4WAY,DK.GRAY,TRIM1# |
1 | ||
| 84920-60050G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 84920-60050G0 |
ZVW41 FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 84920-60050E2 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 84920-60050E2 |
ZVW41 FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60050B4 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 84920-60050B4 |
ZVW41 FRONT SEAT-DRIVER SEAT 4WAY,DK.GRAY,TRIM1# |
1 | ||
| 84920-60050G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 84920-60050G0 |
ZVW41 FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 84920-60050E2 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 84920-60050E2 |
ZVW41 FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12250 |
ZVW41 |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
ZVW41 |
1 | ||
| 85530-42010 |
ZVW41 VALUE PACKAGE |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-60100C0 |
ZVW41 BLACK |
1 | ||
| 85535-60100C0 |
ZVW41 VALUE PACKAGE,BLACK |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
ZVW41 |
1 | ||
| 85539-60020 |
ZVW41 VALUE PACKAGE |
1 | ||
| 88790F - THERMISTOR ASSY | ||||
| 88790-22131 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 7504 | ||||

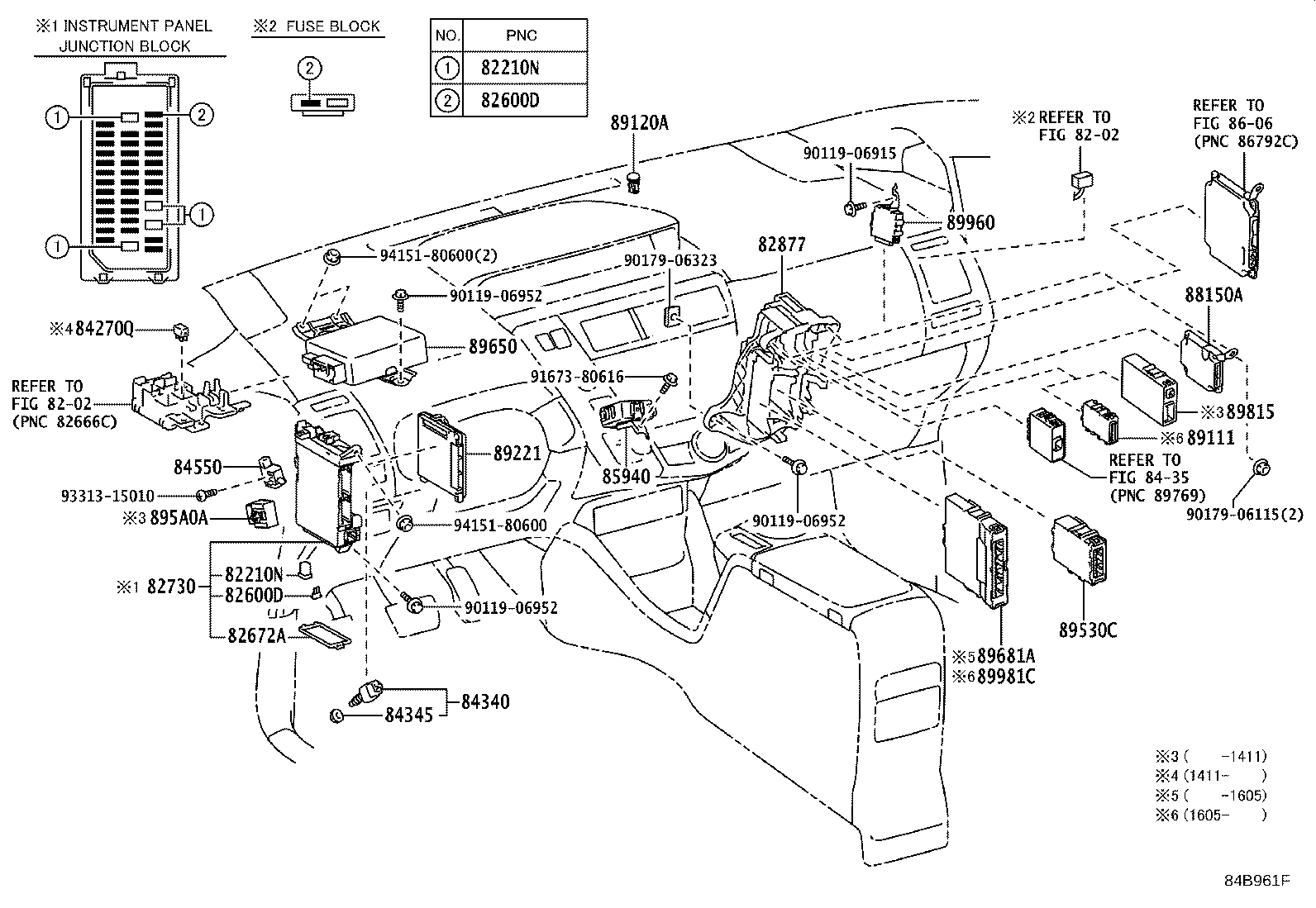

ILLUST NO. 4 OF 7(1109- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZVW41 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZVW41 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
ZVW41 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
ZVW41 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
ZVW41 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ZVW41 25A,MINI FUSE |
1 | ||
| 90982-09022 |
ZVW41 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZVW41 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
ZVW41 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
ZVW41 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
ZVW41 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
ZVW41 25A,MINI FUSE |
1 | ||
| 90982-09022 |
ZVW41 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZVW41 7.5A,MINI FUSE,BROWN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-47091 |
ZVW41 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-47420 |
ZVW41 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-47010 |
ZVW41 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
ZVW41 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ZVW41 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-47010 |
ZVW41 |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-47051 |
ZVW41 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 88150-47050 |
ZVW41 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30010 |
ZVW41 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-47680 |
ZVW41..USA HAWAII SPEC&ROOF-PANORAMIC ROOF(FIXED)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47680 |
ZVW41..USA USA REGION SPEC&ROOF-PANORAMIC ROOF(FIXED)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47740 |
ZVW41..USA ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-47700 |
ZVW41..USA USA REGION SPEC&ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-47800 |
ZVW41..USA LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-47700 |
ZVW41..USA HAWAII SPEC&ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-47720 |
ZVW41..USA ROOF-PANORAMIC ROOF(FIXED)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47800 |
ZVW41..USA LX-TOURING PACKAGE |
1 | ||
| 89220-47840 |
ZVW41..USA HAWAII SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47860 |
ZVW41..USA HAWAII SPEC |
1 | ||
| 89220-47880 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47A00 |
ZVW41..USA |
1 | ||
| 89220-47860 |
ZVW41..USA USA REGION SPEC |
1 | ||
| 89220-47C60 |
ZVW41..USA USA REGION SPEC&LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47780 |
ZVW41..USA LX-TOURING PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47840 |
ZVW41..USA USA REGION SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47C50 |
ZVW41..USA USA REGION SPEC&LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-47C60 |
ZVW41..USA HAWAII SPEC&LX-TOURING PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47C50 |
ZVW41..USA USA REGION SPEC&LX-TOURING PACKAGE |
1 | ||
| 89220-47780 |
ZVW41..USA LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47C50 |
ZVW41..USA HAWAII SPEC&LX-TOURING PACKAGE |
1 | ||
| 89220-47721 |
ZVW41..USA ROOF-PANORAMIC ROOF(FIXED)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47681 |
ZVW41..USA HAWAII SPEC&ROOF-PANORAMIC ROOF(FIXED)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47701 |
ZVW41..USA HAWAII SPEC&ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-47681 |
ZVW41..USA USA REGION SPEC&ROOF-PANORAMIC ROOF(FIXED)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47701 |
ZVW41..USA USA REGION SPEC&ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-47841 |
ZVW41..USA USA REGION SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47781 |
ZVW41..USA LX-TOURING PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47801 |
ZVW41..USA LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-47861 |
ZVW41..USA HAWAII SPEC |
1 | ||
| 89220-47861 |
ZVW41..USA USA REGION SPEC |
1 | ||
| 89220-47C51 |
ZVW41..USA USA REGION SPEC&LX-TOURING PACKAGE |
1 | ||
| 89220-47881 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47781 |
ZVW41..USA LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47841 |
ZVW41..USA HAWAII SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47C51 |
ZVW41..USA HAWAII SPEC&LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-47C50 |
ZVW41..USA HAWAII SPEC&LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-47A01 |
ZVW41..USA |
1 | ||
| 89220-47C60 |
ZVW41..USA HAWAII SPEC&LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47C61 |
ZVW41..USA HAWAII SPEC&LX-TOURING PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47C60 |
ZVW41..USA USA REGION SPEC&LX-TOURING PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47801 |
ZVW41..USA LX-TOURING PACKAGE |
1 | ||
| 89220-47C61 |
ZVW41..USA USA REGION SPEC&LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47781 |
ZVW41..USA LX-TOURING PACKAGE&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89220-47741 |
ZVW41..USA ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-47C51 |
ZVW41..USA USA REGION SPEC&LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-47681 |
ZVW41..USA USA REGION SPEC&ROOF-PANORAMIC ROOF(FIXED)&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89220-47681 |
ZVW41..USA HAWAII SPEC&ROOF-PANORAMIC ROOF(FIXED)&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89220-47C61 |
ZVW41..USA HAWAII SPEC&LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47C61 |
ZVW41..USA HAWAII SPEC&LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89220-47841 |
ZVW41..USA USA REGION SPEC&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89220-47C61 |
ZVW41..USA USA REGION SPEC&LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89220-47C51 |
ZVW41..USA HAWAII SPEC&LX-TOURING PACKAGE |
1 | ||
| 89220-47781 |
ZVW41..USA LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89220-47C61 |
ZVW41..USA USA REGION SPEC&LX-TOURING PACKAGE&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89220-4E770 |
ZVW41..USA USA REGION SPEC&ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-47C61 |
ZVW41..USA USA REGION SPEC&LX-TOURING PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 89220-47841 |
ZVW41..USA HAWAII SPEC&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89220-47721 |
ZVW41..USA ROOF-PANORAMIC ROOF(FIXED)&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89220-47881 |
ZVW41..USA LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89220-4E750 |
ZVW41..USA ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-47C61 |
ZVW41..USA HAWAII SPEC&LX-TOURING PACKAGE&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 89220-4E770 |
ZVW41..USA HAWAII SPEC&ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 89220-4E780 |
ZVW41..USA USA REGION SPEC |
1 | ||
| 89220-4E760 |
ZVW41..USA |
1 | ||
| 89220-4E780 |
ZVW41..USA HAWAII SPEC |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89535-76020 |
ZVW41 |
1 | ||
| 89535-76021 |
ZVW41 |
1 | ||
| 895A0A - COMPUTER ASSY, STOP LAMP CONTROL | ||||
| 895A0-20020 |
ZVW41 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-47410 |
ZVW41 |
1 | ||
| 89650-47421 |
ZVW41 LX-TOURING PACKAGE |
1 | ||
| 89650-47420 |
ZVW41 LX-TOURING PACKAGE |
1 | ||
| 89650-47411 |
ZVW41 |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89681-47422 |
ZVW41 |
1 | ||
| 89681-47420 |
ZVW41 |
1 | ||
| 89681-47181 |
ZVW41 |
1 | ||
| 89681-47340 |
ZVW41 |
1 | ||
| 89681-47421 |
ZVW41 |
1 | ||
| 89815 - COMPUTER, SEAT BELT CONTROL | ||||
| 89815-76020 |
ZVW41 PRE-COLLISION SYSTEM-WITH |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-47170 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06952 | ||||
| 90179-06115 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
| 93313-15010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8435 | ||||
| 8606 | ||||
ILLUST NO. 2 OF 7(1109-1210)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-58010 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
ILLUST NO. 1 OF 7(1109- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZVW41 |
1 | ||
| 83530-12050 |
ZVW41 |
1 | ||
| 83530-12070 |
ZVW41 DENSO |
1 | ||
| 83530-12060 |
ZVW41 YAZAKI |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-76010 |
ZVW41 |
1 | ||
| 89465-47080 |
ZVW41 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52060 |
ZVW41 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZVW41 |
1 | ||
| Common parts | ||||
| 82715-12D70 | ||||
| 82715-42710 | ||||
| 82715-47380 | ||||
| 82715-47390 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91671-80612 | ||||
ILLUST NO. 2 OF 7(1210- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-58010 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
ILLUST NO. 3 OF 7(1109-1210)
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-02027 |
2ZRFXE..ZVW41 |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08297 |
ZVW41 125A,PINK |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08297 |
ZVW41 125A,PINK |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
ZVW41 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08300 |
ZVW41 50A-30A-30A,FEMALE |
1 | ||
| 90982-08304 |
ZVW41 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08308 |
ZVW41 40A-30A-30A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
ZVW41 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZVW41 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZVW41 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ZVW41 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
ZVW41 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ZVW41 5A,MINI FUSE,TAN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZVW41 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZVW41 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-75010 |
ZVW41 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47090 |
ZVW41 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-71010 |
ZVW41 |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-47020 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82642-47020 |
ZVW41..USA |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-75010 |
ZVW41 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
ZVW41..USA |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
ZVW41..USA |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-47040 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82660-26270 |
ZVW41..USA |
1 | ||
| 82660-47040 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82660-47040 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH& W(SDARS) |
1 | ||
| 82660-47040 |
ZVW41..USA |
1 | ||
| 82660-47040 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-75010 |
ZVW41 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-47141 |
ZVW41 |
1 | ||
| 82662-47140 |
ZVW41 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-75010 |
ZVW41 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-47020 |
ZVW41 |
1 | ||
| 82741-75010 |
ZVW41 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
ZVW41 |
1 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 90987-02025 |
ZVW41 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90987-02025 |
ZVW41..USA |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZVW41 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZVW41 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ZVW41 |
1 | ||
| 89530H - RELAY, TRANSAXLE PARKING LOOK CONTROL | ||||
| 90987-02027 |
ZVW41 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
ILLUST NO. 3 OF 7(1210- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-02027 |
2ZRFXE..ZVW41 |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08297 |
ZVW41 125A,PINK |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08297 |
ZVW41 125A,PINK |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
ZVW41 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08300 |
ZVW41 50A-30A-30A,FEMALE |
1 | ||
| 90982-08304 |
ZVW41 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08308 |
ZVW41 40A-30A-30A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
ZVW41 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZVW41 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZVW41 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ZVW41 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
ZVW41 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ZVW41 5A,MINI FUSE,TAN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZVW41 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47060 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82620-47060 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82620-47060 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82620-47060 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH& W(SDARS) |
1 | ||
| 82620-47060 |
ZVW41..USA |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-75010 |
ZVW41 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47090 |
ZVW41 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-71010 |
ZVW41 |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-47020 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82642-47020 |
ZVW41..USA |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-75010 |
ZVW41 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-47040 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82660-26270 |
ZVW41..USA |
1 | ||
| 82660-47040 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82660-47040 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH& W(SDARS) |
1 | ||
| 82660-47040 |
ZVW41..USA |
1 | ||
| 82660-47040 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-75010 |
ZVW41 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-47141 |
ZVW41 |
1 | ||
| 82662-47140 |
ZVW41 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-75010 |
ZVW41 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-47020 |
ZVW41 |
1 | ||
| 82741-75010 |
ZVW41 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
ZVW41 |
1 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 90987-02025 |
ZVW41 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90987-02025 |
ZVW41..USA |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZVW41 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZVW41 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ZVW41 |
1 | ||
| 89530H - RELAY, TRANSAXLE PARKING LOOK CONTROL | ||||
| 90987-02027 |
ZVW41 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
