ZVW41L-AXXEBA (2011)
Toyota Prius V
Production
Sep 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1109-1411)

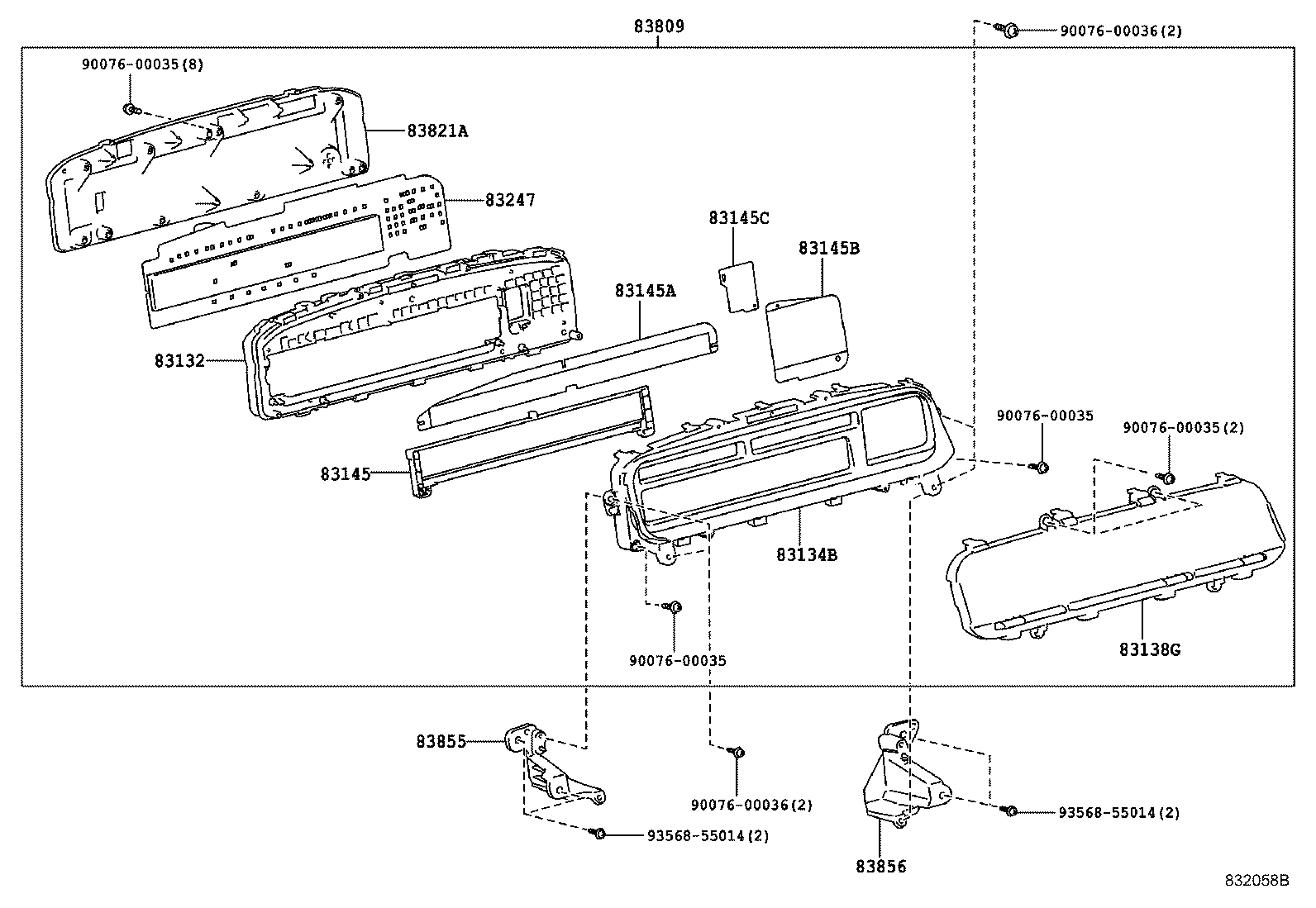

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83841-47590 |
ZVW41 |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83822-47590 |
ZVW41 |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-47580 |
ZVW41 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-47590 |
ZVW41 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-47590 |
ZVW41..USA |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-47590 |
ZVW41..USA |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83834-47580 |
ZVW41 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-47590 |
ZVW41..USA |
1 | ||
| 83861-47591 |
ZVW41..USA |
1 | ||
| 83809 - METER SUB-ASSY, COMBINATION | ||||
| 83809-47020 |
ZVW41..USA |
1 | ||
| 83809-47021 |
ZVW41..USA |
1 | ||
| 83821A - COVER, COMBINATION METER, NO.1 | ||||
| 83821-47590 |
ZVW41 |
1 | ||
| 83855 - BRACKET, COMBINATION METER, NO.1 | ||||
| 83855-47590 |
ZVW41 |
1 | ||
| 83856 - BRACKET, COMBINATION METER, NO.2 | ||||
| 83856-47590 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90076-00035 | ||||
| 90076-00036 | ||||
| 93568-55014 | ||||
