ZVW41L-AXXEBA (2011)
Toyota Prius V
ILLUST NO. 9 OF12(1109- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07450 |
ZVW41 |
1 | ||
| 90980-07463 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80612 | ||||

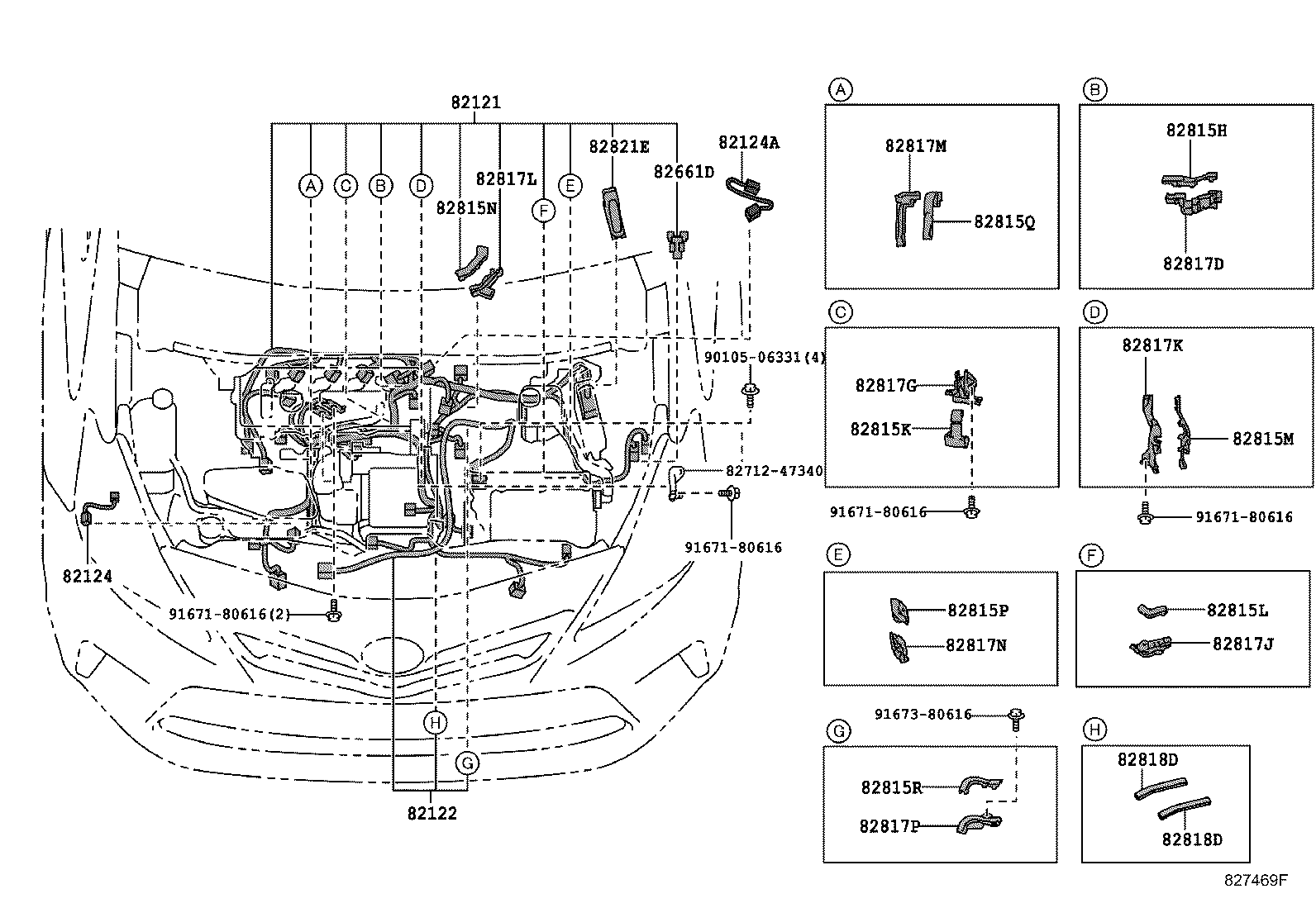

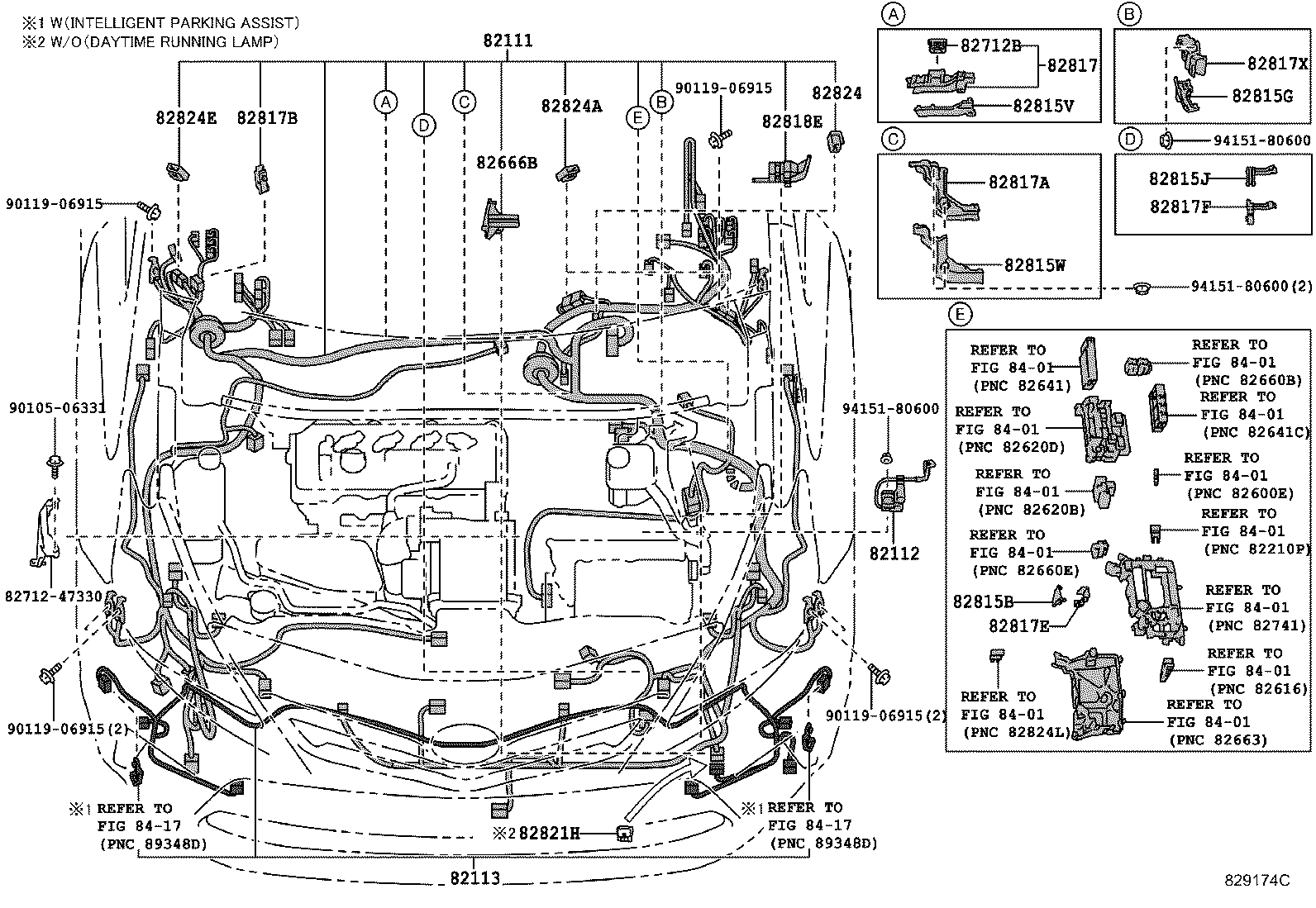

ILLUST NO. 1 OF12(1109-1210)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-47671 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH& W(SDARS) |
1 | ||
| 82111-47691 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47691 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47691 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 82111-47661 |
ZVW41..USA |
1 | ||
| 82111-47671 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47662 |
ZVW41..USA |
1 | ||
| 82111-47672 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47671 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47641 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-47642 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-47692 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47673 |
ZVW41 LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 82111-47643 |
ZVW41 |
1 | ||
| 82111-47692 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47672 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH& W(SDARS) |
1 | ||
| 82111-47692 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 82111-47673 |
ZVW41 LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47673 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47672 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-47030 |
ZVW41 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-47060 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82113-47070 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82113-47060 |
ZVW41 LX-TOURING PACKAGE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 82113-47080 |
ZVW41 |
1 | ||
| 82113-47070 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82113-47060 |
ZVW41..USA LX-TOURING PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER &BLUETOOTH |
1 | ||
| 82113-47090 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82113-47060 |
ZVW41 LX-TOURING PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82113-47060 |
ZVW41..USA LX-TOURING PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 82113-47070 |
ZVW41..USA LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-47530 |
ZVW41 |
1 | ||
| 82712B - SUPPORT, WIRING HARNESS | ||||
| 82712-47270 |
ZVW41 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47390 |
ZVW41 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-47600 |
ZVW41 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-47560 |
ZVW41 |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-47620 |
ZVW41 |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-47610 |
ZVW41 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-47870 |
ZVW41 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47860 |
ZVW41 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-47480 |
ZVW41 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-47620 |
ZVW41 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-47800 |
ZVW41 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-47850 |
ZVW41 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-73040 |
ZVW41 |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-73050 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
2 | ||
| 82824-73050 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
2 | ||
| 82824-73050 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
2 | ||
| 82824-73050 |
ZVW41..USA |
2 | ||
| 82824-73050 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH& W(SDARS) |
2 | ||
| 82824-73050 |
ZVW41..USA |
3 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-73050 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
2 | ||
| 82824-73050 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
2 | ||
| 82824-73050 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
2 | ||
| 82824-73050 |
ZVW41..USA |
2 | ||
| 82824-73050 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH& W(SDARS) |
2 | ||
| 82824-73050 |
ZVW41..USA |
3 | ||
| Common parts | ||||
| 82712-47330 | ||||
| 90105-06331 | ||||
| 90119-06915 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||

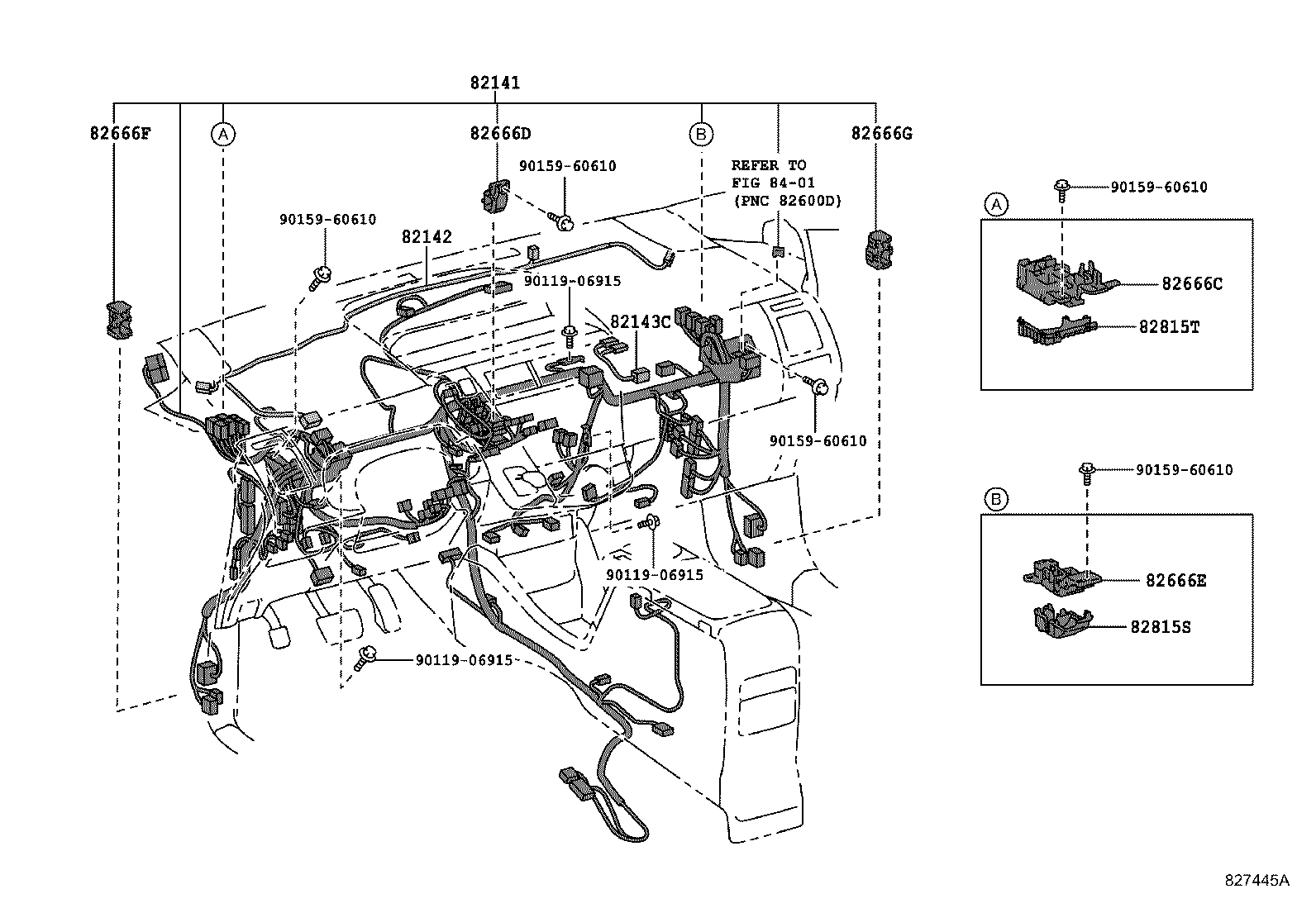

ILLUST NO. 3 OF12(1109- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-47R40 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R50 |
ZVW41..USA LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R40 |
ZVW41..USA LUXURY PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R20 |
ZVW41 LUXURY PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82145-47R30 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82145-47R51 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R30 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82145-47R41 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R52 |
ZVW41..USA LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R20 |
ZVW41 LX-TOURING PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82145-47R42 |
ZVW41..USA LUXURY PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R42 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R52 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R10 |
ZVW41 |
1 | ||
| 82145-47R11 |
ZVW41 |
1 | ||
| 82145-47R31 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82145-47R41 |
ZVW41..USA LUXURY PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R43 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82146-47A60 |
ZVW41..USA LUXURY PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82146-47A70 |
ZVW41..USA LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R22 |
ZVW41 LUXURY PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82145-47R31 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82145-47R22 |
ZVW41 LX-TOURING PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82146-47A70 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R21 |
ZVW41 LX-TOURING PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82146-47A60 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R21 |
ZVW41 LUXURY PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82145-47R32 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82145-47R43 |
ZVW41..USA LUXURY PACKAGE&CRUISE CONTROL-WITH&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R51 |
ZVW41..USA LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R53 |
ZVW41..USA LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R50 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R53 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH |
1 | ||
| 82145-47R12 |
ZVW41 |
1 | ||
| 82145-47R32 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&FRONT FOOT LAMP-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-47230 |
ZVW41 |
1 | ||
| 82142-47231 |
ZVW41 |
1 | ||
| 82142-47241 |
ZVW41 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82142-47240 |
ZVW41 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82143C - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82140-47080 |
ZVW41 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-47440 |
ZVW41 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-47450 |
ZVW41 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-47290 |
ZVW41 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-75070 |
ZVW41 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-75080 |
ZVW41 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-47C70 |
ZVW41 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-47A80 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF12(1109- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-47410 |
ZVW41 LX-TOURING PACKAGE |
1 | ||
| 82151-47411 |
ZVW41 LUXURY PACKAGE |
1 | ||
| 82151-47422 |
ZVW41 |
1 | ||
| 82151-47410 |
ZVW41 LUXURY PACKAGE |
1 | ||
| 82151-47421 |
ZVW41 |
1 | ||
| 82151-47412 |
ZVW41 LUXURY PACKAGE |
1 | ||
| 82151-47420 |
ZVW41 |
1 | ||
| 82151-47411 |
ZVW41 LX-TOURING PACKAGE |
1 | ||
| 82151-47412 |
ZVW41 LX-TOURING PACKAGE |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82155-47011 |
ZVW41 LUXURY PACKAGE |
1 | ||
| 82155-47010 |
ZVW41 LX-TOURING PACKAGE |
1 | ||
| 82155-47010 |
ZVW41 LUXURY PACKAGE |
1 | ||
| 82155-47011 |
ZVW41 LX-TOURING PACKAGE |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-47422 |
ZVW41 |
1 | ||
| 82152-47421 |
ZVW41 |
1 | ||
| 82152-47420 |
ZVW41 |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-47010 |
ZVW41 |
1 | ||
| 82156-47011 |
ZVW41 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-47260 |
ZVW41 |
1 | ||
| 82153-47261 |
ZVW41 |
1 | ||
| 82153-47270 |
ZVW41 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82153-47271 |
ZVW41 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-47270 |
ZVW41 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82154-47260 |
ZVW41 |
1 | ||
| 82154-47261 |
ZVW41 |
1 | ||
| 82154-47271 |
ZVW41 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-47281 |
ZVW41 |
1 | ||
| 82184-47301 |
ZVW41 VALUE PACKAGE |
1 | ||
| 82184-47300 |
ZVW41 VALUE PACKAGE |
1 | ||
| 82184-47280 |
ZVW41 |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-47490 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91553-80612 | ||||

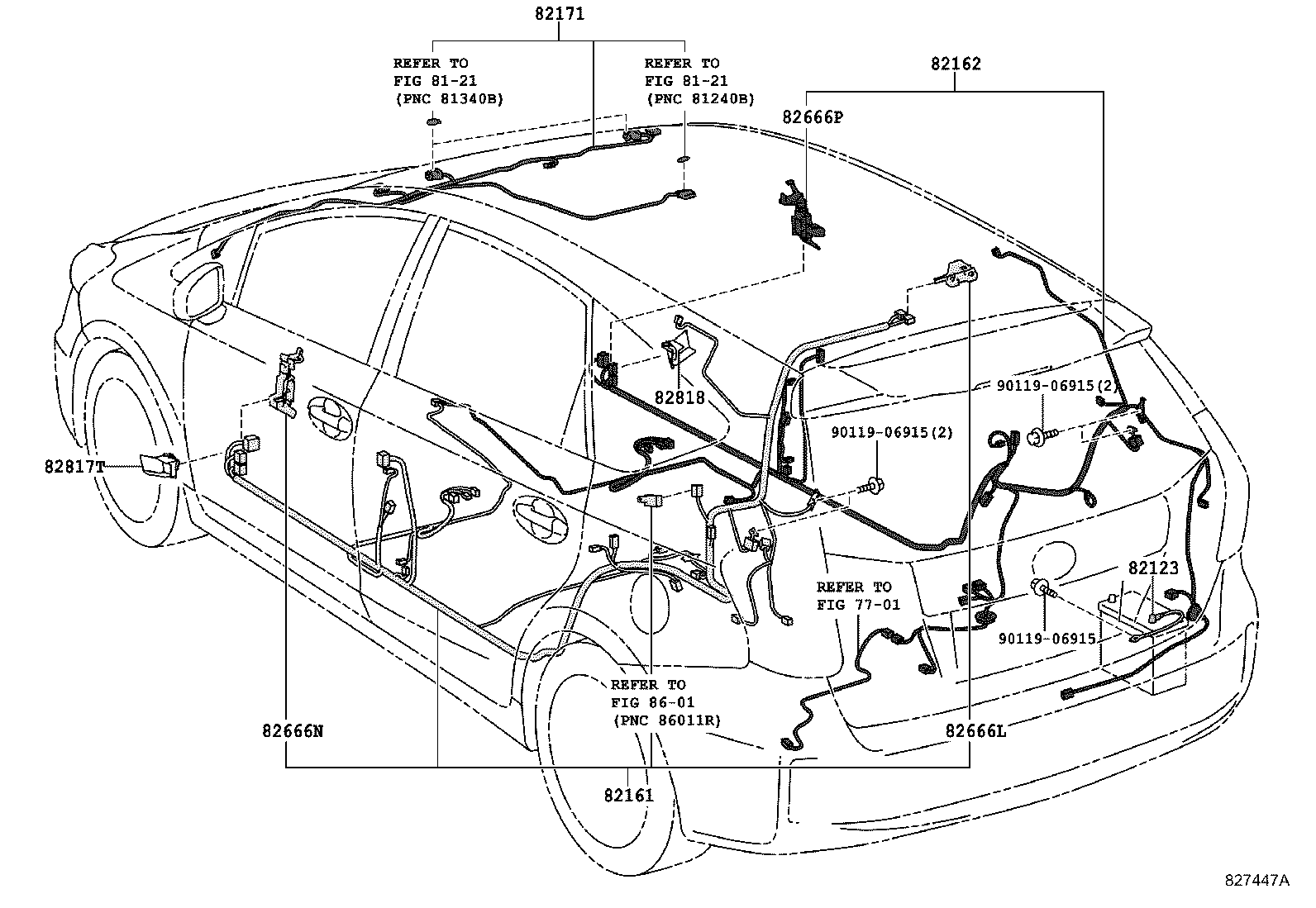

ILLUST NO. 5 OF12(1109- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-47040 |
ZVW41 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-47850 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&ROOF-PANORAMIC ROOF(FIXED)&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82161-47870 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82161-47850 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&ROOF-PANORAMIC ROOF(FIXED)&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82161-47852 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&ROOF-PANORAMIC ROOF(FIXED)&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82161-47A40 |
ZVW41 |
1 | ||
| 82161-47852 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&ROOF-PANORAMIC ROOF(FIXED)&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82161-47A42 |
ZVW41 |
1 | ||
| 82161-47853 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&ROOF-PANORAMIC ROOF(FIXED)&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82161-47A30 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY |
1 | ||
| 82161-47872 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82161-47890 |
ZVW41 ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 82161-47870 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82161-47A32 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY |
1 | ||
| 82161-47873 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82161-47A43 |
ZVW41 |
1 | ||
| 82161-47853 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&ROOF-PANORAMIC ROOF(FIXED)&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82161-47873 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82161-47A33 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY |
1 | ||
| 82161-47872 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82161-47893 |
ZVW41 ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 82161-47892 |
ZVW41 ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-47810 |
ZVW41 LUXURY PACKAGE&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL &8SPEAKER & BLUETOOTH |
1 | ||
| 82162-47750 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82162-47801 |
ZVW41 |
1 | ||
| 82162-47820 |
ZVW41 LX-TOURING PACKAGE&FRONT FOOT LAMP-WITH&HEADLAMP-LED&SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 82162-47810 |
ZVW41 LUXURY PACKAGE&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 82162-47811 |
ZVW41 LUXURY PACKAGE&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL &8SPEAKER & BLUETOOTH |
1 | ||
| 82162-47820 |
ZVW41 LX-TOURING PACKAGE&FRONT FOOT LAMP-WITH&HEADLAMP-LED&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82162-47751 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82162-47811 |
ZVW41 LUXURY PACKAGE&FRONT FOOT LAMP-WITH&SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 82162-47800 |
ZVW41 |
1 | ||
| 82162-47751 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT FOOT LAMP-WITH&HEADLAMP-LED&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82162-47750 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&FRONT FOOT LAMP-WITH&HEADLAMP-LED&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82162-47821 |
ZVW41 LX-TOURING PACKAGE&FRONT FOOT LAMP-WITH&HEADLAMP-LED&SEAT COVER MATERIAL-LEATHER&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 82162-47821 |
ZVW41 LX-TOURING PACKAGE&FRONT FOOT LAMP-WITH&HEADLAMP-LED&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-47421 |
ZVW41 ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 82171-47460 |
ZVW41 |
1 | ||
| 82171-47480 |
ZVW41..USA LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&MAYDAY SYSTEM-WITH |
1 | ||
| 82171-47441 |
ZVW41..USA LUXURY PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&MAYDAY SYSTEM-WITH |
1 | ||
| 82171-47451 |
ZVW41 LUXURY PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-47422 |
ZVW41 ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 82171-47480 |
ZVW41..USA LX-TOURING PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&MAYDAY SYSTEM-WITH |
1 | ||
| 82171-47451 |
ZVW41 LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-47442 |
ZVW41..USA LUXURY PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&MAYDAY SYSTEM-WITH |
1 | ||
| 82171-47452 |
ZVW41 LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-47442 |
ZVW41..USA LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&MAYDAY SYSTEM-WITH |
1 | ||
| 82171-47490 |
ZVW41 LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-47491 |
ZVW41 LX-TOURING PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-47441 |
ZVW41..USA LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&MAYDAY SYSTEM-WITH |
1 | ||
| 82171-47481 |
ZVW41..USA LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&MAYDAY SYSTEM-WITH |
1 | ||
| 82171-47490 |
ZVW41 LX-TOURING PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-47481 |
ZVW41..USA LX-TOURING PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&MAYDAY SYSTEM-WITH |
1 | ||
| 82171-47452 |
ZVW41 LUXURY PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-47461 |
ZVW41 |
1 | ||
| 82171-47491 |
ZVW41 LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-47500 |
ZVW41 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-75100 |
ZVW41 |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-47510 |
ZVW41 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-47J50 |
ZVW41 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47J40 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 7701 | ||||
| 8121 | ||||
| 8601 | ||||

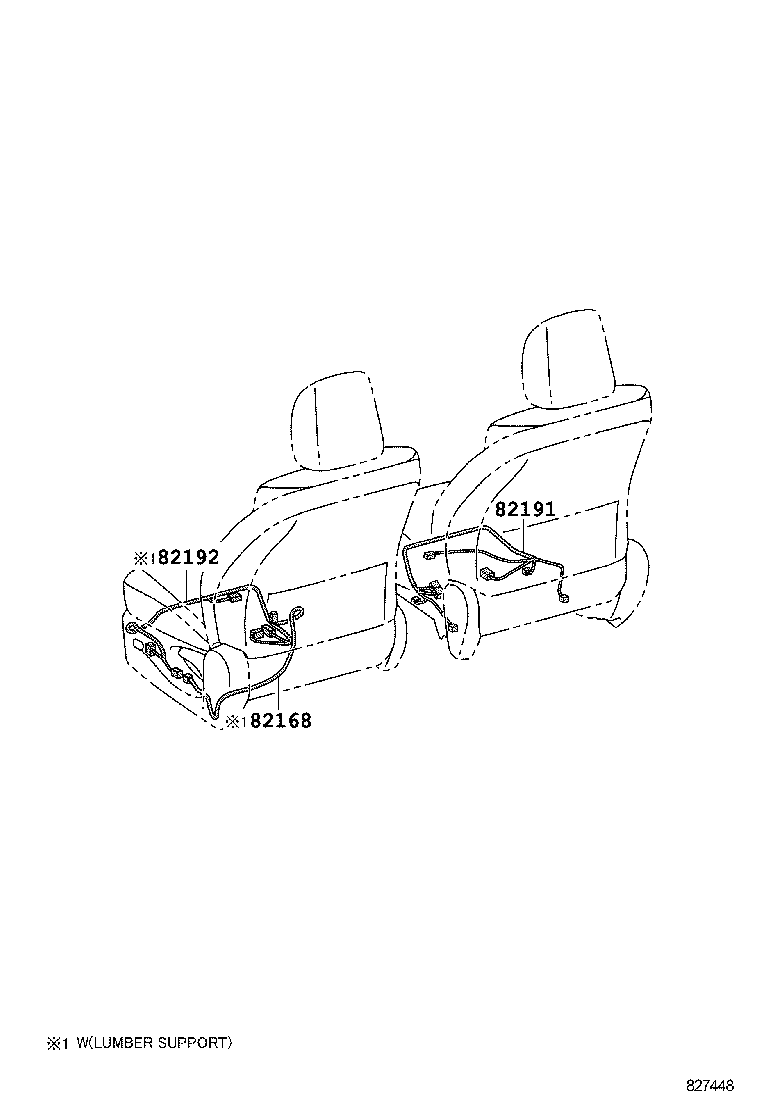

ILLUST NO. 6 OF12(1109- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82168 - WIRE, SEAT, NO.2 | ||||
| 8219B-47010 |
ZVW41 |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-47030 |
ZVW41 |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-47010 |
ZVW41 |
1 | ||
| 82192-47020 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82192-47020 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
ILLUST NO. 2 OF12(1109- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-47150 |
ZVW41 |
1 | ||
| 82121-47151 |
ZVW41 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-47030 |
ZVW41 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZVW41 |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82124-47040 |
ZVW41 |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-47040 |
ZVW41 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-47480 |
ZVW41 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-47490 |
ZVW41 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-47500 |
ZVW41 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-47510 |
ZVW41 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-47520 |
ZVW41 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-47530 |
ZVW41 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-47541 |
ZVW41 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-47470 |
ZVW41 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47720 |
ZVW41 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-47730 |
ZVW41 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-47740 |
ZVW41 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-47750 |
ZVW41 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-47760 |
ZVW41 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-47781 |
ZVW41 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-47E70 |
ZVW41 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-47700 |
ZVW41 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47K70 |
ZVW41 |
2 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47K70 |
ZVW41 |
2 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-76020 |
ZVW41 |
1 | ||
| Common parts | ||||
| 82712-47340 | ||||
| 90105-06331 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
ILLUST NO. 8 OF12(1109- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-47010 | ||||
| 82711-35470 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-47420 | ||||
| 82715-47470 | ||||
| 82715-47480 | ||||
| 82715-47490 | ||||
| 82715-47510 | ||||
| 82715-47530 | ||||
| 82715-47540 | ||||
| 82715-47650 | ||||
| 82715-6A460 | ||||
| 82715-75240 | ||||
| 82715-75260 | ||||
| 90105-06331 | ||||
| 90119-W0030 | ||||
| 90179-06178 | ||||
| 90179-06219 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91671-A0816 | ||||
| 94150-10641 | ||||

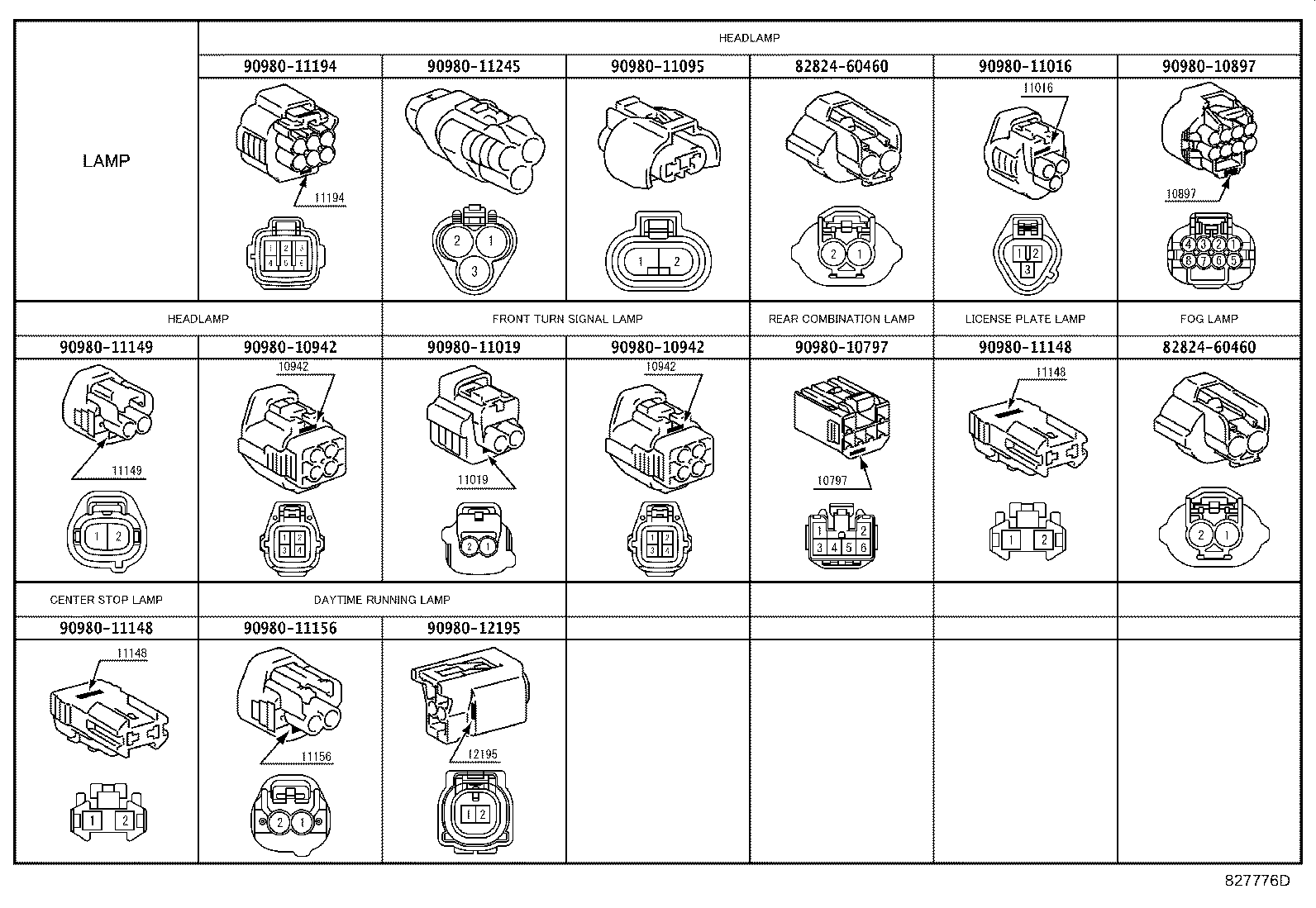

ILLUST NO.10 OF12(1109- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10797 | ||||
| 90980-10897 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11095 | ||||
| 90980-11148 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11245 | ||||
| 90980-12195 | ||||

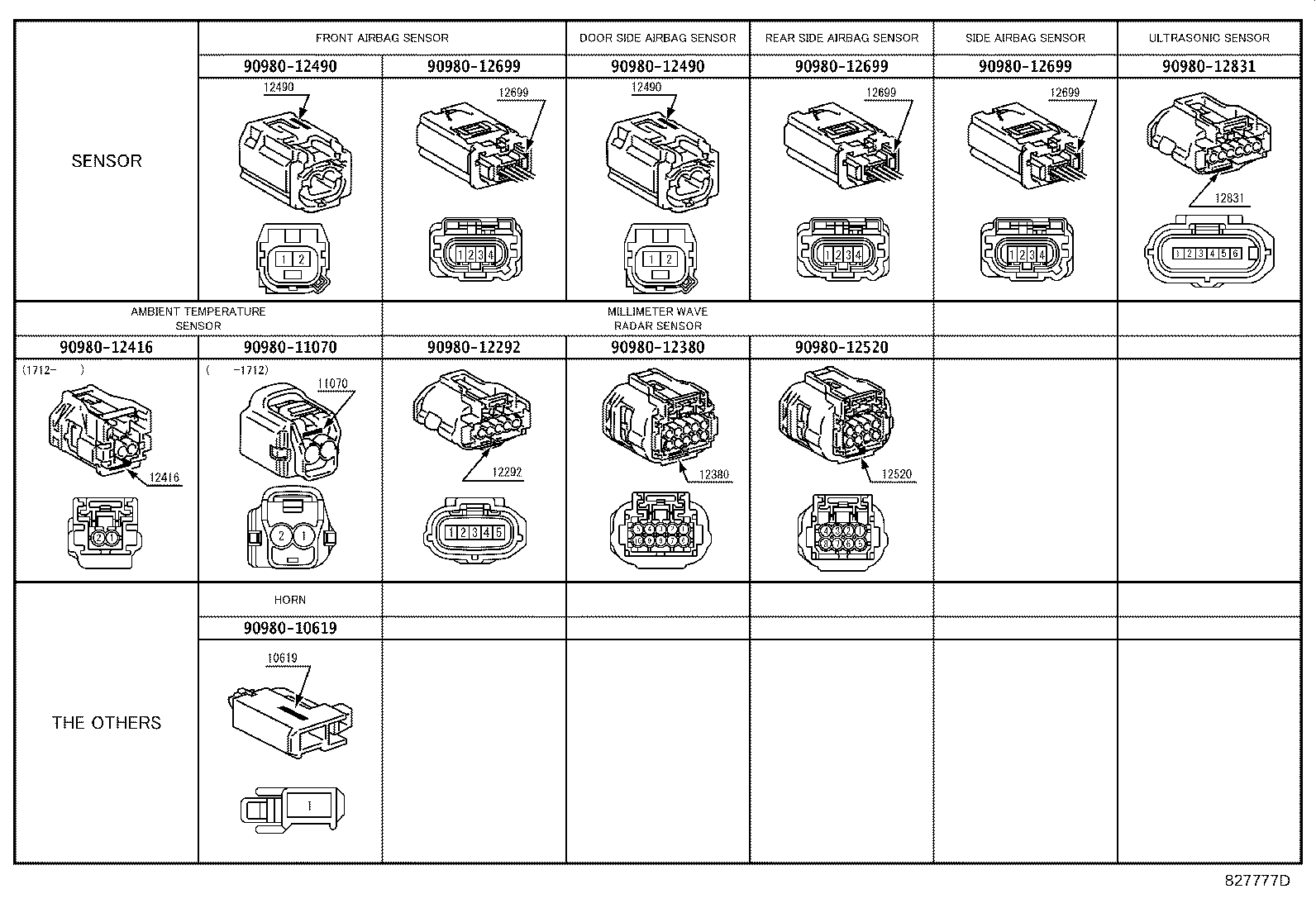

ILLUST NO.11 OF12(1109- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-11070 | ||||
| 90980-12292 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12831 | ||||

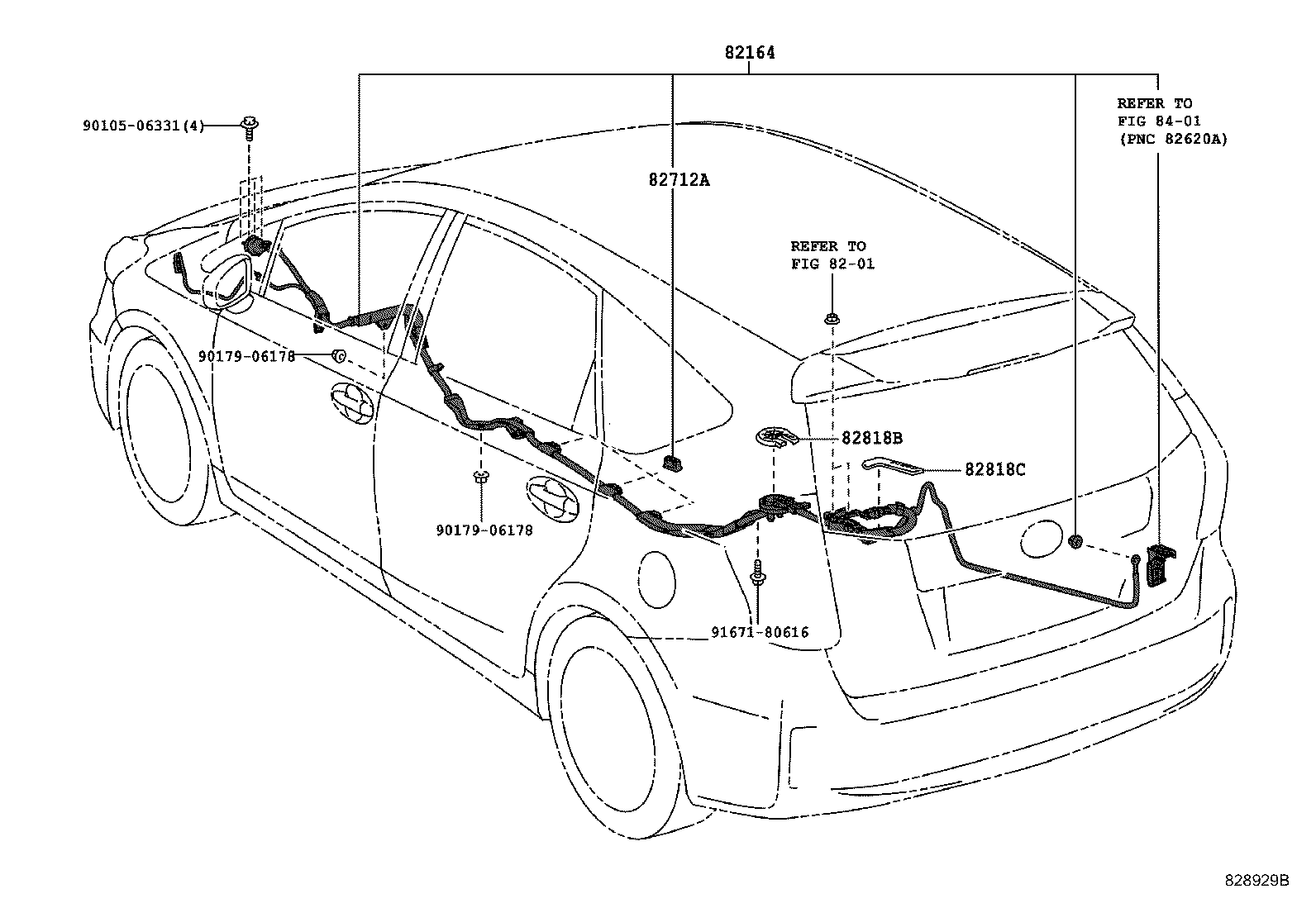

ILLUST NO. 7 OF12(1109- )
HIGH-TENSION CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-47130 |
ZVW41 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-47270 |
ZVW41 |
3 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-47K10 |
ZVW41 |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47F70 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90105-06331 | ||||
| 90179-06178 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 1 OF12(1210- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-47671 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH& W(SDARS) |
1 | ||
| 82111-47691 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47691 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47691 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 82111-47661 |
ZVW41..USA |
1 | ||
| 82111-47671 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47662 |
ZVW41..USA |
1 | ||
| 82111-47672 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47671 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47641 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-47642 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-47692 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47673 |
ZVW41 LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 82111-47643 |
ZVW41 |
1 | ||
| 82111-47692 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47672 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH& W(SDARS) |
1 | ||
| 82111-47692 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 82111-47673 |
ZVW41 LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47673 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82111-47672 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-47030 |
ZVW41 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-47060 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82113-47070 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82113-47060 |
ZVW41 LX-TOURING PACKAGE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 82113-47080 |
ZVW41 |
1 | ||
| 82113-47070 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82113-47060 |
ZVW41..USA LX-TOURING PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER &BLUETOOTH |
1 | ||
| 82113-47090 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82113-47060 |
ZVW41 LX-TOURING PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82113-47060 |
ZVW41..USA LX-TOURING PACKAGE&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 82113-47070 |
ZVW41..USA LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-47530 |
ZVW41 |
1 | ||
| 82712B - SUPPORT, WIRING HARNESS | ||||
| 82712-47270 |
ZVW41 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47390 |
ZVW41 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-47600 |
ZVW41 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-47560 |
ZVW41 |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-47620 |
ZVW41 |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-47610 |
ZVW41 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-47870 |
ZVW41 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47860 |
ZVW41 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-47480 |
ZVW41 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-47620 |
ZVW41 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-47800 |
ZVW41 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-47850 |
ZVW41 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-73040 |
ZVW41 |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-73050 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
2 | ||
| 82824-73050 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
2 | ||
| 82824-73050 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
2 | ||
| 82824-73050 |
ZVW41..USA |
2 | ||
| 82824-73050 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH& W(SDARS) |
2 | ||
| 82824-73050 |
ZVW41..USA |
3 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-75050 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82824-75050 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA & 6SPEAKER & BLUETOOTH& W(SDARS) |
1 | ||
| 82824-75050 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 82824-75050 |
ZVW41..USA |
1 | ||
| 82824-75050 |
ZVW41..USA LX-TOURING PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| Common parts | ||||
| 82712-47330 | ||||
| 90105-06331 | ||||
| 90119-06915 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
ILLUST NO.12 OF12(1109- )

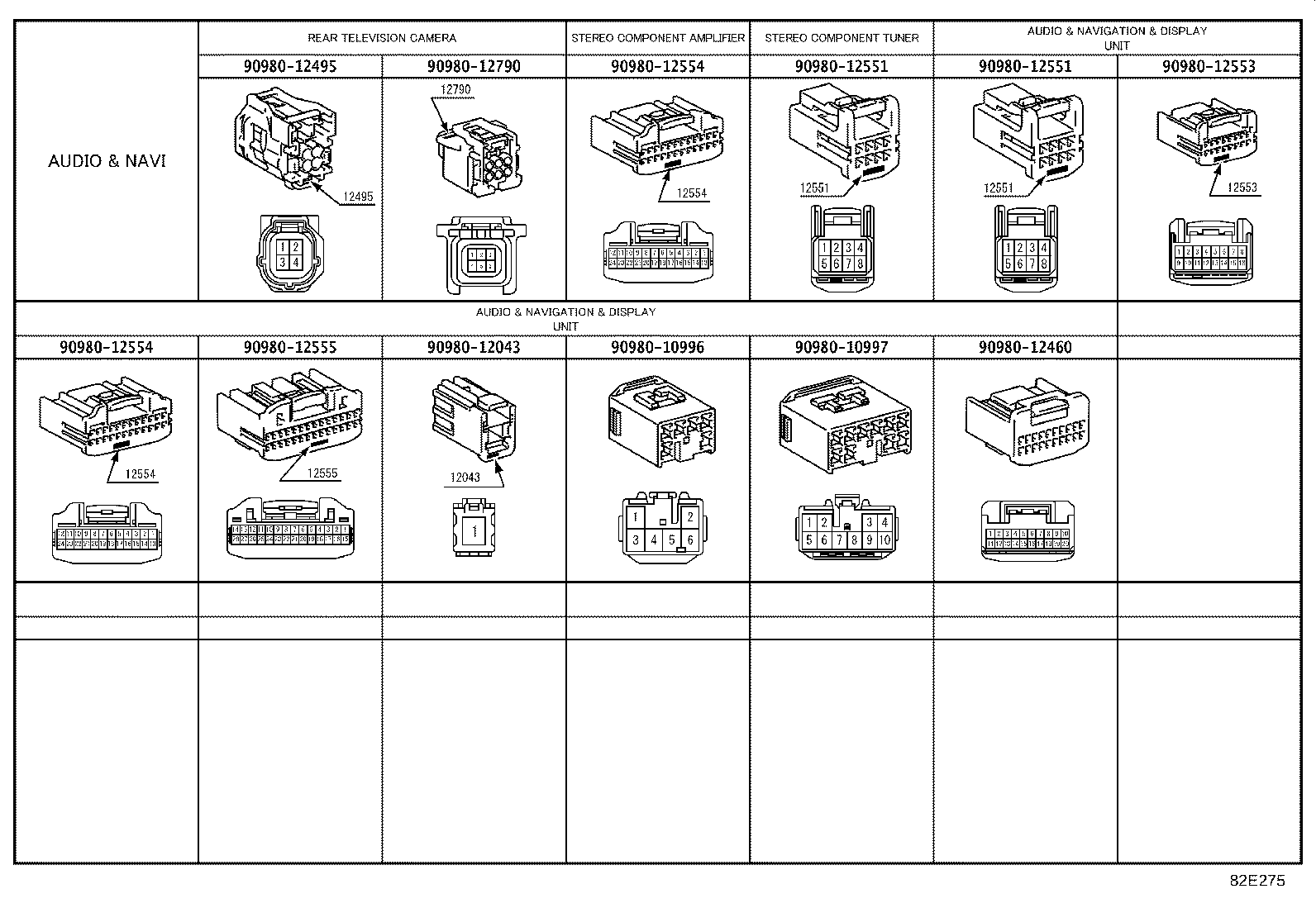

CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12043 | ||||
| 90980-12460 | ||||
| 90980-12495 | ||||
| 90980-12551 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
