ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(1109- )

Click highlighted areas on diagram

HV BATTERY

diagram 9011906977 9017906319 9046708186C0 9046708186C0 9046708186C0 9046708186C3 9046708186C3 9046708186C3 9155180610 G920U G9230 G92D1 G92D1 G92D3 G92DH G92DH G92E1 G92F1
Part # Description Qty Price
G920U - BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.4
G920U-47010

ZVW41

 1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-76010

ZVW41

 1
G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1
G92D1-47061

ZVW41

 1
G92D1-47060

ZVW41

 1
G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1
G92D1-47061

ZVW41

 1
G92D1-47060

ZVW41

 1
G92DH - FILTER, HV BATTERY INTAKE, NO.1
G92DH-47040

ZVW41

 1
G92DH - FILTER, HV BATTERY INTAKE, NO.1
G92DH-47040

ZVW41

 1
G92E1 - DUCT, HV BATTERY COVER INTAKE, NO.1
G92E1-47010

ZVW41

 1
G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1
G92F1-47010

ZVW41

 1
Common parts
90119-06977
90179-06319
90467-08186C0
90467-08186C3
91551-80610

ILLUST NO. 1 OF 4(1109- )

Click highlighted areas on diagram

12V BATTERY

diagram 28800 28885B 28898 8202 8202 82675C 82821K 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-21171

2ZRFXE..ZVW41

S46B24R

 1
28885B - HOSE, BATTERY
28885-37060

2ZRFXE..ZVW41

 1
28885-37010

2ZRFXE..ZVW41

 1
28898 - PLATE, BATTERY
28898-26010

2ZRFXE..ZVW41..USA

 1
82675C - TERMINAL, JUNCTION
82675-47160

ZVW41

 1
82821K - COVER, CONNECTOR
82821-47110

ZVW41

 1
Common parts
94151-80801
Linked diagrams
8202

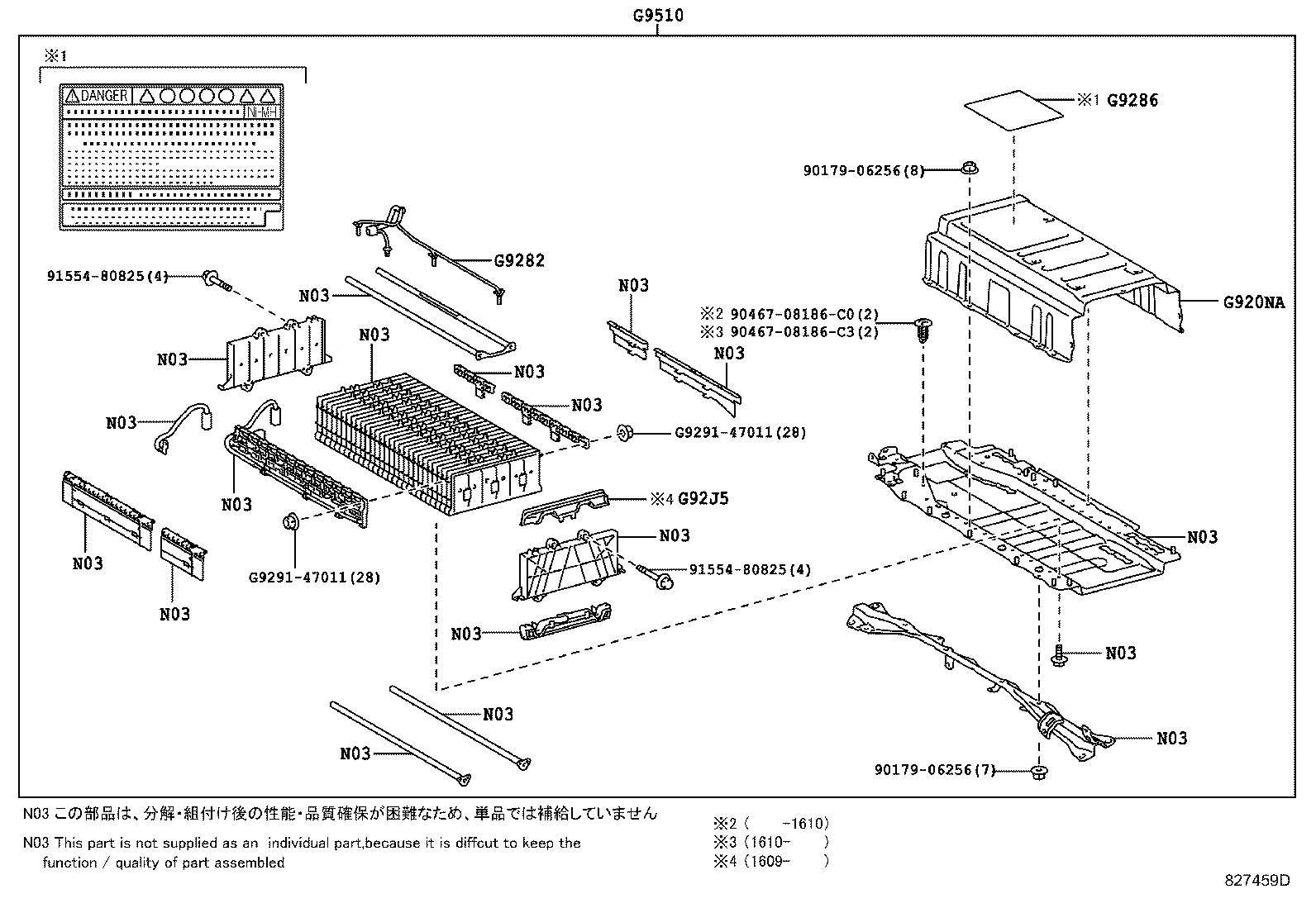

ILLUST NO. 4 OF 4(1109- )

Click highlighted areas on diagram

HV BATTERY

diagram 9017906256 9017906256 9046708186C0 9046708186C3 9155480825 9155480825 G920NA G9282 G9286 G929147011 G929147011 G92J5 G9510
Part # Description Qty Price
G920NA - COVER SUB-ASSY, HV BATTERY, LH
G920N-47010

ZVW41

 1
G9282 - THERMISTOR, HYBRID BATTERY
G9282-47060

ZVW41

 1
G9286 - LABEL, HYBRID BATTERY CAUTION, NO.2
G9288-47080

ZVW41..USA

 1
G92J5 - PACKING, HYBRID BATTERY, NO.1
G92J5-47020

ZVW41

 1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-76010

ZVW41

 1
Common parts
90179-06256
90467-08186C0
90467-08186C3
91554-80825
G9291-47011

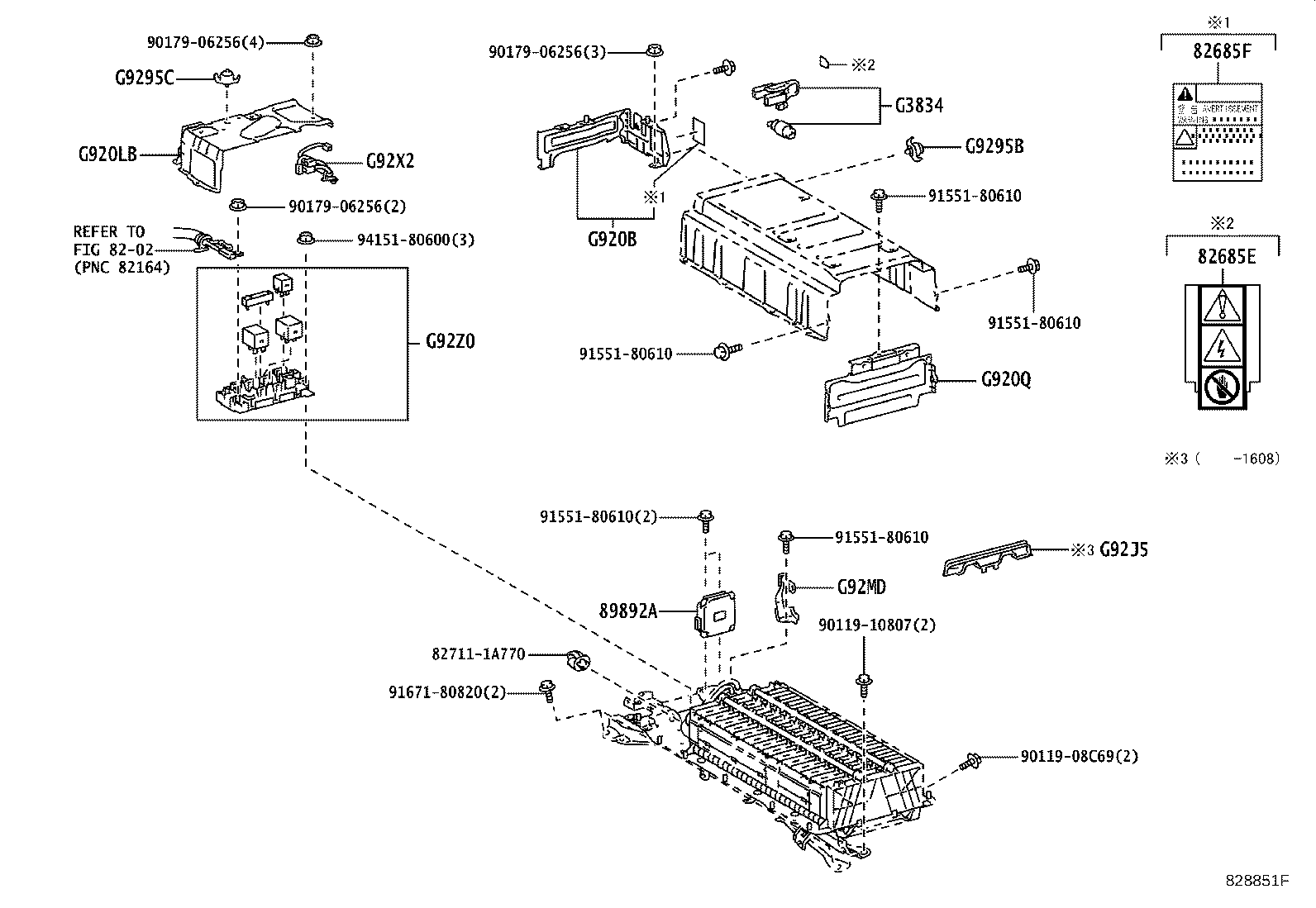

ILLUST NO. 3 OF 4(1109- )

Click highlighted areas on diagram

HV BATTERY

diagram 8202 82685E 82685F 827111A770 89892A 9011908C69 9011910807 9017906256 9017906256 9017906256 9155180610 9155180610 9155180610 9155180610 9155180610 9167180820 9415180600 G3834 G920B G920LB G920Q G9295B G9295C G92J5 G92MD G92X2 G92Z0
Part # Description Qty Price
82685F - MAIN BATTERY CAUTION PLATE, NO.1
82685-76010

ZVW41

 1
89892A - SENSOR, BATTERY VOLTAGE
89892-47080

ZVW41

 1
89892-47020

ZVW41

 1
G3834 - GRIP, SERVICE PLUG
G3834-48010

ZVW41

 1
G920B - BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.1
G920B-47020

ZVW41

 1
G920LB - COVER SUB-ASSY, HYBRID BATTERY, RH
G920L-47010

ZVW41

 1
G920Q - SHIELD SUB-ASSY, HYBRID BATTERY, NO.1
G920Q-47010

ZVW41

 1
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020

ZVW41

 1
G9295C - STRIKER, BATTERY COVER LOCK, NO.2
G9295-30020

ZVW41

 1
G92J5 - PACKING, HYBRID BATTERY, NO.1
G92J5-47020

ZVW41

 1
G92MD - BRACKET, HV BATTERY UPPER CARRIER, NO.7
G92MD-47010

ZVW41

 1
G92X2 - WIRE, HV BATTERY PACK, NO.2
G92X2-47010

ZVW41

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-47011

ZVW41

 1
Common parts
82711-1A770
90119-08C69
90119-10807
90179-06256
91551-80610
91671-80820
94151-80600
Linked diagrams
8202
