ZVW41L-AXXEBA (2011)
Toyota Prius V

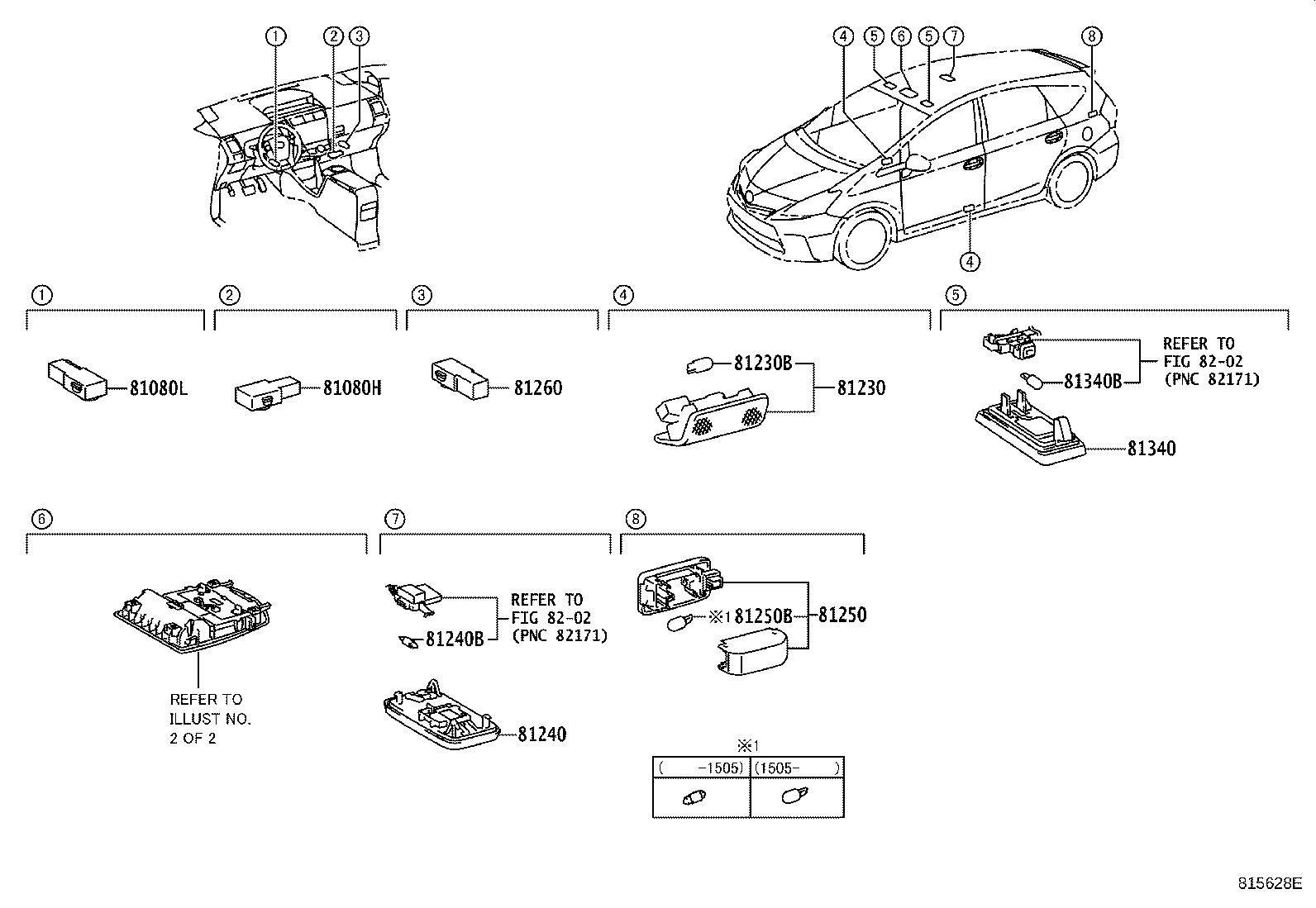

ILLUST NO. 1 OF 2(1109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-48010 |
ZVW41 FRONT FOOT LAMP-WITH |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-48010 |
ZVW41 FRONT FOOT LAMP-WITH |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30200 |
ZVW41 |
2 | ||
| 81230-47010 |
ZVW41 |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-12010 |
ZVW41 12V 5W |
2 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-60060B0 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
ZVW41 12V 8W |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-48010 |
ZVW41 |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-13050 |
ZVW41 12V 5W |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-48010 |
ZVW41 |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30110 |
ZVW41 |
2 | ||
| 81340-30100B0 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
ZVW41 12V 8W |
2 | ||
| Linked diagrams | ||||
| 8202 | ||||

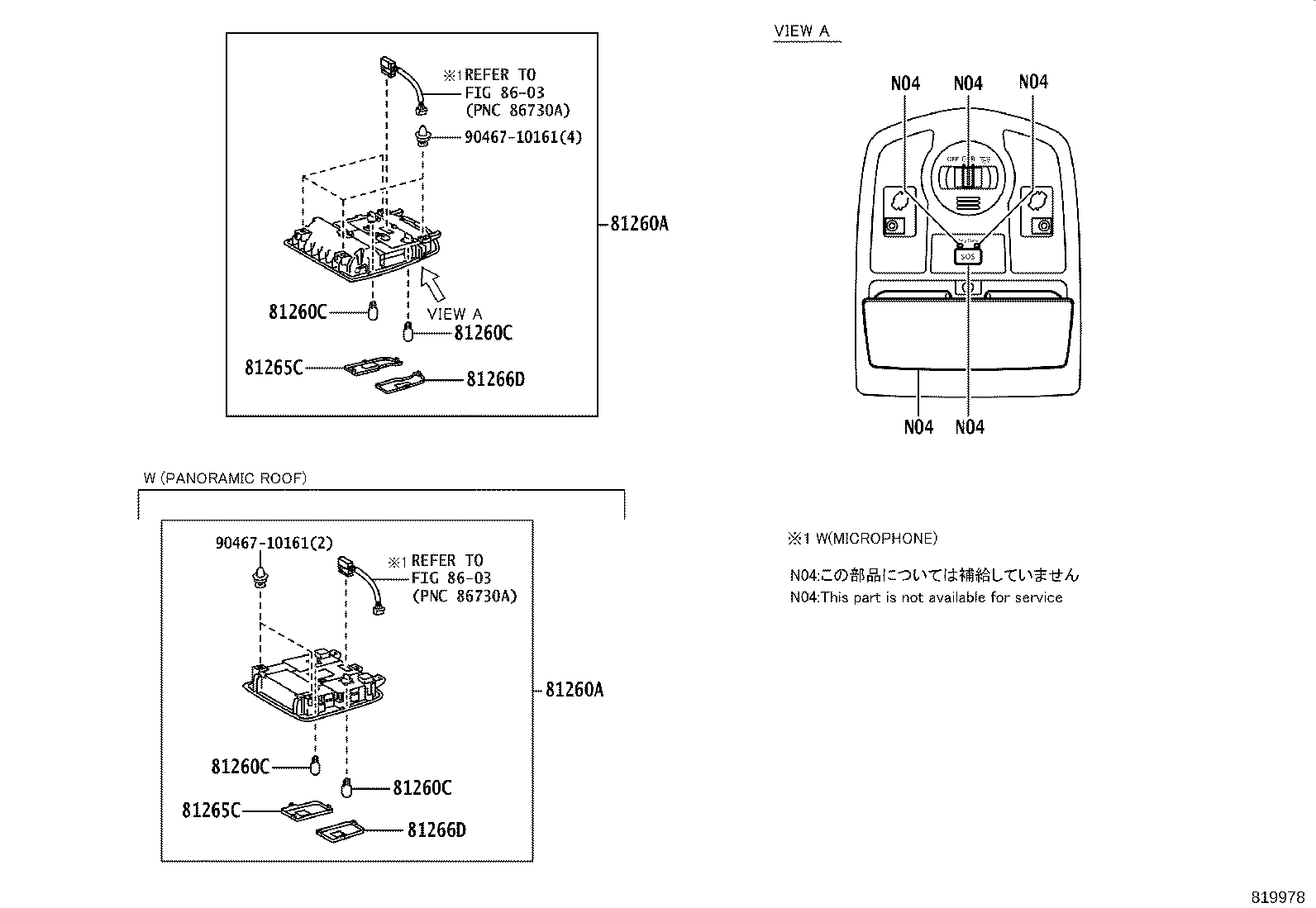

ILLUST NO. 2 OF 2(1109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 81260-47260B0 |
ZVW41..USA MAYDAY SYSTEM-WITH,LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 81260-47240B0 |
ZVW41..USA ROOF-PANORAMIC ROOF(FIXED)&MAYDAY SYSTEM-WITH,LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 81260-47230B0 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 81260-47250B0 |
ZVW41 ROOF-PANORAMIC ROOF(FIXED),LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-47260B0 |
ZVW41..USA MAYDAY SYSTEM-WITH,LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 81260-47240B0 |
ZVW41..USA ROOF-PANORAMIC ROOF(FIXED)&MAYDAY SYSTEM-WITH,LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 81260-47230B0 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 81260-47250B0 |
ZVW41 ROOF-PANORAMIC ROOF(FIXED),LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
ZVW41 12V 5W |
2 | ||
| 90981-11062 |
ZVW41..USA 12V 8W,ROOF-PANORAMIC ROOF(FIXED)&MAYDAY SYSTEM-WITH |
2 | ||
| 90981-11062 |
ZVW41 12V 8W,ROOF-PANORAMIC ROOF(FIXED) |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
ZVW41 12V 5W |
2 | ||
| 90981-11062 |
ZVW41..USA 12V 8W,ROOF-PANORAMIC ROOF(FIXED)&MAYDAY SYSTEM-WITH |
2 | ||
| 90981-11062 |
ZVW41 12V 8W,ROOF-PANORAMIC ROOF(FIXED) |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
ZVW41 12V 5W |
2 | ||
| 90981-11062 |
ZVW41..USA 12V 8W,ROOF-PANORAMIC ROOF(FIXED)&MAYDAY SYSTEM-WITH |
2 | ||
| 90981-11062 |
ZVW41 12V 8W,ROOF-PANORAMIC ROOF(FIXED) |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
ZVW41 12V 5W |
2 | ||
| 90981-11062 |
ZVW41..USA 12V 8W,ROOF-PANORAMIC ROOF(FIXED)&MAYDAY SYSTEM-WITH |
2 | ||
| 90981-11062 |
ZVW41 12V 8W,ROOF-PANORAMIC ROOF(FIXED) |
2 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-42020 |
ZVW41..USA ROOF-PANORAMIC ROOF(FIXED)&MAYDAY SYSTEM-WITH |
1 | ||
| 81265-42020 |
ZVW41 ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 81265-47070 |
ZVW41 |
1 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-42020 |
ZVW41..USA ROOF-PANORAMIC ROOF(FIXED)&MAYDAY SYSTEM-WITH |
1 | ||
| 81265-42020 |
ZVW41 ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 81265-47070 |
ZVW41 |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81266-47070 |
ZVW41 |
1 | ||
| 81266-42020 |
ZVW41..USA ROOF-PANORAMIC ROOF(FIXED)&MAYDAY SYSTEM-WITH |
1 | ||
| 81266-42020 |
ZVW41 ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81266-47070 |
ZVW41 |
1 | ||
| 81266-42020 |
ZVW41..USA ROOF-PANORAMIC ROOF(FIXED)&MAYDAY SYSTEM-WITH |
1 | ||
| 81266-42020 |
ZVW41 ROOF-PANORAMIC ROOF(FIXED) |
1 | ||
| Common parts | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 8603 | ||||
