ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109-1411)

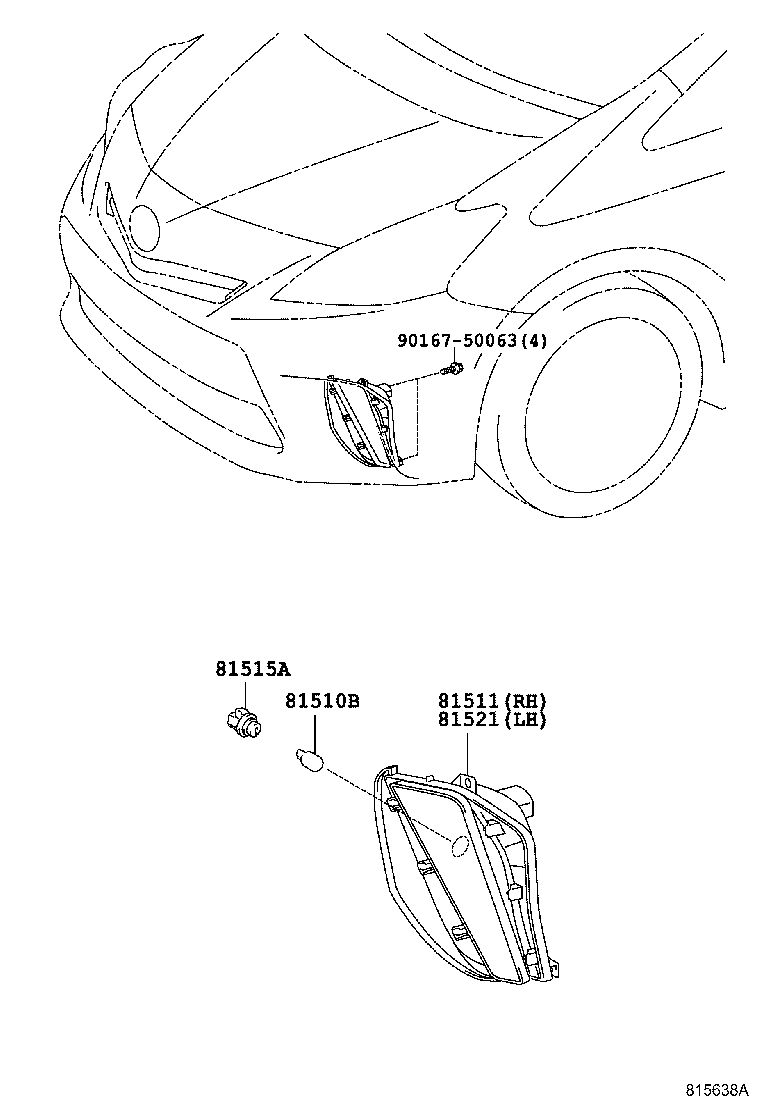

Click highlighted areas on diagram

diagram 81510B 81511 81515A 81521 9016750063
Part # Description Qty Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ZVW41

12V 21W,AMBER

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-47030

ZVW41

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-60028

ZVW41

 2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-47030

ZVW41

 1
Common parts
90167-50063
