ZVW41L-AXXEBA (2011)
Toyota Prius V
(1109-1411)

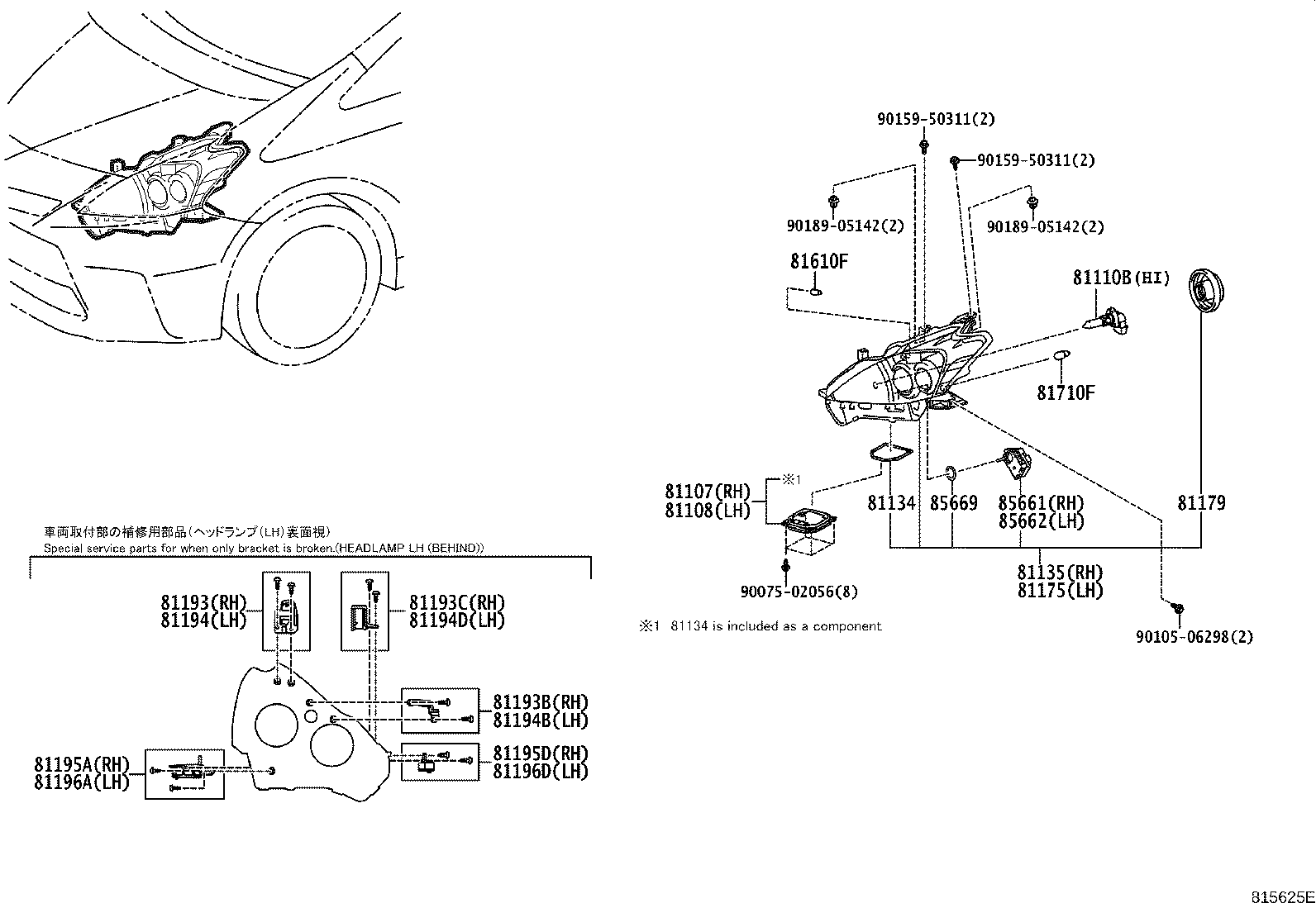

HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ZVW41 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
ZVW41 12V 55W,HALOGEN |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-47300 |
ZVW41 |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-47300 |
ZVW41 |
1 | ||
| 81145-47600 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
| 81145-47310 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-47300 |
ZVW41 |
1 | ||
| 81185-47310 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
| 81185-47600 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
ZVW41 |
4 | ||
| 90075-65006 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
2 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
ZVW41 |
4 | ||
| 90075-65006 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
2 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-47050 |
ZVW41 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-47060 |
ZVW41 |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-47090 |
ZVW41 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-47050 |
ZVW41 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-47060 |
ZVW41 |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-47090 |
ZVW41 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-47050 |
ZVW41 |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81195-47060 |
ZVW41 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-47050 |
ZVW41 |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81196-47060 |
ZVW41 |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ZVW41 12V 5W |
2 | ||
| 81710F - BULB, FRONT SIDE MAKER LAMP | ||||
| 99132-12050 |
ZVW41 |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
(1109-1411)
LED HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-47290 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-47290 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ZVW41 12V65W(SAE),60W(ECE) |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-47300 |
ZVW41 |
1 | ||
| 81145-47600 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
| 81145-47310 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-47300 |
ZVW41 |
1 | ||
| 81185-47310 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
| 81185-47600 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
| 81179 - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
ZVW41 |
4 | ||
| 90075-65006 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
2 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-47050 |
ZVW41 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-47060 |
ZVW41 |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-47090 |
ZVW41 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-47050 |
ZVW41 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-47060 |
ZVW41 |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-47090 |
ZVW41 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-47050 |
ZVW41 |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81195-47060 |
ZVW41 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-47050 |
ZVW41 |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81196-47060 |
ZVW41 |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ZVW41 12V 5W |
2 | ||
| 81710F - BULB, FRONT SIDE MAKER LAMP | ||||
| 99132-12050 |
ZVW41 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12020 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12020 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED |
2 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
