ZVW41L-AXXEBA (2011)
Toyota Prius V
Production
Sep 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1109-1411)

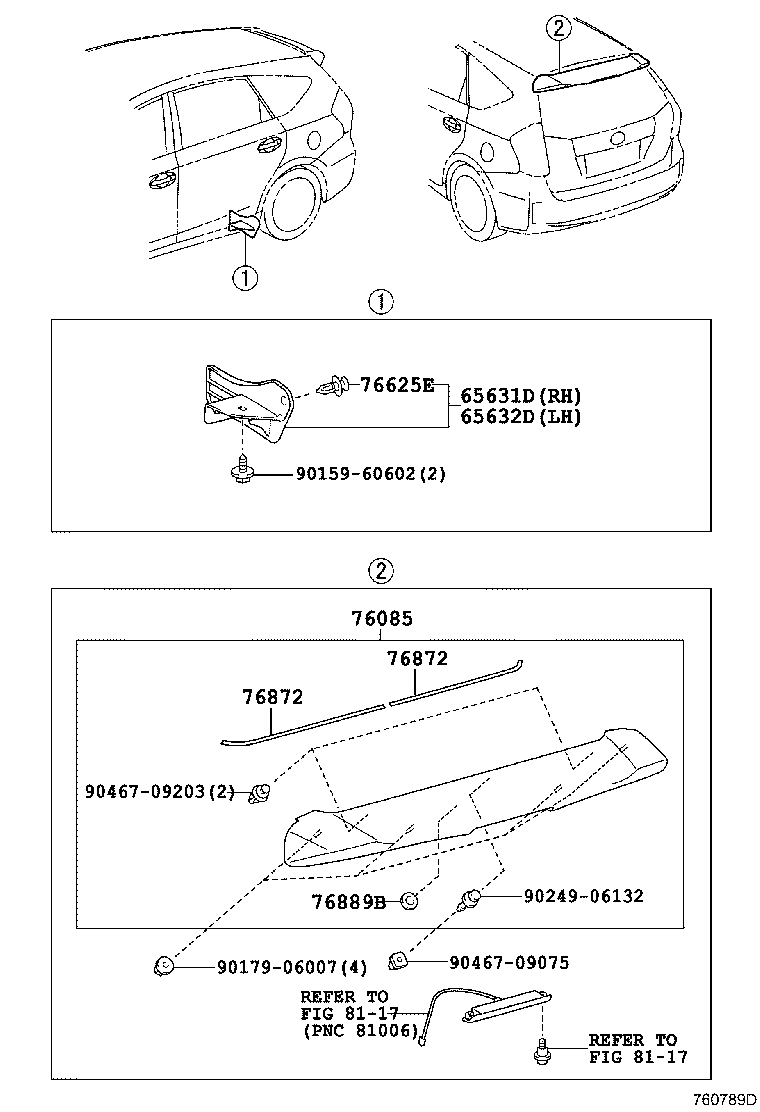

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-47060 |
ZVW41 |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-47060 |
ZVW41 |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-47909D0 |
ZVW41 RED M.M.,3R3 |
1 | ||
| 76085-47909C0 |
ZVW41 BLACK,202 |
1 | ||
| 76085-47909B1 |
ZVW41 GRAY ME.,1G3 |
1 | ||
| 76085-47909A0 |
ZVW41 SUPER WHITE 2,040 |
1 | ||
| 76085-47909J2 |
ZVW41 DK. BLUE MC.,8T5 |
1 | ||
| 76085-47911A1 |
ZVW41 WHITE PEARL CS.,070 |
1 | ||
| 76085-47909B0 |
ZVW41 SILVER ME.,1F7 |
1 | ||
| 76085-47911B0 |
ZVW41 SILVER ME.,1F7 |
1 | ||
| 76085-47911B1 |
ZVW41 GRAY ME.,1G3 |
1 | ||
| 76085-47911J0 |
ZVW41 DK. BLUE MC.,8T5 |
1 | ||
| 76085-47909A1 |
ZVW41 WHITE PEARL CS.,070 |
1 | ||
| 76085-47911H0 |
ZVW41 CLEAR STREAM ME.,787 |
1 | ||
| 76085-47911D0 |
ZVW41 RED M.M.,3R3 |
1 | ||
| 76085-47909H0 |
ZVW41 CLEAR STREAM ME.,787 |
1 | ||
| 76085-47911A0 |
ZVW41 SUPER WHITE 2,040 |
1 | ||
| 76085-47911H1 |
ZVW41 FROSTY GREEN MC.,781 |
1 | ||
| 76085-47911C0 |
ZVW41 BLACK,202 |
1 | ||
| 76085-47909H1 |
ZVW41 FROSTY GREEN MC.,781 |
1 | ||
| 76625E - CLIP | ||||
| 75867-33050 |
ZVW41 |
2 | ||
| 75867-30140 |
ZVW41 |
2 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-47020 |
ZVW41 |
2 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-47020 |
ZVW41 |
2 | ||
| 76889B - SEAL, REAR SPOILER, NO.1 | ||||
| 76889-47030 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90179-06007 | ||||
| 90249-06132 | ||||
| 90467-09075 | ||||
| 90467-09203 | ||||
| Linked diagrams | ||||
| 8117 | ||||
