ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

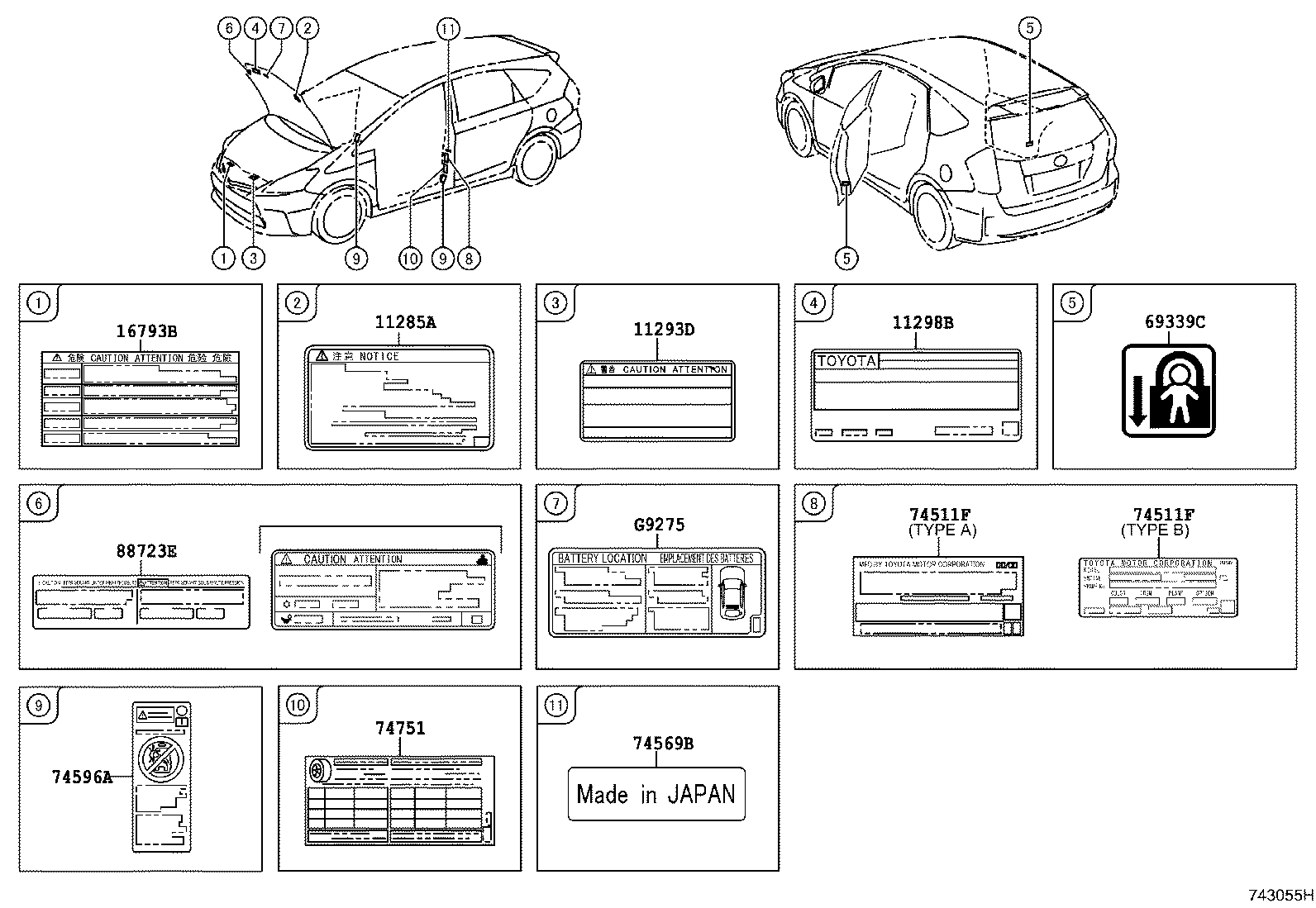

ILLUST NO. 1 OF 2(1109- )

Click highlighted areas on diagram

ENGINE ROOM & EXTERIOR

diagram 11285A 11293D 11298B 16793B 69339C 74511F 74511F 74569B 74596A 74751 88723E G9275
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-37060

2ZRFXE..ZVW41

 1
11293D - LABEL, ENGINE CAUTION
11293-21081

2ZRFXE..ZVW41

 1
11293-36070

2ZRFXE..ZVW41

 1
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-37480

2ZRFXE..ZVW41

 1
11298-37390

2ZRFXE..ZVW41

 1
11298-37270

2ZRFXE..ZVW41

 1
16793B - LABEL, COOLING FAN INFORMATION
16793-28040

2ZRFXE..ZVW41

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-33040

ZVW41

 2
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74514-33010

ZVW41..USA

*111,TYPE A:REFER ILLUST.

 1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74514-33010

ZVW41..USA

*111,TYPE A:REFER ILLUST.

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-53011

ZVW41

 2
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-47320

ZVW41

 1
42661-47330

ZVW41

LX-TOURING PACKAGE

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-47090

ZVW41

 1
G9275 - LABEL, BATTERY CAUTION, NO.1
G9275-76020

ZVW41

 1

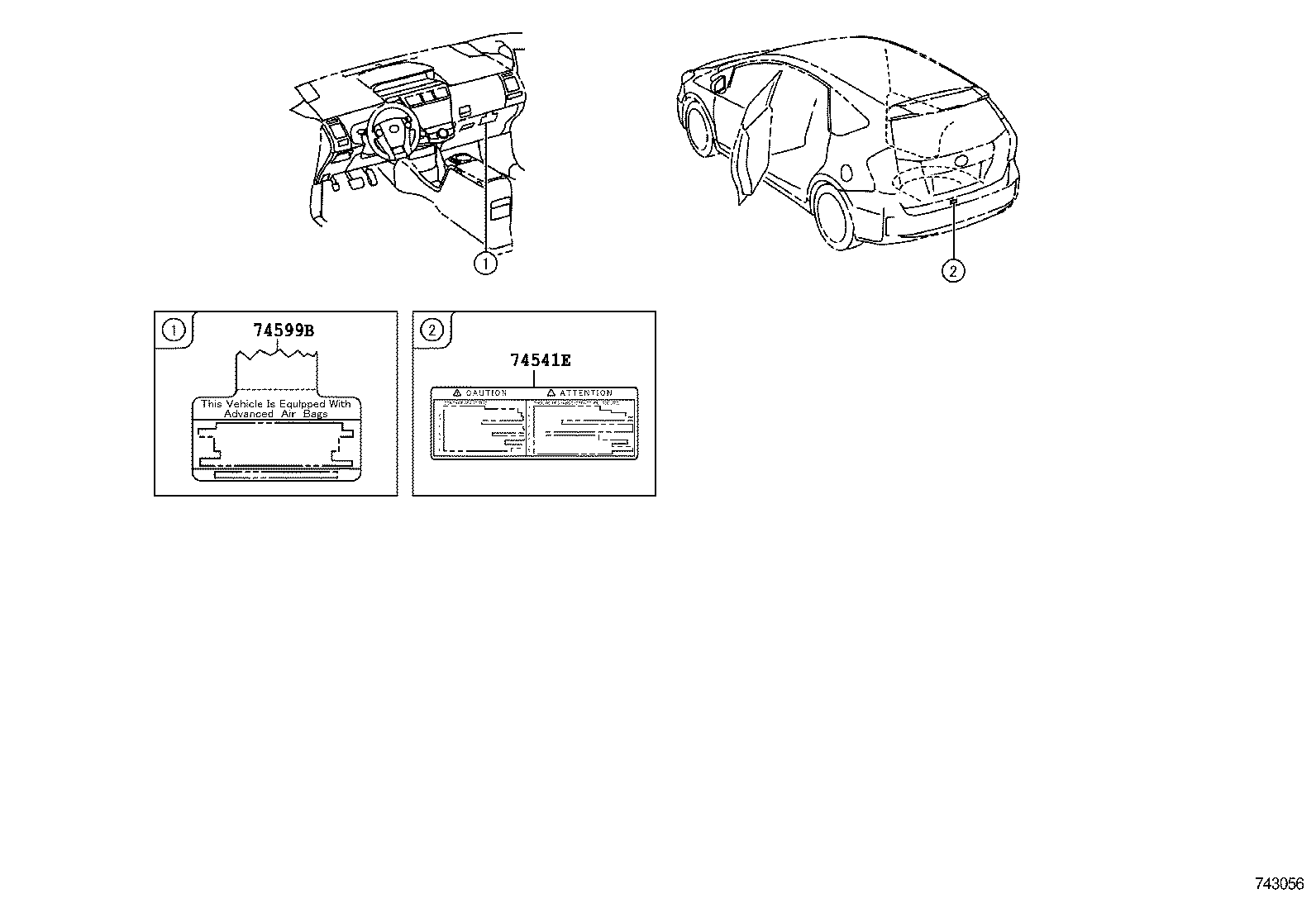

ILLUST NO. 2 OF 2(1109- )

Click highlighted areas on diagram

INTERIOR

diagram 74541E 74599B
Part # Description Qty Price
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-28090

ZVW41

 1
42668-14010

ZVW41

 1
74599B - LABEL, DRIVER & PASSENGER AIR BAG INFORMATION
74599-48020

ZVW41..USA

 1
