ZVW41L-AXXEBA (2011)
Toyota Prius V
Production
Sep 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

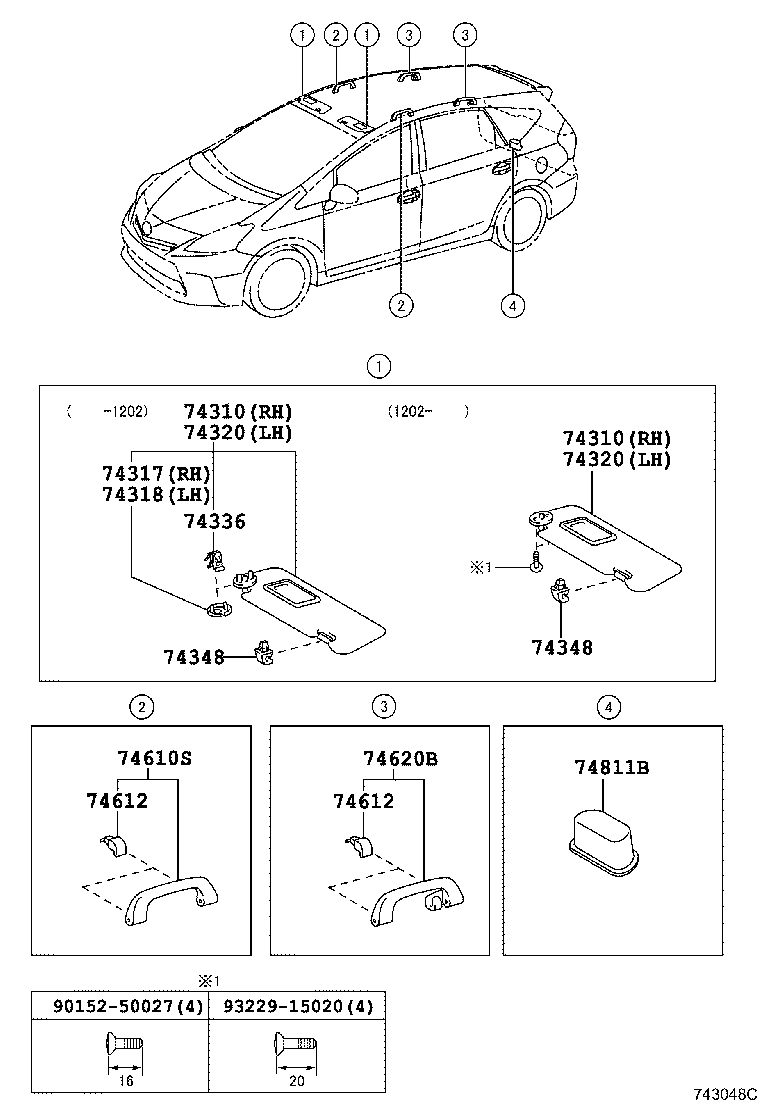

ILLUST NO. 2 OF 2(1109- )
Click highlighted areas on diagram
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-47290B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 74310-47291B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-47290B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 74310-47291B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-47010B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74318-47010B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-47280B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 74320-47281B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-47280B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 74320-47281B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 74336 - CLIP, VISOR ARM SET | ||||
| 74336-47010 |
ZVW41 |
4 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
2 | ||
| 74610S - GRIP ASSY, ASSIST | ||||
| 74610-52020B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
8 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74610-52030B1 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
2 | ||
| 74811B - HANDLE, DOOR PULL | ||||
| 74811-13010C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| Common parts | ||||
| 90152-50027 | ||||
| 93229-15020 | ||||

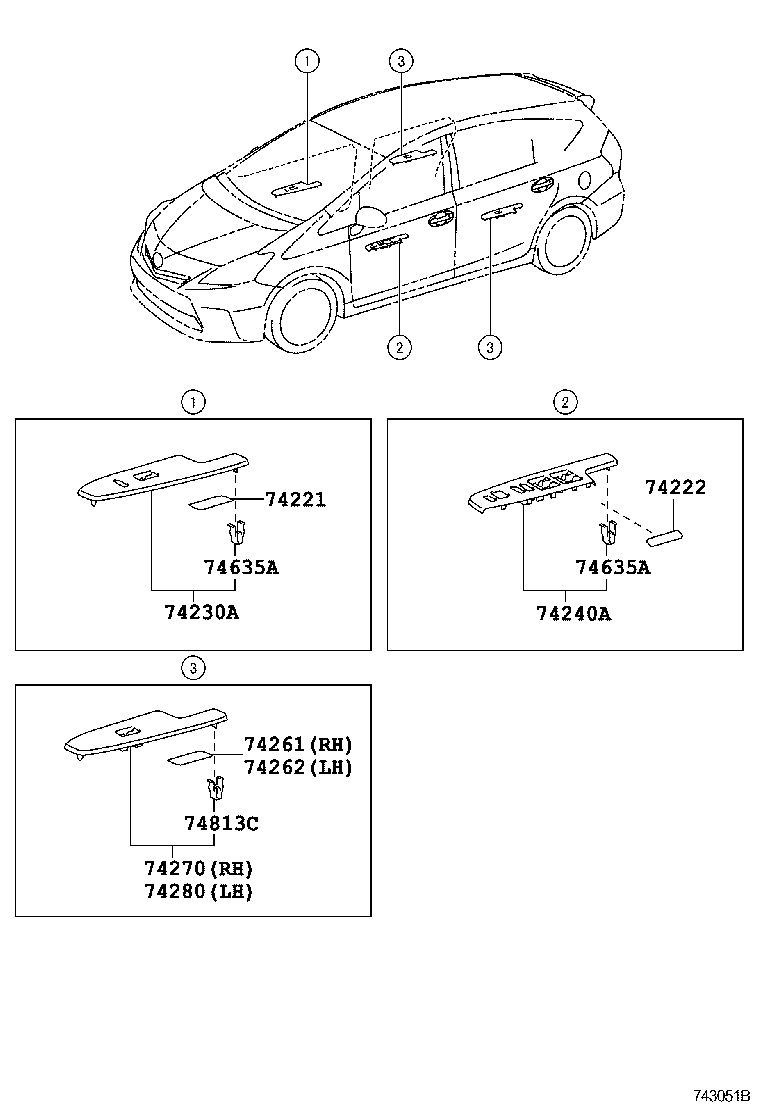

ILLUST NO. 1 OF 2(1109- )
Click highlighted areas on diagram
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74221 - COVER, DOOR ARMREST, RH | ||||
| 74221-47030 |
ZVW41 |
1 | ||
| 74222 - COVER, DOOR ARMREST, LH | ||||
| 74221-47030 |
ZVW41 |
1 | ||
| 74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH | ||||
| 74231-47150 |
ZVW41 |
1 | ||
| 74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH | ||||
| 74232-47120 |
ZVW41 |
1 | ||
| 74261 - COVER, REAR DOOR ARMREST, RH | ||||
| 74221-47030 |
ZVW41 |
1 | ||
| 74262 - COVER, REAR DOOR ARMREST, LH | ||||
| 74221-47030 |
ZVW41 |
1 | ||
| 74270 - PANEL ASSY, REAR DOOR ARMREST BASE, RH | ||||
| 74271-47070 |
ZVW41 |
1 | ||
| 74280 - PANEL ASSY, REAR DOOR ARMREST BASE, LH | ||||
| 74272-47070 |
ZVW41 |
1 | ||
| 74635A - CLIP | ||||
| 90467-12080 |
ZVW41 |
2 | ||
| 74635A - CLIP | ||||
| 90467-12080 |
ZVW41 |
2 | ||
| 74813C - CLIP | ||||
| 90467-12080 |
ZVW41 |
2 | ||
