ZVW41L-AXXEBA (2011)
Toyota Prius V
(1109- )

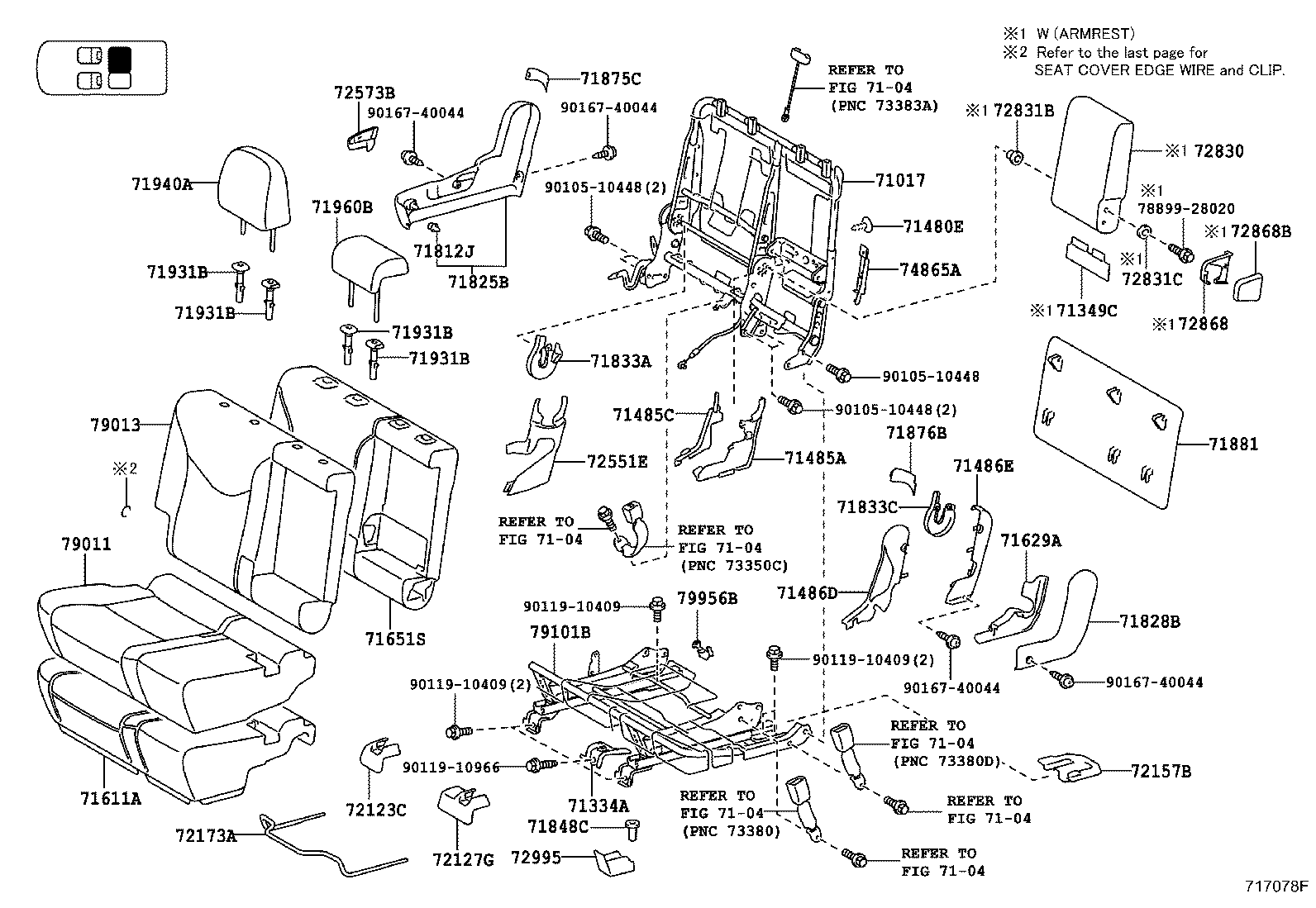

RH SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-47170 |
ZVW41 VALUE PACKAGE |
1 | ||
| 71017-47180 |
ZVW41 |
1 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-47010 |
ZVW41 |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-47020 |
ZVW41 |
1 | ||
| 71480E - CLIP, REAR SEAT BACK, RH | ||||
| 90467-05164C0 |
ZVW41 BLACK |
1 | ||
| 71485A - COVER, REAR SEAT HINGE, NO.2 RH | ||||
| 71485-47020E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71485-47020G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71485-47020B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71485C - COVER, REAR SEAT HINGE, RH | ||||
| 71485-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71485-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71485-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71486D - COVER, REAR SEAT HINGE, RH | ||||
| 71486-47020E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71486-47020G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71486-47020B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71486E - COVER, REAR SEAT HINGE, NO.2 RH | ||||
| 71486-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71486-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71486-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-47040 |
ZVW41 |
1 | ||
| 71629A - COVER, REAR SEAT CUSHION HINGE, RH | ||||
| 71629-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71629-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71629-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-47090 |
ZVW41 VALUE PACKAGE |
1 | ||
| 71651-47100 |
ZVW41 |
1 | ||
| 71812J - CLIP, REAR SEAT COVER | ||||
| 71769-47020 |
ZVW41 |
3 | ||
| 71825B - MOULDING, REAR SEAT CUSHION, RH | ||||
| 71825-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71825-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71825-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71828B - MOULDING, REAR SEAT CUSHION, REAR RH | ||||
| 71828-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71828-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71828-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-47020G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71833-47020B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71833-47020E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71834-47020B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71834-47020G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71834-47020E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71848C - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-68010 |
ZVW41 |
2 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-47050B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71875-47050E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71875-47050G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-47060G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71876-47060B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71876-47060E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71881 - BOARD, REAR SEAT BACK, RH | ||||
| 71881-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71881-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71881-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44020B0 |
ZVW41 W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931-47010E4 |
ZVW41 W/O(LOCK),GREGE,TRIM4# |
3 | ||
| 71931-47010B2 |
ZVW41 W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931-47010G0 |
ZVW41 W/O(LOCK),AQUA,TRIM6# |
3 | ||
| 71930-44020E0 |
ZVW41 W(LOCK),GREGE,TRIM4# |
3 | ||
| 71930-44020G0 |
ZVW41 W(LOCK),AQUA,TRIM6# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44020B0 |
ZVW41 W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931-47010E4 |
ZVW41 W/O(LOCK),GREGE,TRIM4# |
3 | ||
| 71931-47010B2 |
ZVW41 W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931-47010G0 |
ZVW41 W/O(LOCK),AQUA,TRIM6# |
3 | ||
| 71930-44020E0 |
ZVW41 W(LOCK),GREGE,TRIM4# |
3 | ||
| 71930-44020G0 |
ZVW41 W(LOCK),AQUA,TRIM6# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44020B0 |
ZVW41 W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931-47010E4 |
ZVW41 W/O(LOCK),GREGE,TRIM4# |
3 | ||
| 71931-47010B2 |
ZVW41 W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931-47010G0 |
ZVW41 W/O(LOCK),AQUA,TRIM6# |
3 | ||
| 71930-44020E0 |
ZVW41 W(LOCK),GREGE,TRIM4# |
3 | ||
| 71930-44020G0 |
ZVW41 W(LOCK),AQUA,TRIM6# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44020B0 |
ZVW41 W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931-47010E4 |
ZVW41 W/O(LOCK),GREGE,TRIM4# |
3 | ||
| 71931-47010B2 |
ZVW41 W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931-47010G0 |
ZVW41 W/O(LOCK),AQUA,TRIM6# |
3 | ||
| 71930-44020E0 |
ZVW41 W(LOCK),GREGE,TRIM4# |
3 | ||
| 71930-44020G0 |
ZVW41 W(LOCK),AQUA,TRIM6# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-47230E1 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
2 | ||
| 71940-47230G1 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
2 | ||
| 71940-47230B2 |
ZVW41 LUXURY PACKAGE,MD GRAY,TRIM1# |
2 | ||
| 71940-47220B0 |
ZVW41 DK.GRAY,TRIM1# |
2 | ||
| 71940-47230E1 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
2 | ||
| 71940-47220G0 |
ZVW41 AQUA,TRIM6# |
2 | ||
| 71940-47230B1 |
ZVW41 LUXURY PACKAGE,DK.GRAY,TRIM1# |
2 | ||
| 71940-47230G1 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
2 | ||
| 71940-47230G2 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
2 | ||
| 71940-47230B1 |
ZVW41 LX-TOURING PACKAGE,DK.GRAY,TRIM1# |
2 | ||
| 71940-47230E2 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
2 | ||
| 71940-47220E0 |
ZVW41 GREGE,TRIM4# |
2 | ||
| 71940-47230G2 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
2 | ||
| 71940-47230E2 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
2 | ||
| 71940-47230B2 |
ZVW41 LX-TOURING PACKAGE,MD GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-47100B3 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71960-47130B0 |
ZVW41 LX-TOURING PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71960-47130G0 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
1 | ||
| 71960-47130B0 |
ZVW41 LUXURY PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71960-47130E0 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
1 | ||
| 71960-47100G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71960-47100E1 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71960-47130E0 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
1 | ||
| 71960-47130G0 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
1 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-47030C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72127G - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72124-47040C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH | ||||
| 72157-47060C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72173A - HANDLE, REAR SEAT TRACK ADJUSTING, RH | ||||
| 72173-47010 |
ZVW41 |
1 | ||
| 72551E - COVER, RECLINING HINGE, RH | ||||
| 72551-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 72551-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 72551-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 72573B - LEVER, RECLINING CONTROL, RH | ||||
| 72573-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 72573-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 72573-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-47110E1 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 72830-47140G1 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
1 | ||
| 72830-47140B1 |
ZVW41 LUXURY PACKAGE,GRAY,TRIM1# |
1 | ||
| 72830-47110B2 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 72830-47110G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 72830-47140B1 |
ZVW41 LX-TOURING PACKAGE,GRAY,TRIM1# |
1 | ||
| 72830-47140E1 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
1 | ||
| 72830-47140E1 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
1 | ||
| 72830-47140G1 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
1 | ||
| 72831B - PLATE, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72831-47010 |
ZVW41 |
1 | ||
| 72831C - PLATE, REAR SEAT CENTER ARMREST, NO.2 | ||||
| 90206-12035 |
ZVW41 |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-47040B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 72868-47040E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 72868-47040G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 72868-47030B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 72868-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-47030 |
ZVW41 |
1 | ||
| 74865A - COVER, CENTER PROTECTOR | ||||
| 74865-47010 |
ZVW41 |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-47030G2 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 79011-47030E3 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 79011-47040B2 |
ZVW41 LX-TOURING PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 79011-47040E1 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
1 | ||
| 79011-47040G1 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
1 | ||
| 79011-47031B4 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 79011-47040E1 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
1 | ||
| 79011-47031E3 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 79011-47030B4 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 79011-47031G2 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 79011-47032G3 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 79011-47041E2 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
1 | ||
| 79011-47040B2 |
ZVW41 LUXURY PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 79011-47041G2 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
1 | ||
| 79011-47041E2 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
1 | ||
| 79011-47041B3 |
ZVW41 LUXURY PACKAGE,GRAY,TRIM1# |
1 | ||
| 79011-47032B5 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 79011-47032E4 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 79011-47041B3 |
ZVW41 LX-TOURING PACKAGE,GRAY,TRIM1# |
1 | ||
| 79011-47040G1 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
1 | ||
| 79011-47041G2 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-47070G2 |
ZVW41 VALUE PACKAGE,AQUA,TRIM6# |
1 | ||
| 79013-47070B4 |
ZVW41 VALUE PACKAGE,GRAY,TRIM1# |
1 | ||
| 79013-47080E3 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 79013-47090B3 |
ZVW41 LUXURY PACKAGE,GRAY,TRIM1# |
1 | ||
| 79013-47080B5 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 79013-47090E2 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
1 | ||
| 79013-47090B4 |
ZVW41 LUXURY PACKAGE,GRAY,TRIM1# |
1 | ||
| 79013-47090B3 |
ZVW41 LX-TOURING PACKAGE,GRAY,TRIM1# |
1 | ||
| 79013-47070E3 |
ZVW41 VALUE PACKAGE,GREGE,TRIM4# |
1 | ||
| 79013-47080G2 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 79013-47080E4 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 79013-47090G3 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
1 | ||
| 79013-47090B4 |
ZVW41 LX-TOURING PACKAGE,GRAY,TRIM1# |
1 | ||
| 79013-47070G3 |
ZVW41 VALUE PACKAGE,AQUA,TRIM6# |
1 | ||
| 79013-47080B4 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 79013-47090G2 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
1 | ||
| 79013-47090E2 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
1 | ||
| 79013-47080G3 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 79013-47090G2 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
1 | ||
| 79013-47070E4 |
ZVW41 VALUE PACKAGE,GREGE,TRIM4# |
1 | ||
| 79013-47090G3 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
1 | ||
| 79013-47090B5 |
ZVW41 LUXURY PACKAGE,GRAY,TRIM1# |
1 | ||
| 79013-47090E4 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
1 | ||
| 79013-47090B5 |
ZVW41 LX-TOURING PACKAGE,GRAY,TRIM1# |
1 | ||
| 79013-47090E3 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
1 | ||
| 79013-47080E5 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 79013-47090E4 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
1 | ||
| 79013-47070B5 |
ZVW41 VALUE PACKAGE,GRAY,TRIM1# |
1 | ||
| 79013-47090E3 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
1 | ||
| 79013-47080G4 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 79013-47090G4 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
1 | ||
| 79013-47080B6 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 79013-47090G4 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-47010 |
ZVW41 |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79956-47010 |
ZVW41 |
1 | ||
| Common parts | ||||
| 78899-28020 | ||||
| 90105-10448 | ||||
| 90119-10409 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1109- )

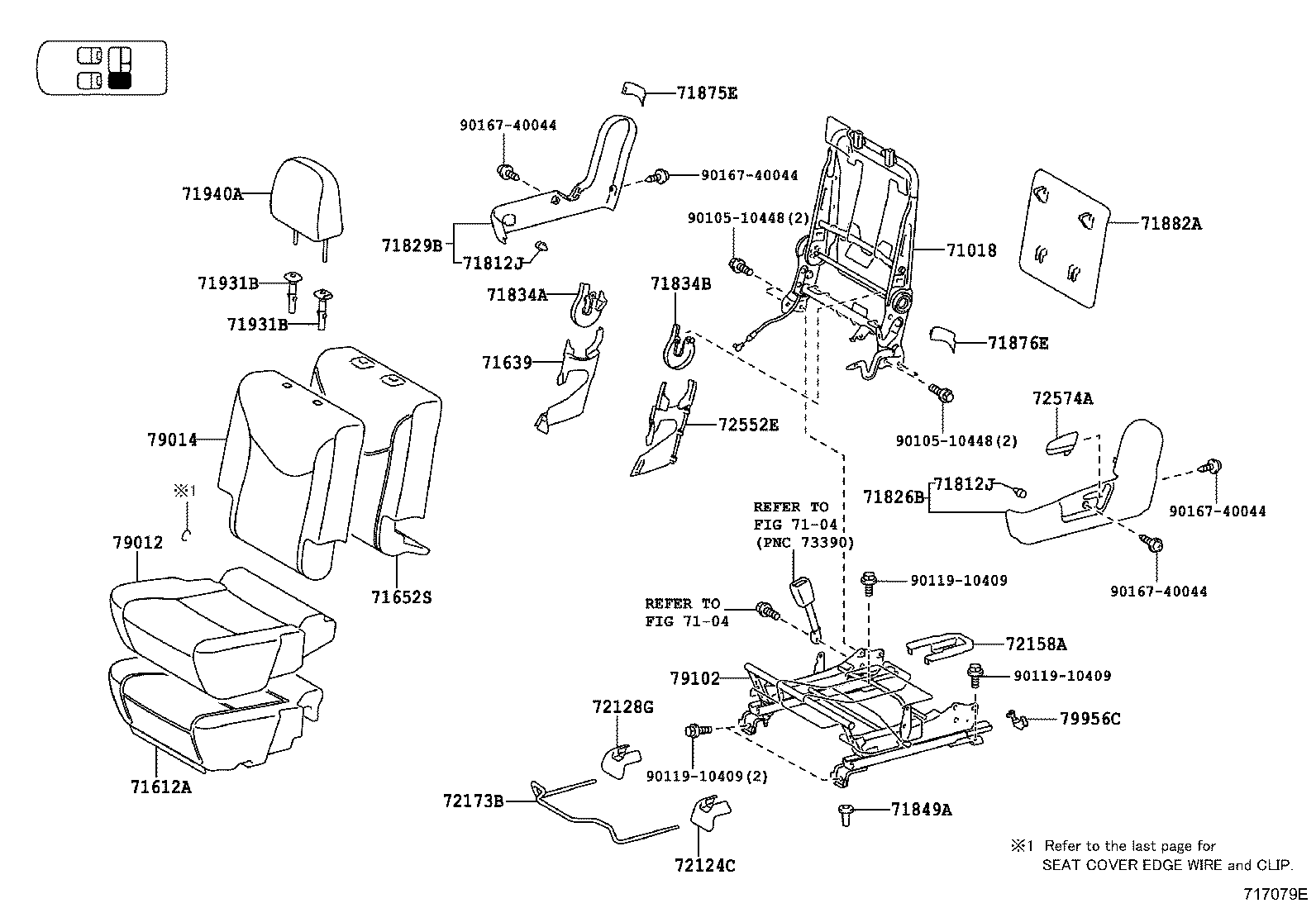

LH SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-47070 |
ZVW41 |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-47010 |
ZVW41 |
1 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71639-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71639-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71639-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-47050 |
ZVW41 |
1 | ||
| 71812J - CLIP, REAR SEAT COVER | ||||
| 71769-47020 |
ZVW41 |
3 | ||
| 71812J - CLIP, REAR SEAT COVER | ||||
| 71769-47020 |
ZVW41 |
3 | ||
| 71826B - MOULDING, REAR SEAT CUSHION, LH | ||||
| 71826-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71826-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71826-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71829B - MOULDING, REAR SEAT CUSHION, REAR LH | ||||
| 71829-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71829-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71829-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71833-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71833-47030B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71833-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71834-47030B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71834-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-68010 |
ZVW41 |
2 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-47050E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71875-47050B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71875-47050G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-47050B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71876-47050E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71876-47050G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71882A - BOARD, REAR SEAT BACK, LH | ||||
| 71882-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71882-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71882-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44020B0 |
ZVW41 W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931-47010E4 |
ZVW41 W/O(LOCK),GREGE,TRIM4# |
3 | ||
| 71931-47010B2 |
ZVW41 W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931-47010G0 |
ZVW41 W/O(LOCK),AQUA,TRIM6# |
3 | ||
| 71930-44020E0 |
ZVW41 W(LOCK),GREGE,TRIM4# |
3 | ||
| 71930-44020G0 |
ZVW41 W(LOCK),AQUA,TRIM6# |
3 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44020B0 |
ZVW41 W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931-47010E4 |
ZVW41 W/O(LOCK),GREGE,TRIM4# |
3 | ||
| 71931-47010B2 |
ZVW41 W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931-47010G0 |
ZVW41 W/O(LOCK),AQUA,TRIM6# |
3 | ||
| 71930-44020E0 |
ZVW41 W(LOCK),GREGE,TRIM4# |
3 | ||
| 71930-44020G0 |
ZVW41 W(LOCK),AQUA,TRIM6# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-47230E1 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
2 | ||
| 71940-47230G1 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
2 | ||
| 71940-47230B2 |
ZVW41 LUXURY PACKAGE,MD GRAY,TRIM1# |
2 | ||
| 71940-47220B0 |
ZVW41 DK.GRAY,TRIM1# |
2 | ||
| 71940-47230E1 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
2 | ||
| 71940-47220G0 |
ZVW41 AQUA,TRIM6# |
2 | ||
| 71940-47230B1 |
ZVW41 LUXURY PACKAGE,DK.GRAY,TRIM1# |
2 | ||
| 71940-47230G1 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
2 | ||
| 71940-47230G2 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
2 | ||
| 71940-47230B1 |
ZVW41 LX-TOURING PACKAGE,DK.GRAY,TRIM1# |
2 | ||
| 71940-47230E2 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
2 | ||
| 71940-47220E0 |
ZVW41 GREGE,TRIM4# |
2 | ||
| 71940-47230G2 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
2 | ||
| 71940-47230E2 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
2 | ||
| 71940-47230B2 |
ZVW41 LX-TOURING PACKAGE,MD GRAY,TRIM1# |
2 | ||
| 72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-47030C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72128G - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-47030C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72158A - COVER, REAR SEAT TRACK BRACKET, INNER LH | ||||
| 72158-47060C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72173B - HANDLE, REAR SEAT TRACK ADJUSTING, LH | ||||
| 72173-47010 |
ZVW41 |
1 | ||
| 72552E - COVER, RECLINING HINGE, LH | ||||
| 72552-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 72552-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 72552-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 72574A - LEVER, RECLINING CONTROL, LH | ||||
| 72574-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 72574-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 72574-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-47030G2 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 79012-47040B2 |
ZVW41 LUXURY PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 79012-47030B4 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 79012-47040E1 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
1 | ||
| 79012-47032E4 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 79012-47030E3 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 79012-47032B5 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 79012-47031G2 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 79012-47040G1 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
1 | ||
| 79012-47040G1 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
1 | ||
| 79012-47031B4 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 79012-47041E2 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
1 | ||
| 79012-47041B3 |
ZVW41 LX-TOURING PACKAGE,GRAY,TRIM1# |
1 | ||
| 79012-47040B2 |
ZVW41 LX-TOURING PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 79012-47041B3 |
ZVW41 LUXURY PACKAGE,GRAY,TRIM1# |
1 | ||
| 79012-47031E3 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 79012-47041E2 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
1 | ||
| 79012-47041G2 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
1 | ||
| 79012-47040E1 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
1 | ||
| 79012-47041G2 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
1 | ||
| 79012-47032G3 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-47050E3 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 79014-47050G2 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 79014-47050B4 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 79014-47060G2 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
1 | ||
| 79014-47060E2 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
1 | ||
| 79014-47060E2 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
1 | ||
| 79014-47050E4 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 79014-47060B3 |
ZVW41 LUXURY PACKAGE,GRAY,TRIM1# |
1 | ||
| 79014-47060B4 |
ZVW41 LX-TOURING PACKAGE,GRAY,TRIM1# |
1 | ||
| 79014-47050G3 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 79014-47050B5 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 79014-47060E3 |
ZVW41 LX-TOURING PACKAGE,GREGE,TRIM4# |
1 | ||
| 79014-47060E3 |
ZVW41 LUXURY PACKAGE,GREGE,TRIM4# |
1 | ||
| 79014-47060B3 |
ZVW41 LX-TOURING PACKAGE,GRAY,TRIM1# |
1 | ||
| 79014-47060G2 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
1 | ||
| 79014-47060G3 |
ZVW41 LX-TOURING PACKAGE,AQUA,TRIM6# |
1 | ||
| 79014-47060G3 |
ZVW41 LUXURY PACKAGE,AQUA,TRIM6# |
1 | ||
| 79014-47060B4 |
ZVW41 LUXURY PACKAGE,GRAY,TRIM1# |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-47010 |
ZVW41 |
1 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-47010 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90105-10448 | ||||
| 90119-10409 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1109-1712)
SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
