ZVW41L-AXXEBA (2011)
Toyota Prius V
(1109- )

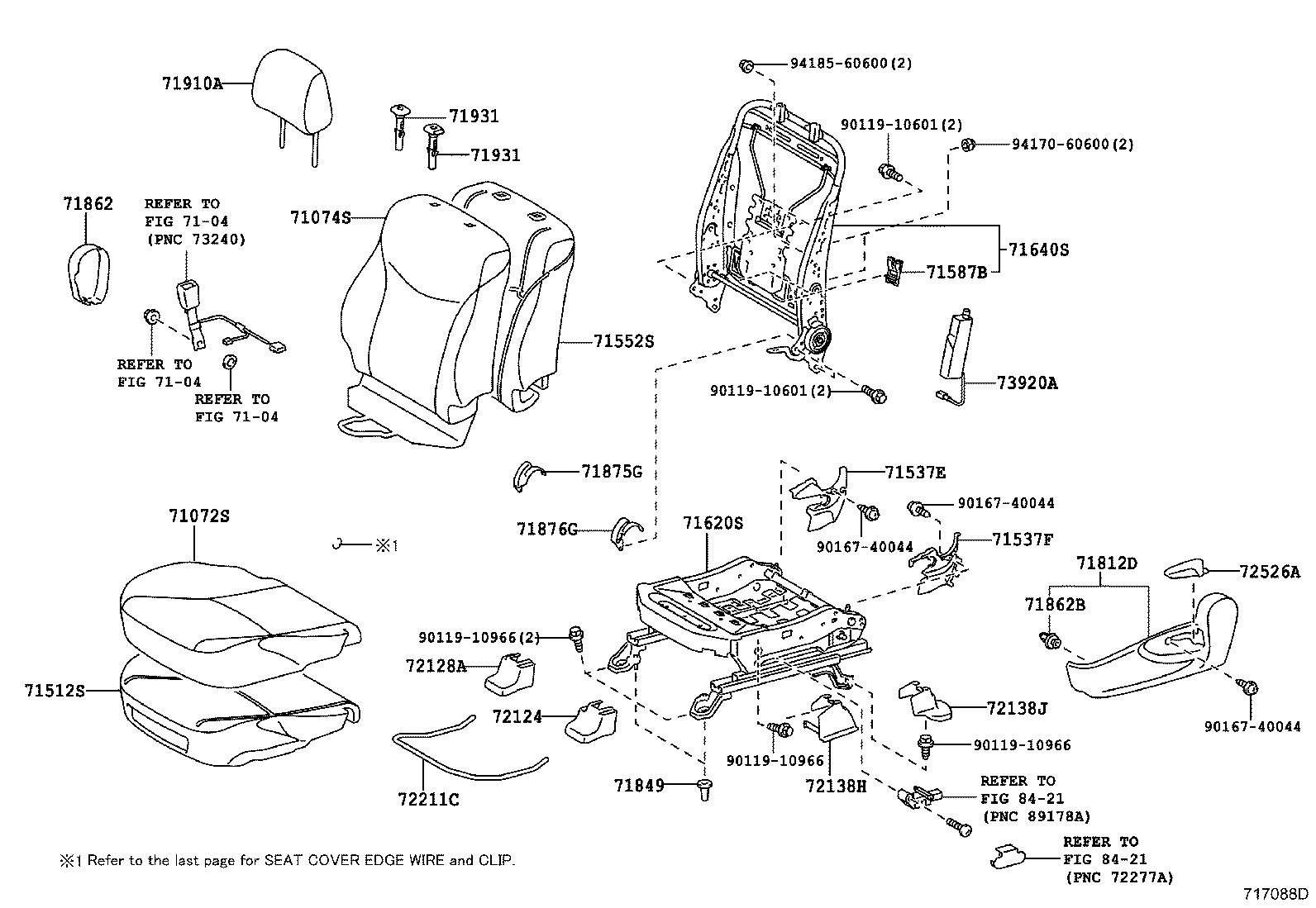

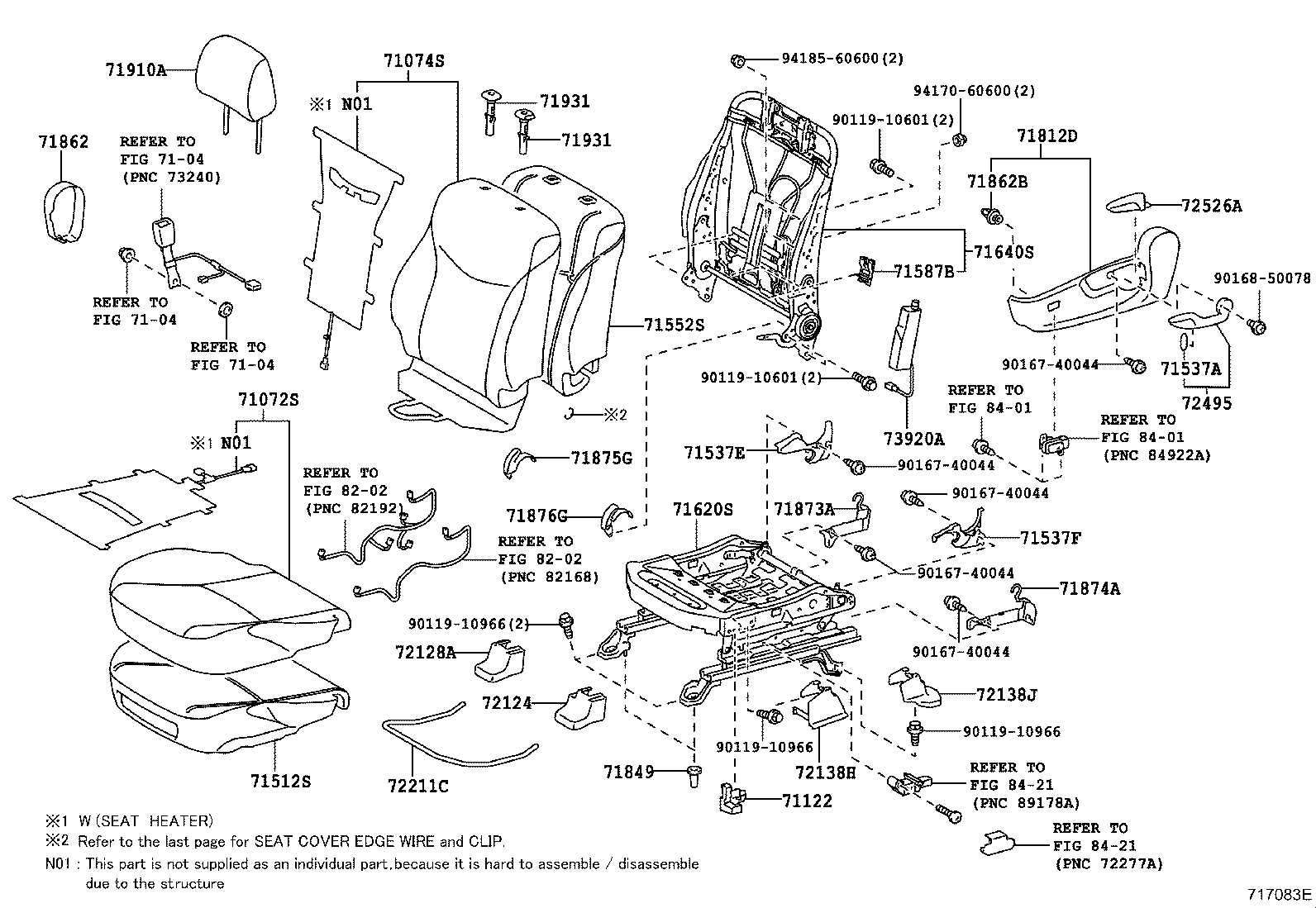

LH SEAT,W(VERTICAL SEAT ADJUSTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-47310E4 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71072-47320G1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47320B1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71072-47310G3 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71072-47320E1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47340G3 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71072-47340B5 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY,TRIM1# |
1 | ||
| 71072-47320B1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71072-47310B6 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71072-47310B5 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71072-47310E5 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71072-47340E5 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71072-47320E1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47320B2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-47340E4 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71072-47320G1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47320G2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47310G4 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71072-47311G4 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71072-47320E2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47320B2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-47340G4 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71072-47311B6 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71072-47341E5 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71072-47311E5 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71072-47340B6 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY,TRIM1# |
1 | ||
| 71072-47320E2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47341B6 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY,TRIM1# |
1 | ||
| 71072-47320G2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47341G4 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-47220B1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71074-47220E1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47210G3 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71074-47230E3 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71074-47220G1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47220G1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47220E1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47210B5 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71074-47220E2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE/GREGE,TRIM4# |
1 | ||
| 71074-47220G2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA/AQUA,TRIM6# |
1 | ||
| 71074-47230G2 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71074-47220B1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71074-47210E4 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71074-47220E2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE/GREGE,TRIM4# |
1 | ||
| 71074-47220G2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA/AQUA,TRIM6# |
1 | ||
| 71074-47211E6 |
ZVW41 GREGE/GREGE,TRIM4# |
1 | ||
| 71074-47220B2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY/GRAY,TRIM1# |
1 | ||
| 71074-47211B7 |
ZVW41 GRAY/MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-47231E5 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE/GREGE,TRIM4# |
1 | ||
| 71074-47212B8 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71074-47212E7 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71074-47211G5 |
ZVW41 AQUA/AQUA,TRIM6# |
1 | ||
| 71074-47220E3 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47212G6 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71074-47220B2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY/GRAY,TRIM1# |
1 | ||
| 71074-47231G4 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA/AQUA,TRIM6# |
1 | ||
| 71074-47230B4 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY,TRIM1# |
1 | ||
| 71074-47231B6 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY/MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-47232B7 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY,TRIM1# |
1 | ||
| 71074-47220G3 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47220E3 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47232E6 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71074-47232G5 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71074-47220G3 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47220B3 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71074-47220B3 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71122 - BRACKET, FRONT SEAT CUSHION, LH | ||||
| 71122-47010 |
ZVW41 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-47090 |
ZVW41 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-47040 |
ZVW41 |
1 | ||
| 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 | ||||
| 71537-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71537-47020E0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71537-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71537-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71537-47020G0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71537-47020B1 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,DK.GRAY,TRIM1# |
1 | ||
| 71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2 | ||||
| 71538-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71538-47020G0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71538-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71538-47020E0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71538-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71538-47020B1 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,DK.GRAY,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-47130 |
ZVW41 |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ZVW41 |
2 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-47111 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY |
1 | ||
| 71620-47091 |
ZVW41 |
1 | ||
| 71620-47110 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY |
1 | ||
| 71620-47090 |
ZVW41 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-47090 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY |
1 | ||
| 71640-47100 |
ZVW41 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-47090E0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71812-47070G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71812-47090G0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71812-47070E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71812-47090B1 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,DK.GRAY,TRIM1# |
1 | ||
| 71812-47070B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
ZVW41 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47070G0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71862-47040E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71862-47040G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71862-47040B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71862-47070E0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71862-47070B1 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,DK.GRAY,TRIM1# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-47020 |
ZVW41 |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-47040 |
ZVW41 |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
ZVW41 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71875-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71875-47030B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71876-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71876-47030B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47170B1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-47170B1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-47170G1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47150E0 |
ZVW41 GREGE,TRIM4# |
2 | ||
| 71910-47170G1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47170E1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47150B0 |
ZVW41 DK.GRAY,TRIM1# |
2 | ||
| 71910-47170E1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47170E2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47170E2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47170G2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47170B2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,MD GRAY,TRIM1# |
2 | ||
| 71910-47170B2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,MD GRAY,TRIM1# |
2 | ||
| 71910-47170G2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47150G0 |
ZVW41 AQUA,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B2 |
ZVW41 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47020E0 |
ZVW41 W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020B2 |
ZVW41 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW41 W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020G0 |
ZVW41 W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW41 W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B2 |
ZVW41 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47020E0 |
ZVW41 W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020B2 |
ZVW41 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW41 W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020G0 |
ZVW41 W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW41 W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-47020C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-47010C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-47050C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-47050C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
ZVW41 |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 72495-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 72495-47010B2 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 72526-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 72526-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-47061 |
ZVW41 |
1 | ||
| 73920-47060 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
(1109- )

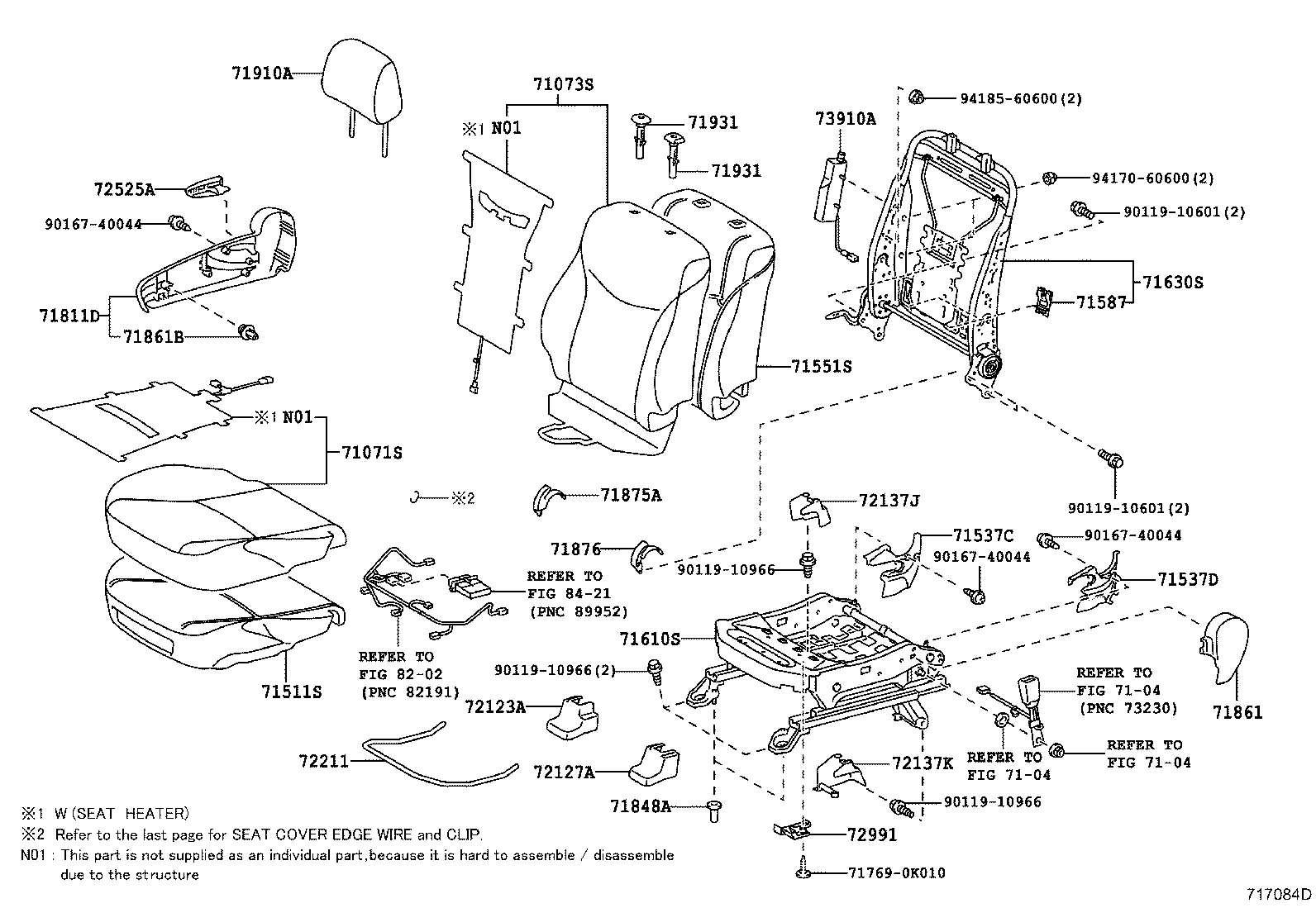

RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-47380B1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71071-47380B1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71071-47370E4 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71071-47380G1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71071-47380G1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71071-47380G2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71071-47380E1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71071-47370G4 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71071-47380B2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-47380E2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71071-47380G2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71071-47380E1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71071-47380B2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-47370G3 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71071-47370B6 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71071-47371B6 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71071-47370E5 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71071-47371E5 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71071-47371G4 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71071-47370B5 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71071-47380E2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-47330B1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-47340B4 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY,TRIM1# |
1 | ||
| 71073-47330E1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71073-47320B5 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71073-47320G3 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71073-47330G1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71073-47320E4 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71073-47330B1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-47330E2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE/GREGE,TRIM4# |
1 | ||
| 71073-47340E3 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71073-47330E1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71073-47330G2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA/AQUA,TRIM6# |
1 | ||
| 71073-47321B7 |
ZVW41 GRAY/MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-47330E2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE/GREGE,TRIM4# |
1 | ||
| 71073-47321E6 |
ZVW41 GREGE/GREGE,TRIM4# |
1 | ||
| 71073-47321G5 |
ZVW41 AQUA/AQUA,TRIM6# |
1 | ||
| 71073-47330B2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY/GRAY,TRIM1# |
1 | ||
| 71073-47330G2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA/AQUA,TRIM6# |
1 | ||
| 71073-47341B6 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY/MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-47340G2 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71073-47330G1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71073-47330B2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY/GRAY,TRIM1# |
1 | ||
| 71073-47330B3 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-47322B8 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71073-47330E3 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71073-47342B7 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY,TRIM1# |
1 | ||
| 71073-47330G3 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71073-47342E6 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71073-47330G3 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71073-47341E5 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE/GREGE,TRIM4# |
1 | ||
| 71073-47330E3 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71073-47330B3 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-47341G4 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA/AQUA,TRIM6# |
1 | ||
| 71073-47322G6 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71073-47342G5 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71073-47322E7 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-47110 |
ZVW41 |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71537-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71537-47030B2 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71538-47030B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71538-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71538-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-47150 |
ZVW41 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ZVW41 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-47130 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71610-47130 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71610-47131 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71610-47121 |
ZVW41 |
1 | ||
| 71610-47131 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71610-47120 |
ZVW41 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-47090 |
ZVW41 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-47080E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71811-47080G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71811-47080B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
ZVW41 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47060G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71861-47060B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71861-47060E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-47020 |
ZVW41 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71875-47030B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71875-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71876-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71876-47030B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47170B1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-47170B1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-47170G1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47150E0 |
ZVW41 GREGE,TRIM4# |
2 | ||
| 71910-47170G1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47170E1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47150B0 |
ZVW41 DK.GRAY,TRIM1# |
2 | ||
| 71910-47170E1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47170E2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47170E2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47170G2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47170B2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,MD GRAY,TRIM1# |
2 | ||
| 71910-47170B2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,MD GRAY,TRIM1# |
2 | ||
| 71910-47170G2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47150G0 |
ZVW41 AQUA,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B2 |
ZVW41 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47020E0 |
ZVW41 W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020B2 |
ZVW41 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW41 W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020G0 |
ZVW41 W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW41 W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B2 |
ZVW41 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47020E0 |
ZVW41 W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020B2 |
ZVW41 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW41 W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020G0 |
ZVW41 W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW41 W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-47020C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-47010C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-47050C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-47050C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
ZVW41 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 72525-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 72525-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-47060 |
ZVW41 |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-47060 |
ZVW41 |
1 | ||
| 73910-47061 |
ZVW41 |
1 | ||
| Common parts | ||||
| 71769-0K010 | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8421 | ||||
(1109- )
LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-47310E4 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71072-47320G1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47320B1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71072-47310G3 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71072-47320E1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47340G3 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71072-47340B5 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY,TRIM1# |
1 | ||
| 71072-47320B1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71072-47310B6 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71072-47310B5 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71072-47310E5 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71072-47340E5 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71072-47320E1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47320B2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-47340E4 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71072-47320G1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47320G2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47310G4 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71072-47311G4 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71072-47320E2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47320B2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71072-47340G4 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71072-47311B6 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71072-47341E5 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71072-47311E5 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71072-47340B6 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY,TRIM1# |
1 | ||
| 71072-47320E2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71072-47341B6 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY,TRIM1# |
1 | ||
| 71072-47320G2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71072-47341G4 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-47220B1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71074-47220E1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47210G3 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71074-47230E3 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71074-47220G1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47220G1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47220E1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47210B5 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71074-47220E2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE/GREGE,TRIM4# |
1 | ||
| 71074-47220G2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA/AQUA,TRIM6# |
1 | ||
| 71074-47230G2 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71074-47220B1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71074-47210E4 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71074-47220E2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE/GREGE,TRIM4# |
1 | ||
| 71074-47220G2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA/AQUA,TRIM6# |
1 | ||
| 71074-47211E6 |
ZVW41 GREGE/GREGE,TRIM4# |
1 | ||
| 71074-47220B2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY/GRAY,TRIM1# |
1 | ||
| 71074-47211B7 |
ZVW41 GRAY/MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-47231E5 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE/GREGE,TRIM4# |
1 | ||
| 71074-47212B8 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 71074-47212E7 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71074-47211G5 |
ZVW41 AQUA/AQUA,TRIM6# |
1 | ||
| 71074-47220E3 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47212G6 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71074-47220B2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY/GRAY,TRIM1# |
1 | ||
| 71074-47231G4 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA/AQUA,TRIM6# |
1 | ||
| 71074-47230B4 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY,TRIM1# |
1 | ||
| 71074-47231B6 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY/MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-47232B7 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GRAY,TRIM1# |
1 | ||
| 71074-47220G3 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47220E3 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-47232E6 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71074-47232G5 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71074-47220G3 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
1 | ||
| 71074-47220B3 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71074-47220B3 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-47090 |
ZVW41 |
1 | ||
| 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 | ||||
| 71537-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71537-47020E0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71537-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71537-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71537-47020G0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71537-47020B1 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,DK.GRAY,TRIM1# |
1 | ||
| 71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2 | ||||
| 71538-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71538-47020G0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71538-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71538-47020E0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71538-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71538-47020B1 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,DK.GRAY,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-47130 |
ZVW41 |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ZVW41 |
2 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-47111 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY |
1 | ||
| 71620-47091 |
ZVW41 |
1 | ||
| 71620-47110 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY |
1 | ||
| 71620-47090 |
ZVW41 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-47090 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY |
1 | ||
| 71640-47100 |
ZVW41 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-47090E0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71812-47070G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71812-47090G0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71812-47070E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71812-47090B1 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,DK.GRAY,TRIM1# |
1 | ||
| 71812-47070B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
ZVW41 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47070G0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,AQUA,TRIM6# |
1 | ||
| 71862-47040E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71862-47040G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71862-47040B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71862-47070E0 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,GREGE,TRIM4# |
1 | ||
| 71862-47070B1 |
ZVW41 VALUE PACKAGE&FRONT SEAT-DRIVER SEAT 4WAY,DK.GRAY,TRIM1# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-47020 |
ZVW41 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71875-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71875-47030B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 71876-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 71876-47030B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47170B1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-47170B1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-47170G1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47150E0 |
ZVW41 GREGE,TRIM4# |
2 | ||
| 71910-47170G1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47170E1 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47150B0 |
ZVW41 DK.GRAY,TRIM1# |
2 | ||
| 71910-47170E1 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47170E2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47170E2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-47170G2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47170B2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,MD GRAY,TRIM1# |
2 | ||
| 71910-47170B2 |
ZVW41 LX-TOURING PACKAGE&SEAT COVER MATERIAL-LEATHER,MD GRAY,TRIM1# |
2 | ||
| 71910-47170G2 |
ZVW41 LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6# |
2 | ||
| 71910-47150G0 |
ZVW41 AQUA,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B2 |
ZVW41 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47020E0 |
ZVW41 W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020B2 |
ZVW41 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW41 W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020G0 |
ZVW41 W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW41 W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B2 |
ZVW41 W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47020E0 |
ZVW41 W(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020B2 |
ZVW41 W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47020E0 |
ZVW41 W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71930-47020G0 |
ZVW41 W(LOCK),AQUA,TRIM6# |
2 | ||
| 71931-47020G0 |
ZVW41 W/O(LOCK),AQUA,TRIM6# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-47020C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-47010C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-47050C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-47050C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
ZVW41 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 72526-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 72526-47010B1 |
ZVW41 DK.GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-47061 |
ZVW41 |
1 | ||
| 73920-47060 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
(1109-1712)
SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
