ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

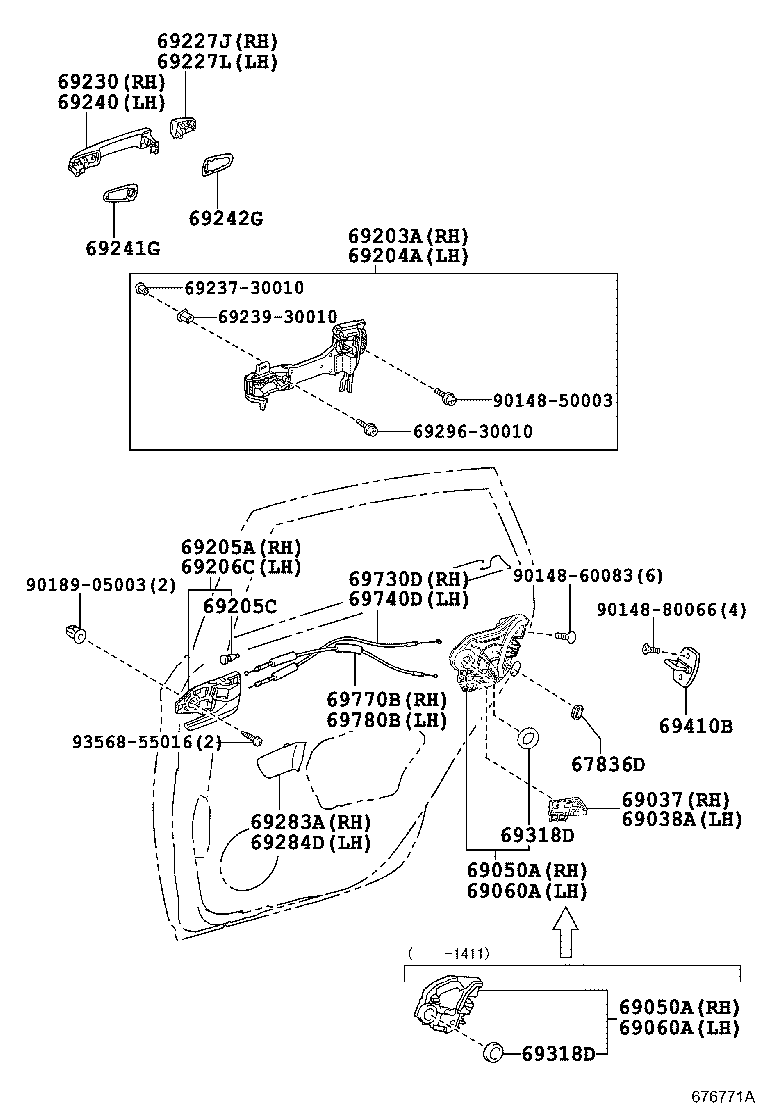

Click highlighted areas on diagram

diagram 67836D 69037 69038A 69050A 69050A 69060A 69060A 69203A 69204A 69205A 69205C 69206C 69227J 69227L 69230 6923730010 6923930010 69240 69241G 69242G 69283A 69284D 6929630010 69318D 69318D 69410B 69730D 69740D 69770B 69780B 9014850003 9014860083 9014880066 9018905003 9356855016
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-12040

ZVW41

 2
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-33120

ZVW41

 1
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-33120

ZVW41

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-33120

ZVW41

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-33120

ZVW41

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-47020

ZVW41

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-47020

ZVW41

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-47050E0

ZVW41

GREGE,TRIM4#

 1
69205-47050G0

ZVW41

AQUA,TRIM6#

 1
69205-47050C0

ZVW41

BLACK,TRIM1#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04027

ZVW41

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-47050G0

ZVW41

AQUA,TRIM6#

 1
69206-47050E0

ZVW41

GREGE,TRIM4#

 1
69206-47050C0

ZVW41

BLACK,TRIM1#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-47010D0

ZVW41

RED M.M.,3R3

 1
69227-47010A1

ZVW41

WHITE PEARL CS.,070

 1
69227-47010B5

ZVW41

GRAY ME.,1G3

 1
69227-47010H3

ZVW41

CLEAR STREAM ME.,787

 1
69227-47010H4

ZVW41

FROSTY GREEN MC.,781

 1
69227-47010A0

ZVW41

SUPER WHITE 2,040

 1
69227-47010J0

ZVW41

DK.BLUE MC.,8T5

 1
69227-47010B0

ZVW41

SILVER ME.,1F7

 1
69227-47010C0

ZVW41

BLACK,202

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-47010A0

ZVW41

SUPER WHITE 2,040

 1
69227-47010A1

ZVW41

WHITE PEARL CS.,070

 1
69227-47010H4

ZVW41

FROSTY GREEN MC.,781

 1
69227-47010C0

ZVW41

BLACK,202

 1
69227-47010H3

ZVW41

CLEAR STREAM ME.,787

 1
69227-47010D0

ZVW41

RED M.M.,3R3

 1
69227-47010J0

ZVW41

DK.BLUE MC.,8T5

 1
69227-47010B5

ZVW41

GRAY ME.,1G3

 1
69227-47010B0

ZVW41

SILVER ME.,1F7

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-74020D0

ZVW41

RED M.M.,3R3

 1
69211-74020H3

ZVW41

CLEAR STREAM ME.,787

 1
69211-74020A1

ZVW41

SUPER WHITE 2,040

 1
69211-74020H4

ZVW41

FROSTY GREEN MC.,781

 1
69211-74020J1

ZVW41

DK.BLUE MC.,8T5

 1
69211-74020A0

ZVW41

WHITE PEARL CS.,070

 1
69211-74020C0

ZVW41

BLACK,202

 1
69211-74020B4

ZVW41

GRAY ME.,1G3

 1
69211-74020B0

ZVW41

SILVER ME.,1F7

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-74020B0

ZVW41

SILVER ME.,1F7

 1
69211-74020A1

ZVW41

SUPER WHITE 2,040

 1
69211-74020D0

ZVW41

RED M.M.,3R3

 1
69211-74020J1

ZVW41

DK.BLUE MC.,8T5

 1
69211-74020H4

ZVW41

FROSTY GREEN MC.,781

 1
69211-74020H3

ZVW41

CLEAR STREAM ME.,787

 1
69211-74020C0

ZVW41

BLACK,202

 1
69211-74020A0

ZVW41

WHITE PEARL CS.,070

 1
69211-74020B4

ZVW41

GRAY ME.,1G3

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-30111

ZVW41

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-47020

ZVW41

 2
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-47010G0

ZVW41

AQUA,TRIM6#

 1
69283-47010B2

ZVW41

DK.GRAY,TRIM1#

 1
69283-47010E0

ZVW41

GREGE,TRIM4#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-47010E0

ZVW41

GREGE,TRIM4#

 1
69284-47010B2

ZVW41

DK.GRAY,TRIM1#

 1
69284-47010G0

ZVW41

AQUA,TRIM6#

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

ZVW41

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

ZVW41

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-33010

ZVW41

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-47040

ZVW41

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-47040

ZVW41

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-47050

ZVW41

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-47050

ZVW41

 1
Common parts
69237-30010
69239-30010
69296-30010
90148-50003
90148-60083
90148-80066
90189-05003
93568-55016
