ZVW41L-AXXEBA (2011)
Toyota Prius V
(1109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58400 - BELT ASSY, LUGGAGE HOLD, NO.1 | ||||
| 58400-47010 |
ZVW41 |
1 | ||
| 58405C - LOCK SUB-ASSY, DECK BOARD | ||||
| 58405-76010E1 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 58405-76010G1 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 58405-76010B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-47020B1 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 58410-47020E2 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 58410-47020G2 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 58411A - BOARD, DECK, NO.1 | ||||
| 58411-47010B1 |
ZVW41 DARK GRAY,TRIM1# |
1 | ||
| 58411-47010E2 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 58411-47010G2 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 58412A - BOARD, DECK, NO.2 | ||||
| 58412-47010B1 |
ZVW41 DARK GRAY,TRIM1# |
1 | ||
| 58412-47010G2 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 58412-47010E2 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 58415E - BOARD, REAR FLOOR, NO.1 | ||||
| 58415-47060G2 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 58415-47060E2 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 58415-47060B1 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZVW41 |
4 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZVW41 |
4 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZVW41 |
4 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZVW41 |
4 | ||
| 58478B - PROTECTOR, DECK BOARD | ||||
| 58478-76010C0 |
ZVW41 BLACK |
1 | ||
| 64342A - CLIP | ||||
| 90467-10161 |
ZVW41 |
4 | ||
| 64712F - COVER, DECK SIDE TRIM, FRONT RH | ||||
| 64712-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 64712-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 64712-47010B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 64713F - COVER, DECK SIDE TRIM, FRONT LH | ||||
| 64712-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 64712-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 64712-47010B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-47050G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 64714-47050E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 64714-47050B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-47050B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 64715-47050G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 64715-47050E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-47070B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 64716-47070G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 64716-47070E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 64718A - COVER, DECK TRIM SERVICE HOLE | ||||
| 55548-60070 |
ZVW41 VALUE PACKAGE |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-47080B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 64730-47080E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 64730-47080G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-09236 |
ZVW41 |
6 | ||
| 90467-09240 |
ZVW41 |
6 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-09236 |
ZVW41 |
6 | ||
| 90467-09240 |
ZVW41 |
6 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-47090B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 64740-47090E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 64740-47090G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-47040E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 64745-47040G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 64745-47040B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 64746-47030B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 64746-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
ZVW41 |
4 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
ZVW41 |
4 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-47080 |
ZVW41 |
1 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-47030B0 |
ZVW41..USA VALUE PACKAGE,LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 64910-47030B0 |
ZVW41 PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT,LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 64910-47031B0 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 64910-47030B0 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 64910-47031B0 |
ZVW41 PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT,LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 64910-47031B0 |
ZVW41..USA VALUE PACKAGE,LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 64938 - HOOK, TONNEAU COVER, A | ||||
| 64938-47040B0 |
ZVW41..USA VALUE PACKAGE,LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 64938-47040B0 |
ZVW41 PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT,LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 64938-47040B0 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 64946 - HOOK, TONNEAU COVER, B | ||||
| 64946-47040B0 |
ZVW41..USA VALUE PACKAGE,LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 64946-47040B0 |
ZVW41 PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT,LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 64946-47040B0 |
ZVW41 LT.GRAY,TRIM1#,4#,6# |
1 | ||
| 64991 - BOX, DECK FLOOR, FRONT | ||||
| 64991-47020 |
ZVW41 |
1 | ||
| 64991-47010 |
ZVW41 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-47060 |
ZVW41 |
1 | ||
| 64995 - BOX, DECK FLOOR, RH | ||||
| 64995-47010 |
ZVW41 |
1 | ||
| 67935A - PLATE, BACK DOOR SCUFF | ||||
| 67935-47010B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 67935-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 67935-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| Common parts | ||||
| 90119-06840 | ||||
| 90183-06030 | ||||
| 91621-60614 | ||||
| 91673-80622 | ||||

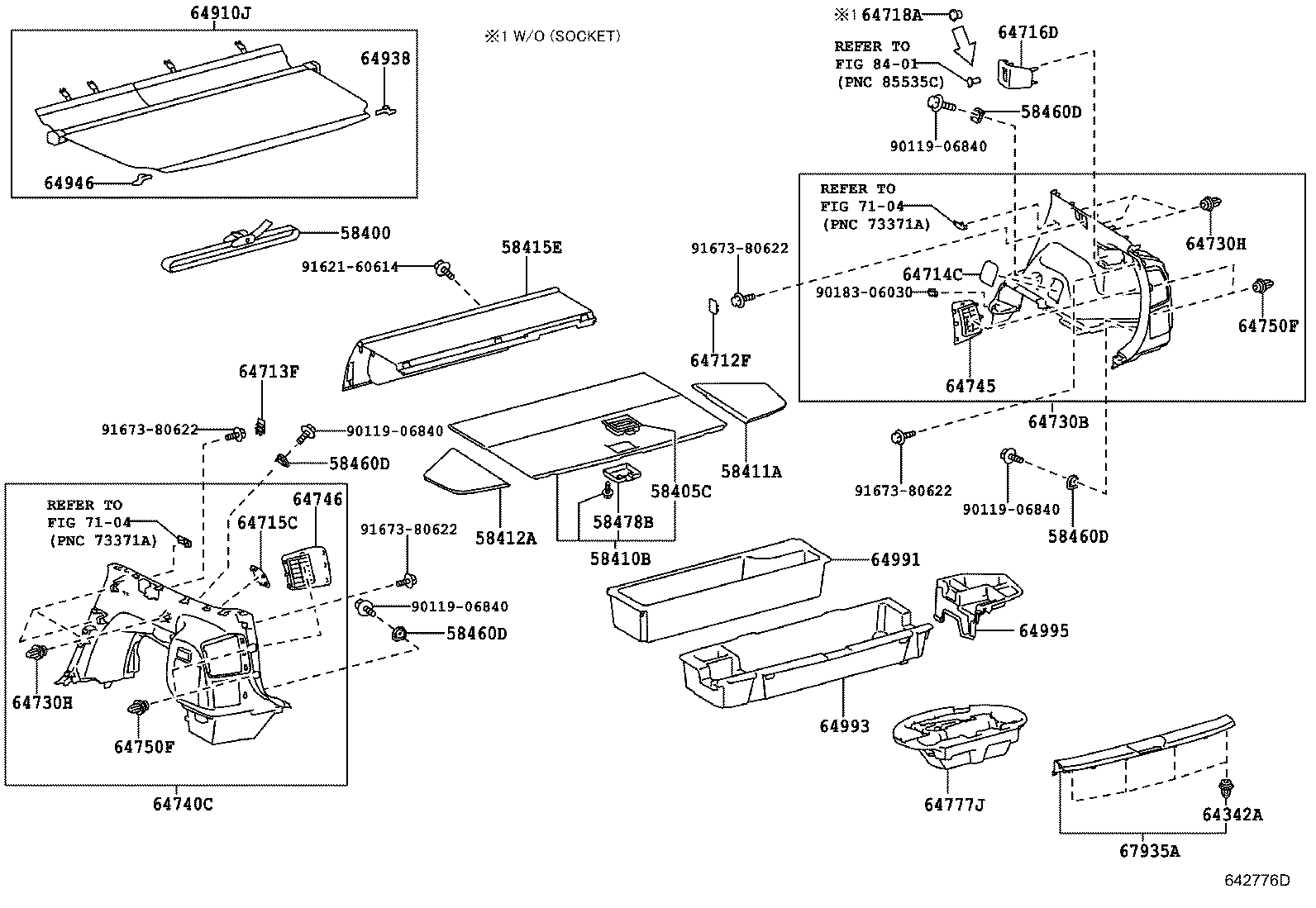

| Linked diagrams | ||||
| 7104 | ||||
| 8401 | ||||
