ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

Click highlighted areas on diagram

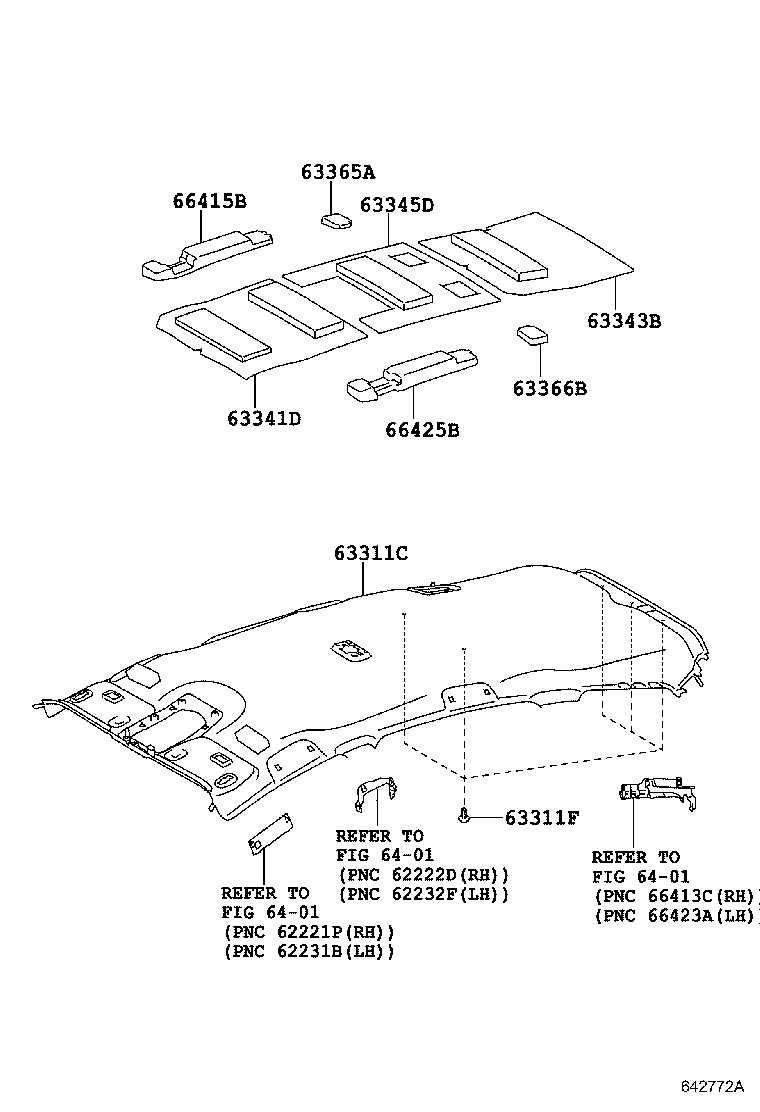

NORMAL ROOF

diagram 63311C 63311F 63341D 63343B 63345D 63365A 63366B 6401 6401 6401 66415B 66425B
Part # Description Qty Price
63311C - HEADLINING, ROOF
63311-47010B0

ZVW41

LT.GRAY,TRIM1#,4#,6#

 1
63321-47011B0

ZVW41

ROOF-PANORAMIC ROOF(FIXED),LT.GRAY,TRIM1#,4#,6#

 1
63311F - CLIP, ROOF HEADLINING, NO.1
90467-05164B0

ZVW41

ROOF-PANORAMIC ROOF(FIXED),LT.GRAY,TRIM1#,4#,6#

 3
90467-05164B0

ZVW41

LT.GRAY,TRIM1#,4#,6#

 5
63341D - PAD, ROOF SILENCER, FRONT
63342-47090

ZVW41

 1
63343B - PAD, ROOF SILENCER, REAR
63344-47020

ZVW41

 1
63345D - PAD, ROOF SILENCER, CENTER
63343-47070

ZVW41

 1
63365A - PLATE, ROOF HEADLINING SET
63365-47040

ZVW41

 1
63366B - PLATE, ROOF HEADLINING SET, LH
63366-47040

ZVW41

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-47020

ZVW41

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-47020

ZVW41

 1
Linked diagrams
6401

(1109- )

Click highlighted areas on diagram

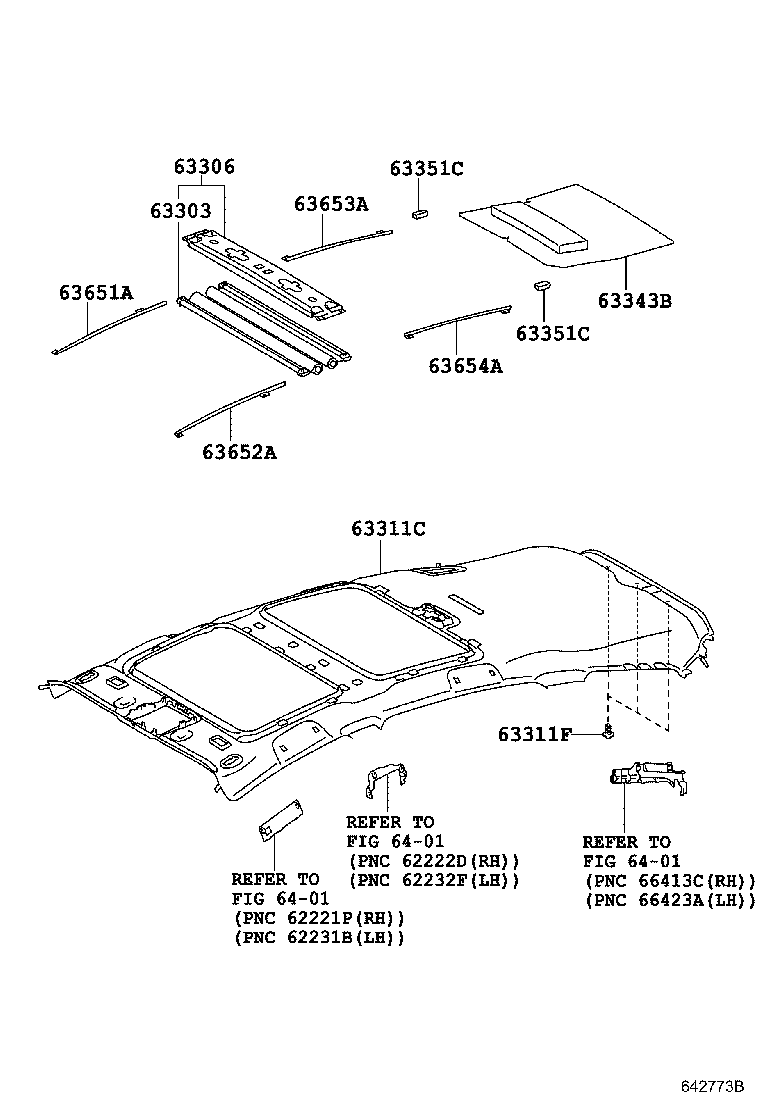

PANORAMIC ROOF

diagram 63303 63306 63311C 63311F 63343B 63351C 63351C 63651A 63652A 63653A 63654A 6401 6401 6401
Part # Description Qty Price
63303 - TRIM SUB-ASSY, SUNSHADE, NO.2
63303-47010

ZVW41

ROOF-PANORAMIC ROOF(FIXED)

 2
63303-47011

ZVW41

ROOF-PANORAMIC ROOF(FIXED)

 2
63306 - TRIM SUB-ASSY, SUNSHADE
63306-47021B1

ZVW41

ROOF-PANORAMIC ROOF(FIXED),LT.GRAY,TRIM1#,4#,6#

 1
63306-47022B1

ZVW41

ROOF-PANORAMIC ROOF(FIXED),LT.GRAY,TRIM1#,4#,6#

 1
63311C - HEADLINING, ROOF
63311-47010B0

ZVW41

LT.GRAY,TRIM1#,4#,6#

 1
63321-47011B0

ZVW41

ROOF-PANORAMIC ROOF(FIXED),LT.GRAY,TRIM1#,4#,6#

 1
63311F - CLIP, ROOF HEADLINING, NO.1
90467-05164B0

ZVW41

ROOF-PANORAMIC ROOF(FIXED),LT.GRAY,TRIM1#,4#,6#

 3
90467-05164B0

ZVW41

LT.GRAY,TRIM1#,4#,6#

 5
63343B - PAD, ROOF SILENCER, REAR
63344-47020

ZVW41

 1
63351C - PAD, ROOF HEADLINING
63351-47040

ZVW41

ROOF-PANORAMIC ROOF(FIXED)

 2
63351C - PAD, ROOF HEADLINING
63351-47040

ZVW41

ROOF-PANORAMIC ROOF(FIXED)

 2
63651A - GARNISH, SUNSHADE, NO.1 RH
63651-47010

ZVW41

ROOF-PANORAMIC ROOF(FIXED)

 1
63652A - GARNISH, SUNSHADE, NO.1 LH
63652-47010

ZVW41

ROOF-PANORAMIC ROOF(FIXED)

 1
63653A - GARNISH, SUNSHADE, NO.2 RH
63653-47010

ZVW41

ROOF-PANORAMIC ROOF(FIXED)

 1
63654A - GARNISH, SUNSHADE, NO.2 LH
63654-47010

ZVW41

ROOF-PANORAMIC ROOF(FIXED)

 1
Linked diagrams
6401
