ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

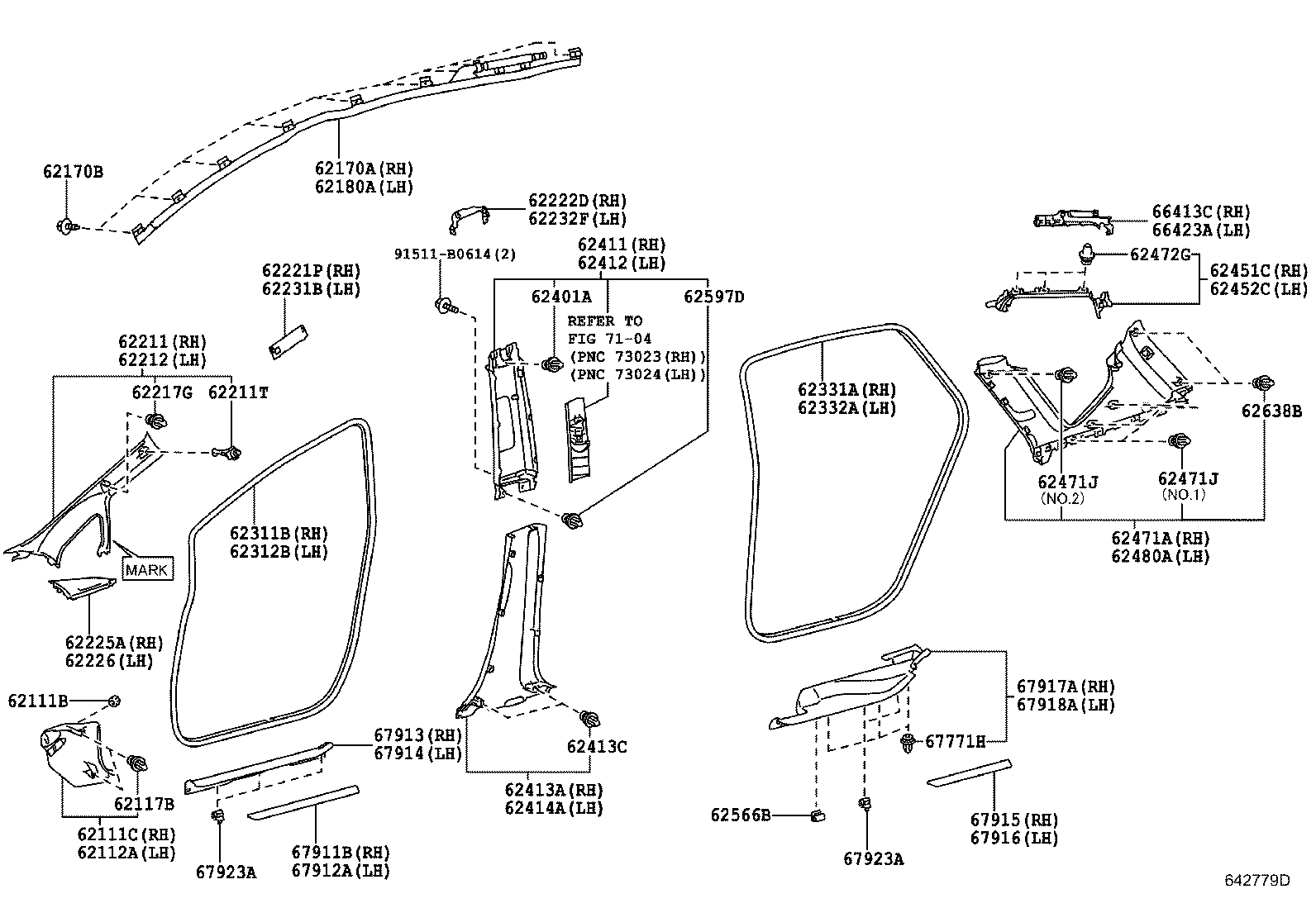

Click highlighted areas on diagram

diagram 62111B 62111C 62112A 62117B 62170A 62170B 62180A 62211 62211T 62212 62217G 62221P 62222D 62225A 62226 62231B 62232F 62311B 62312B 62331A 62332A 62401A 62411 62412 62413A 62413C 62414A 62451C 62452C 62471A 62471J 62471J 62472G 62480A 62566B 62597D 62638B 66413C 66423A 67771H 67911B 67912A 67913 67914 67915 67916 67917A 67918A 67923A 67923A 7104 91511B0614
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90467-06193C0

ZVW41

BLACK

 2
62111C - BOARD, COWL SIDE TRIM, RH
62111-47110B0

ZVW41

MD.GRAY,TRIM1#

 1
62111-47110E0

ZVW41

GREGE,TRIM4#

 1
62111-47110G0

ZVW41

AQUA,TRIM6#

 1
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62112-47150B0

ZVW41

MD.GRAY,TRIM1#

 1
62112-47150E0

ZVW41

GREGE,TRIM4#

 1
62112-47150G0

ZVW41

AQUA,TRIM6#

 1
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-10167

ZVW41

 4
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-47040

ZVW41

 1
62170B - BOLT, W/WASHER
90119-06869

ZVW41

 18
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-47040

ZVW41

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-47130B0

ZVW41

LUXURY PACKAGE,LT. GRAY,TRIM1#,4#,6#

 1
62211-47130B0

ZVW41

LX-TOURING PACKAGE,LT. GRAY,TRIM1#,4#,6#

 1
62211-47120B0

ZVW41

LT.GRAY,TRIM1#,4#,6#

 1
62211-47131B0

ZVW41

LX-TOURING PACKAGE,LT. GRAY,TRIM1#,4#,6#

 1
62211-47131B0

ZVW41

LUXURY PACKAGE,LT. GRAY,TRIM1#,4#,6#

 1
62211T - CLIP(FOR FRONT PILLAR GARNISH)
62217-52070

ZVW41

 2
62212 - GARNISH, FRONT PILLAR, LH
62212-47130B0

ZVW41

LX-TOURING PACKAGE,LT. GRAY,TRIM1#,4#,6#

 1
62212-47130B0

ZVW41

LUXURY PACKAGE,LT. GRAY,TRIM1#,4#,6#

 1
62212-47120B0

ZVW41

LT.GRAY,TRIM1#,4#,6#

 1
62212-47131B0

ZVW41

LX-TOURING PACKAGE,LT. GRAY,TRIM1#,4#,6#

 1
62212-47131B0

ZVW41

LUXURY PACKAGE,LT. GRAY,TRIM1#,4#,6#

 1
62217G - CLIP, FRONT PILLAR GARNISH
90467-10161

ZVW41

 2
62221P - SPACER, FRONT PILLAR, NO.1 RH
62221-47060

ZVW41

 1
62222D - SPACER, FRONT PILLAR, NO.2 RH
62222-47050

ZVW41

 1
62225A - GARNISH, FRONT PILLAR, LOWER RH
62225-47010C0

ZVW41

BLACK,TRIM1#,4#,6#

 1
62226 - GARNISH, FRONT PILLAR, LOWER LH
62226-47010C0

ZVW41

BLACK,TRIM1#,4#,6#

 1
62231B - SPACER, FRONT PILLAR, NO.1 LH
62231-47010

ZVW41

 1
62232F - SPACER, FRONT PILLAR, NO.2 LH
62232-47010

ZVW41

 1
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-47040B1

ZVW41

MD.GRAY,TRIM1#

 1
62311-47040B0

ZVW41

LT.GRAY,TRIM4#,6#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-47040B1

ZVW41

MD.GRAY,TRIM1#

 1
62312-47040B0

ZVW41

LT.GRAY,TRIM4#,6#

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-47040B1

ZVW41

MD.GRAY,TRIM1#

 1
62331-47040B0

ZVW41

LT.GRAY,TRIM4#,6#

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-47040B0

ZVW41

LT.GRAY,TRIM4#,6#

 1
62332-47040B1

ZVW41

MD.GRAY,TRIM1#

 1
62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
90467-10167

ZVW41

 2
62411 - GARNISH, CENTER PILLAR, RH
62410-47090B0

ZVW41

LT.GRAY,TRIM1#,4#,6#

 1
62410-47091B0

ZVW41

LT.GRAY,TRIM1#,4#,6#

 1
62412 - GARNISH, CENTER PILLAR, LH
62420-47090B0

ZVW41

LT.GRAY,TRIM1#,4#,6#

 1
62420-47091B0

ZVW41

LT.GRAY,TRIM1#,4#,6#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-47060G0

ZVW41

AQUA,TRIM6#

 1
62413-47060B0

ZVW41

MD.GRAY,TRIM1#

 1
62413-47060E0

ZVW41

GREGE,TRIM4#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

ZVW41

 4
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-47060E0

ZVW41

GREGE,TRIM4#

 1
62414-47060B0

ZVW41

MD.GRAY,TRIM1#

 1
62414-47060G0

ZVW41

AQUA,TRIM6#

 1
62451C - GARNISH, ROOF SIDE RAIL, REAR RH
62450-47010B0

ZVW41

LT.GRAY,TRIM1#,4#,6#

 1
62452C - GARNISH, ROOF SIDE RAIL, REAR LH
62460-47010B0

ZVW41

LT.GRAY,TRIM1#,4#,6#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-47090B0

ZVW41

LT.GRAY,TRIM1#,4#,6#

 1
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-09236

ZVW41

NO.1 & NO.2

 10
90467-09240

ZVW41

NO.1

 8
90467-09240

ZVW41

NO.1

 6
90467-09240

ZVW41

NO.1 & NO.2

 10
90467-09236

ZVW41

NO.2

 2
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-09236

ZVW41

NO.1 & NO.2

 10
90467-09240

ZVW41

NO.1

 8
90467-09240

ZVW41

NO.1

 6
90467-09240

ZVW41

NO.1 & NO.2

 10
90467-09236

ZVW41

NO.2

 2
62472G - CLIP(FOR ROOF SIDE GARNISH)
90467-09236

ZVW41

 6
90467-09240

ZVW41

 6
62480A - GARNISH ASSY, ROOF SIDE, INNER LH
62472-47090B0

ZVW41

LT.GRAY,TRIM1#,4#,6#

 1
62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62566-32010

ZVW41

 2
62597D - CLIP
90467-10161

ZVW41

 2
62638B - CLIP
90467-10161

ZVW41

 4
66413C - SPACER, SIDE RAIL, FRONT RH
66413-47040

ZVW41

 1
66423A - SPACER, SIDE RAIL, FRONT LH
66423-47040

ZVW41

 1
67771H - RETAINER, DOOR TRIM
67771-26240

ZVW41

 6
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-47050

ZVW41

 1
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67911-47050

ZVW41

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-47060E0

ZVW41

GREGE,TRIM4#

 1
67913-47060G0

ZVW41

AQUA,TRIM6#

 1
67913-47060B0

ZVW41

MD.GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-47060B0

ZVW41

MD.GRAY,TRIM1#

 1
67914-47060G0

ZVW41

AQUA,TRIM6#

 1
67914-47060E0

ZVW41

GREGE,TRIM4#

 1
67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67915-47050

ZVW41

 1
67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67915-47050

ZVW41

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-47060G0

ZVW41

AQUA,TRIM6#

 1
67917-47060B0

ZVW41

MD.GRAY,TRIM1#

 1
67917-47060E0

ZVW41

GREGE,TRIM4#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-47060G0

ZVW41

AQUA,TRIM6#

 1
67918-47060B0

ZVW41

MD.GRAY,TRIM1#

 1
67918-47060E0

ZVW41

GREGE,TRIM4#

 1
67923A - CLAMP, DOOR SCUFF PLATE, NO.1
67923-47060

ZVW41

 10
67923A - CLAMP, DOOR SCUFF PLATE, NO.1
67923-47060

ZVW41

 10
Common parts
91511-B0614
Linked diagrams
7104
