ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

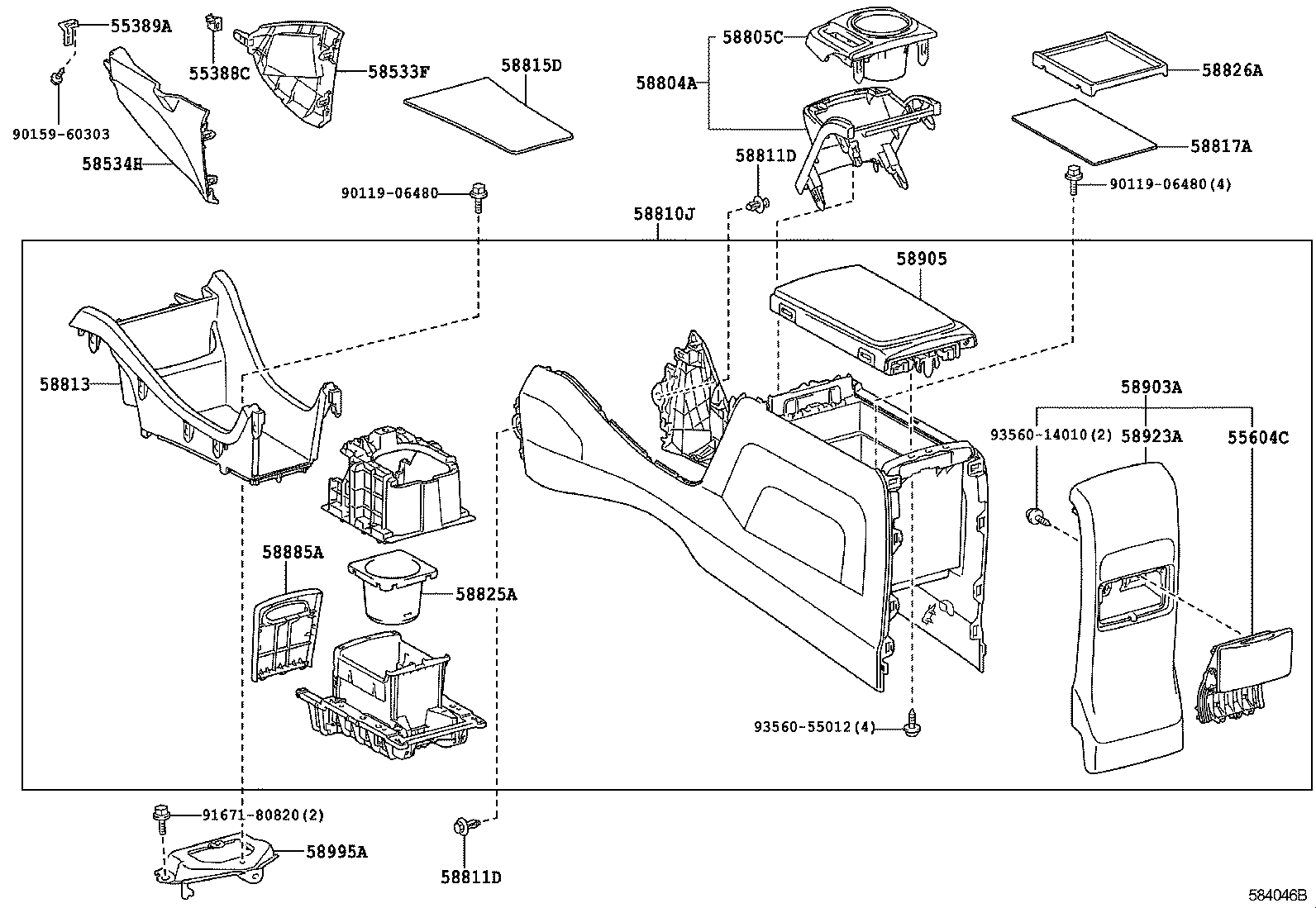

Click highlighted areas on diagram

diagram 55388C 55389A 55604C 58533F 58534H 58804A 58805C 58810J 58811D 58811D 58813 58815D 58817A 58825A 58826A 58885A 58903A 58905 58923A 58995A 9011906480 9011906480 9015960303 9167180820 9356014010 9356055012
Part # Description Qty Price
55388C - BRACKET, CONSOLE MOUNTING, RH
55388-42010

ZVW41

 1
55389A - BRACKET, CONSOLE MOUNTING, LH
55389-12040

ZVW41

 1
55604C - HOLDER SUB-ASSY, CONSOLE BOX CUP
55604-47010G0

ZVW41

AQUA,TRIM6#

 1
55604-47010E0

ZVW41

GREGE,TRIM4#

 1
55604-47010B0

ZVW41

MD.GRAY,TRIM1#

 1
58533F - COVER, FLOOR CARPET, CENTER RH
58533-47020E0

ZVW41

GREGE,TRIM4#

 1
58533-47020B0

ZVW41

MD.GRAY,TRIM1#

 1
58533-47020G0

ZVW41

AQUA,TRIM6#

 1
58534H - COVER, FLOOR CARPET, CENTER LH
58534-47020E0

ZVW41

GREGE,TRIM4#

 1
58534-47020B0

ZVW41

MD.GRAY,TRIM1#

 1
58534-47020G0

ZVW41

AQUA,TRIM6#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-47040G0

ZVW41

AQUA,TRIM6#

 1
58804-47040B0

ZVW41

MD.GRAY,TRIM1#

 1
58804-47040E0

ZVW41

GREGE,TRIM4#

 1
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-47020

ZVW41

 1
58810J - BOX ASSY, CONSOLE
58810-47050B0

ZVW41

MD.GRAY/GRAY,TRIM1#

 1
58810-47050E0

ZVW41

GREGE/GRAY,TRIM4#

 1
58810-47050G0

ZVW41

AQUA/GRAY,TRIM6#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-07164

ZVW41

 2
58811D - CLIP(FOR CONSOLE BOX)
90467-07164

ZVW41

 2
58813 - BOX, CONSOLE, UPPER
58813-47010G0

ZVW41

AQUA,TRIM6#

 1
58813-47010B0

ZVW41

MD.GRAY,TRIM1#

 1
58813-47010E0

ZVW41

GREGE,TRIM4#

 1
58815D - SHEET, CONSOLE BOX, NO.1
58816-47030C0

ZVW41

BLACK,TRIM1#,4#,6#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-47040C0

ZVW41

BLACK,TRIM1#,4#,6#

 1
58825A - POCKET, CONSOLE BOX
58825-47030

ZVW41

 1
58826A - POCKET, CONSOLE BOX, LOWER
58826-47010

ZVW41

 1
58885A - PANEL, EQUIPMENT SET
58885-47010G0

ZVW41

AQUA,TRIM6#

 1
58885-47010B0

ZVW41

MD.GRAY,TRIM1#

 1
58885-47010E0

ZVW41

GREGE,TRIM4#

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-47030B0

ZVW41

MD.GRAY,TRIM1#

 1
58903-47030E0

ZVW41

GREGE,TRIM4#

 1
58903-47030G0

ZVW41

AQUA,TRIM6#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-47101G0

ZVW41

AQUA,TRIM6#

 1
58905-47101E0

ZVW41

GREGE,TRIM4#

 1
58905-47101B3

ZVW41

MD.GRAY,TRIM1#

 1
58923A - PANEL, CONSOLE REAR END
58923-47050B0

ZVW41

MD.GRAY,TRIM1#

 1
58923-47050G0

ZVW41

AQUA,TRIM6#

 1
58923-47050E0

ZVW41

GREGE,TRIM4#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-47040

ZVW41

 1
Common parts
90119-06480
90159-60303
91671-80820
93560-14010
93560-55012
