ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

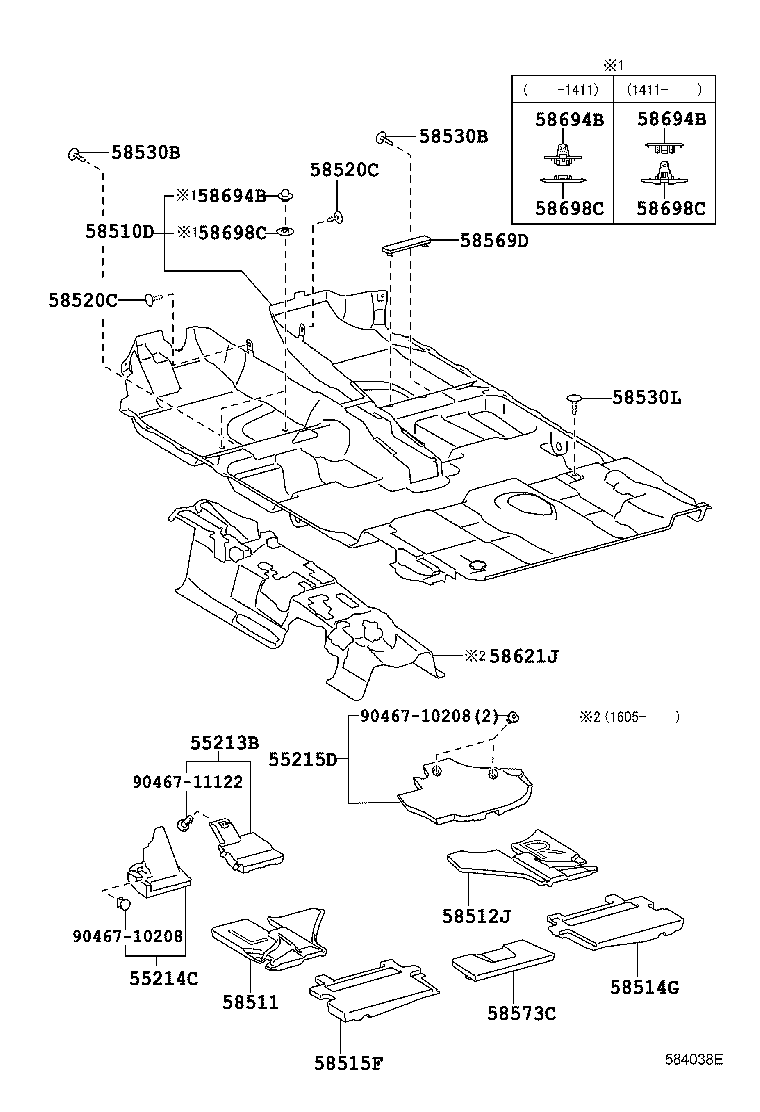

Click highlighted areas on diagram

diagram 55213B 55214C 55215D 58510D 58511 58512J 58514G 58515F 58520C 58520C 58530B 58530B 58530L 58569D 58573C 58621J 58694B 58694B 58694B 58698C 58698C 58698C 9046710208 9046710208 9046711122
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-21040

ZVW41

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-47030

ZVW41

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-47050

ZVW41

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-47381B1

ZVW41

DK. GREY,TRIM1#,4#,6#

 1
58510-47382B1

ZVW41

DK. GREY,TRIM1#,4#,6#

 1
58511 - MAT, FLOOR, FRONT
58511-12620

ZVW41

 1
58511-12621

ZVW41

 1
58512J - MAT, FLOOR, NO.2
58512-12200

ZVW41

 1
58512-12201

ZVW41

 1
58514G - MAT, FLOOR, REAR RH
58514-47010

ZVW41

 1
58515F - MAT, FLOOR, REAR LH
58515-47010

ZVW41

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-05164B2

ZVW41

DK.GRAY

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-05164B2

ZVW41

DK.GRAY

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-07049B7

ZVW41

DK.GRAY

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-07049B7

ZVW41

DK.GRAY

 2
58530L - CLIP, FLOOR CARPET, CENTER
90467-06020C0

ZVW41

BLACK

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-12010C0

ZVW41

BLACK,TRIM1#,4#,6#

 1
58573C - PAD, FRONT FLOOR CENTER
58573-47020

ZVW41

 1
58694B - PLATE, MAT SET, UPPER
58694-76010

ZVW41

 2
58694B - PLATE, MAT SET, UPPER
58694-76010

ZVW41

 2
58694B - PLATE, MAT SET, UPPER
58694-76010

ZVW41

 2
58698C - PLATE, MAT SET, LOWER
58698-76010

ZVW41

 2
58698C - PLATE, MAT SET, LOWER
58698-76010

ZVW41

 2
58698C - PLATE, MAT SET, LOWER
58698-76010

ZVW41

 2
Common parts
90467-10208
90467-11122
