ZVW41L-AXXEBA (2011)
Toyota Prius V
Production
Sep 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1109- )

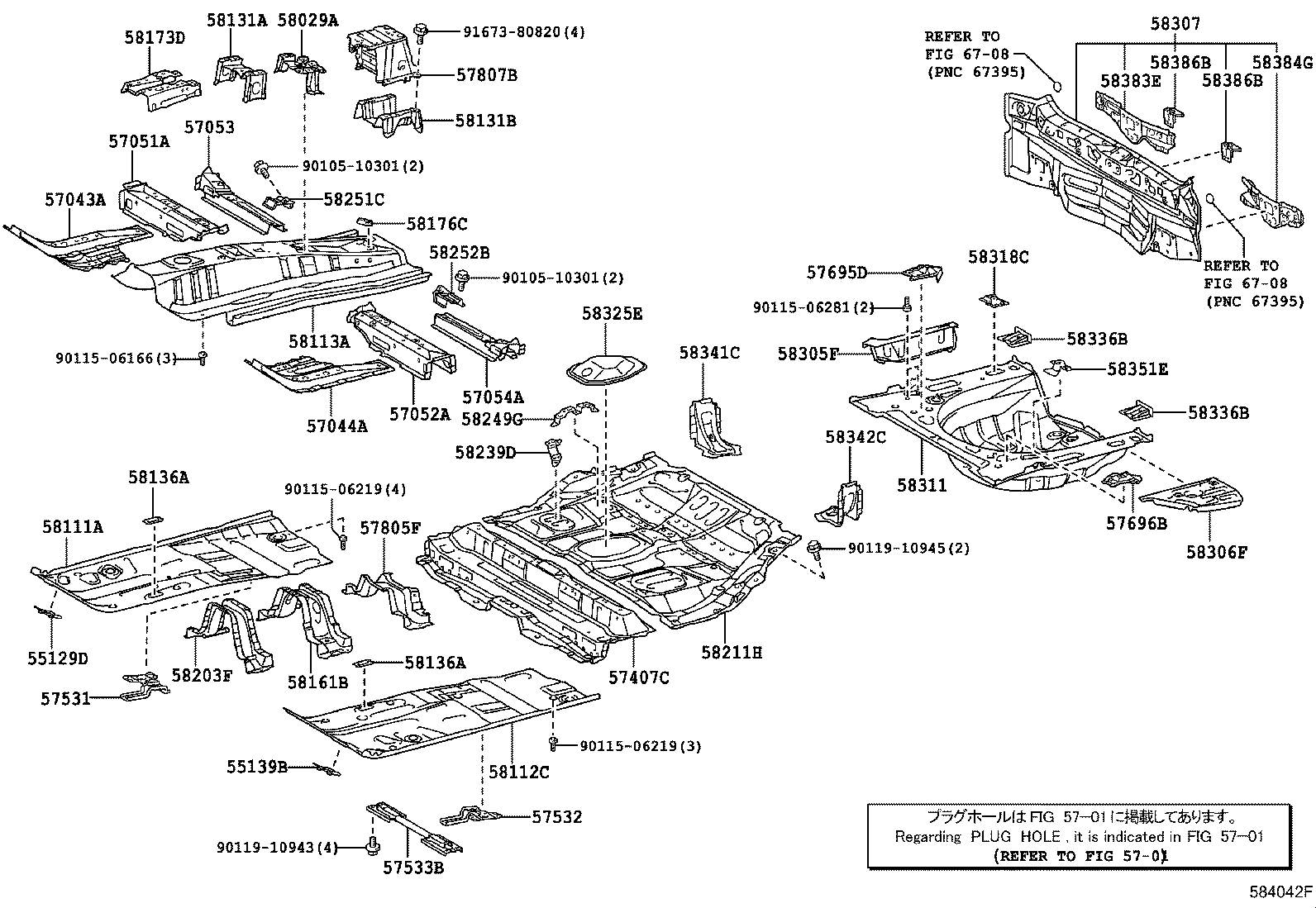

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55129D - COVER, DASH PANEL HOLE, RH | ||||
| 55129-12040 |
ZVW41 |
1 | ||
| 55139B - COVER, DASH PANEL HOLE, LH | ||||
| 55139-12050 |
ZVW41 |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-12020 |
ZVW41 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-12020 |
ZVW41 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-12060 |
ZVW41 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-12010 |
ZVW41 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-12010 |
ZVW41 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-12010 |
ZVW41 |
1 | ||
| 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-47011 |
ZVW41 |
1 | ||
| 57407-47010 |
ZVW41 |
1 | ||
| 57531 - BRACKET, FRONT FLOOR CENTER BRACE, RH | ||||
| 57531-12010 |
ZVW41 |
1 | ||
| 57532 - BRACKET, FRONT FLOOR CENTER BRACE, LH | ||||
| 57532-12010 |
ZVW41 |
1 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57501-12020 |
ZVW41 |
1 | ||
| 57695D - BRACKET, REAR FLOOR MOUNTING, NO.2 RH | ||||
| 57695-47030 |
ZVW41 |
1 | ||
| 57696B - BRACKET, REAR FLOOR MOUNTING, NO.2 LH | ||||
| 57696-47030 |
ZVW41 |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-47031 |
ZVW41 |
1 | ||
| 57805-47030 |
ZVW41 |
1 | ||
| 57807B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2 | ||||
| 57807-47020 |
ZVW41 |
1 | ||
| 58029A - BRACKET SUB-ASSY, PARKING BRAKE WIRE CLAMP | ||||
| 58029-47010 |
ZVW41 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-47906 |
ZVW41 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-72901 |
ZVW41 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-47902 |
ZVW41 |
1 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58137-47010 |
ZVW41 |
1 | ||
| 58131B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2 | ||||
| 58157-47010 |
ZVW41 |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12040 |
ZVW41 |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12040 |
ZVW41 |
2 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-47030 |
ZVW41 |
1 | ||
| 58173D - BRACKET, COMPUTER MOUNTING, NO.4 | ||||
| 58173-47010 |
ZVW41 |
1 | ||
| 58176C - REINFORCEMENT, PARKING BRAKE BASE, NO.2 | ||||
| 58176-12020 |
ZVW41 |
1 | ||
| 58203F - BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING | ||||
| 58203-12070 |
ZVW41 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-47090 |
ZVW41 |
1 | ||
| 58239D - BRACKET, CABLE CLAMP | ||||
| 58239-47010 |
ZVW41 |
1 | ||
| 58249G - BRACKET, CABLE CLAMP, NO.2 | ||||
| 58249-47010 |
ZVW41 |
1 | ||
| 58251C - BRACE, FLOOR PANEL, FRONT RH | ||||
| 58251-12040 |
ZVW41 |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-12040 |
ZVW41 |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58302-47030 |
ZVW41 |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58303-47031 |
ZVW41 |
1 | ||
| 58314-47030 |
ZVW41 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-47080 |
ZVW41 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-47071 |
ZVW41 |
1 | ||
| 58311-47070 |
ZVW41 |
1 | ||
| 58318C - BRACKET, REAR FLOOR CROSSMEMBER | ||||
| 58318-47030 |
ZVW41 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-72010 |
ZVW41 |
1 | ||
| 58325-47040 |
ZVW41 |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12090 |
ZVW41 |
2 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12090 |
ZVW41 |
2 | ||
| 58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH | ||||
| 58341-47070 |
ZVW41 |
1 | ||
| 58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH | ||||
| 58342-47070 |
ZVW41 |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-12060 |
ZVW41 |
1 | ||
| 58383E - REINFORCEMENT, BODY LOWER BACK, NO.2 RH | ||||
| 58383-47020 |
ZVW41 |
1 | ||
| 58384G - GUSSET, LOWER BACK, UPPER RH | ||||
| 58384-47030 |
ZVW41 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-74010 |
ZVW41 |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-74010 |
ZVW41 |
2 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90115-06281 | ||||
| 90119-10943 | ||||
| 90119-10945 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6708 | ||||
