ZVW41L-AXXEBA (2011)
Toyota Prius V

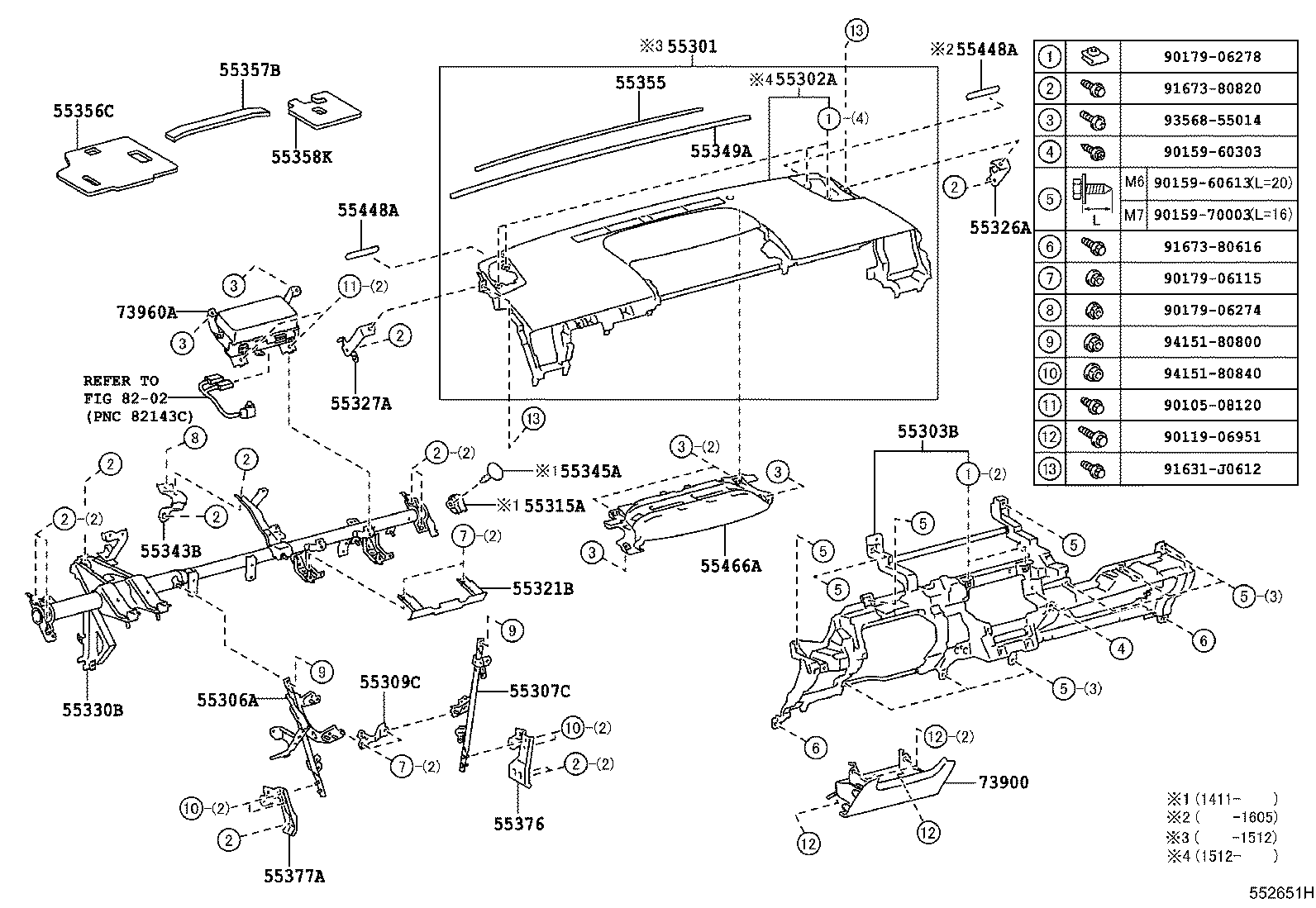

ILLUST NO. 1 OF 2(1109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-47120C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-47060E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55303-47060G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55303-47060B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-47091 |
ZVW41 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-47040 |
ZVW41 |
1 | ||
| 55309C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55309-47020 |
ZVW41 |
1 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-47050 |
ZVW41 |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55326-47050 |
ZVW41 |
1 | ||
| 55327A - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55327-47070 |
ZVW41 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-47132 |
ZVW41 |
1 | ||
| 55330-47131 |
ZVW41 |
1 | ||
| 55330-47133 |
ZVW41 |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-47030 |
ZVW41 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-47070 |
ZVW41 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-47040 |
ZVW41 |
1 | ||
| 55355-47080 |
ZVW41 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-47060 |
ZVW41 |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-47080 |
ZVW41 |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-47070 |
ZVW41 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-47050 |
ZVW41 |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-47040 |
ZVW41 |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-47080 |
ZVW41 |
2 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-47080 |
ZVW41 |
2 | ||
| 55466A - RETAINER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55466-47040 |
ZVW41 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-47031B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 73900-47031E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 73900-47031G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-47090 |
ZVW41 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06951 | ||||
| 90159-60303 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 91631-J0612 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| 94151-80840 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(1109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55044B - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55044-47080G1 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55044-47080E1 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55044-47080B1 |
ZVW41 GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12030 |
ZVW41 |
1 | ||
| 55054-47010 |
ZVW41 |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-47030 |
ZVW41 |
1 | ||
| 55061-47031 |
ZVW41 |
1 | ||
| 55061A - REGISTER SUB-ASSY, INSTRUMENT PANEL | ||||
| 55061-47060 |
ZVW41 |
1 | ||
| 55061-47061 |
ZVW41 |
1 | ||
| 55061A - REGISTER SUB-ASSY, INSTRUMENT PANEL | ||||
| 55061-47060 |
ZVW41 |
1 | ||
| 55061-47061 |
ZVW41 |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-47030B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55062-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55062-47031E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55062-47031G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55062-47031B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55062-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-10203 |
ZVW41 |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-47040 |
ZVW41 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-47110 |
ZVW41 |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90468-05135 |
ZVW41 |
2 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90468-05135 |
ZVW41 |
2 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-47040C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-47040C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 55412A - CLIP, PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 90467-11091 |
ZVW41 |
3 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-47050 |
ZVW41 |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-47050E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55431-47050G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55431-47050B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-47080B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55432-47080E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55432-47080G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 90467-10203 |
ZVW41 |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55435-47030B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55435-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-47030B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55436-47030G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55436-47030E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-47020G1 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55440-47020B1 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55440-47020E1 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55441B - CUSHION, INSTRUMENT PANEL BOX | ||||
| 58959-60060 |
ZVW41 |
2 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-47070 |
ZVW41 |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55459-47010E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55459-47010B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55459-47020E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55459-47020G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55459-47010G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55459-47020B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
ZVW41 |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-47050G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55480-47051E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55480-47050E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55480-47051B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55480-47050B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55480-47051G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ZVW41 LUXURY PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK |
1 | ||
| 55539-28160C0 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK |
1 | ||
| 55539-28160C0 |
ZVW41 BLACK |
1 | ||
| 55539-28160C0 |
ZVW41 LX-TOURING PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK |
1 | ||
| 55539-28160C0 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK |
1 | ||
| 55539-47070 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 55539-47070 |
ZVW41 LX-TOURING PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 55539-47070 |
ZVW41 |
1 | ||
| 55539-47070 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 55539-47070 |
ZVW41 LUXURY PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 55539-28160C0 |
ZVW41 HEADLAMP-LED,BLACK |
1 | ||
| 55539-47070 |
ZVW41 VEHICLE APPROACH NOTICE-WITH |
1 | ||
| 55539-47070 |
ZVW41 HEADLAMP-LED |
1 | ||
| 55539-28160C0 |
ZVW41 VEHICLE APPROACH NOTICE-WITH,BLACK |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-28160C0 |
ZVW41 BLACK |
1 | ||
| 55539-28160C0 |
ZVW41 SEAT COVER MATERIAL-LEATHER,BLACK |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55548-47040C0 |
ZVW41 BLACK,TRIM1#,4#,6# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-47111B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55550-47111G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55550-47121B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55550-47111E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55550-47121G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55550-47121E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZVW41 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZVW41 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-47040 |
ZVW41 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-47060 |
ZVW41 |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-47071G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55620-47052E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55620-47052B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55620-47071B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55620-47070B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55620-47071E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55620-47070G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55620-47052G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55620-47070E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55650B - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-47140 |
ZVW41 |
1 | ||
| 55652 - REGISTER, INSTRUMENT PANEL, NO.2 | ||||
| 55061-47051 |
ZVW41 |
1 | ||
| 55061-47050 |
ZVW41 |
1 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-47120B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55661-47120G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55661-47120E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55662A - BEZEL, INSTRUMENT PANEL RESISTER, NO.2 | ||||
| 55661-47100G0 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 55661-47100B0 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 55661-47100E0 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-47100 |
ZVW41 |
1 | ||
| 55670-47101 |
ZVW41 |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-47100 |
ZVW41 |
1 | ||
| 55670-47101 |
ZVW41 |
1 | ||
| 55686 - RETAINER, REGISTER BLADE | ||||
| 55687-47060B0 |
ZVW41 MD.GRAY,TRIM1#,DRIVER SIDE |
1 | ||
| 55687-47080E0 |
ZVW41 GREGE,TRIM4#,PASSENGER SIDE |
1 | ||
| 55687-47080G0 |
ZVW41 AQUA,TRIM6#,PASSENGER SIDE |
1 | ||
| 55687-47080B0 |
ZVW41 MD.GRAY,TRIM1#,PASSENGER SIDE |
1 | ||
| 55687-47060E0 |
ZVW41 GREGE,TRIM4#,DRIVER SIDE |
1 | ||
| 55687-47060G0 |
ZVW41 AQUA,TRIM6#,DRIVER SIDE |
1 | ||
| 55686 - RETAINER, REGISTER BLADE | ||||
| 55687-47060B0 |
ZVW41 MD.GRAY,TRIM1#,DRIVER SIDE |
1 | ||
| 55687-47080E0 |
ZVW41 GREGE,TRIM4#,PASSENGER SIDE |
1 | ||
| 55687-47080G0 |
ZVW41 AQUA,TRIM6#,PASSENGER SIDE |
1 | ||
| 55687-47080B0 |
ZVW41 MD.GRAY,TRIM1#,PASSENGER SIDE |
1 | ||
| 55687-47060E0 |
ZVW41 GREGE,TRIM4#,DRIVER SIDE |
1 | ||
| 55687-47060G0 |
ZVW41 AQUA,TRIM6#,DRIVER SIDE |
1 | ||
| Common parts | ||||
| 93560-14012 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
