ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

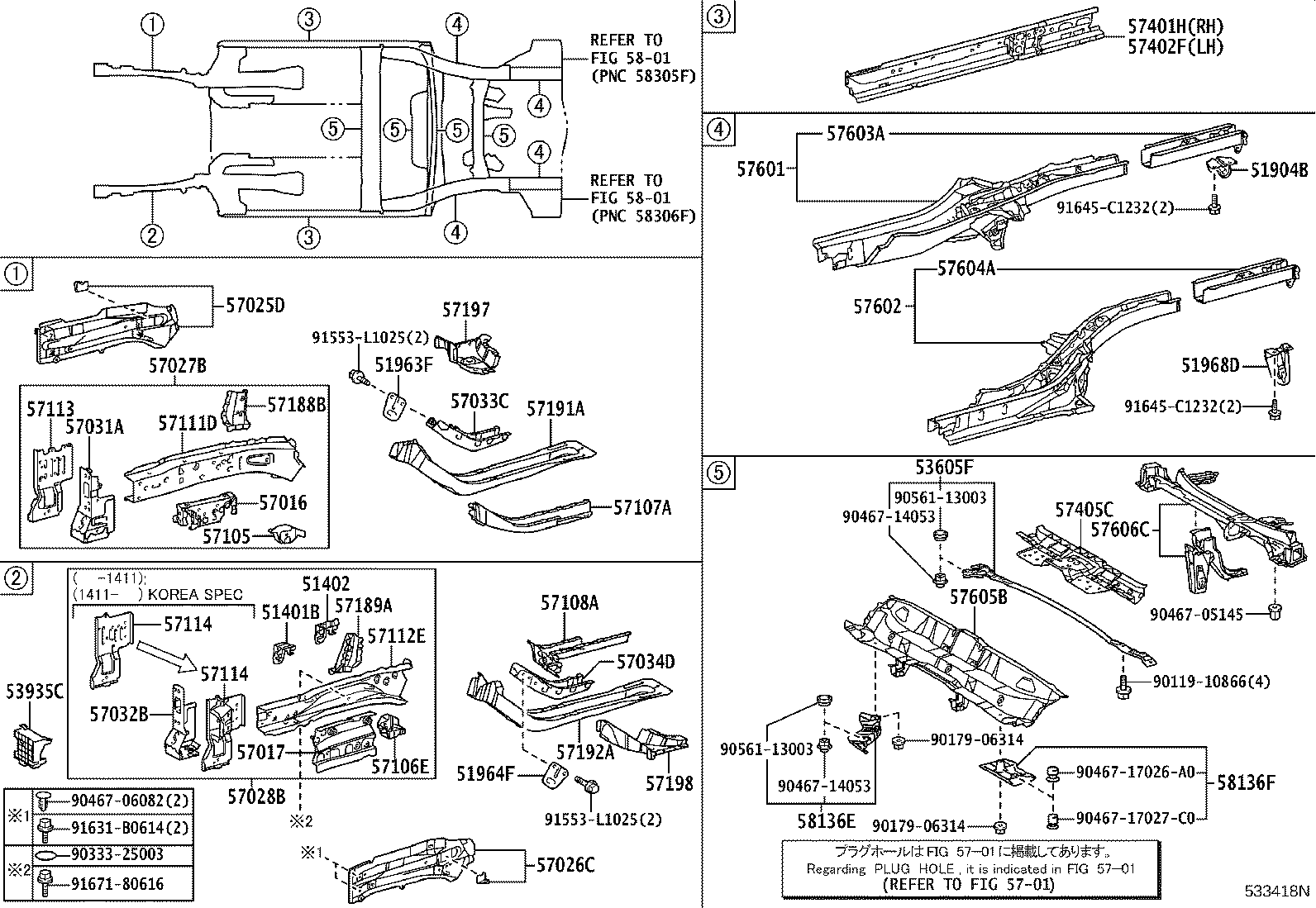

Click highlighted areas on diagram

diagram 51401B 51402 51904B 51963F 51964F 51968D 53605F 53935C 5701 57016 57017 57025D 57026C 57027B 57028B 57031A 57032B 57033C 57034D 57105 57106E 57107A 57108A 57111D 57112E 57113 57114 57114 57188B 57189A 57191A 57192A 57197 57198 57401H 57402F 57405C 57601 57602 57603A 57604A 57605B 57606C 5801 5801 58136E 58136F 9011910866 9017906314 9017906314 9033325003 9046705145 9046706082 9046714053 9046714053 9046717026A0 9046717027C0 9056113003 9056113003 91553L1025 91553L1025 91631B0614 91645C1232 91645C1232 9167180616
Part # Description Qty Price
51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING
51401-12020

ZVW41

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-12020

ZVW41

 1
51904B - HANGER SUB-ASSY, EXHAUST PIPE, NO.4
51904-47010

ZVW41

 1
51963F - HOOK, TRANSPORT
51963-12250

ZVW41

 1
51964F - HOOK, TRANSPORT, LH
51964-12040

ZVW41

 1
51968D - HOOK, TRANSPORT, REAR LH
51968-12180

ZVW41

 1
53605F - BRACE SUB-ASSY, REAR SUSPENSION
53605-47021

ZVW41

 1
53605-47020

ZVW41

 1
53935C - PROTECTOR, FRONT END PANEL
53935-47010

ZVW41

 1
57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-12110

ZVW41

 1
57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-12070

ZVW41

 1
57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57025-12010

ZVW41

 1
57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57026-12020

ZVW41

 1
57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH
57027-12010

ZVW41

 1
57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH
57028-12020

ZVW41

 1
57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57031-12010

ZVW41

 1
57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57032-12010

ZVW41

 1
57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH
57033-12010

ZVW41

 1
57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH
57034-12010

ZVW41

 1
57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57105-12160

ZVW41

 1
57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57106-12150

ZVW41

 1
57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57107-12120

ZVW41

 1
57108A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57108-12140

ZVW41

 1
57111D - MEMBER, FRONT SIDE, INNER RH
57111-12230

ZVW41

 1
57112E - MEMBER, FRONT SIDE, INNER LH
57112-12190

ZVW41

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-12220

ZVW41

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-12191

ZVW41

 1
57114-12190

ZVW41

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-12191

ZVW41

 1
57114-12190

ZVW41

 1
57188B - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH
57188-12030

ZVW41

 1
57189A - GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH
57189-12010

ZVW41

 1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57191-12070

ZVW41

 1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57192-12060

ZVW41

 1
57197 - BOX, TORQUE, FRONT RH
57197-12040

ZVW41

 1
57198 - BOX, TORQUE, FRONT LH
57198-12040

ZVW41

 1
57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-72010

ZVW41

 1
57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-72010

ZVW41

 1
57405C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
57405-72011

ZVW41

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-47900

ZVW41

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-47900

ZVW41

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57603-47050

ZVW41

 1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57604-47050

ZVW41

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-47070

ZVW41

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-47061

ZVW41

 1
58136E - COVER, FRONT SIDE MEMBER
58167-47040

ZVW41

 1
58136F - COVER, FRONT SIDE MEMBER
58168-72010

ZVW41

 1
Common parts
90119-10866
90179-06314
90333-25003
90467-05145
90467-06082
90467-14053
90467-17026A0
90467-17027C0
90561-13003
91553-L1025
91631-B0614
91645-C1232
91671-80616
Linked diagrams
5701
5801
