ZVW41L-AXXEBA (2011)
Toyota Prius V
Production
Sep 2011
-
Nov 2014
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1109- )

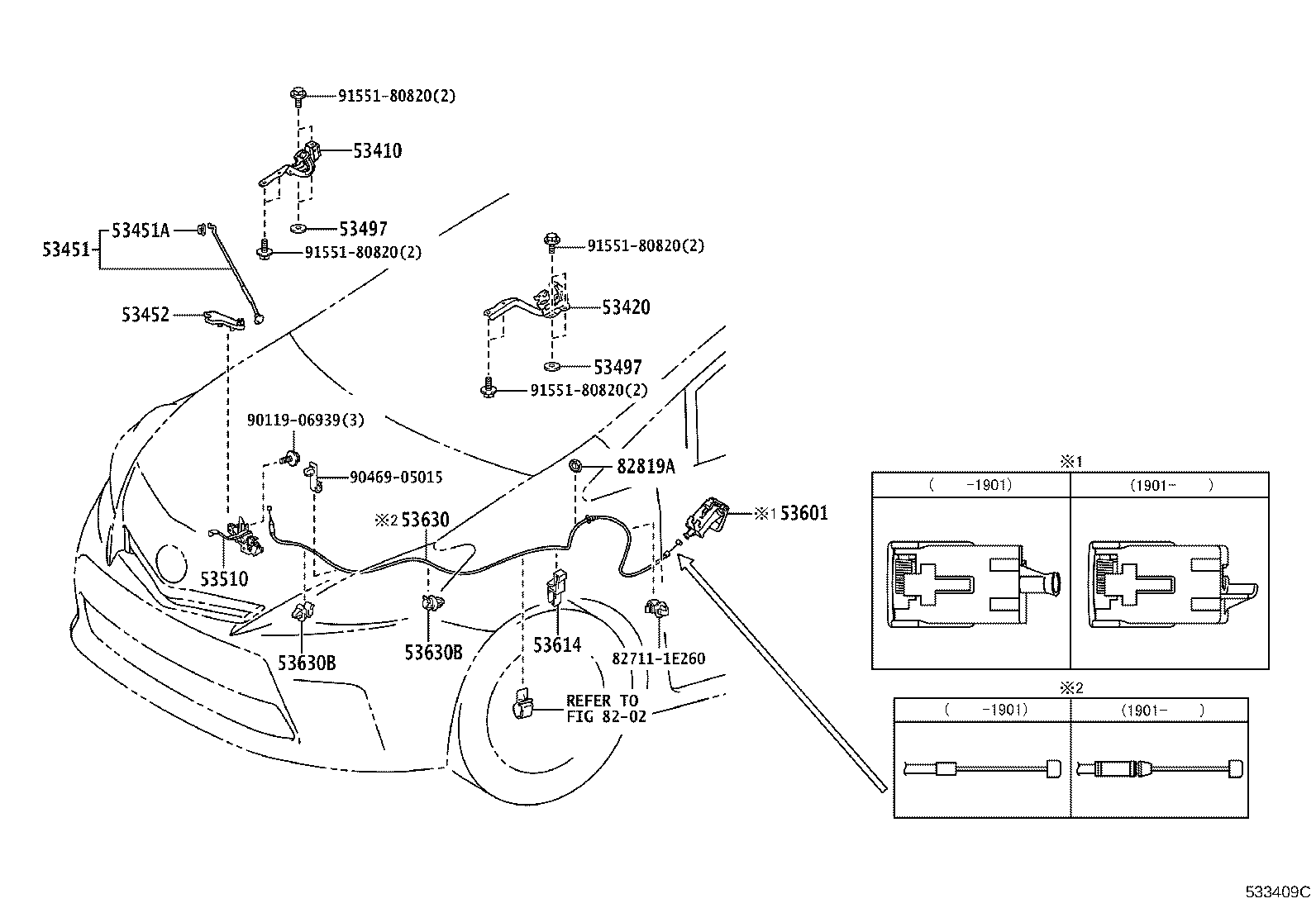

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-47100 |
ZVW41 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-47100 |
ZVW41 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-47040 |
ZVW41 |
1 | ||
| 53440-47042 |
ZVW41 |
1 | ||
| 53440-47041 |
ZVW41 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15034 |
ZVW41 |
1 | ||
| 90480-15025 |
ZVW41 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-47020 |
ZVW41 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ZVW41 T=0.5 |
4 | ||
| 53497-20070 |
ZVW41 T=2.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ZVW41 T=0.5 |
4 | ||
| 53497-20070 |
ZVW41 T=2.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-47110 |
ZVW41 |
1 | ||
| 53510-47111 |
ZVW41 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010B6 |
ZVW41 MD.GRAY,TRIM1# |
1 | ||
| 53601-52010G1 |
ZVW41 AQUA,TRIM6# |
1 | ||
| 53601-52010E4 |
ZVW41 GREGE,TRIM4# |
1 | ||
| 53614 - CLAMP, HOOD LOCK CONTROL CABLE | ||||
| 53614-47030 |
ZVW41 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-47070 |
ZVW41 |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
ZVW41 |
2 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
ZVW41 |
2 | ||
| 82819A - GROMMET, WIRE | ||||
| 82817-1A810 |
ZVW41 |
2 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 90119-06939 | ||||
| 90469-05015 | ||||
| 91551-80820 | ||||
| Linked diagrams | ||||
| 8202 | ||||
