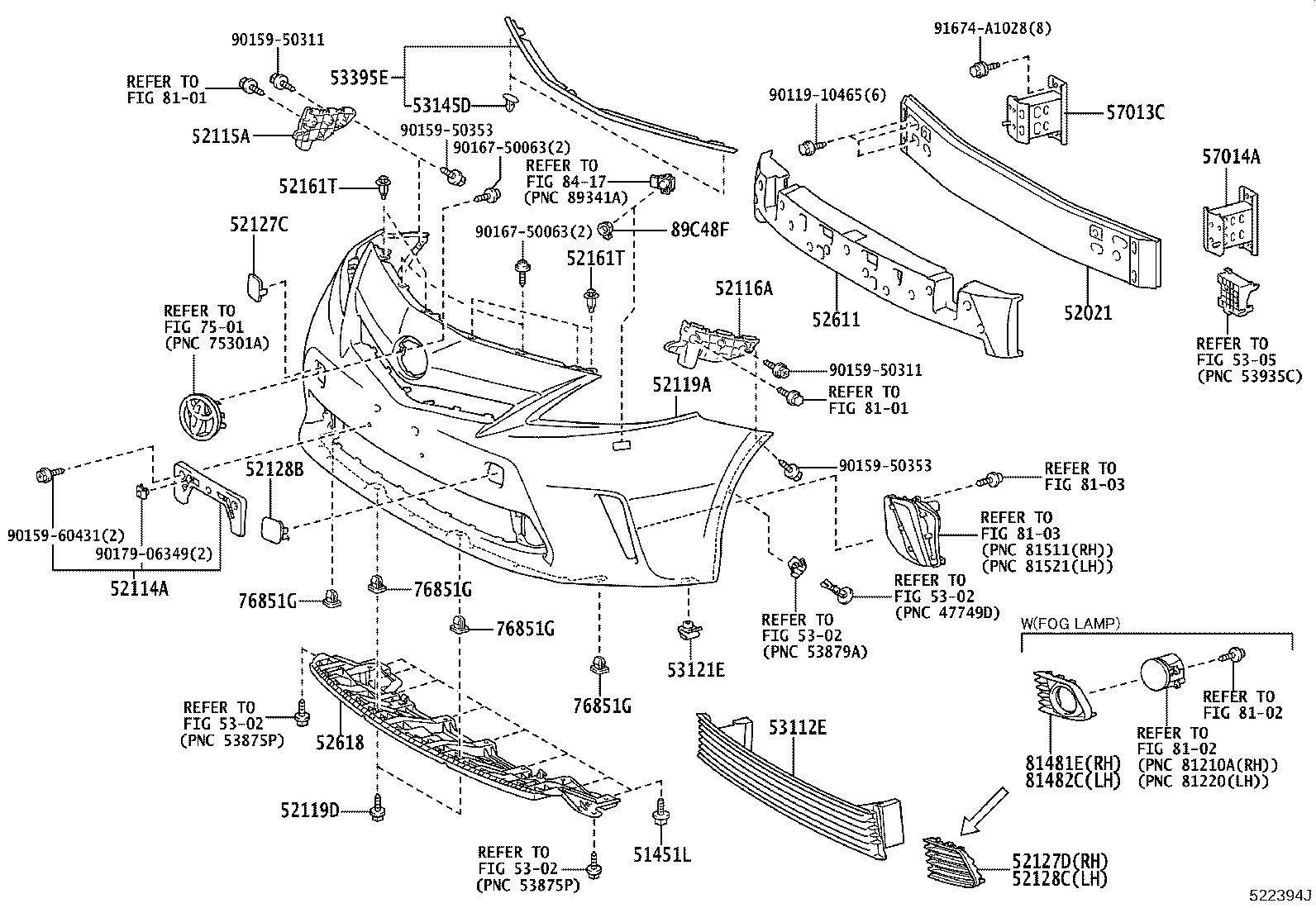

ZVW41L-AXXEBA (2011)
Toyota Prius V
(1109-1411)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-06767 |
ZVW41 |
8 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-47050 |
ZVW41..USA |
1 | ||
| 52021-47060 |
ZVW41..USA |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-47100 |
ZVW41 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-47030 |
ZVW41 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-47030 |
ZVW41 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-47924 |
ZVW41 PAINT REQ.,LX-TOURING PACKAGE&HEADLAMP-LED&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 52119-47924 |
ZVW41..USA PAINT REQ.,LX-TOURING PACKAGE&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 52119-47923 |
ZVW41 PAINT REQ. |
1 | ||
| 52119-47926 |
ZVW41 PAINT REQ.,LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 52119-47924 |
ZVW41 PAINT REQ.,LX-TOURING PACKAGE&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 52119-47924 |
ZVW41..USA PAINT REQ.,LX-TOURING PACKAGE&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 52119-47925 |
ZVW41 PAINT REQ.,LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 52119-47926 |
ZVW41..USA PAINT REQ.,LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 52119-47925 |
ZVW41..USA PAINT REQ.,LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
ZVW41 |
2 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-47902 |
ZVW41 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-47050 |
ZVW41 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-47902 |
ZVW41 |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 81482-47050 |
ZVW41 |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZVW41 |
6 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZVW41 |
6 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-47070 |
ZVW41 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-47040 |
ZVW41 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-47050 |
ZVW41 NO PAINT REQ. |
1 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90467-05114 |
ZVW41 |
2 | ||
| 53145D - CLIP, RADIATOR GRILLE | ||||
| 53145-60030 |
ZVW41 |
2 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-47030 |
ZVW41 |
1 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-47030 |
ZVW41 |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-47030 |
ZVW41 |
1 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06193 |
ZVW41 |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06193 |
ZVW41 |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06193 |
ZVW41 |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06193 |
ZVW41 |
4 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52030-47010 |
ZVW41..USA LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 52030-47010 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 52030-47010 |
ZVW41..USA LX-TOURING PACKAGE&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 52030-47010 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 52030-47010 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 52030-47010 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 52030-47010 |
ZVW41..USA LX-TOURING PACKAGE&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL& 8SPEAKER & BLUETOOTH |
1 | ||
| 52030-47010 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 52040-47010 |
ZVW41..USA LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 52040-47010 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 52040-47010 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 52040-47010 |
ZVW41..USA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 52040-47010 |
ZVW41..USA LX-TOURING PACKAGE&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS) |
1 | ||
| 52040-47010 |
ZVW41..USA LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 52040-47010 |
ZVW41..USA LX-TOURING PACKAGE&HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH&AUDIO-AVN & JBL& 8SPEAKER & BLUETOOTH |
1 | ||
| 52040-47010 |
ZVW41 LX-TOURING PACKAGE&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH |
1 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-12010A0 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,SUPER WHITE 2,040 |
2 | ||
| 89348-12010B0 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,SILVER ME.,1F7 |
2 | ||
| 89348-12010C1 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK,202 |
2 | ||
| 89348-12010A1 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,WHITE PEARL CS.,070 |
2 | ||
| 89348-12010A0 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,SUPER WHITE 2,040 |
2 | ||
| 89348-12010D0 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,RED M.M.,3R3 |
2 | ||
| 89348-12010J3 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,DK.BLUE MC.,8T5 |
2 | ||
| 89348-12010J3 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,DK.BLUE MC.,8T5 |
2 | ||
| 89348-12010B1 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,GRAY ME.,1G3 |
2 | ||
| 89348-12010B1 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,GRAY ME.,1G3 |
2 | ||
| 89348-12010H1 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,FROSTY GREEN MC.,781 |
2 | ||
| 89348-12010A0 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,SUPER WHITE 2,040 |
2 | ||
| 89348-12010H5 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,CLEAR STREAM ME.,787 |
2 | ||
| 89348-12010H5 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,CLEAR STREAM ME.,787 |
2 | ||
| 89348-12010D0 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,RED M.M.,3R3 |
2 | ||
| 89348-12010C1 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK,202 |
2 | ||
| 89348-12010C1 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK,202 |
2 | ||
| 89348-12010B0 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,SILVER ME.,1F7 |
2 | ||
| 89348-12010A1 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,WHITE PEARL CS.,070 |
2 | ||
| 89348-12010H1 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,FROSTY GREEN MC.,781 |
2 | ||
| 89348-12010D0 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,RED M.M.,3R3 |
2 | ||
| 89348-12010A1 |
ZVW41 LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,WHITE PEARL CS.,070 |
2 | ||
| 89348-12010H5 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,CLEAR STREAM ME.,787 |
2 | ||
| 89348-12010B1 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,GRAY ME.,1G3 |
2 | ||
| 89348-12010J3 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,DK.BLUE MC.,8T5 |
2 | ||
| 89348-12010B0 |
ZVW41 LX-TOURING PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,SILVER ME.,1F7 |
2 | ||
| Common parts | ||||
| 90119-10465 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 5305 | ||||
| 7501 | ||||
| 8101 | ||||
| 8102 | ||||
| 8103 | ||||
| 8417 | ||||
