ZVW41L-AXXEBA (2011)

Toyota Prius V

Production Sep 2011 - Nov 2014
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

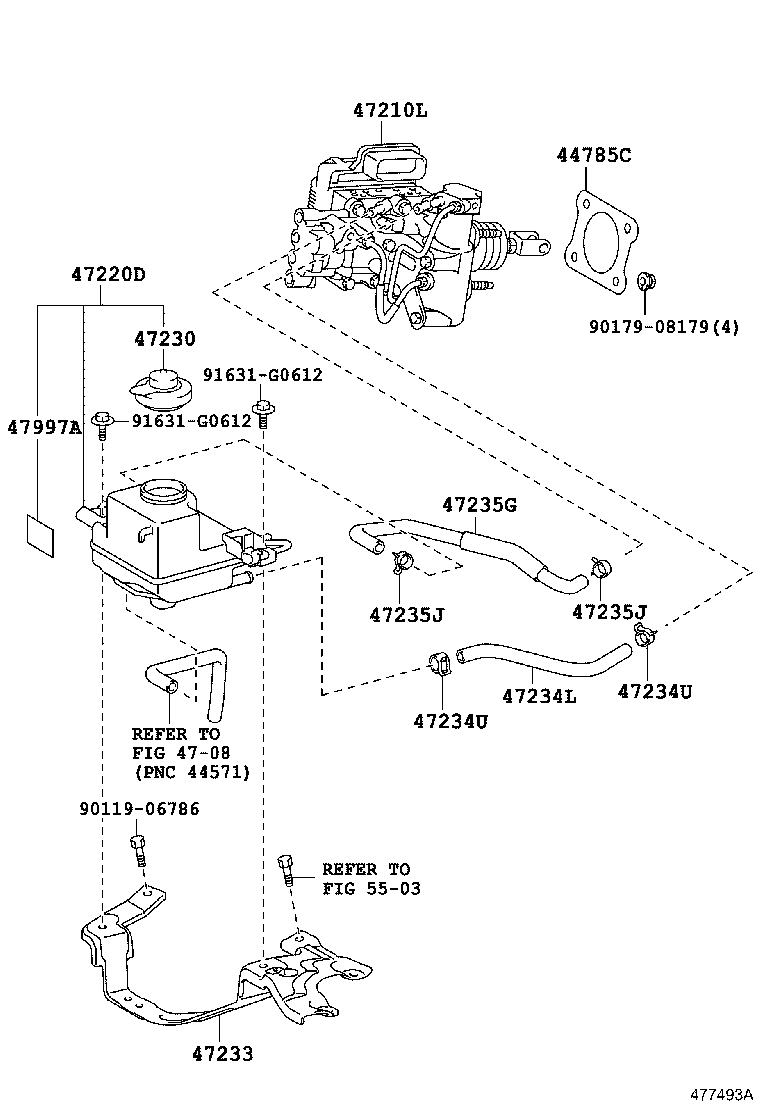

Click highlighted areas on diagram

diagram 44785C 4708 47210L 47220D 47230 47233 47234L 47234U 47234U 47235G 47235J 47235J 47997A 5503 9011906786 9017908179 91631G0612 91631G0612
Part # Description Qty Price
44785C - GASKET, BRAKE BOOSTER
44785-12040

ZVW41

 1
47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER
47050-47110

ZVW41

 1
47050-47260

ZVW41

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-47080

ZVW41

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20140

ZVW41

 1
47233 - BRACKET, RESERVOIR
47233-47050

ZVW41

 1
47234L - HOSE, RESERVOIR, NO.1
47234-47060

ZVW41

 1
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
96137-41501

ZVW41

 2
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
96137-41501

ZVW41

 2
47235G - HOSE, RESERVOIR, NO.2
47235-47060

ZVW41

 1
47235J - CLIP(FOR RESERVOIR HOSE NO.2)
96137-41501

ZVW41

 2
47235J - CLIP(FOR RESERVOIR HOSE NO.2)
96137-41501

ZVW41

 2
47997A - LABEL, ACCUMULATOR CAUTION, NO.1
47997-76010

ZVW41

 1
Common parts
90119-06786
90179-08179
91631-G0612
Linked diagrams
4708
5503
